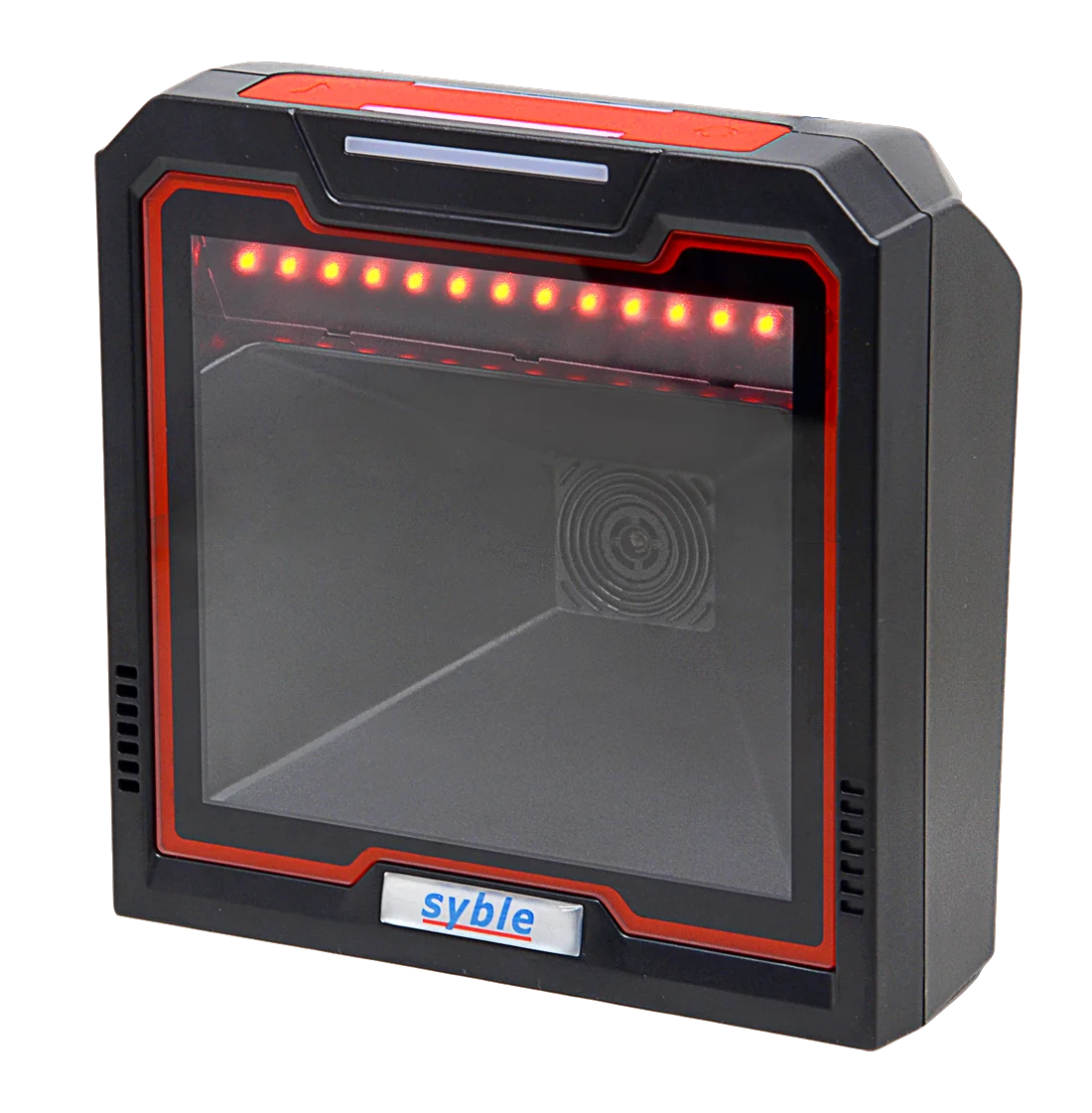

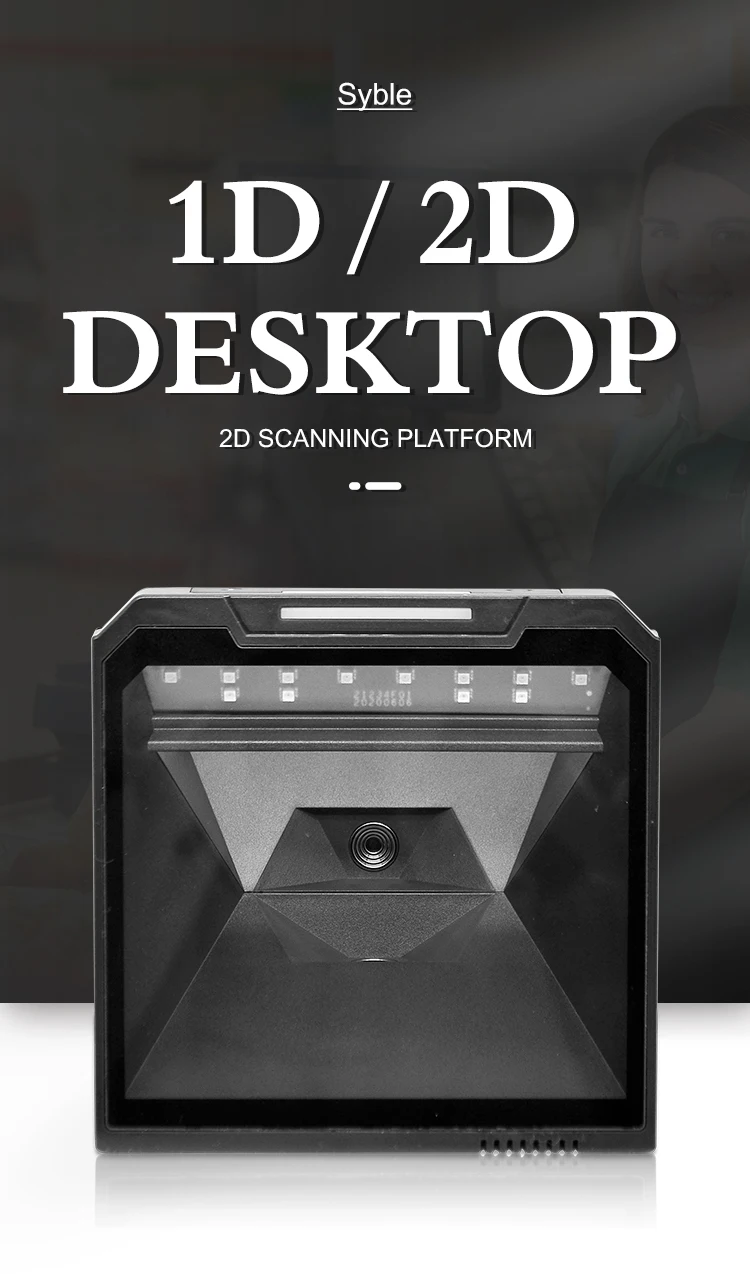

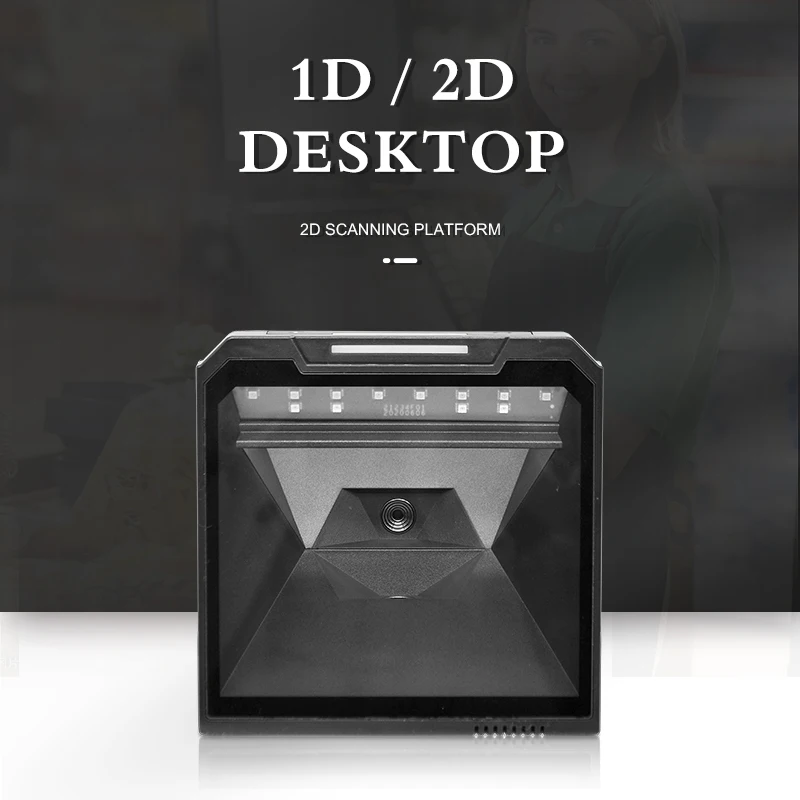

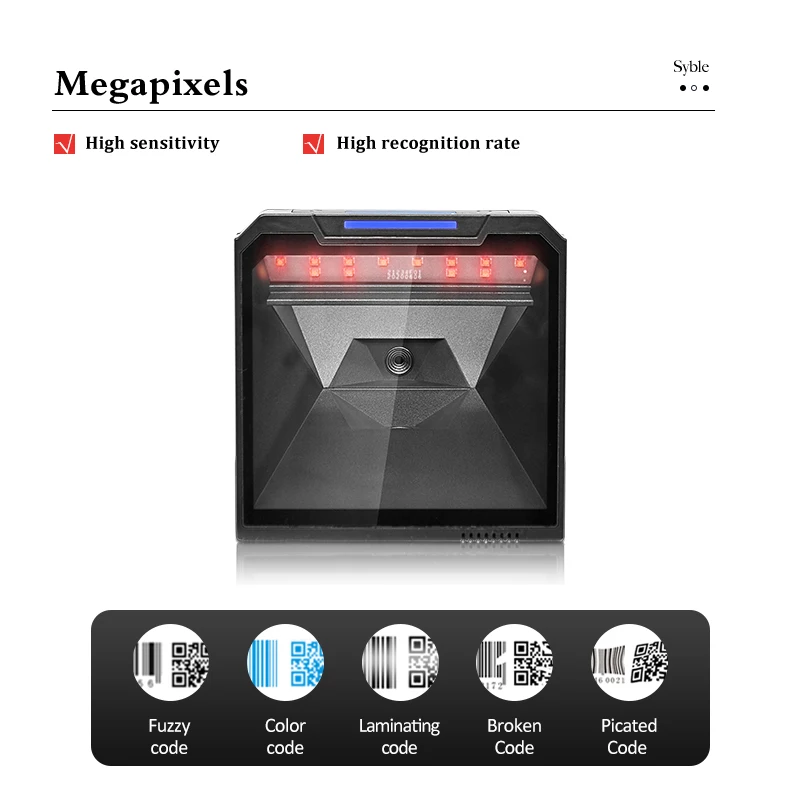

XB 8808H syble Всенаправленный сканер штрих кода 2D настольный громкой связи Bluetooth гарнитура для Авто

Model   Number

XB-8808H

Performance Parameters

Light Sources

SXGA-W(Width1280*high1024) Ratio(5:4)

Supported Symbologies

1D:EAN-8,EAN-13,EAN-13 2 add-on,EAN-13 5 add-on,ISSN,ISBN,UPC-A,UPC-E,Code11,Code 32,Code 39,Code 93,Code 128,Codabar,Industrial 2 of 5,Interleaved 2 of 5,Matrix 2 of 5,ISBT-128,GS1-128,GS1   DataBar(RSS14),GS1   DataBar Limited,GS1 DataBar Expanded.

2D:PDF417,MicroPDF417,QR-code,MicroQR,   Data Matrix,QR,Aztec.

Scan Range

5mil(Code39) 1cm~15cm; UPC-13mil   1cm~33cm; 20mil(code39) 1cm~40cm; 20mil(QR Code) 1cm~28cm

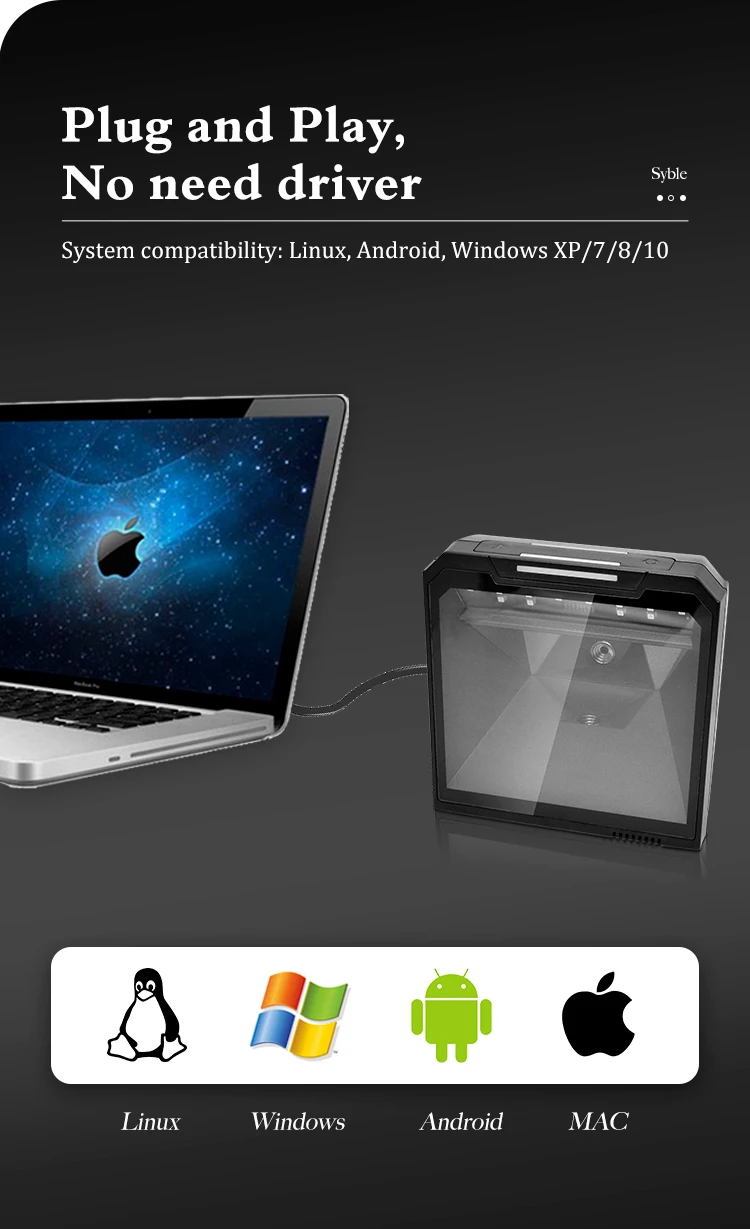

System compatibility

Linux,Android,Windows XP,7,8,10,MAC

Minimum recognition accuracy

Code 39 4mil

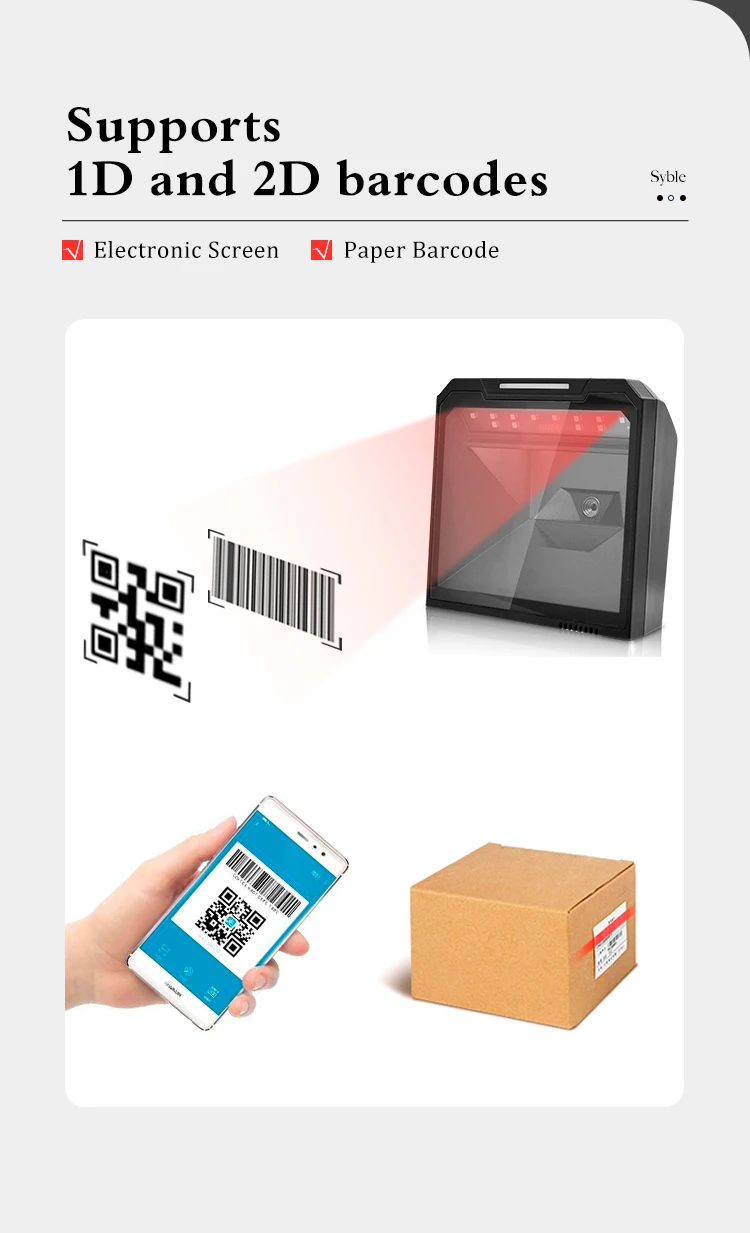

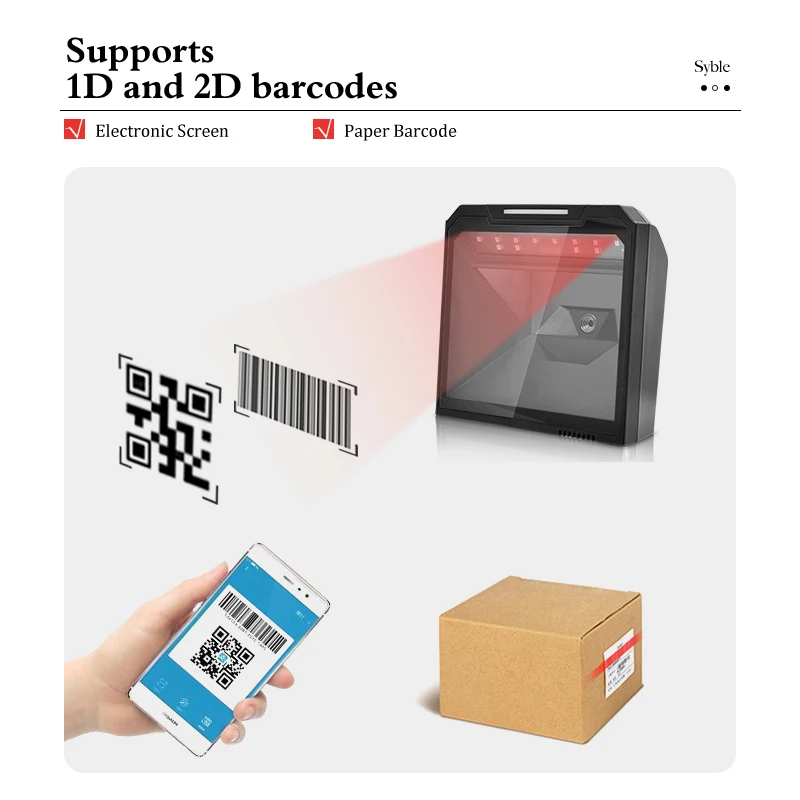

Barcode Type

1d or 2d barcodes for Paper or Film;1d and 2d for screen ,like Phone tablets

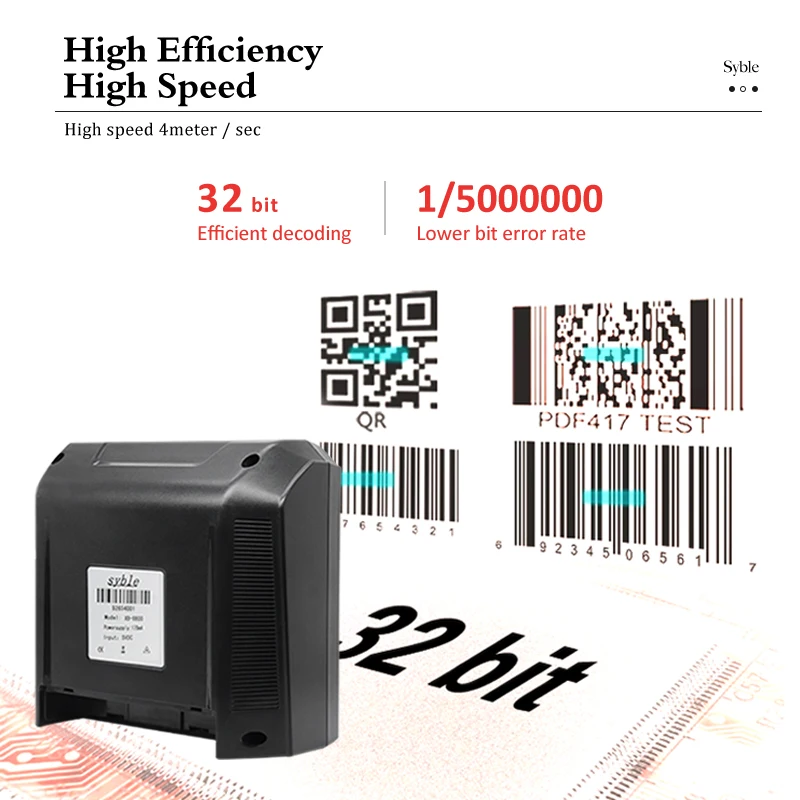

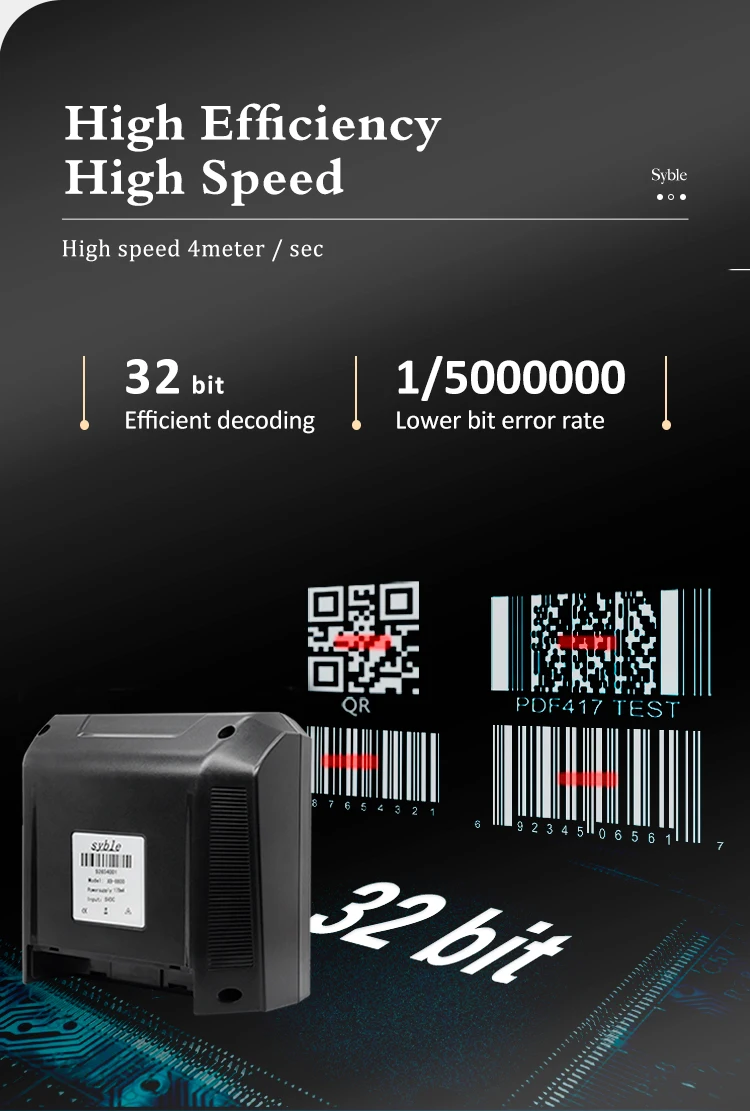

Motion tolerance

3.8meters/second

Scan Mode

Automatic continuous reading mode

Support Keyboard

Support Multi-Language

Barcode output editing

Support for adding suffixes

Print contrast

20%

Recognition angle range

Turn angle ±360°, elevation angle ±60°, declination angle ±70°

Mutual Move

Led: Red and blue bi-color indicator: red light reading code, blue light power indicator.

Beeper: Startup prompts, reading tips.

Keys (touch keys): Key Switch and 2d   barcodes.

Interfaces

USB(Drive - Free), RS232, USB-COM

Physical Parameters

Dimensions

152mm*82mm*152mm

Weight

497.1g

Material

ABS+PC

Cable Length

180CM(±3CM)

Environmental Parameters

Operating Temperature

-20℃~55℃

Storage Temperature

-20℃~60℃

Relative Humidity

5%~95% RH(non-condensing/non-freezing)

Shock Resistance:

Withstands three times1 . 5 meters drops to concrete

Waterproof and Dustproof

IP54 standard

Ambient Ligh

0-70000LUX

Electrical Parameters

Working Voltage

DC5V

Power

USB Interface: Standby Power 0.2mA/1W; Operating Power 0.33mA/1.65W

Maximun Operating Power 0.481mA/2.405W.

RS232 Interface: Standby Power 0.2mA/1W; Operating Power 0.33mA/1.65W;

Maximun Operating Power 0.484mA/2.42W
