XB 6208 Syble 1D/2D ручной проводной QR сканер штрих кода android КПК с

XB 6208 Syble 1D/2D ручной проводной QR сканер штрих кода android КПК с

Категория: >>>
Поставщик: Guangzhou Xunbao Electronics Technology Co. Ltd.

Цена:28,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

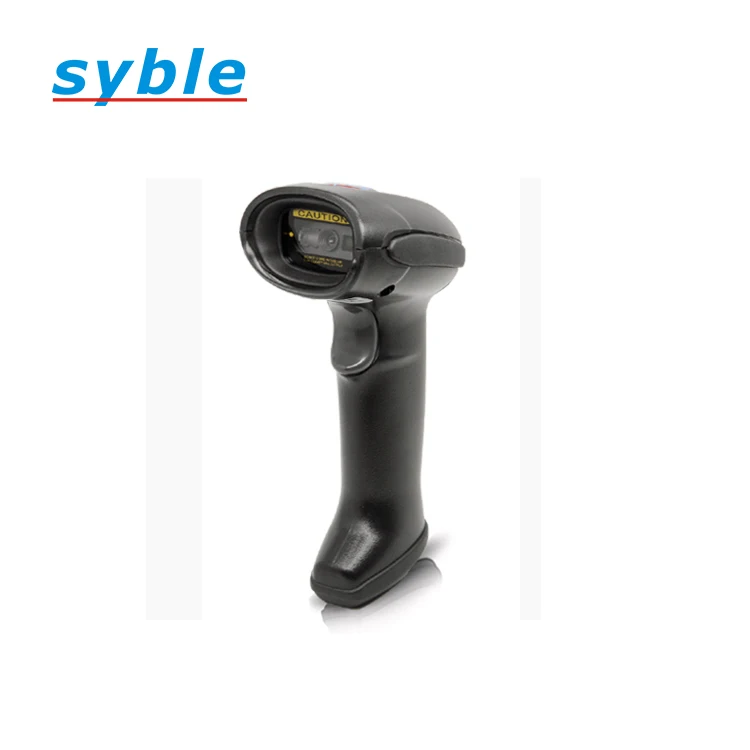

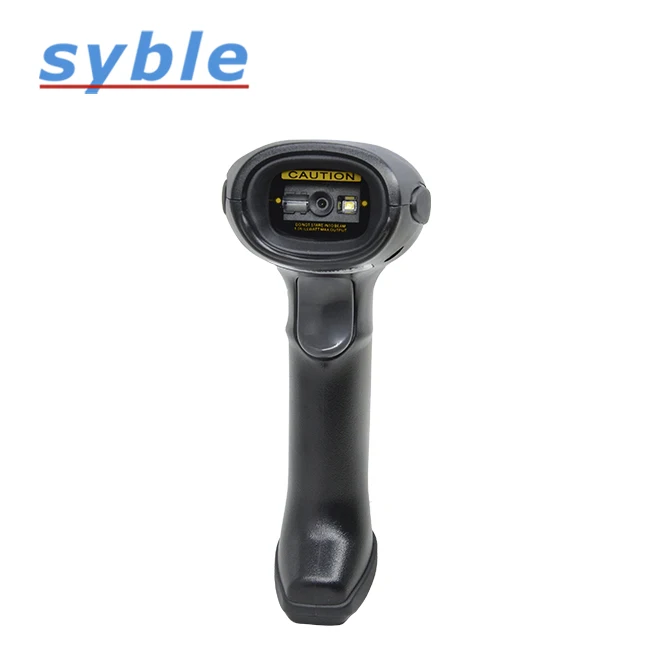

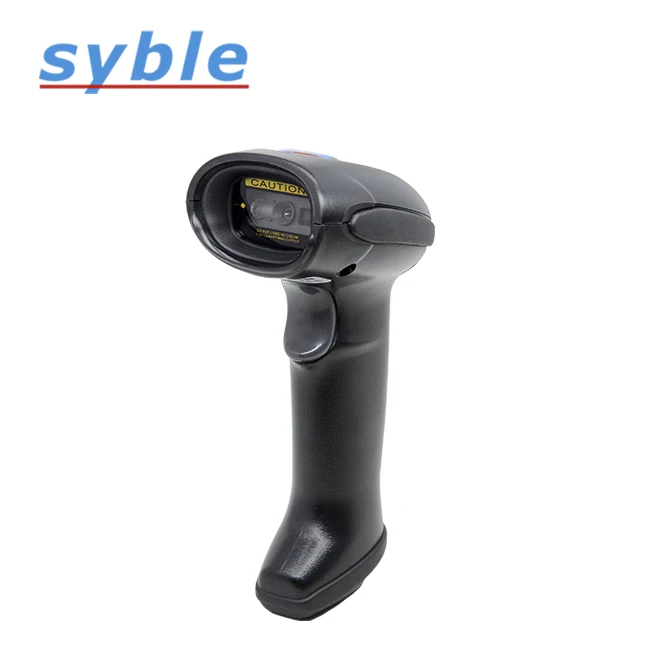

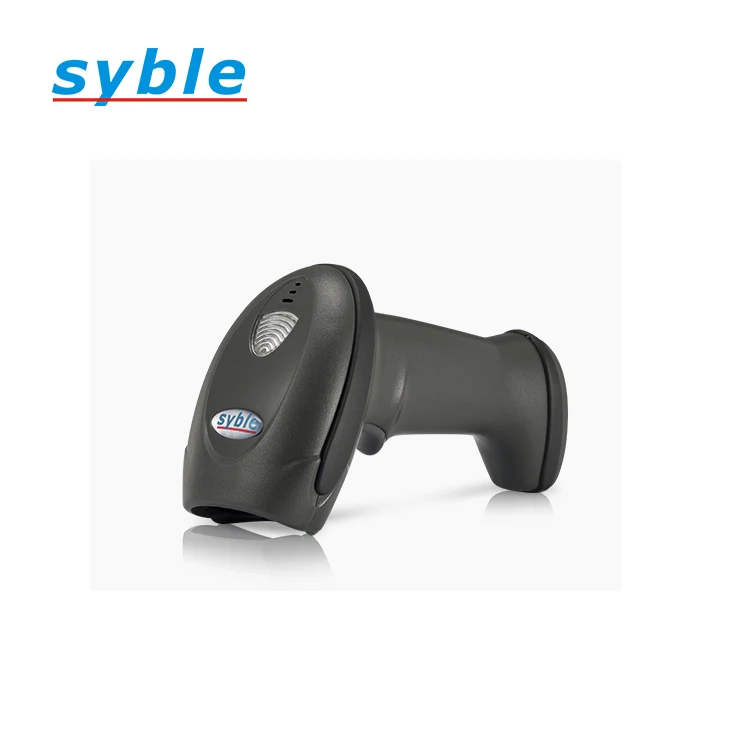

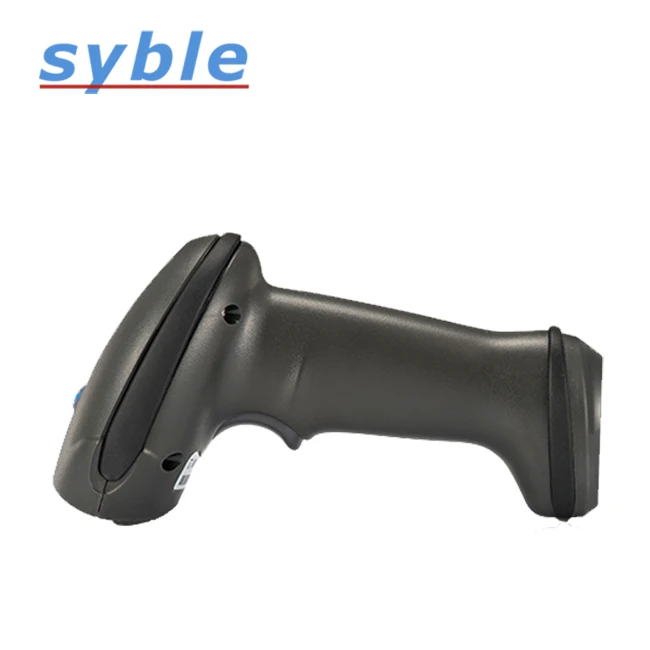

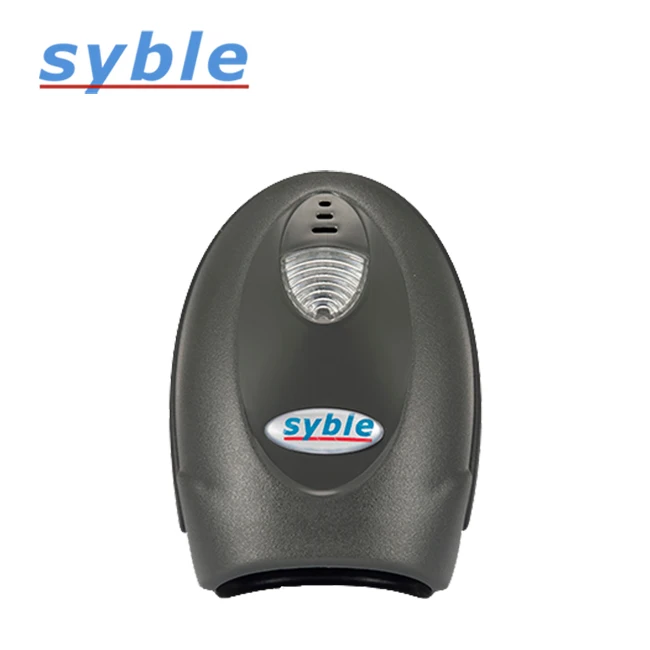

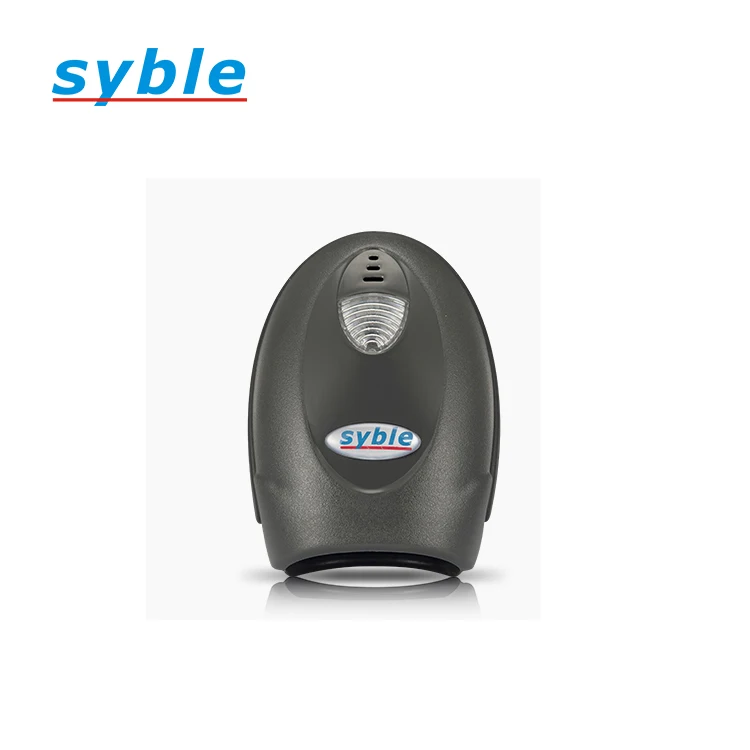

XB-6208 Syble 1D/2D Handheld Wired QR code Barcode Scanner android pda barcode scanner with USB

Model:XB-6208

Model Number	XB-6208
Performance Parameters
Light Sources	617nm LED Aimer,White LED
Supported Symbologies	1D:EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128,Codabar,Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN,MSI-Plessey,GS1 Databar,GS1 Composite Code,Code 11,Industrial 25,Standard 25,Plessey, Matrix 2 of 5. 2D:QR Code, Data Matrix, PDF417,Aztec, Maxicode,HanXin Code.
Scan Type	Image CMOS
Resolution	640*480
Scan Method	Manually/Contnuous/Automatic inductive scanning
Scan angle	Yaw ±55°, Rotation 360°, Pitch ±55°
Contrast	≥20%
Precision	≥5mil
Depth of scan field	EAN13 50-200MM(13MIL);QR 25-240MM(20MIL);PDF147 30-130MM(6.67MIL)
Error Rate	Less than 1/5 million
Interface	USB-HID,USB-COM,RS232
Physical Parameters
Dimensions	102mm71mm177mm
Weight	162.3g
Material	ABS+PC
Cable Length	2M
Environmental Parameters
Operating Temperature	-20℃~50℃
Storage Temperature	-40℃~70℃
Ambient lighting	0~100000LUX
Relative Humidity	5%~95%(Non-condensing)
Electrical Parameters
Voltage	DC5V±5%
Operating Current	170mA
Standby Current	USB 25mA; RS232 2uA

Product Feature

Features:

1. Fast and accurate in reading all 1D or 2D barcode codes.

2. Better read incomplete and fuzzy codes, very comfortable operation.

3. Self-developed decoder chip and high performance.

4. full quakeproof , water splash-proof, dustproof, antiknock design and EMI shielding.

5. Faster and accurate scanning, powerful decoding.

6. 32 bit CPU for encoding data.

Applications

* Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.

Advantages

1. Every inquiry is warmly welcomed and paid high attention. E-mails and inquiries are replied by professional and experienced sale team within 24hours.

2. OEM service & neutral packing are accepted even for small order.

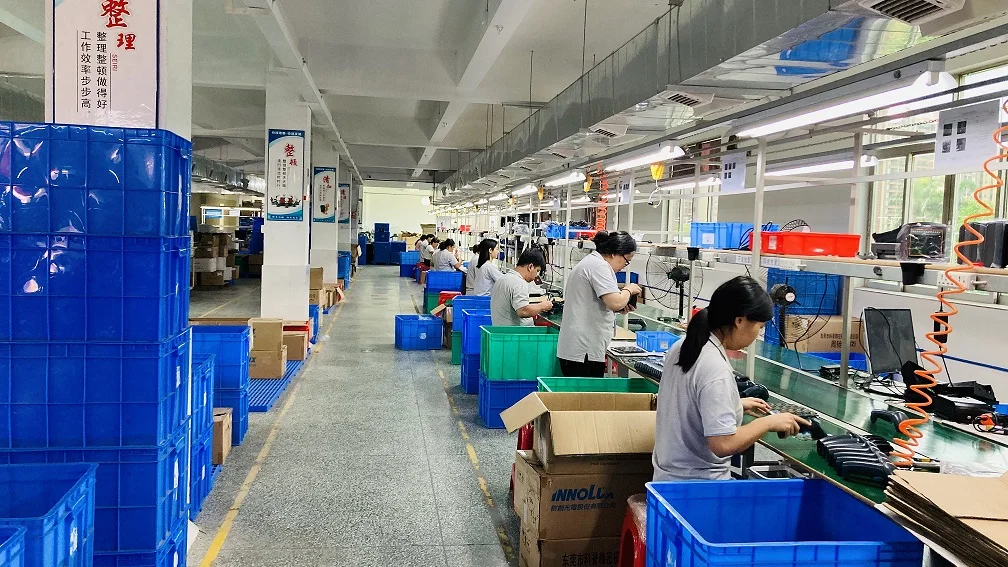

3. Every order is regarded as important. From inquiry to order, and from production to delivery, we spare no efforts on every detail carefully. Skillful and large production department makes sure the day of delivery. Every customer’s satisfaction is always the goal of our service.

qr 1d 2d Barcode scanner.png
