Tungsten Tube

Категория: Tungsten Pipes >>>
Поставщик: Baoji Seabird Metal Material Co. Ltd.

Цена:46 826,08 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

As a high performance material, Tungsten products have high melting temperature (3,422 °C, 6,192 °F), high density (19.25g/cm3), low vapor pressure (at temperatures above 1,650 °C, 3,000 °F), low thermal expansion combined with good thermal conductivity, sufficient electrical resistance and high modulus of elasticity. Whether the metal is shaped in disc or boat, or crucible, it will not change its density and high temperature resistance properties and mostly, the machining is done after sintering and/or forging. Wire cutting is using Ø0.18 molybdenum wire for the round outer circle or center hole.

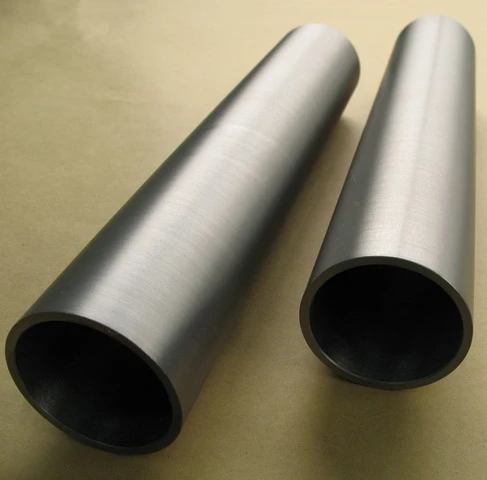

Tungsten Tube, also named wolfram tube is a main product of pure tungsten products, which is making with purity of 99.95%min. meanwhile, its density can be higher to 18.2g/cm3 for sintering and 19.2g/cm3 after swaging. With its high density, the product is widely used as shielding material. As for the material is also with tungsten properties, high melting point, high boiling point, high temperature resistance, corrosion resistance and low thermal expansion. The tube can be used as pipe in melting other metals.
Tungsten tube is making according to GB/T 4187-1984 in Chinese standard and international standard of ASTM F288-90. The physical and chemical properties can reach the attached parts as the basic standard.
The manufacturing process of the wolfram tube is using metallurgy: molding, sintering, swaging, grounding and inspection and packing.

Product Name	Tungsten Tube
Standard	GB/T 4187-1984, ASTM F288-90
Dimension	OD ≥ 3.0 mm, L ≤ 2000 mm
Purity	99.95% Min.
Surface Treatment	Grinding Polished
Operating Temperature	≤ 2500 Deg. Celsius
Density	18.2 g/cm3
Technology	Sintering
Features	High melting temperature; High strength; Good thermal conductivity and spalling resistance.

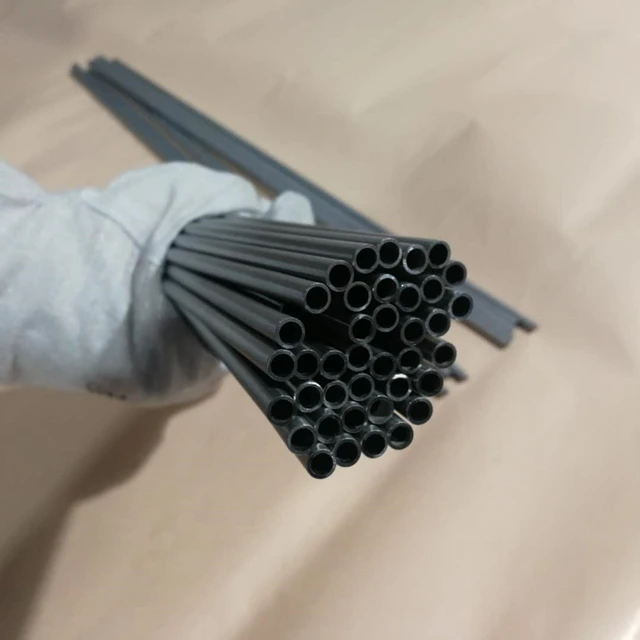

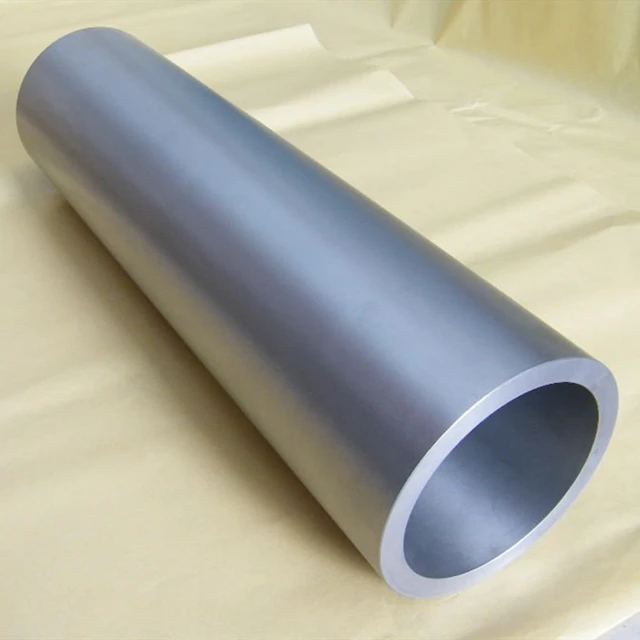

Products Show

Chemical Composition

Tungsten	Fe	Ca	P	Sn	Al	Ni	N	Sb
W1	0.001	0.001	0.001	0.0001	0.0001	0.00035	0.002	0.0001
Balance	Bi	Mo	Mg	C	Si	O	Pb	As
99.95%	0.0001	0.0008	0.0001	0.00085	0.001	0.0047	0.0001	0.0001

Applications

THERMOWELL

FURNACE PARTS

RADIATION SHIELDING

Pure tungsten products are widely used for furnace parts, semiconductor base plates, components for electron tubes, emission cathodes for electron beam evaporation, cathodes and anodes for ion implantation, tubes / boats for sintering of capacitors, targets for X-ray diagnostics, crucibles, heating elements, X-ray radiation shielding, sputtering targets and electrodes. Tungsten wire, plate, sheet, disc are popular types for the above application machining. Even though pure tungsten metal is brittle, but with years experience of machining, Chinatungsten can provide customized types for customized application.

NITINOL SHEET

THK ≥ 0.1 x 300 x 1000 mm

NITINOL WIRE

DIA ≥ 0.05 mm

NITINOL ROD

DIA ≥ 6.0 mm

NITINOL TUBE

OD ≥ 0.3 mm

NITINOL SPRINGS

DIA ≥ 0.2 mm

MOLYBDENUM TUBE

OD ≥ 3.0 mm

Our Company

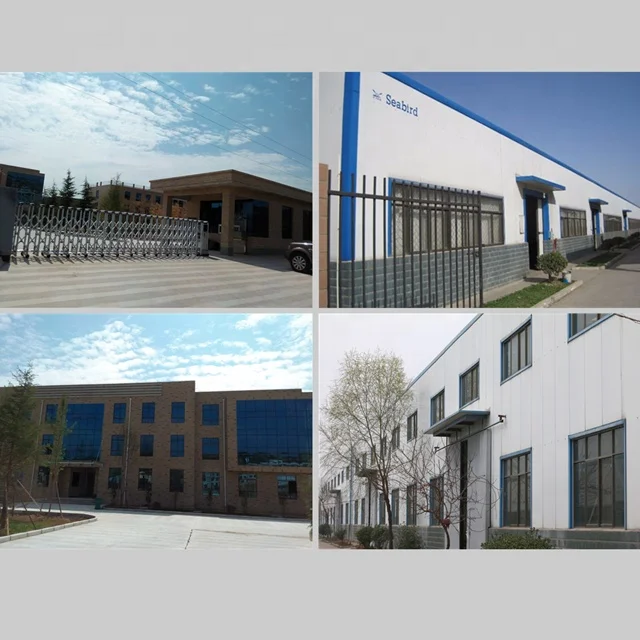

PLANTS

7 workshops occupied 21,000 m2. Our plant is near freeway, train station and airport.

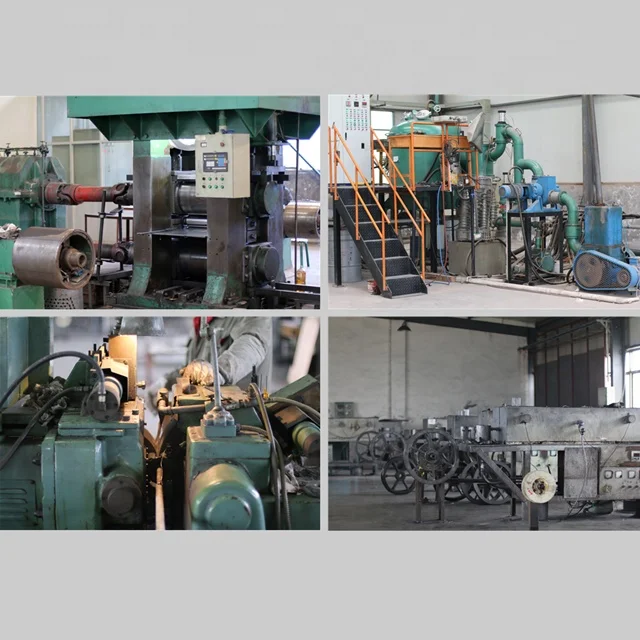

WORKSHOP

4 complete production lines, and two advanced facilities is undering erection.

OFFICE BIULDING

2 office buildings occupied 4,380 m2.

TEAM

72 employees are at your service sincerelly!

Packing & Delivery

Steel Pallet + Plywood Case
Fumigated Wooden Pallet
Plywood Case + Plastic/ Moistureproof Paper
Plywood Case + Vacuumed Plastic Bag
Carton + (Vacuumed) Plastic Bag

Transport by sea (Large Quantity)
Transport by air (Urgent Indent )
Transport by train (Asia and East Europe)
Transport by land (Russia, Middle Asia)
Transport by Express (FedEx, DHL, TNT, UPS etc.)

Our Certifications

Advantages

More than 16 years experience in the processing of nitinol, tungsten and molybdenum materials and products.
The complete production line makes us control the quality from beginning to finishing.
We have excellent research team that 5 engineers can always supply the exact solution for you.
The testing items we do covered all properties you like.
Customized sizes are available.

Customer Photo

Tungsten & Molybdenum Tube

Joe is from US. He is the scientist of tungsten and molybdenum materials. He signed the exclusive supplier contract with us after his visiting!
Now, he is one of our big customers who use our products in American market!

Tungsten Tubes for Furnace

Philippe is a friend from UK. He visited us for inspection of the order tungsten tubes. Congratulations that our products were 100% qualified.

Porous Tungsten as Emission Cathodes

Chandan is from India. He came to found materials for their new products development. And we supplied fine porous tungsten rod to them in last 2 years.

FAQ

Q: Are you a trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. It is 15-30 days to do new batch.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we can offer the samples for free and freight afforded by buyer.

Q: What is your terms of payment ?
A: T/T, L/C

For stocks, 100% in advance;

For futures delivery, 30% in advance, the balance before shipping.

Please don't hesitate to contac us if you like to know more. Thank you!

Key Words: Tungsten Tube
