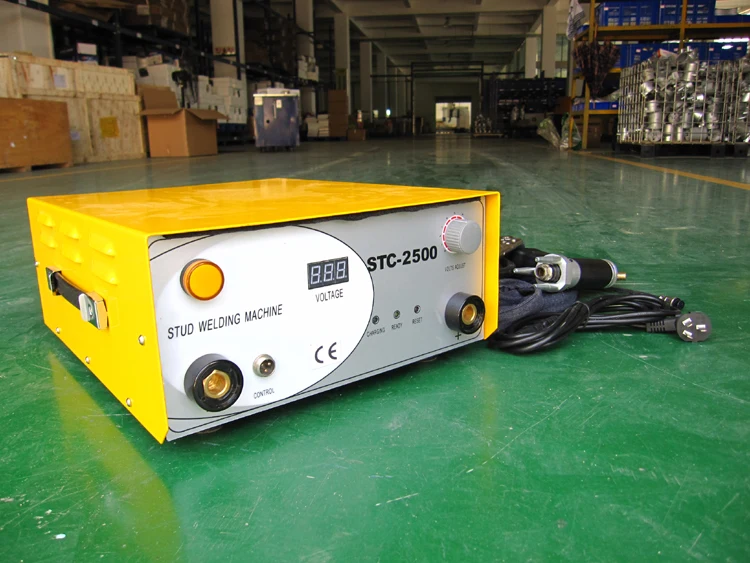

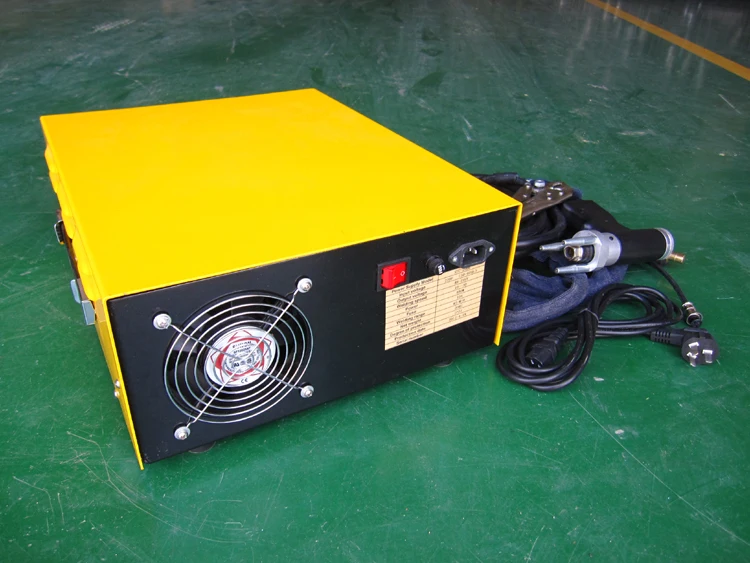

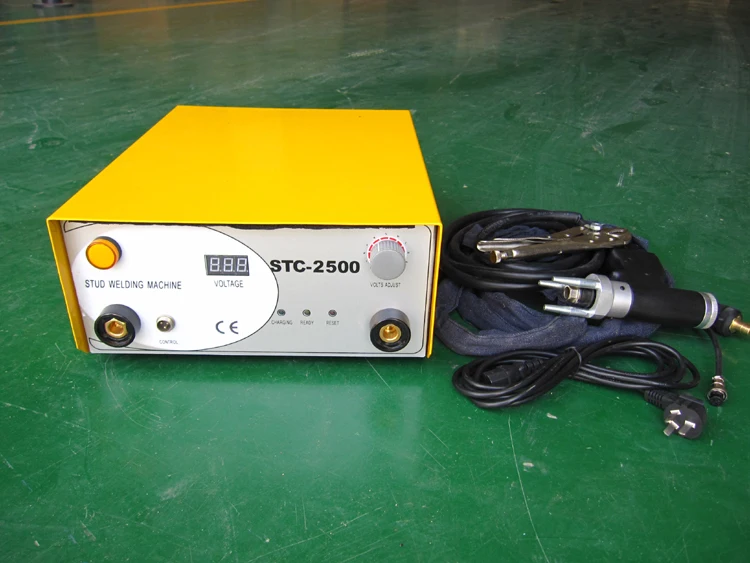

Сварочный аппарат/конденсаторный сварочный аппарат/винтовой аппарат хорошего качества STC2500

Описание и отзывы

Характеристики

Screw welding machine characteristic:

*  Machine adopts the latest PIC microcontroller program control technology, precise control capacitance working voltage;

*  Second-ranking main components configuration, the original import components, assure product performance;

*  Computer multivariate design interior structure itself, the platoon is reasonable, a small portable;

*  Second-ranking traces small, the welding deformation;

*  Second-ranking welding scope, suitable for welding of carbon steel, stainless steel, copper alloys, aluminum material;

* Time is short, the work itself charging high efficiency;

* Second-ranking screen shows working voltage, stepless adjustment, need not shut off the power always switch;

* Rate is very low, the host had average trouble-free use one million times above;

Operation is simple, convenient, had to learn;

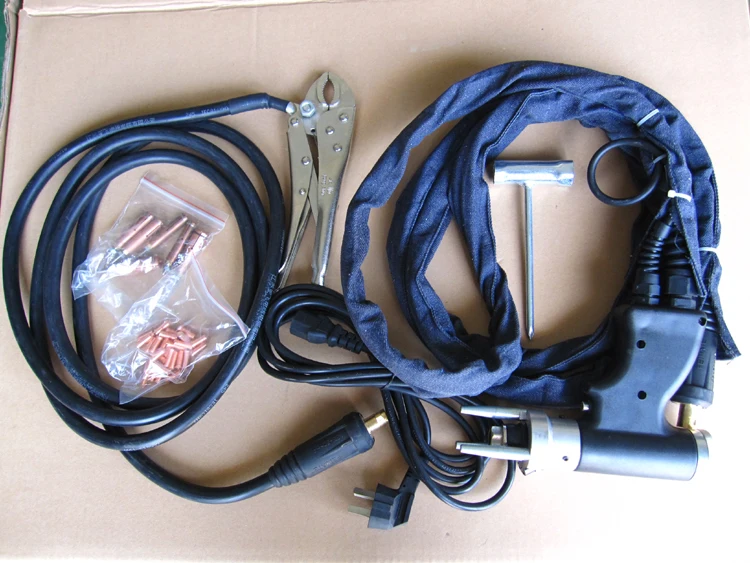

*  Welding torch choose imported from Germany itself to micromanage switch, life, it is the Lord 60 million times of capacitance life 1/3, Lord capacitance life 200 million times.

Technical Data:

Welding Current Output Way: aluminium electrolytic capacitor discharge


Capacity Type(μF): 132000


Power: 400W


Welding Speed(piece/min.): 15-30


Input Voltage(V): 220


Working Voltage(V): 30-198


Frequency: 50-60HZ


Heat-dissipating Way: wind cooled


Protect Class: IP23

Welding Stud Length(mm): 5-35(Can be customized)


Size of Welding Bolt(mm):

   low-carbon steel:M3-M10
   stainless steel:M3-M10
   aluminium alloy:M3-M8
   copper alloy:M3-M6

Size(L×W×H)mm   430×510×155

Weight(KG)  20
