Product Description


Product Application

The machine is suitable for precisely cutting off materials of the laminating board,flake board,MDF board,plyboard and woodbased panel board and the plastic board,bakelite plank,PVC,aluminium alloy etc.
It is the necessary precision panel equipment in the composite furniture manufacture and architecture decoration line

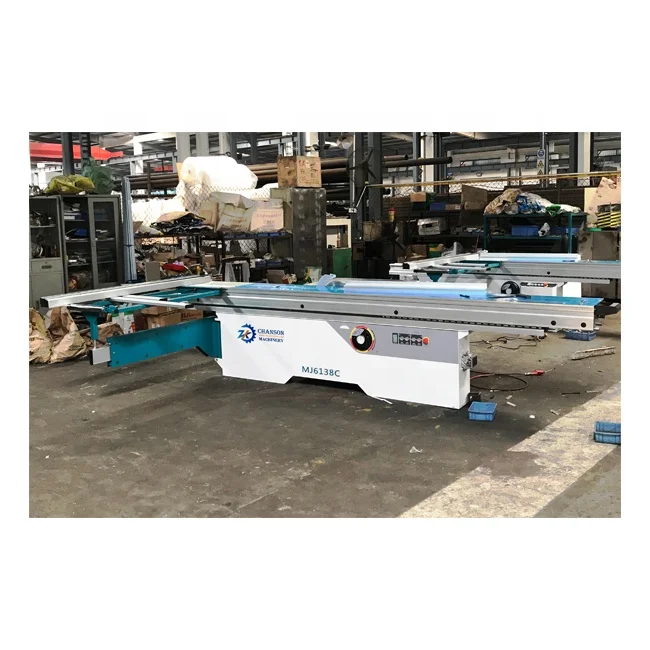

SPECIFICATIONS FOR SLIDING TABLE SAW
MODEL
MJ6132A
MJ6132C
MJ6138C
Max processing length
3120mm
3120mm
3720mm
Sliding table length
3200mm
3200mm
3800mm
Max processing thickness
65-70mm
65-70mm
65-70mm
45° tilting max sawing thickness
without tilting sawblade
55-60mm
55-60mm
Main saw blade dimension (standard)
Φ305×Φ30mm
Φ305×Φ30mm
Φ305×Φ30mm
Groove- saw blade dimension
Φ120×Φ20mm
Φ120×Φ20mm
Φ120×Φ20mm
Main saw arbor rotary speed
4000,5000r/min
4000,5000r/min
4000,5000r/min
Groove- saw arbor rotary speed
9000r/min
9000r/min
9000r/min
Main saw motor power
5.5kw
5.5kw
5.5kw
Groove saw motor power
1.1kw
1.1kw
1.1kw
Weight of machine
800kgs
800kgs
820kgs
Overall dimension(L×W×H)
3250*3080*1150mm
3250*3080*1150mm
3850*3080*1150mm
Dust-collecting mouth external dia.
100mm
100mm
100mm
Voltage frequency(V/HZ)
380/50 (other voltage need customize)
380/50 (other voltage need customize)
380/50 (other voltage need customize)




Main Features

1).Guide rail of mobile workbench is made of imported chrome plated round stick with high rating accuracy;

2).Surface of mobile workbench is made of high intensity extruding aluminum alloy with high intensity and no

deformable performance

3).With oxidation treatment, movable table surface is beautiful and hard wearing

4).We make the machine aggravating in order to improve equipment stability and is much heavier than

ordinary ones and running more stable

5).High precision and can reach 0.005mm. And the cutting surface is smoother without jagged

6).self-developed high quality saw blade,glossy,neat

7).light- weight and reliable spindle bearing and lifting system

8).include one set saw blade( one main saw and one scoring saw)

9).quality bearing with high rigid and long working life, 4 years at least

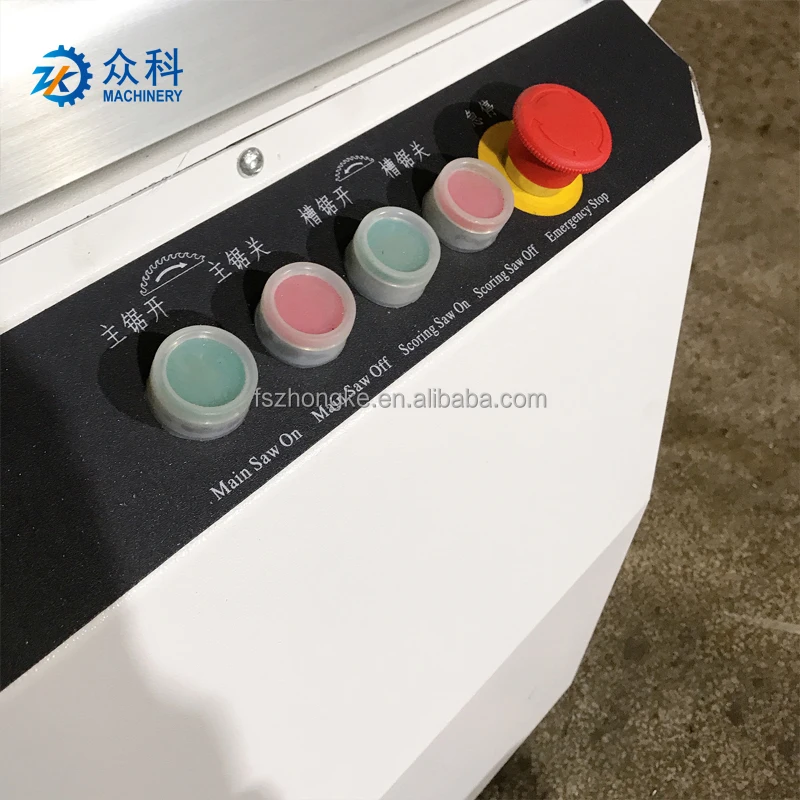

10). Motor with overload protection, 5.5*1.1 kw motor power ,bigger than other supplier,

they almost adopt 5.5+0.75 or less.enough power can make sure the best cutting effect.



Related Products




Detailed Images


Rising -Falling Structure

main saw spindle,sub-saw spindle (rising-falling) bearing set: made of ashen cast iron, time limited efficacy handling, enough strength, the parts are handled by boring and grinding refine. And the both of the spindle, we do the balance arts and crafts handle after precision grinding to ensure the work-piece precision.
main saw rising and falling: adopted with imported linear guide rail
both V-belt and bearing also use imported.



Saw Blade

double saw blade:(main saw 305*30 mm,scoring saw blade 120*20 mm), each model include one set saw blade.
other saw blade size can be optional: such as 350*30 mm; 400*30 mm,etc

45°-90° tilting saw blade for optional.

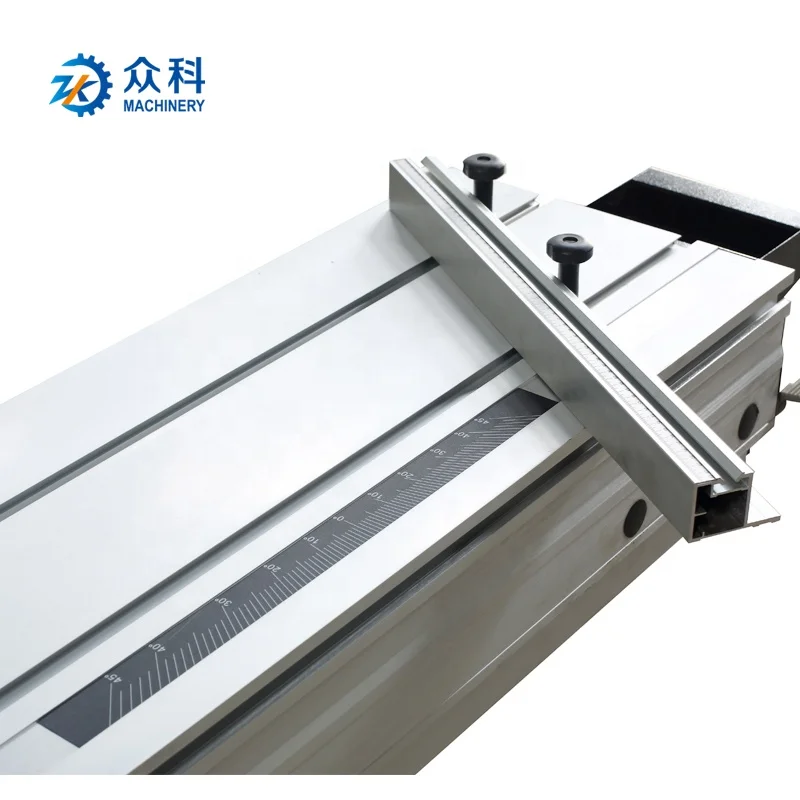

Sliding Table

aluminum table surface all adopt excellent aluminum alloy material through time limited efficacy handling and refine processing. adopt solid cylinder double-slide structure with high precision, the error of straightness on whole distance of travel is less than 0.15 mm.



Samples

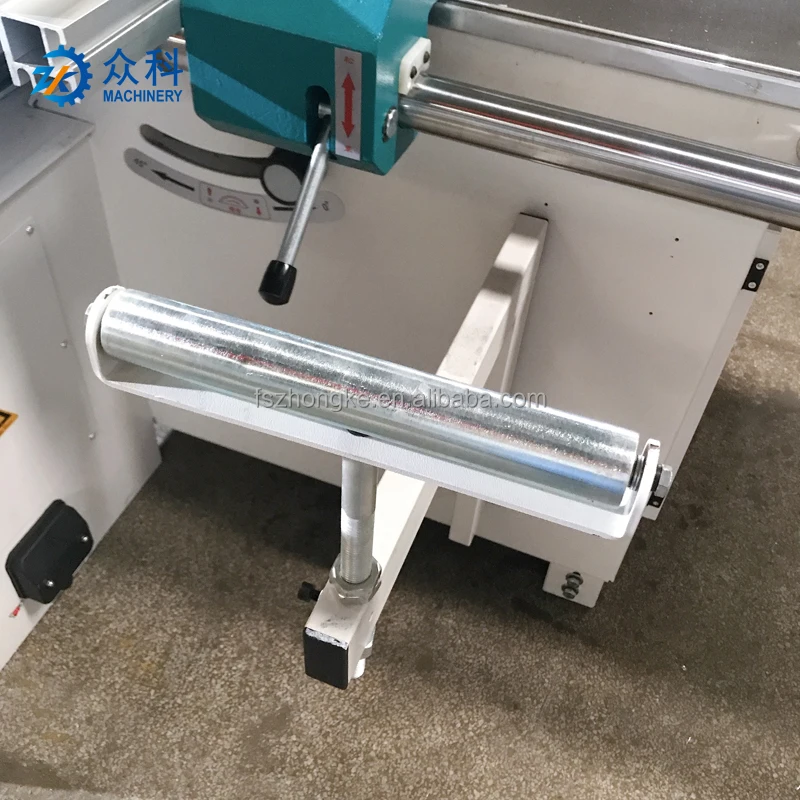

Optional device




Customer Workshop




Our Customer




ZK Machinery major product is precision panel saw & thicnkesser & surface planer. Time has tested the quality of our products and the good credit of our company,that is why we have more than 100 agents both at home and abroad and more and more foreign customers are coming to us.

Other woodworking machines,like cnc wood lathe, wood press, drilling machine, and other various products are also popular with customers from southeast,the Middle East,etc.

As a fast growing enterprises, ZK MACHINERY have the whole world in view,and try to be better and better, We are working hard to provide our customers perfect machines along with our technical support and after sale service. Also we will keep to "quality is first, reputation is everything" as our tenet!

Sincerely hope you could witness the development of ZK MACHINERY and you are warmly welcomed to visit our factory.
