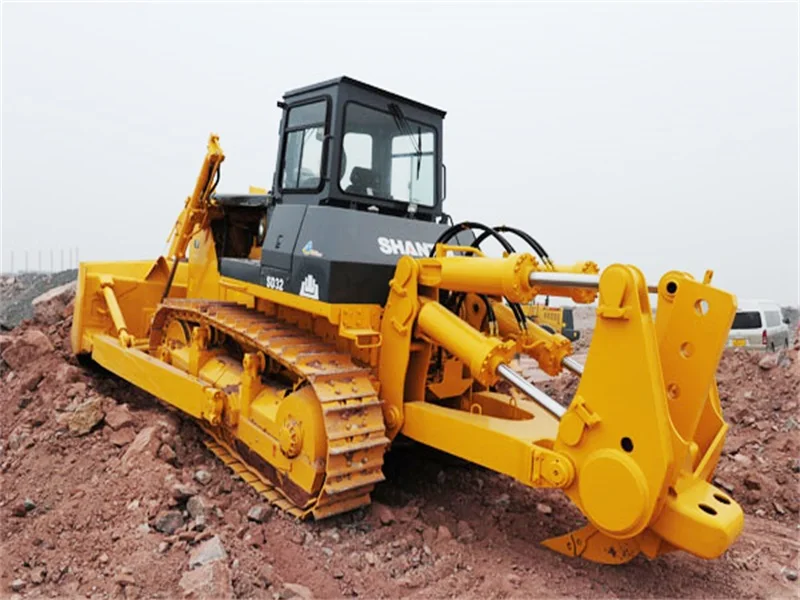

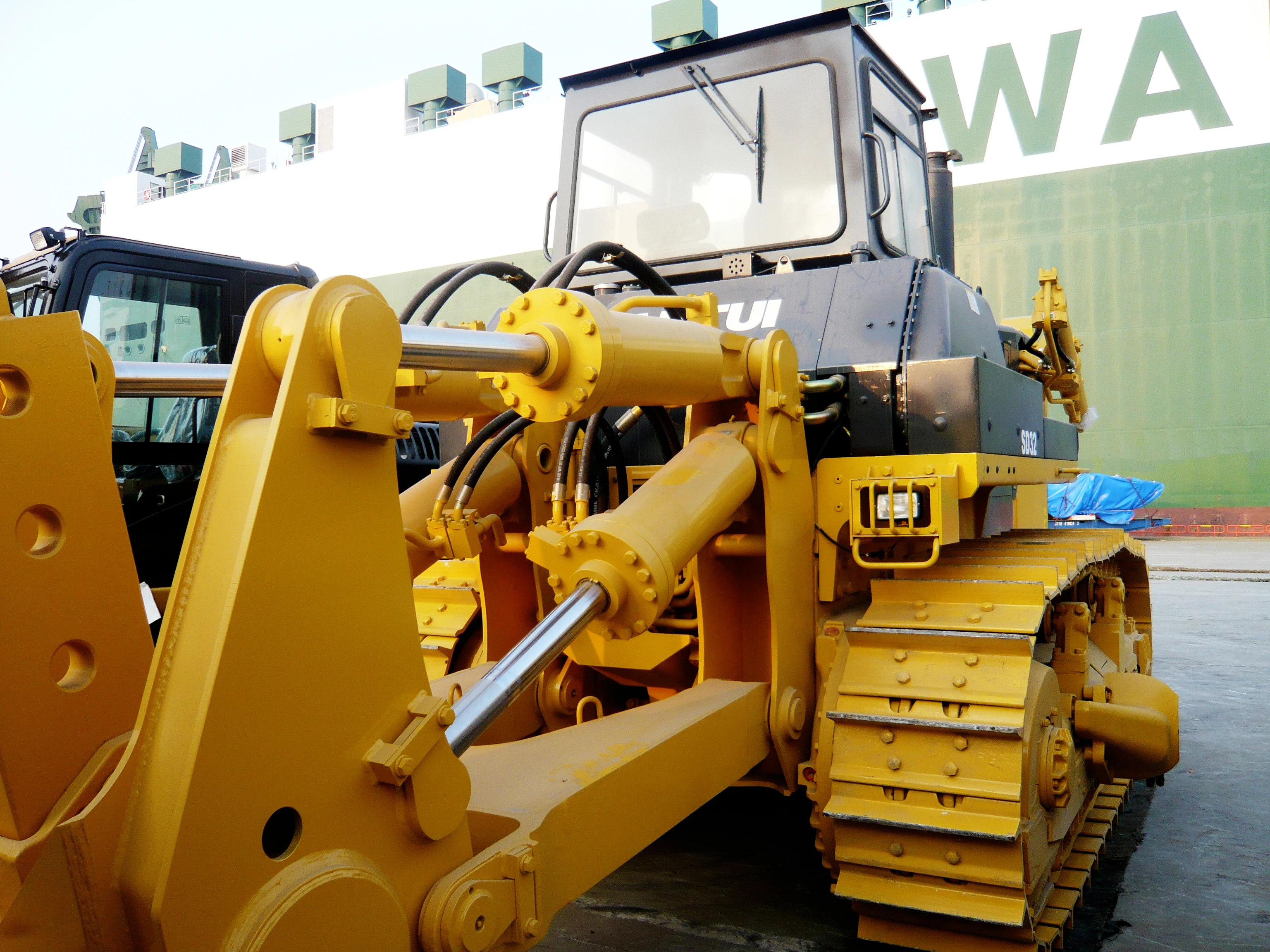

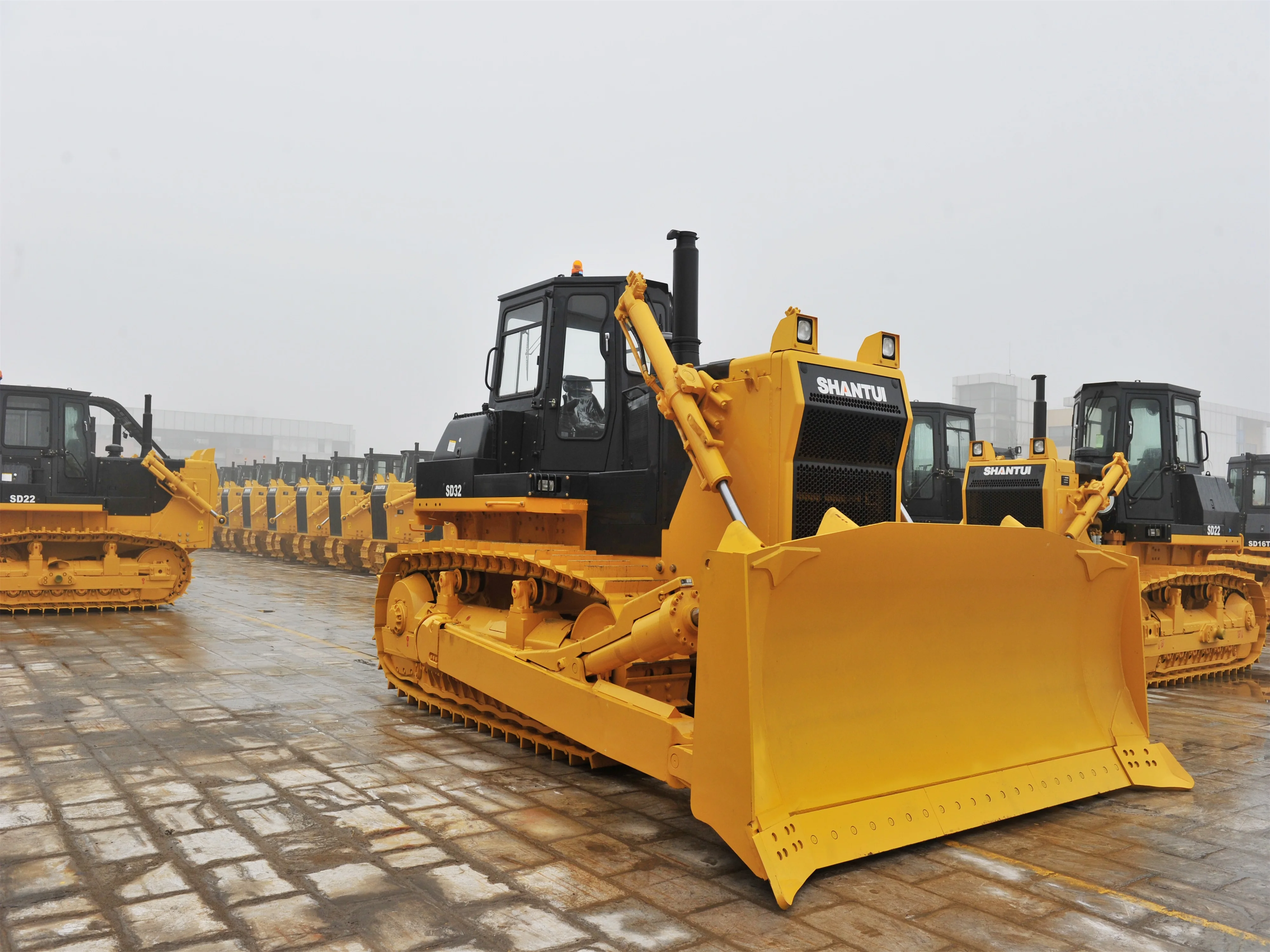

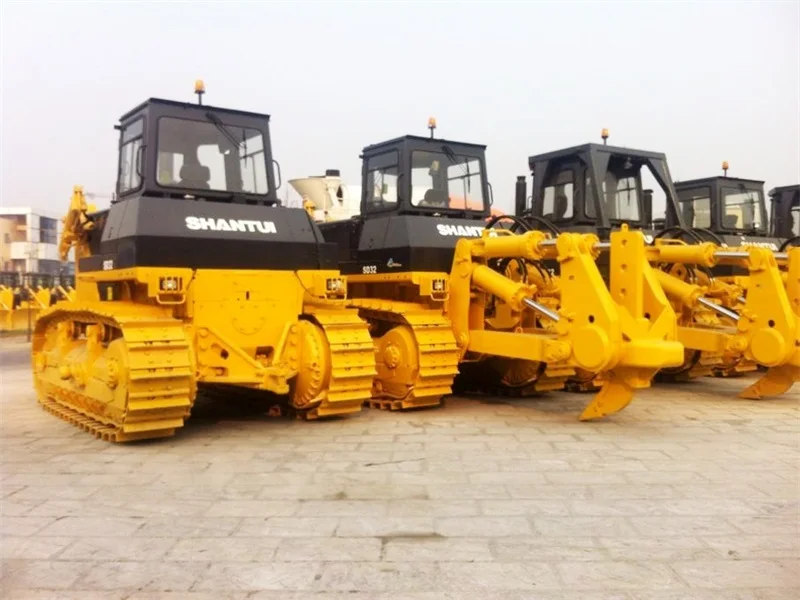

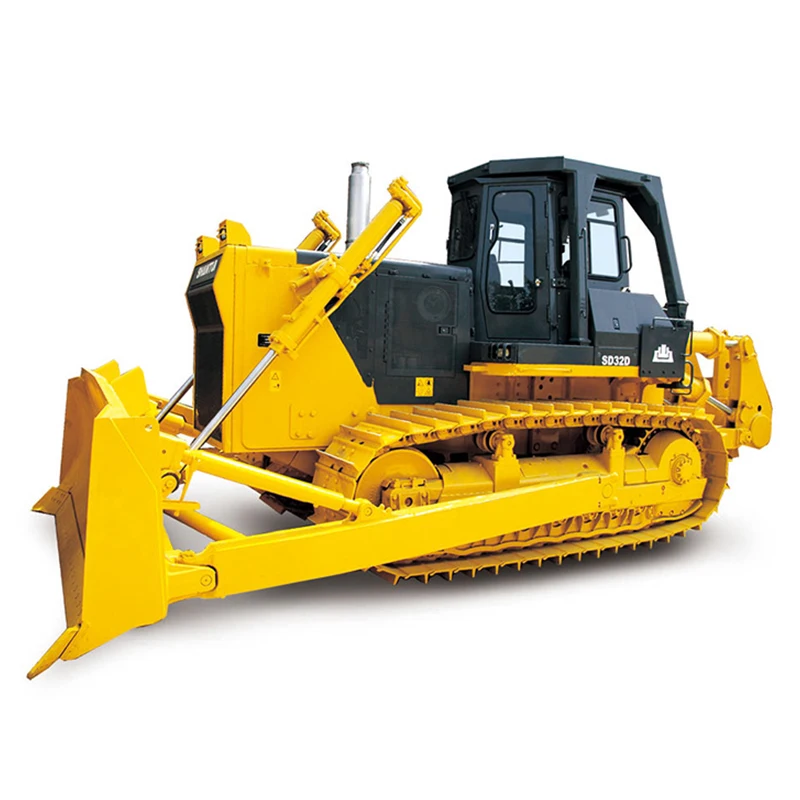

Shantui brand desert using 320hp crawler bulldozer SD32D for hot weather
The SD32D bulldozer was developed by SHANTUI specifically for difficult jobs in high temperatures and high dustiness.
Due to the fact that most of these objects are being developed on soils of the 1st and 2nd categories, which have a reduced bearing capacity, a caterpillar belt with single-profile gearing 760 mm wide is installed on the SD32D.
To protect the engine from fine dust, an additional filter of the "Cyclone" type is installed.
The operator's cab is necessarily equipped with air conditioning and more advanced seals.
| Specifications | |||
| Operating weight | 37.2 tons | ||
| Engine power | 235 kW (320 hp) / 2000 min -1 | ||
| Engine model | Cum-mins NTA855-C360S10 | ||
| Length x Width x Height (without ripper) | 6880 x 4130 x 3725 mm | ||
| Ability to work on a slope | 30° | ||

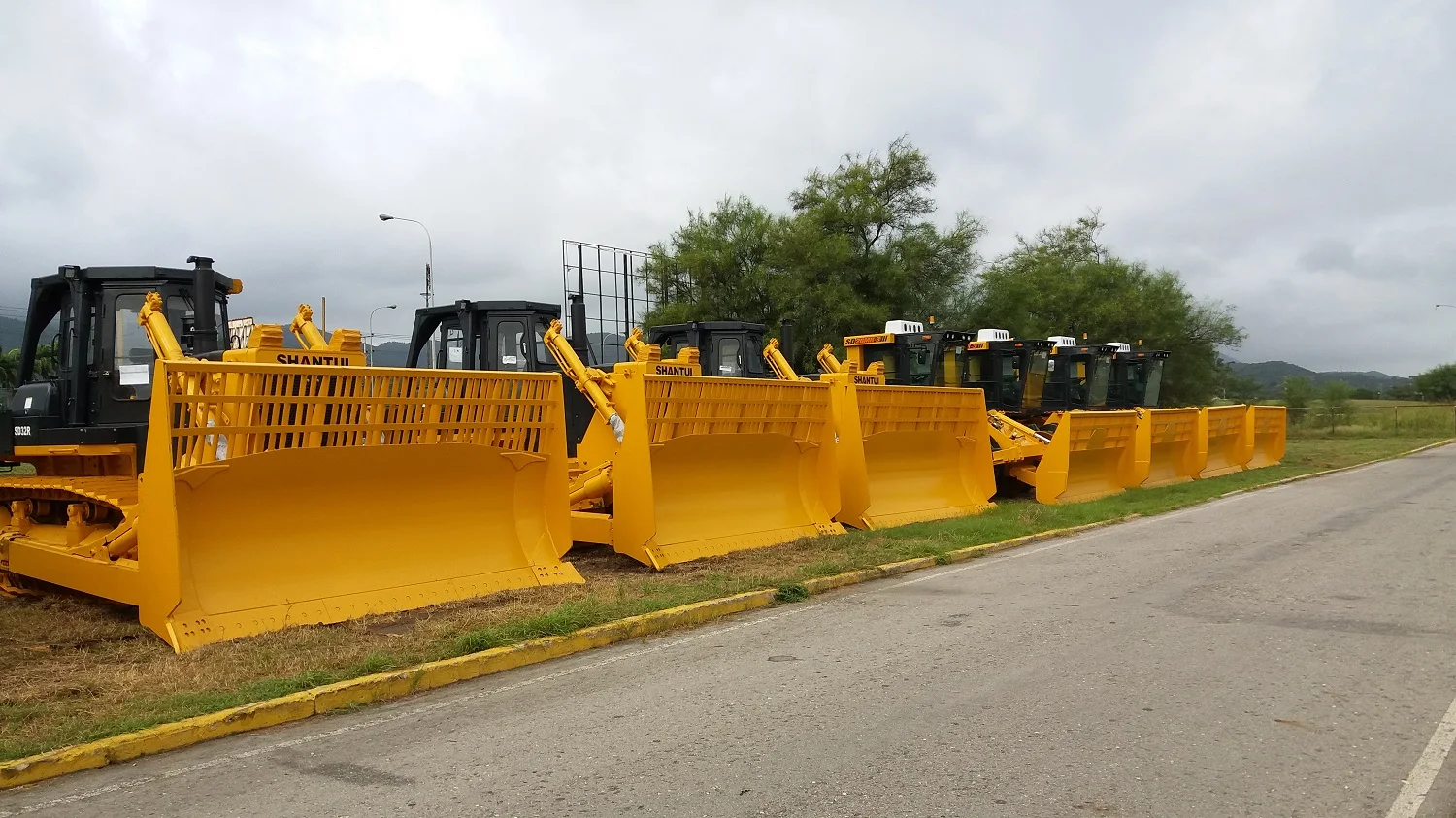

| dozer blade type | Straight fixed with hydraulic skew | Hemispherical | straight swivel |
| Blade Width x Height | 4130 x 1590 mm | 4030 x 1720 mm | 5000 x 1140 mm |
| Drawing prism volume | 10 m 3 | 11.9 m 3 | 6 m 3 |
| Maximum blade depth | 560 mm | ||
| Max blade lift | 1560 mm | ||

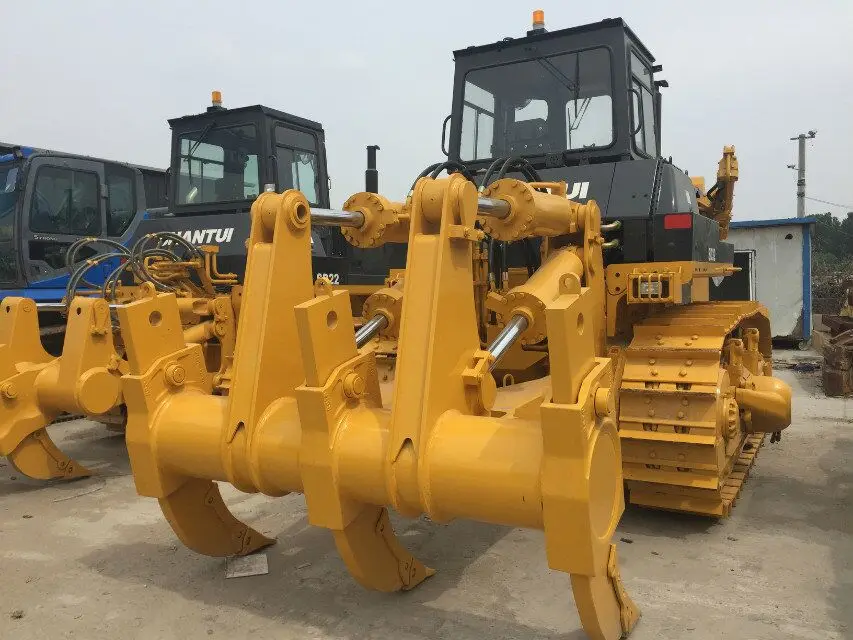

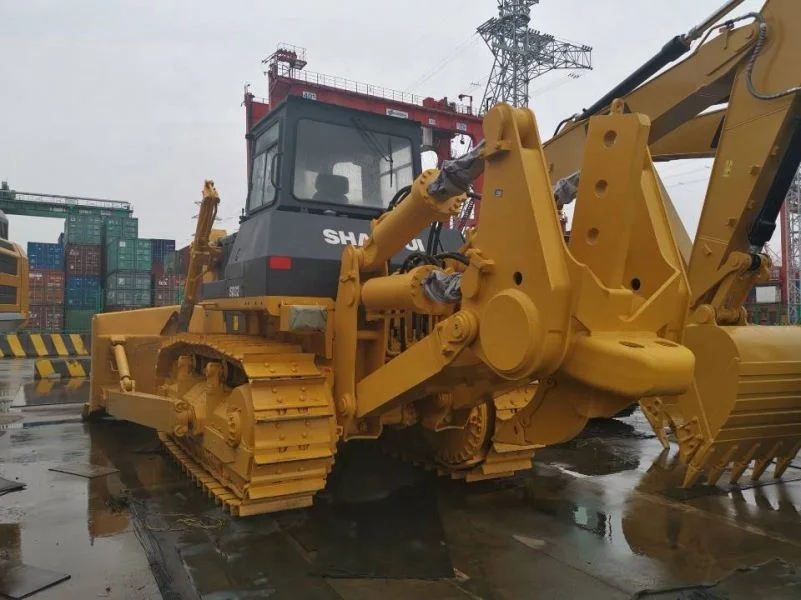

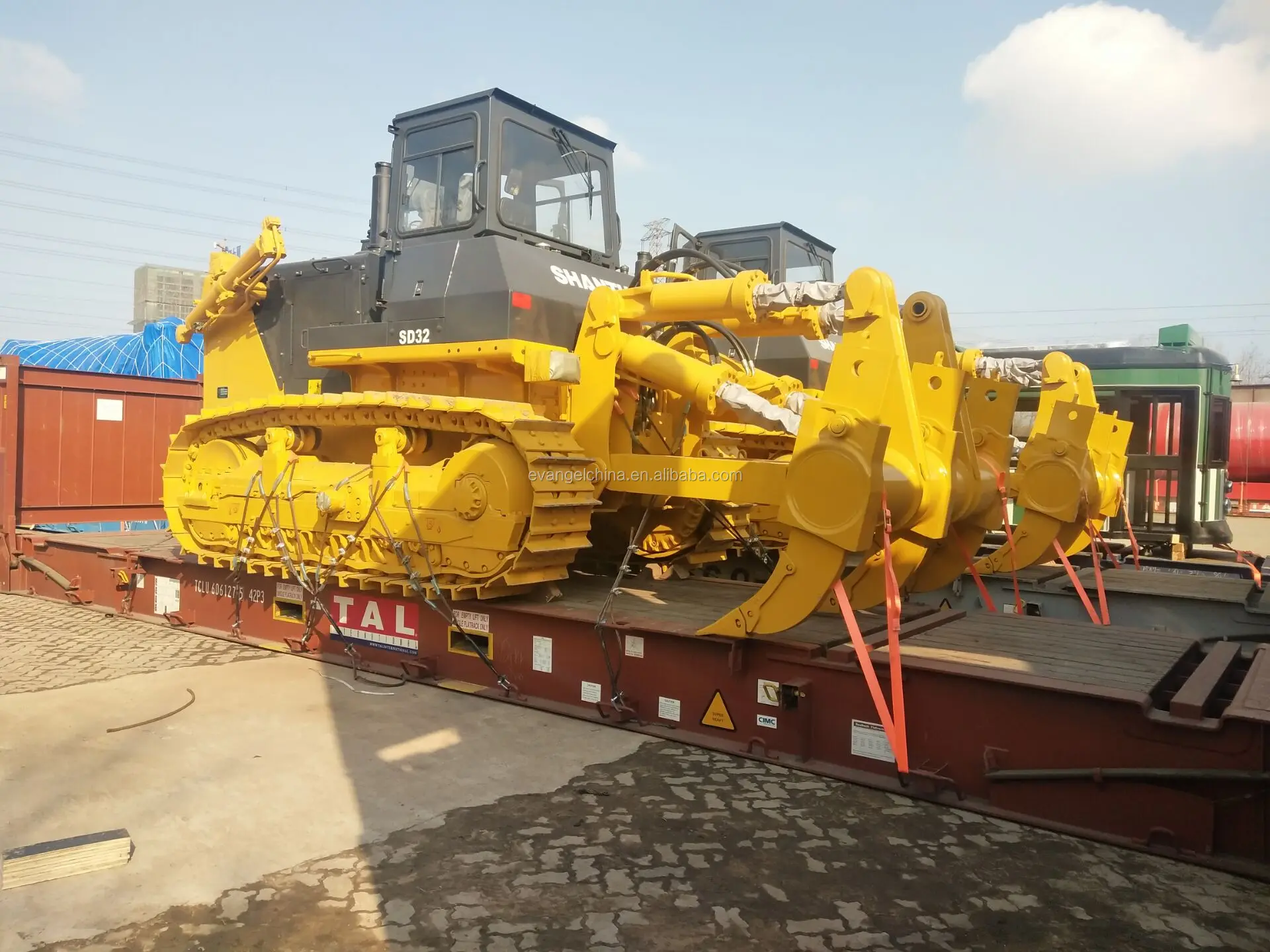

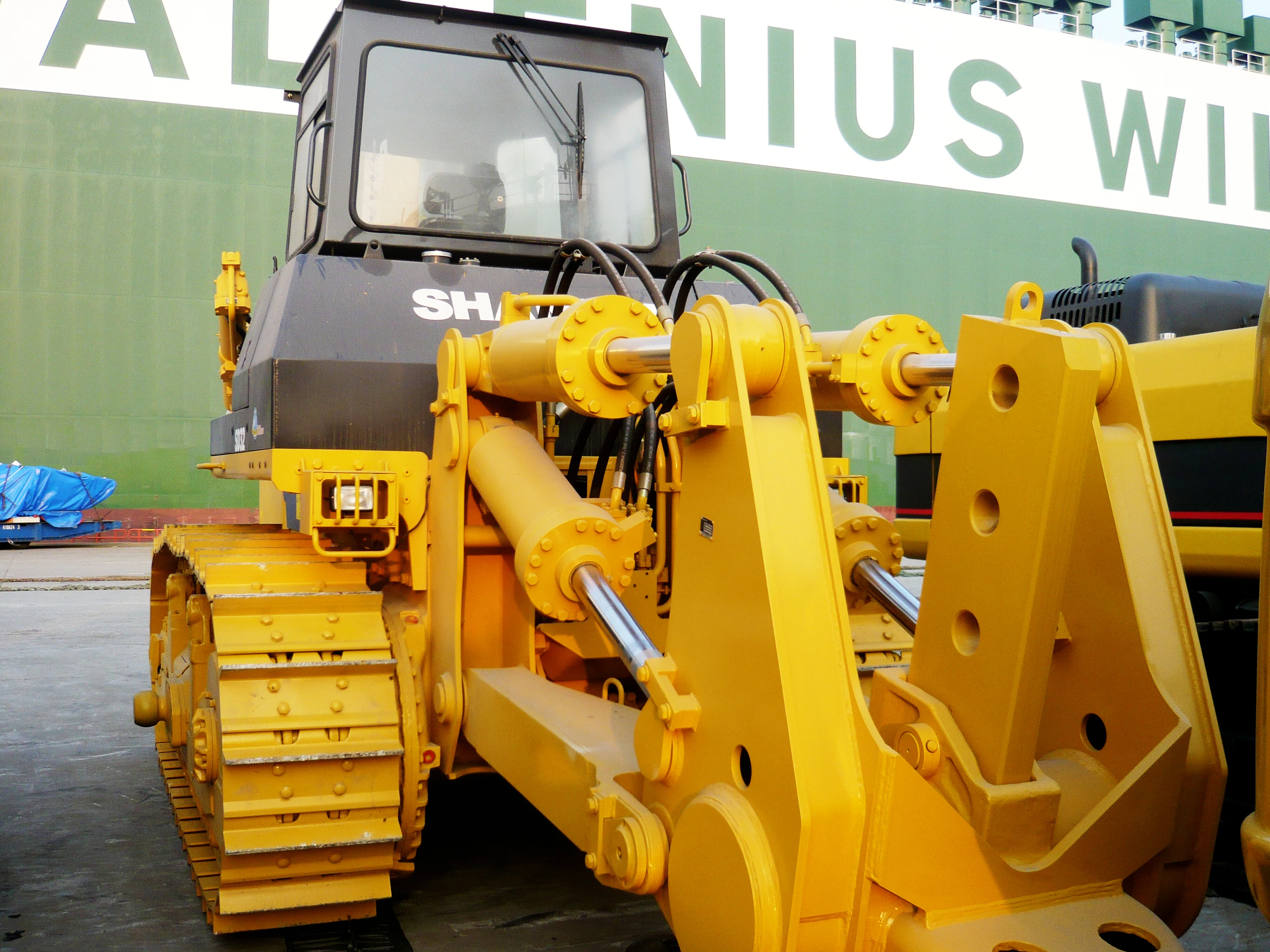

| Ripper type | single column | Three-column | |
| Max Ripper Depth | 1250 mm | 842 mm | |
| Max Ripper Lift | 955 mm | 883 mm | |
| Number of carrier rollers (each side) | 2 | ||
| Number of track rollers (each side) | 7 | ||
| The number of shoes | 41 | ||
| Track shoe width | 760 mm | ||
| Track pitch | 228.6 mm | ||
| track track | 2140 mm | ||
| Support surface length | 3150 mm | ||
| Ground pressure | 0.076 MPa | ||
| Forward speed Reverse speed | 3.6 / 6.6 / 11.5 km/h 4.4 / 7.8 / 13.5 km/h | ||
