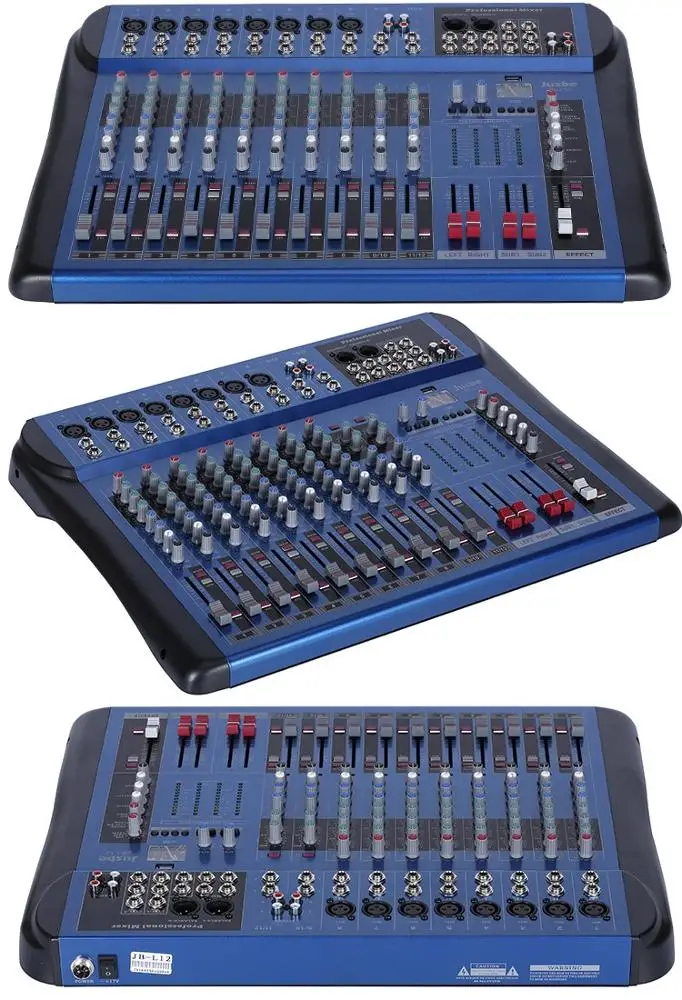

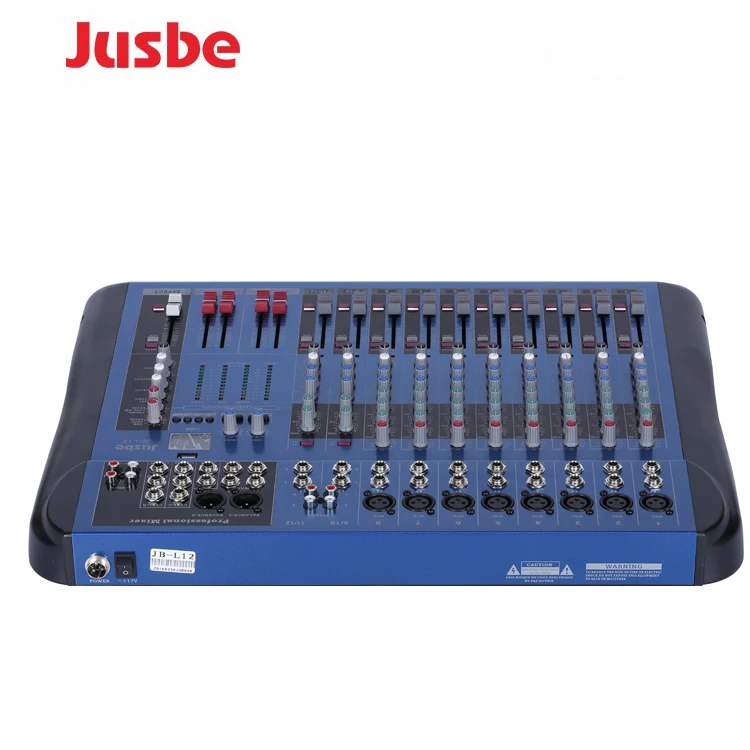

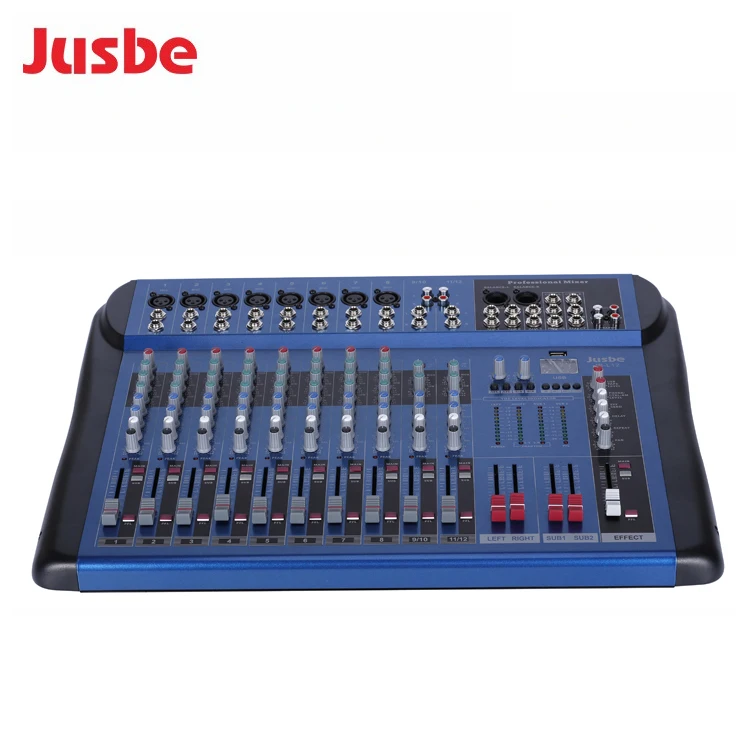

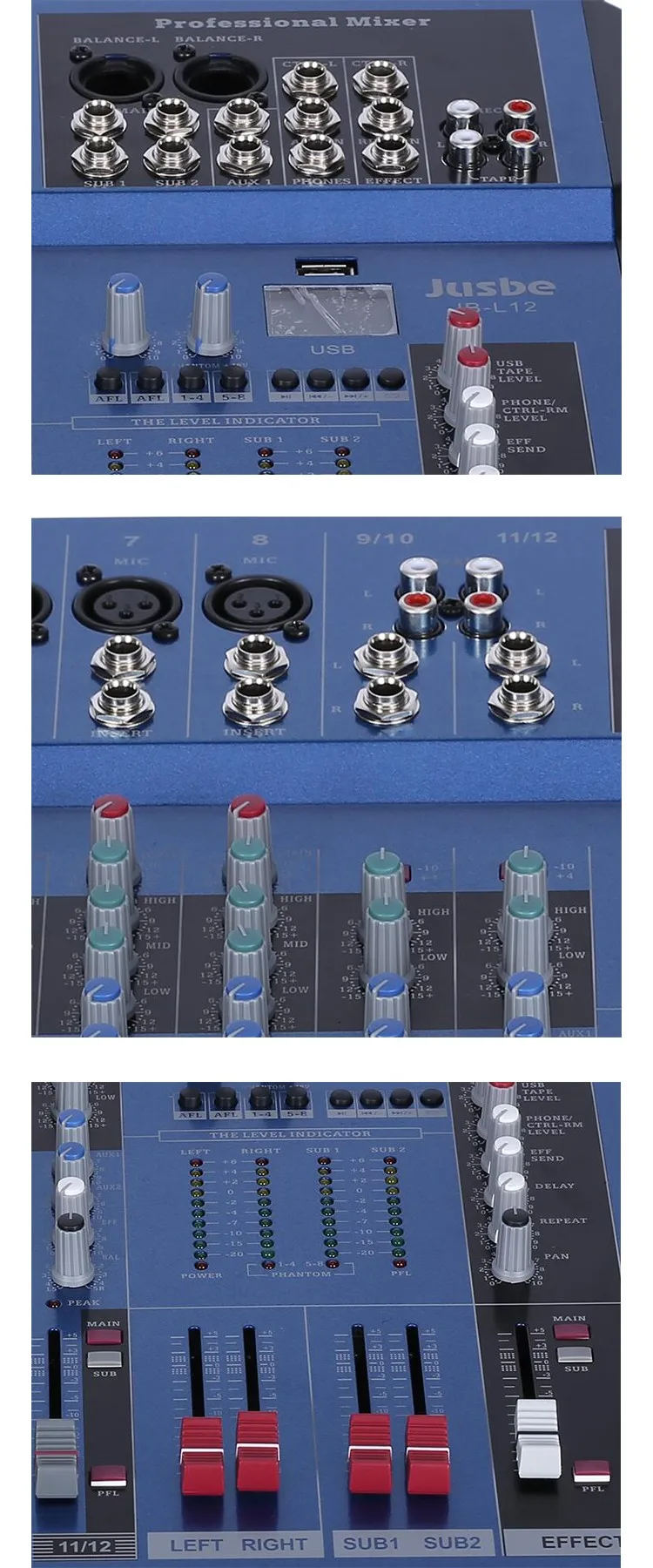

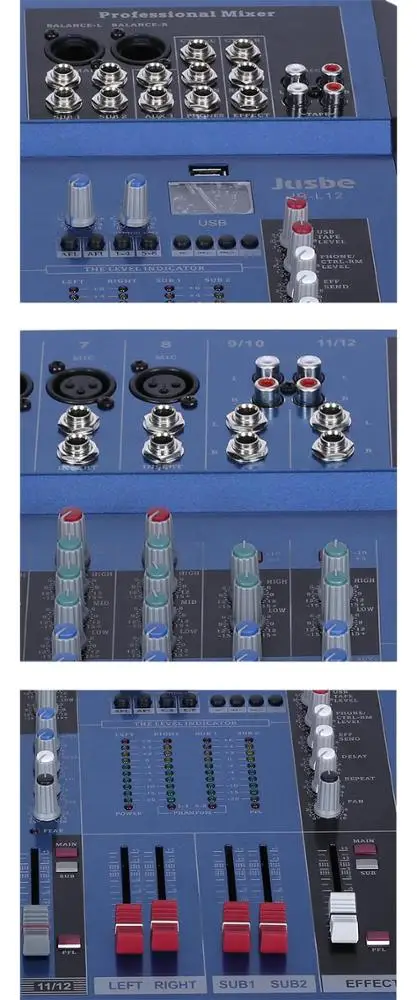

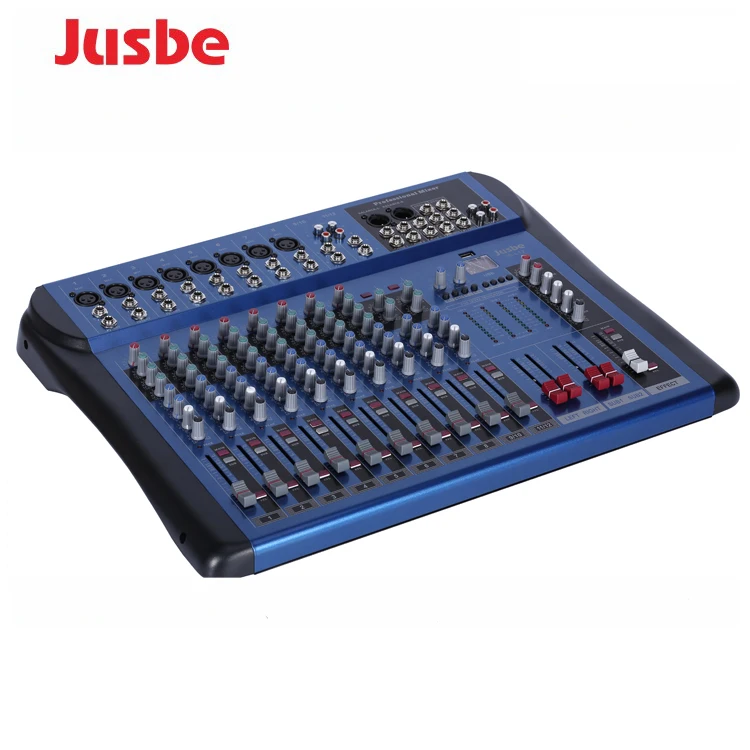

| Item No. | JB-L8 | JB-L12 | JB-L16 | JB-L24 |
| Channel | 8-channel (USB) | 12-channel (USB) | 16-channel (USB) | 18-channel (USB) |
| Input | balanced microphone*4, stereo*2 | balanced microphone*8, stereo*2 | balanced microphone*12, stereo*2 | balanced microphone*20, stereo*2 |

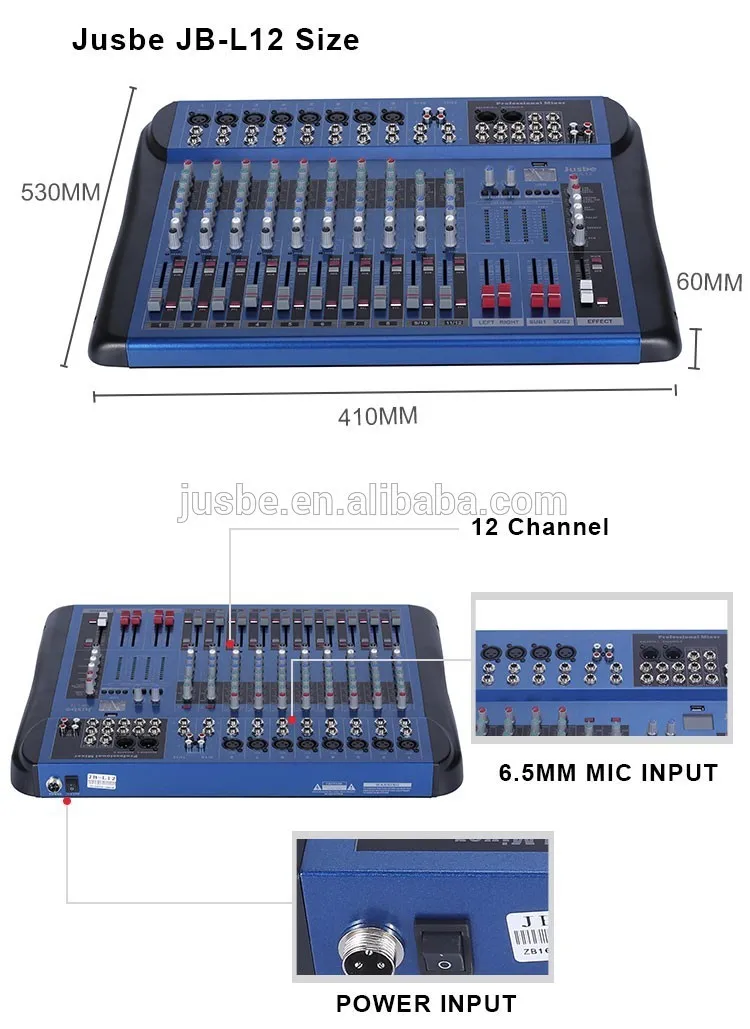

| Product Size | 395*390*60 | 530*410*60 | 580*410*60 | 873*410*62 |
| Net Weight | 5.5KG | 6.2KG | 6.9KG | 10.1KG |
| Output | L/R/MONO/AUX*2 | |||
| SNR | <-90dB | |||
| Frequency Response | 20Hz-20KHz(±1B) | |||
| Input Sensitivity-Microphone | -60dB | |||
| Stereo Input | -40dB | |||
| Auxiliary Input | -20dB | |||
| Mix Return | -20dB | |||
| Impedance matching Microphone input | 1.6KΩ | |||
| Other input | >10KΩ | |||
| Recording Output | 1.1KΩ | |||
| Other output | 120Ω | |||
| Equilibrium Parameter-HF | 12KHz±15dB | |||
| Medium Frequency | 3.5Hz±15dB | |||
| Low Frequency | 350Hz±15dB | |||
| Main Output | +4V max | |||






China Jusbe Electronic Technology Co. Ltd. Is a leading manufacturer, exporter and supply chain service provider on professional audio system including amplifier, speakers, microphone, line array series, peripheral equipment, mixer, etc.. The products widely used in teaching, conference, KTV, auditorium, stadium and other amplification occasions.
We believe “Customers’ success is our success, and our success is customers’ success”. It will be our greater honor to serve you. Hope we can build up mutual business cooperation in the nearest future.



1.Q: Are you a factory or trading company?
A: We are a manufacturer (with our own factory) since 2000. We are a leading manufacturer, exporter and supply chain service provider on professional audio system.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Nancun District, Guangzhou City, Guangdong Province, China.
About 30mins by car fromGuangzhou South Railway Station, We welcome customers from all over the world !
3.Q: Can you do OEM and ODM?
A: Yes, both. We can put your idea into products.
We have professional research development team, develop the products according to customer required.
4.Q:How can I get some samples?
A: We are honored to offer samples to you. If you need, please send a inquiry to us
