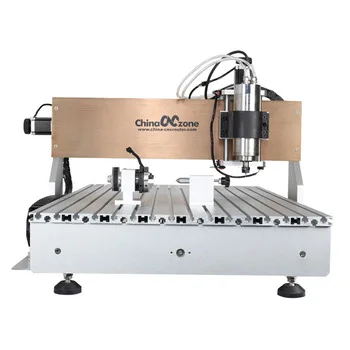

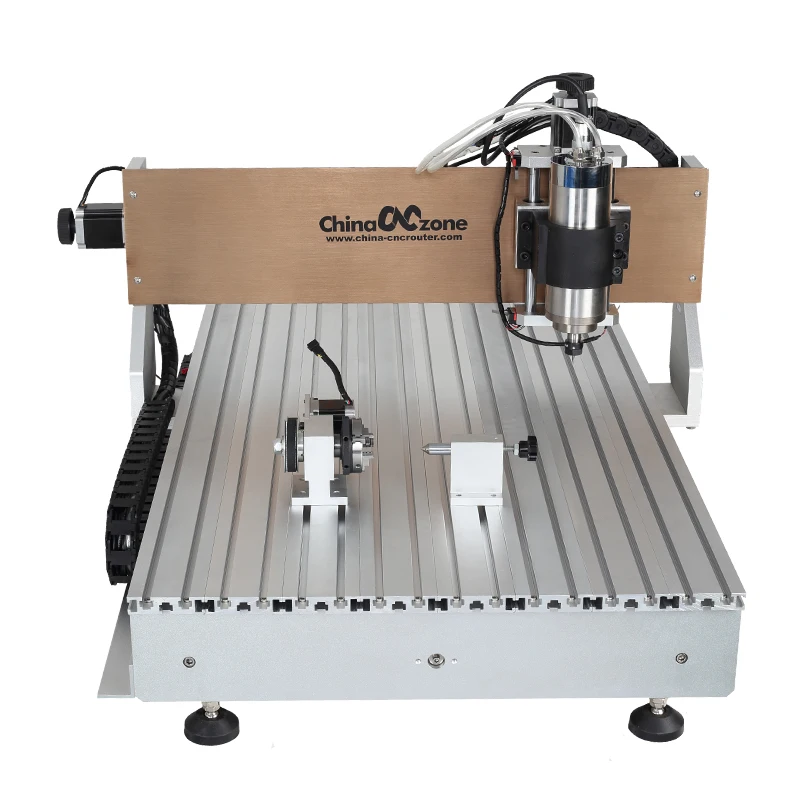

ChinaCNCzone factory DIY настольный мини cnc 3/4 axis 6090 резьба фрезерование гравировка маршрутизатор для продажи
- Категория: >>>
- Поставщик: Shenzhen Scotle Technology Ltd.
Сохранить в закладки 62054378435:
Описание и отзывы
Характеристики
Product Description
Latest New 6090 3/4 axis CNC Mill Wood
Don't need connect Computer ,G-code in Micro sd card ,plug in controller box(DSP TYPE)
No Need to connect computer (USB/LPT mach3 type）
Parameter 1500W/2200W Mini CNC Milling Machine 6090 | ||||||
Shape dimension | X860mm*Y630mm*Z480mm | Driving units | X: 1605 ball screw | |||
Max.workpiece dimension | X600mm*Y900mm*Z150mm | Y: 2005 ball screw | ||||
Frame materials | aluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. let counterfeiters dwarfs | Z: 1605 ball screw | ||||
Acceptable material thickness | ≤150mm | Sliding units | X: Dia.30mm chrome plate shafts | |||
Stepping motor type | 57-76 two-phase 3A 150N.cm | Y: Dia.30mm chrome plate shafts | ||||
Spindle motor | brand new 2.2kw water cooling spindle, 24000RPM | Z: Dia.16mm chrome plate shafts | ||||
Spindle collet | ER16-A, 3-10 mm shank diameter tool | Command code | G code | |||
Repeat accuracy | <=0.05mm | Protection | Emergency stop button | |||
Spindle precision | Radial beat acuities 0.03 mm | Operating Voltage | AC110V/AC220V | |||
Carving Instructions | G code/ TAB files/ nc file/ NCC files | The 4th axis | ||||
Maximum speed | 4000mm/min | Size | 136*116*92 mm | |||
Carving speed | 0-2500mm/min (different materials differ) | Centre-height | 34mm | |||
Clamping diameter | 50mm fingertight fitting | Error Range | 0.1 | |||
Reduction tatio | 1:03 | |||||
Widely used:
1.Not only for Aluminum but also acrylic, brass, wood, PVC, PCB, MDF and so on.
- 2. Ideal for milling, engraving, drilling & routing.
- 3. ForIndustry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes, Building Model Making, Advertising Signs, Artwork, Crafts,Aircraft Models, RC Model parts
Features:
1. English manual available.
2. Can engrave material such acrylic, brass, wood, aluminum, PCB and so on.
3. Balls crew made it a higher precision.
4. 4th axis can be Plug-and play, no need to replace controller box.
5. Auto-Checking function, easy to set origin of Z axis.
6. With built-in frequency converter in control box.
7. It has a broad-base and a thicker screw for larger material working.
8. Limited switches added.
9. From reliable & trustable profesional China CNC Router factory.
10. 2.2KG water-cooled spindle, powerfu!
11. Fast working speed.
12. Live video support on Youtube.

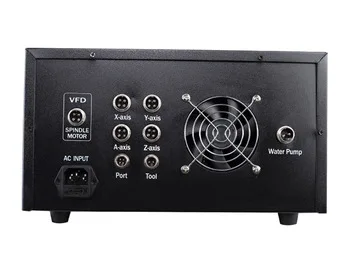

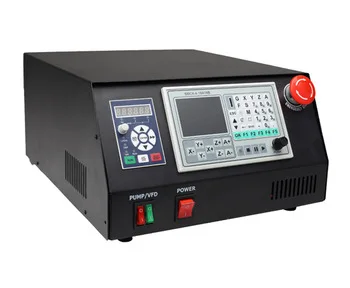

DSP Controller
1. With DSP controller box, no need to connect with any computer or notebook. (DSP Type)
2. Work independently.(DSP Type)
3. SD card slot interfaceWith SD card slot interface. (DSP Type)
3. SD card slot interfaceWith SD card slot interface. (DSP Type)
4. Independent DSP system, work without a computer.
5.Insert TF memory card, automatic reading and processing files.
6. By operating the control box, you can program and carving directly.
7. G-code files can be directly edited, delete, insert, and so on.
5.Insert TF memory card, automatic reading and processing files.
6. By operating the control box, you can program and carving directly.
7. G-code files can be directly edited, delete, insert, and so on.
Mach3 USB Controller
1. Have LPT(parallel port) and USB port two types for option.
2. Connect to computer and match the mach3 software for use
3. The G-code file can be imported to computer for mach3 software operating.
4. Matched the computer, good visualization effect

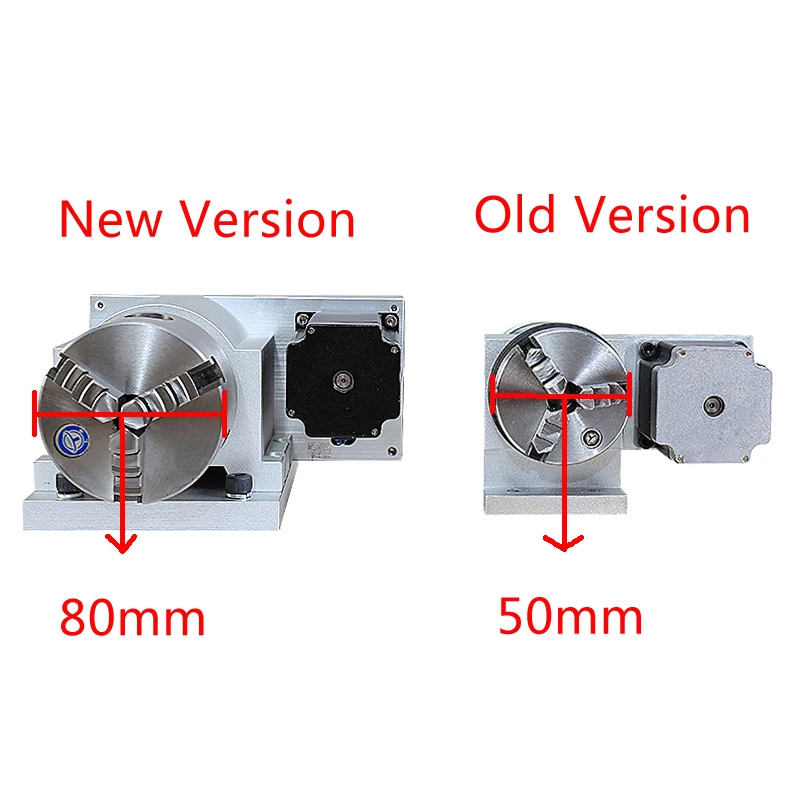

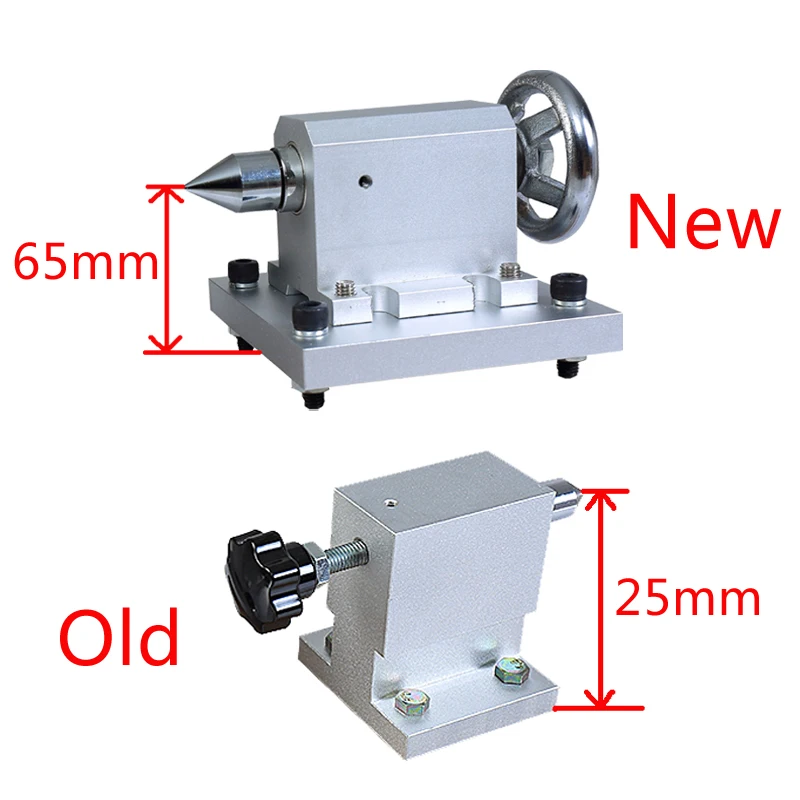

The 4 the axis parameter | ||
Size | 220(L)*116(W)*105(H)mm | |
Centre-height | 65mm | |
Clamping diameter | 80mm | |
Reduction ratio | 1:3 | |

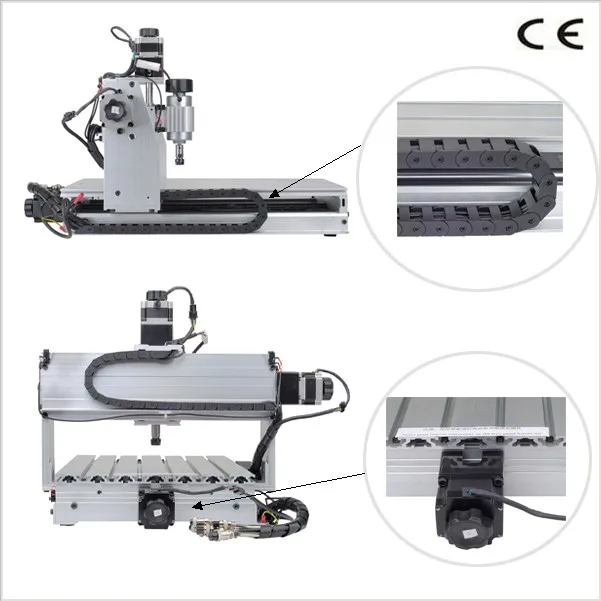

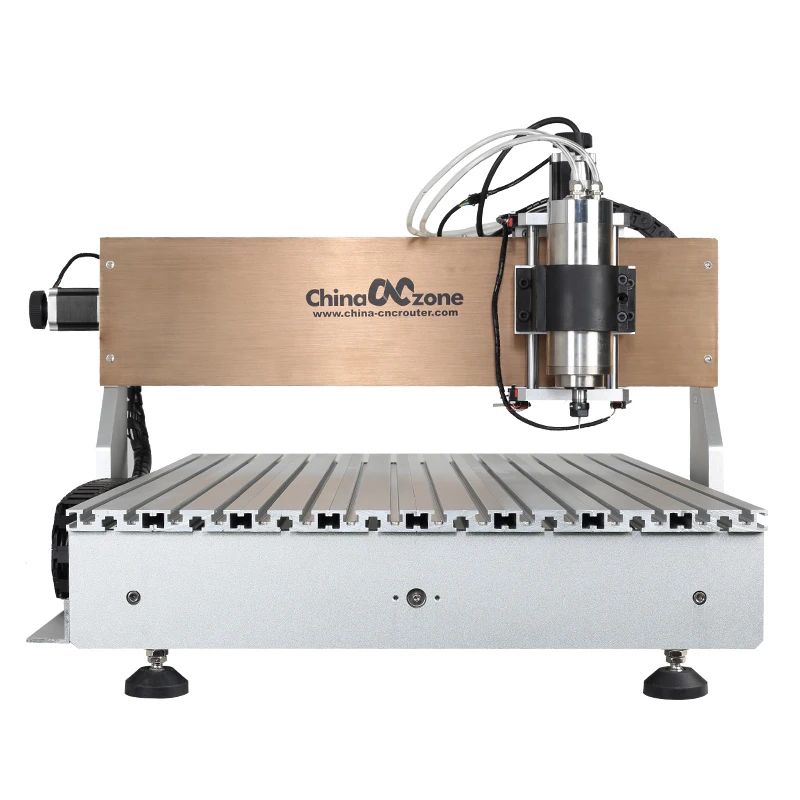

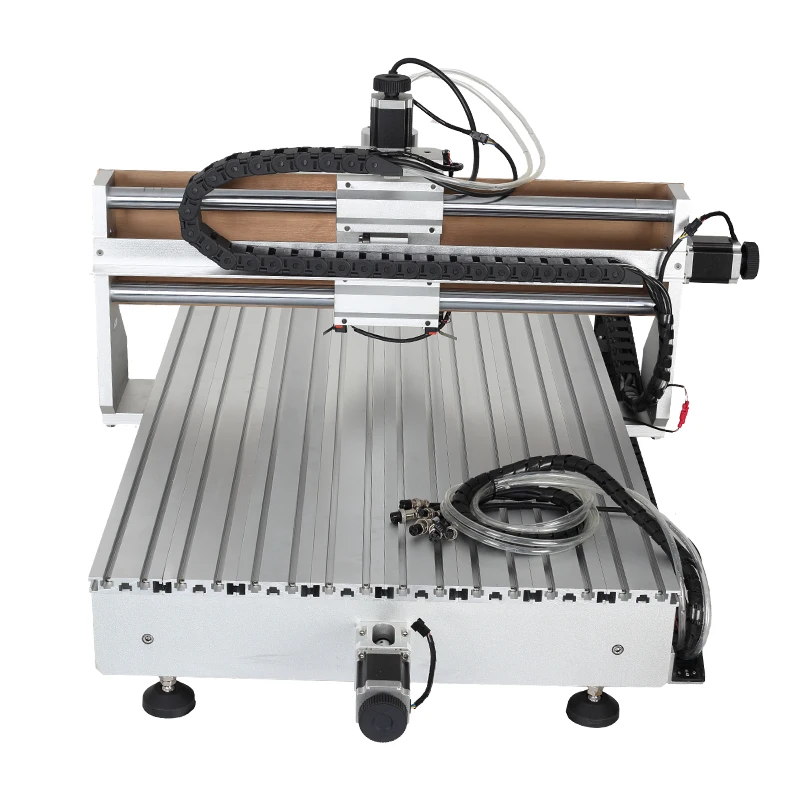

Detailed Images

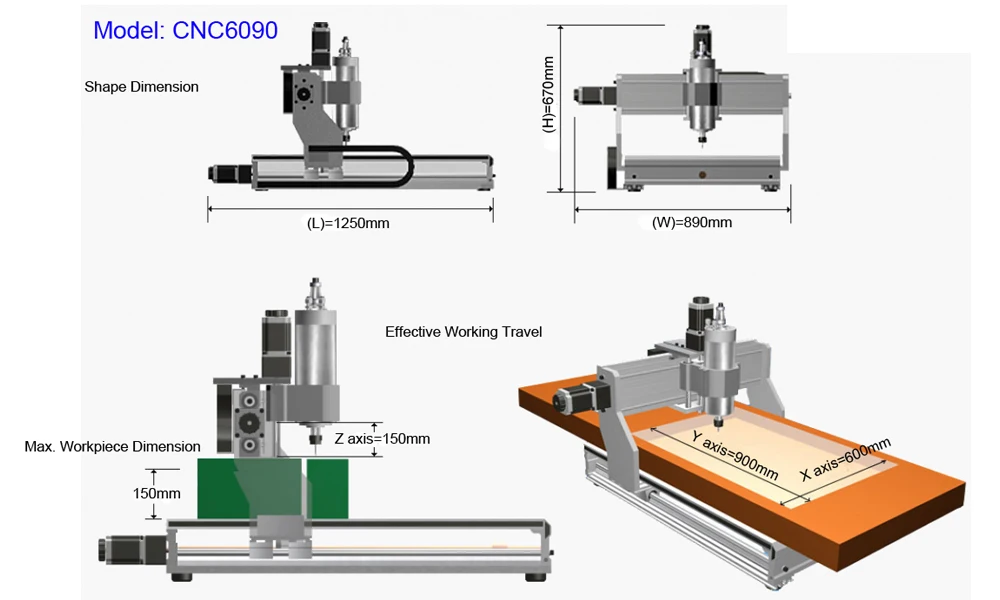

Size Information

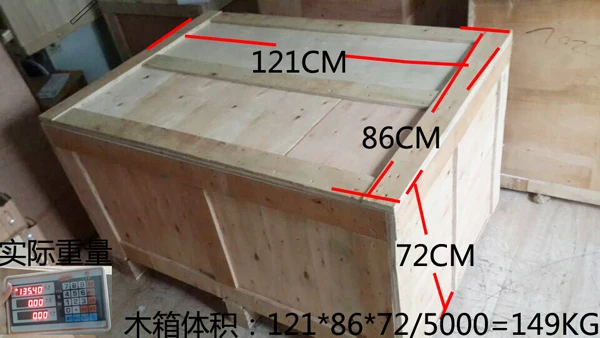

Package size
Packing size | L | W | H |
121 cm | 86 cm | 72 cm |

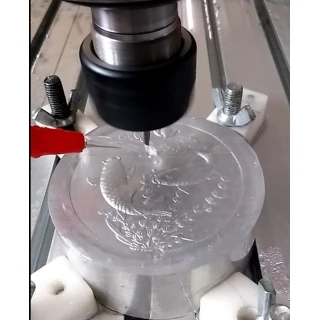

Finished Products
Related Products

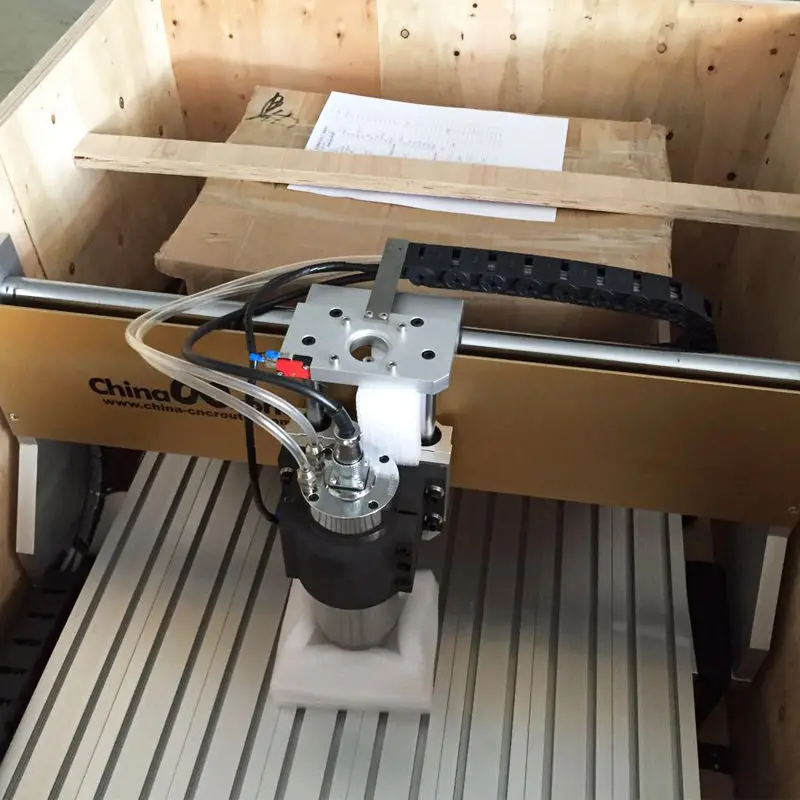

Packing&Shipping

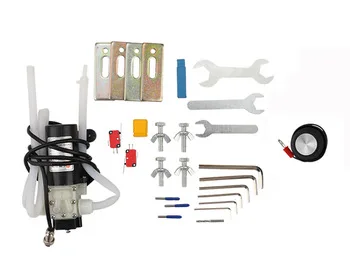

Packing list :
1 Engraving machine
1 Rotary axis
1 Controller box with invertor installed in it
1 1500w / 2200w spindle
1 Power cable
1 Water pump
4 Engraving bit
2 Limited switch
1 Auto-checking tool
1 set of clamp tool
Company Introduction
Shenzhen Scotle technology limited is a professional supplier of Mini CNC machiine , laser machine and engrave machine, It has more than 8 years export experience , professional presales service and aftersale service, and professional reliable technical support, 2 factories locate in Shenzhen China. Cnczone is one of the branch of the scotle, which is specialised in CNC machine. Through 8 years development , It has already formed perfect managment system and standard opperating procedure , Products exported to the world, more than 100 countries and regions. Company always adhereing to "meeting and exceeding customer need " business phynosophy, Helping customer save money and time. To be the best Mini CNC supplier is our beautiful vision.
Our Services
1.Prompt reply, any problem , Please contact us by email / skype / phone / trademanager online service.
2. We provied picture and video support.
3.Free parts send to you in 1 yeas warranty period, although it rarely occurs.If the parts less than 0.5KG,we pay the postage for you.
Why Choose Us
1. We joined Alibaba Trade Assurance to make sure the buyer’s benefit. and we are the high-quality supplier,which has been assessed by Alibaba and SGS.
2. As a professional manufacturer, we have 10 years factory experience for Mini cnc Machine. We are devoting to researching and manufacturing different models of Mini CNC machine .
3. All Self-developed products have been passed certification of CE, FCC, FDA.
4. We have been cooperated with many customers from 100 countries and region, and more and more customers in the world are using our machine, we also received many good feedbacks and reviews.
FAQ
1. Easy operate
We will send you a english manual with the machine.
If still have any question ,please contack us by email / skype / phone / trademanager online service.
2. Video support
In after-sale service, we can also provede video support.
3. Warranty
Free parts send to you in 1 yeas warranty period, although it rarely occurs.
If the parts less than 0.5KG,we pay the postage for you.
4. MOQ
1 set welcomed, it will be a nice try.
5. Accessories & tools
Will send you a tool box as picture.
6.Software & Interface
If use parallel port, use Mach3 software.
If use USB port, use USB CNC software.
If you have more questions, Please contact us as below:
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Похожие товары
Большой 4-местный кожаный диван, Королевский диван, Раздельный 2-местный диван
2 500,00 $ - 2 780,00 $
Новинка, 10 цветов, косметика, консилер, консилер, палитра консилеров, фирменная торговая марка, Лидер продаж, товары, полное покрытие без жестокости
0,59 $ - 1,49 $
Оптовая продажа Юго-Восточная Азия, Малайзия Longi трубка юбка батик обернуть саронг корректор саронг
1,00 $ - 6,00 $

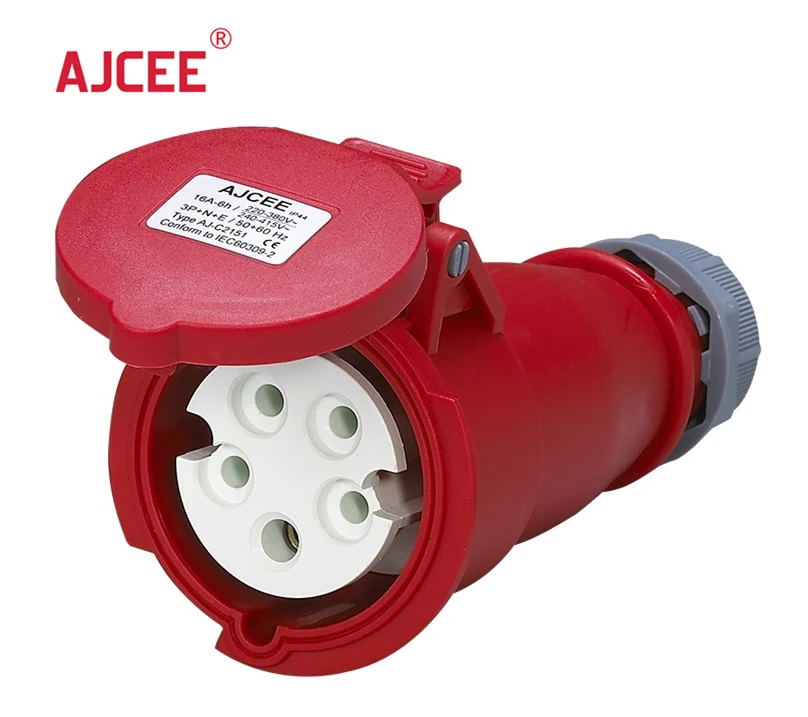

AJCEE новый тип IP44 220v 415v 5pin 3p + n + e 16 amp Водонепроницаемый промышленный проводной разъем, Электрический источник питания
