Пьезоэлектрическая керамическая генератор PZT для Электрическая генерирующая
8,00 $ - 10,00 $

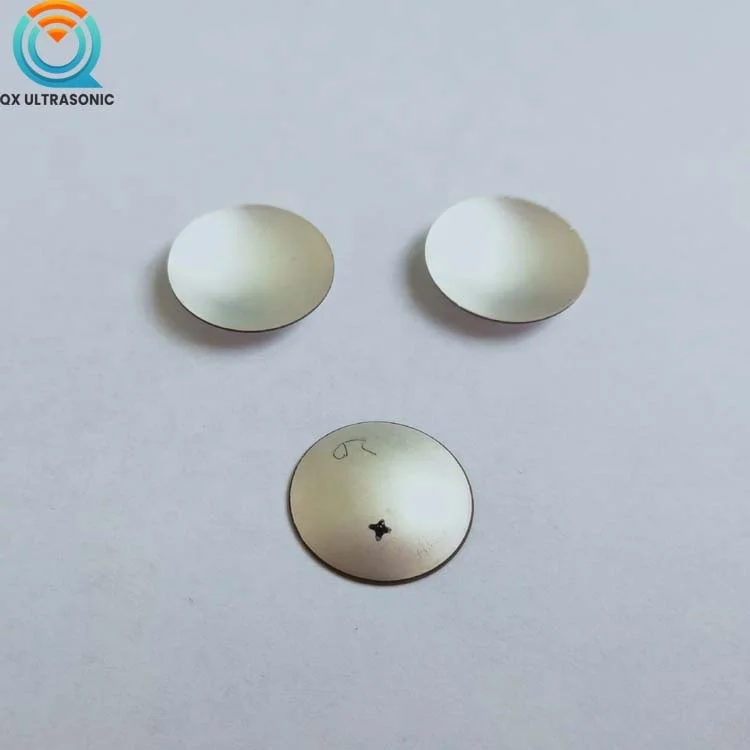

По индивидуальному заказу различные размеры промышленный полусфера пьезоэлектрическая керамическая сферические керамика
- Категория: Electrical Ceramics >>>
- Поставщик: Beijing Quanxin Ultrasonic Co. Ltd.
Сохранить в закладки 62055360180:
Описание и отзывы
Характеристики
Customize Various Size Industrial Half Ball Piezo Ceramic Spherical Piezoelectric Ceramic
What is the trouble in business?
Worry about the quality and after-sale warranty ?
Which material need to use? Pzt4, pzt5 or pzt8?
What size is more suitable?
If you can customize required size?
How weld cable on the piezoelectric ceramic?
Need your own logo on products?
Contact US
Slove all your worries with one-step service!
Listen and see our clients feedback, will send our after-sales report.
Tell us your application ,our professional team will reply you within 24 hours. Help you to choose the suitable products.
Produce different size piezo ceramic as need.
Provide Professional technical support to help to weld the cable.
Real pictures before sending.
We are always here to support you.
Product Description
| Application of Ball and Half Ball Ceramic Ball |

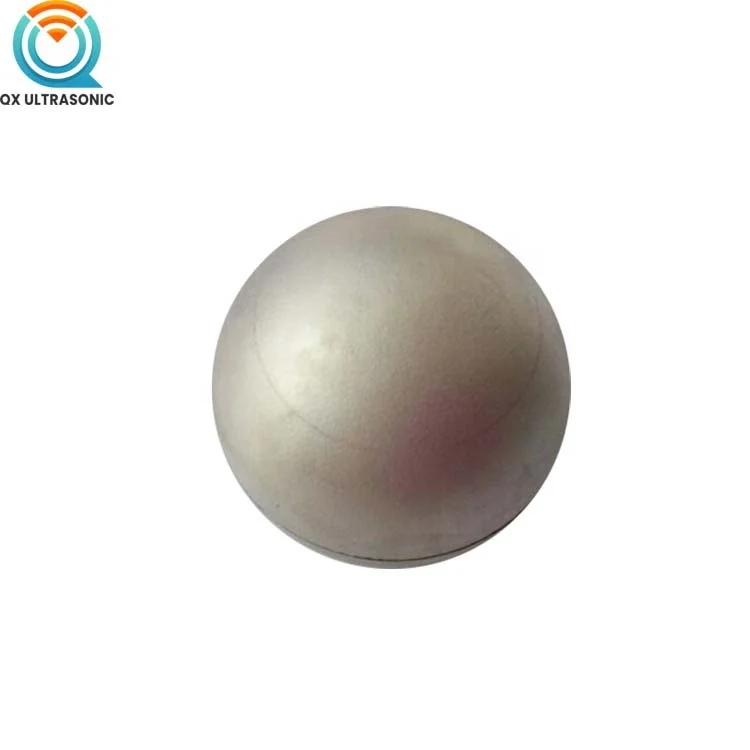

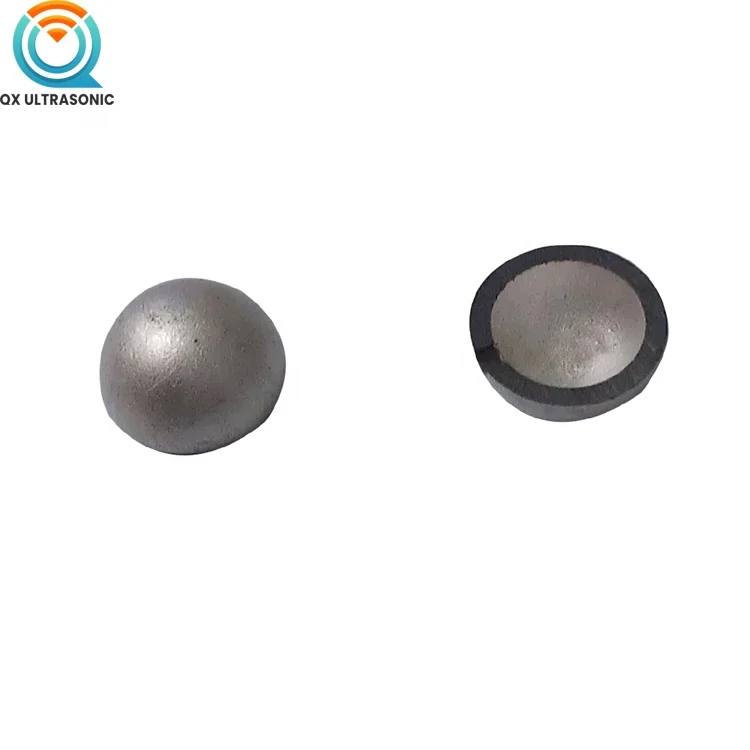

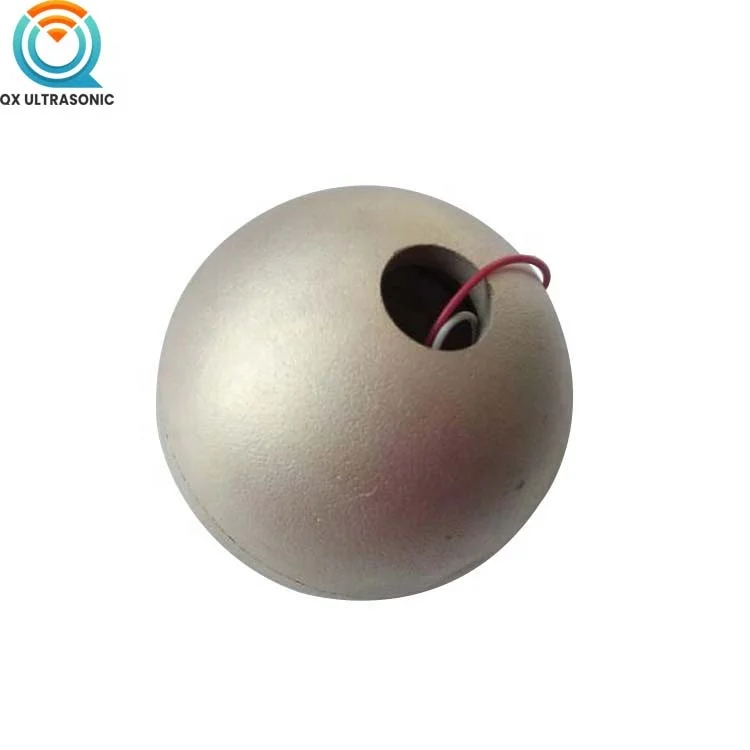

Half Ball and Ball Piezo Ceramics
- Spherical and Hemispherical Piezoelectric ceramic used in the field of Comprehensive acoustic,sonar transducer,high sensitivity detection ultrasound and so on.
| Features of Ball and Half Ball Ceramic Ball |
- Good Stable
- High Sensitivity
- All dimensional
- Accurate measurement
| Piezoelectric Materials of Ball and Half Ball Ceramic Ball |
PZT4,PZT5,PZT8 or other required Piezoelectric Materials.
| Some Standard Size of Ball and Half Ball Ceramic Ball |
(Size=OD*ID*Thickness) (Qm=Mechanical quality factor) (tanδ(%)=Dielectric dissipation factor )
| Size(mm) | Main Specifications | ||||||
| Diameter | Aperture Diameter | Wall Thickness | fr(MHz) | Kr | C(nf) | ||
| P-33 | P-52 | P-81 | |||||
| 5 | 1.5 | 0.5 | 320 | 0.4 | 1.8 | 3.5 | |
| 10 | 3 | 0.8 | 160 | 0.4 | 4.7 | 8.8 | |
| 15 | 4 | 1 | 113 | 0.4 | 9.2 | 17.3 | |
| 20 | 5 | 1~1.5 | 77 | 0.4 | 17.0 | 32.0 | |
| 25 | 5 | 1~1.5 | 61 | 0.4 | 17.4 | 32.8 | |
| 30 | 6 | 1.5~3 | 50 | 0.4 | 23.5 | 44.3 | |
| 40 | 7 | 2~4 | 38 | 0.4 | 34.3 | 64.6 | |
| 50 | 8 | 2~4 | 30 | 0.4 | 54.8 | 103.2 | |
| 12.5 | 3.5 | 2~5 | 83 | 6.2 | 3.7 | ||
| 25 | 8 | 2~5 | 26.2 | 15.6 | |||
| 37.5 | 10 | 2~5 | 17.7 | ||||
| 50 | 12 | 3~6 | 25.5 | ||||
We can customiz you required size piezoelectric ceramics.
If you are interested in our product,
Pls just feel free to send us your inquiry.
We wil try our best to quote the competitive price for you!----- Contact Us Now
| Related Piezoelectric Ceramic |
| Some Technical Questions of Piezoelectric Ceramic |
1.The oscillation frequency of piezoelectric ceramics, mainly related to what?
- Oscillating frequency of piezoelectric ceramics, its related factors, the main is a driving power frequency, driving mode and the drive current .
- In addition, the capacitance characteristics of piezoelectric ceramics are also related.Therefore, based on this, in the consideration and decision of frequency, these four factors are indispensable and can not be missed.
2.Can all the piezoelectric ceramic chips produce ultrasonic waves?
- the answer is no, because, if we want to generate ultrasonic waves?the liquid water atomized particles frequency, driving frequency, and center frequency of the transducer should be the same. If this three frequency can not be consistent. It will generate other physical effects.
3. When we are welding the cable on the surface of piezoceramics, what you need to be noticed?
- Welding temperature, not too high.
- Welding time, not too long. In general.only a few seconds.
4.In the ultrasonic transducer, the thickness of the piezoelectric ceramic plate vibration and radial vibration, which one is more efficient?
- compare to this two vibration types, from the professional point of view, thickness vibration is more efficiency.
- However, if there is a conditional limit, there is only one radial vibration.
More Information of Piezoelectric Ceramic. Pls Contact Us Now
Feedback
Our Services
Packaging & Shipping
FAQ
Q: Delivery Time
A: Based on the order quantity, the goods will be sent out within 2-7 days.
Q: Payment
A: T/T,W esternUnion,L/C,Paypal
Q: Quantity guarantee
A: All products will have been strictly Quality insepected before packing.
Q: Shipping
A: We have strong cooperation with DHL,TNT,UPS,FEDEX,and shipping agent for air and sea.
give the economic freight according to goods weight.
Q: Wealth of experience
A: Professional sercive.choose us,you will do the trade more easily.
Q: Good Service
A: Excellent team to offer the efficient and professional reply.
Q: Technical Problem
A: Provide Professional Technical Support.
Company Information
Похожие товары
Пьезоэлектрический генератор тумана, пьезокерамика для распыления
2,60 $
Более дешевый высокое качество инфракрасный соты керамическая плита горелки
Пьезовибродатчик с сертификатом CEC для продажи, ультразвуковой датчик для красоты.
Пьезоэлектрический ультразвуковой распылитель, распылитель для промышленного ультразвукового увлажнителя, пьезоэлектрический распылитель
2,60 $
Пьезокерамический элемент разных размеров 15 мм 20 мм 27 мм 35 мм 50 мм
Пьезо диск 35 мм латунь керамическая пластина зуммер пьезо

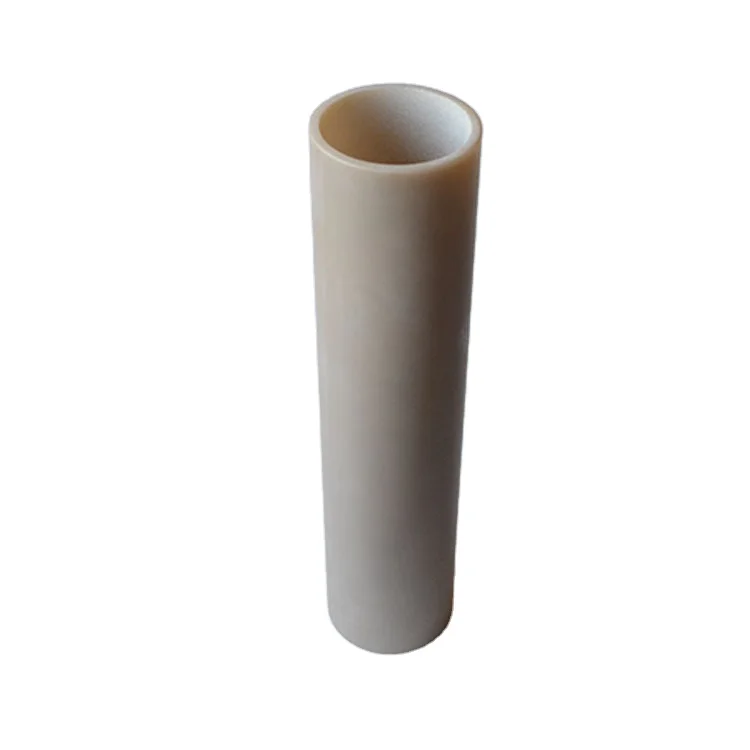

Китайские производители, керамическая облицовочная труба с высокой теплопроводностью, трубка из нитрида алюминия CIP
