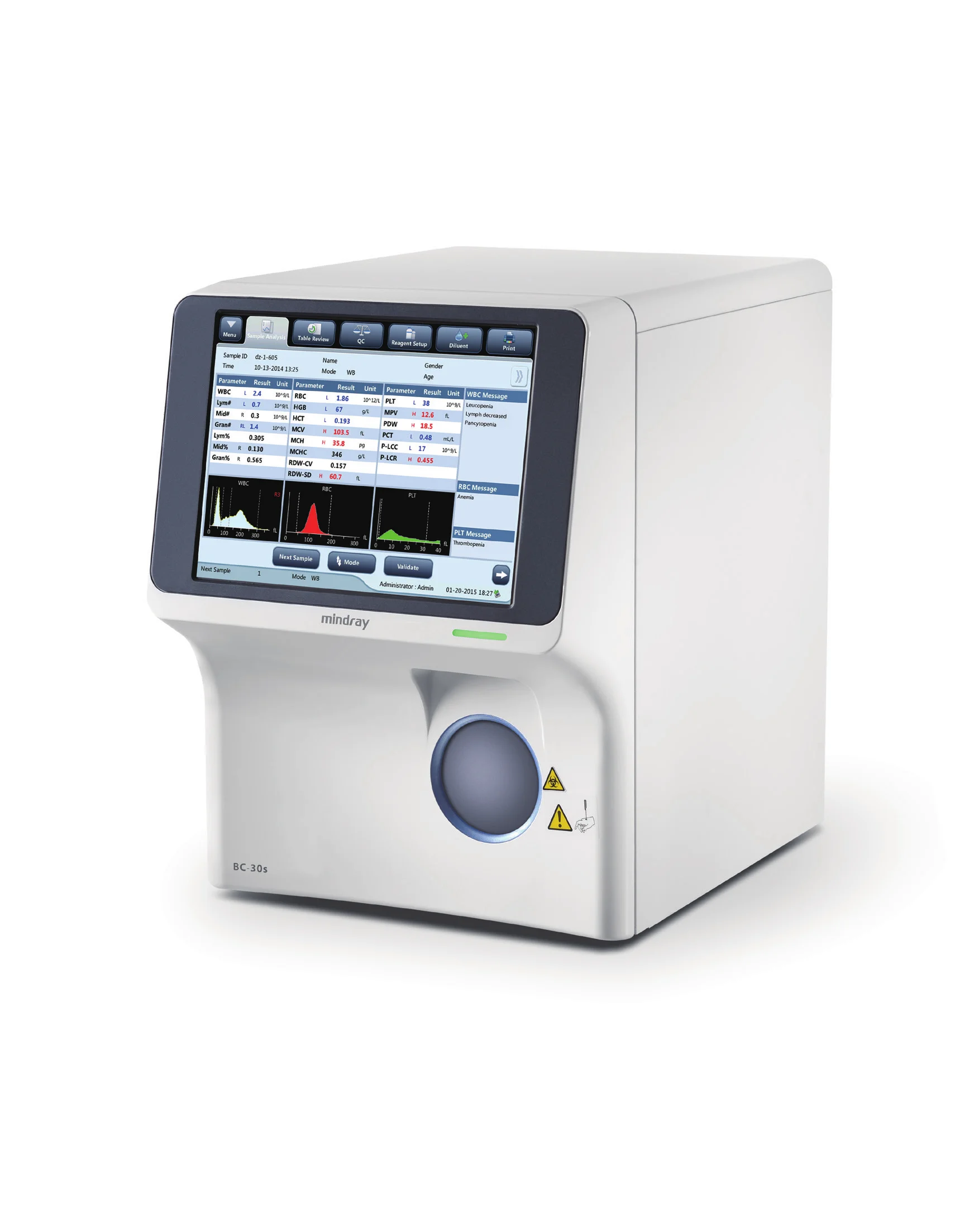

Испытательная машина Mindray cbc bc 10

Mindray cbc test machine bc 10

Technical Specifcations:

Impedance method for WBC, RBC and PLT counting

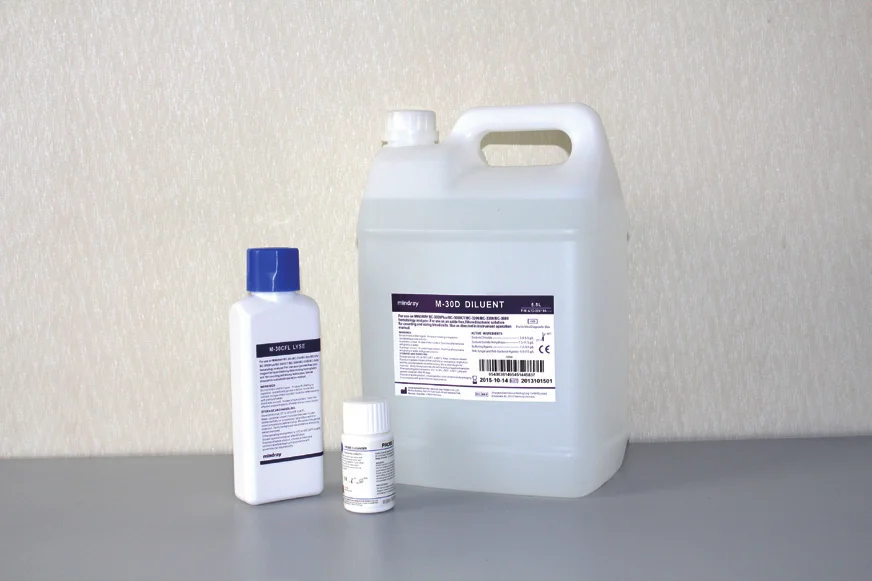

Cyanide free reagent for hemoglobin test

20 parameters: WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC,

HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR

3 histograms for WBC, RBC and PLT

Sample Volume

Prediluted mode ≤20μL

Whole blood mode ≤9 μL

Parameters

Parameter Linearity Range Precision (CV %) Carryover

WBC(10 9 /L) 0-100 ≤3.5% (4.0-6.9) ≤0.5%

≤2.0% (7.0-15.0)

RBC(10 12 /L) 0-8.00 ≤2.0% (3.50-6.5) ≤0.5%

HGB(g/L) 0-280 ≤2.0% (100-180) ≤0.5%

MCV(fL) ≤1.0% (70.0-110.0) ≤0.5%

PLT(10 9 /L) 0-1000 ≤5.0% (100-500) ≤1.0%

Throughput

30 samples per hour

Display

8.4 inch TFT Touch Screen

Multi-language

Chinese, English, Spanish, Portuguese, Russian, French, Bahasa

Indonesia

Data Storage Capacity

Up to 50,000 results including numeric and graphical information

Communication

LAN Port supports HL7 protocol

Support bi-directional LIS

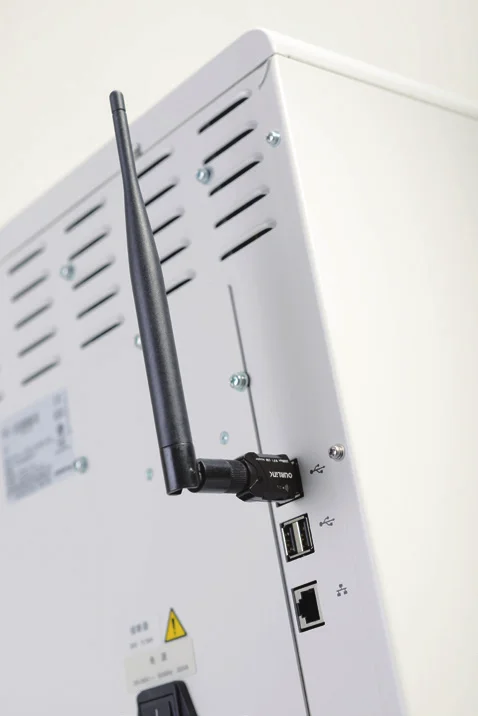

Interface

4 USB ports (for external printer, software upgrade, barcode reader,

external WIFI, keyboard and mouse), LAN port (1)

Printout

Thermal recorder, 50 mm wide paper, various printouts formats

Power Requirement

Temperature: 15°C~30°C

Humidity: 10%~90%

Air pressure: 70kPa~106kPa

Power Requirement

(100V-240V)±10%

≤180VA

(50Hz/60Hz) ±1Hz

Dimension and Weight

Dimension: Depth (410 mm) x width (300 mm) x height (400 mm)

Weight: ≤20Kg

1).How to order your product?

When you are ready to order, please contact us to confirm current prices, payment arrangement, availability, and delivery time of your medical equipment or accessories. Whenever possible, we request a hard copy purchase order to ensure that your order is processed properly.

2).What's your product guarantee?

Normally we offer 24 months warranty, and lifetime maintenance. We can also extend the warranty time per client's request.

3).Does your product has any certificate?

Almost all our medical equipment is CE, ISO approved
4).What's your payment terms?

We can accept T/T,Western Union, Money Gram, Paypal, Alibaba Trade Assurance, L/C,cash etc

5).What's your product lead time?

Normally all our medical equipment are in stock, so we can deliver goods within 3 workdays after receipt payment.

6).How to maintenance the product if it has problem?

We have professional engineers,they will solve your problem by communicating with skype or phone. If the machine is totally broken and can not work, send it back to us and we will send a new one to you.

7).What's your training policy?

Medsinglong offers free product training for clients.Clients can choose video,voice,email,skype for online training.Moreover, Medsinglong has client training courses every year, client can visit Medsinglong for face to face training.Meanwhile,Medsinglong support training in client's office as required.
