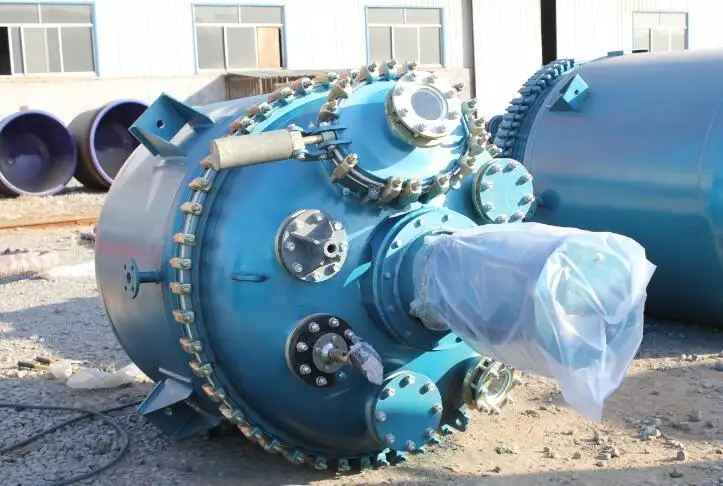

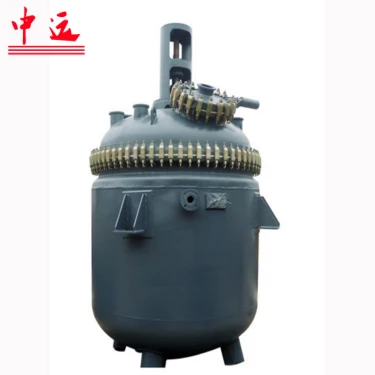

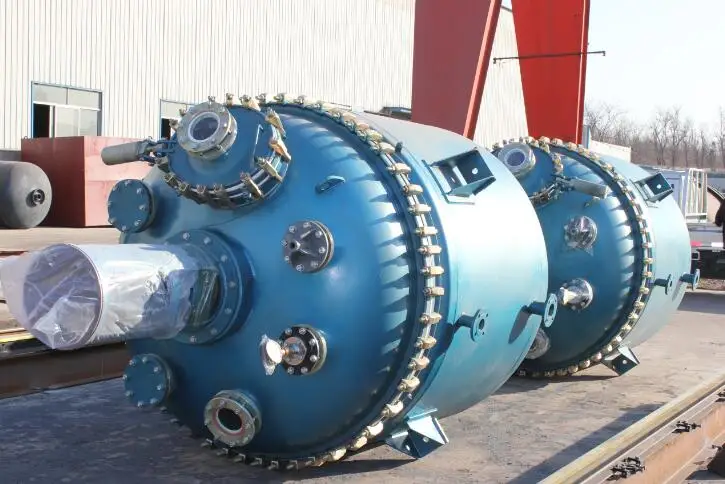

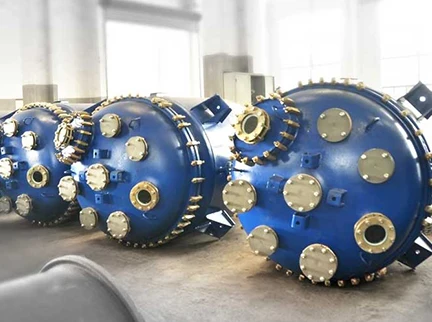

 Glass-lining Reactor

Brief introduction
Glass-lined equipment is a kind of vessel whose main body is made of high quality carbon steel lined with special silicate glass by fritting as a high temperature nearly 800 degree centigrade. It has mechanical strength like steel-made vessel but better corrosion resistance. It is irreplaceable with stainless steel, engineering plastic and other alloy steel materials under a certain medium and temperature at corrosion resistance.
It is also indispensable and economic corrosion resistance equipment for hydrolysis, neutralization, crystallization distillation evaporation and storage in industries of production of pharmacy, chemical, dyestuff, organic synthesis, foodstuff, pesticide and defense etc..
Specifications:
1). Capacity of Glass lined reactor with motor :5 to 50000Liter
2). Structure: Open type (k-type) or closed type( F-type)
3). Material: Vessel: stainless steel, carbon steel, mild steel with glass layer inside surface; Jacket: Mild steel.
4).Design pressure:Vessel=0.2MPa,0.6MPa,1.1MPa Jacket=0.6MPa
5).Agitator:Different Types(Optional)
6).Reducer:Vertical Type
7).Temperature: 0 to 200 . Degree°C.
8).Glass layer thickness: 0.8 - 2.0mm
9).Cool shock: 110 °C.;Thermo-shock: 120 °C.
10).Glass lined reactors with design pressure greater than 0.6MPa inside the vessel shall be ordered separately.
11). Accessories:
We can supply a complete set of glass lined reactor generally with motor with Reducer, Seal (optional: Stuffing box;.Single Mechanical seal; Double mechanical seal ), Agitator, Thermometer pocket, bottom discharge Valve
12). Properties and Advantages:
    1. Corrosion resistance: organic or inorganic acid, organic solvent and weak alkaline corrosion (not including hydrofluoric acid, containing fluorine medium, phosphoricacid, and alkali concentration greater -than 30% and temperature greater-than or equal 180 Degree .)
    2. Pressure resistance: a) Packing box: vessel: less- than or equal 0.4MPa; Jacket:0.6MPa ) Single Mechanical seal: vessel: equal or less than 0.4Mpa Jacket:0.6MPa c) Double mechanical seal: vessel: 0.6Mpa, Jacket:0.6MPa

Technical parameter:

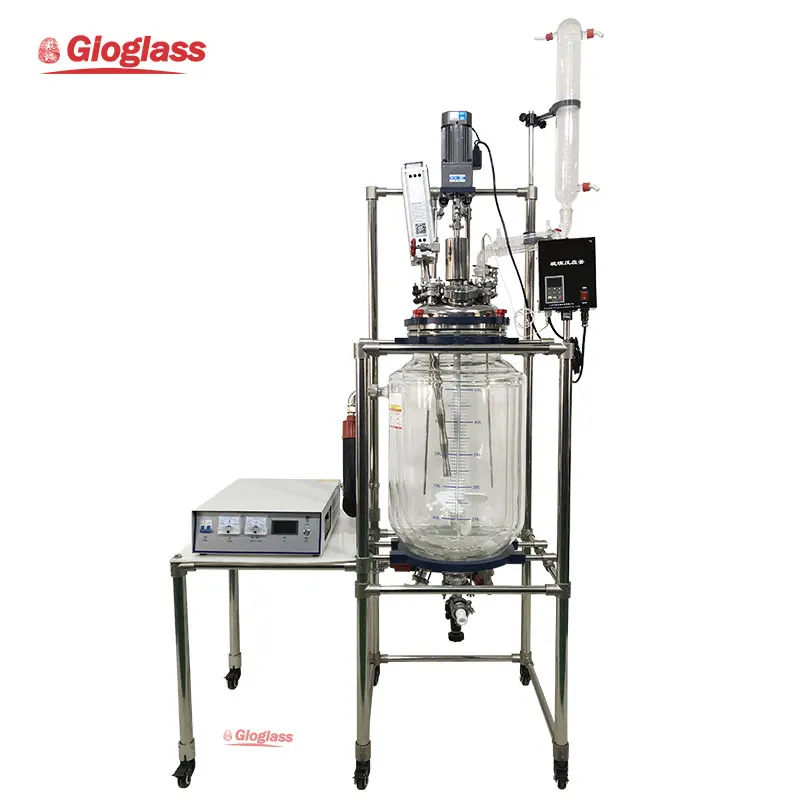

Pictures:
