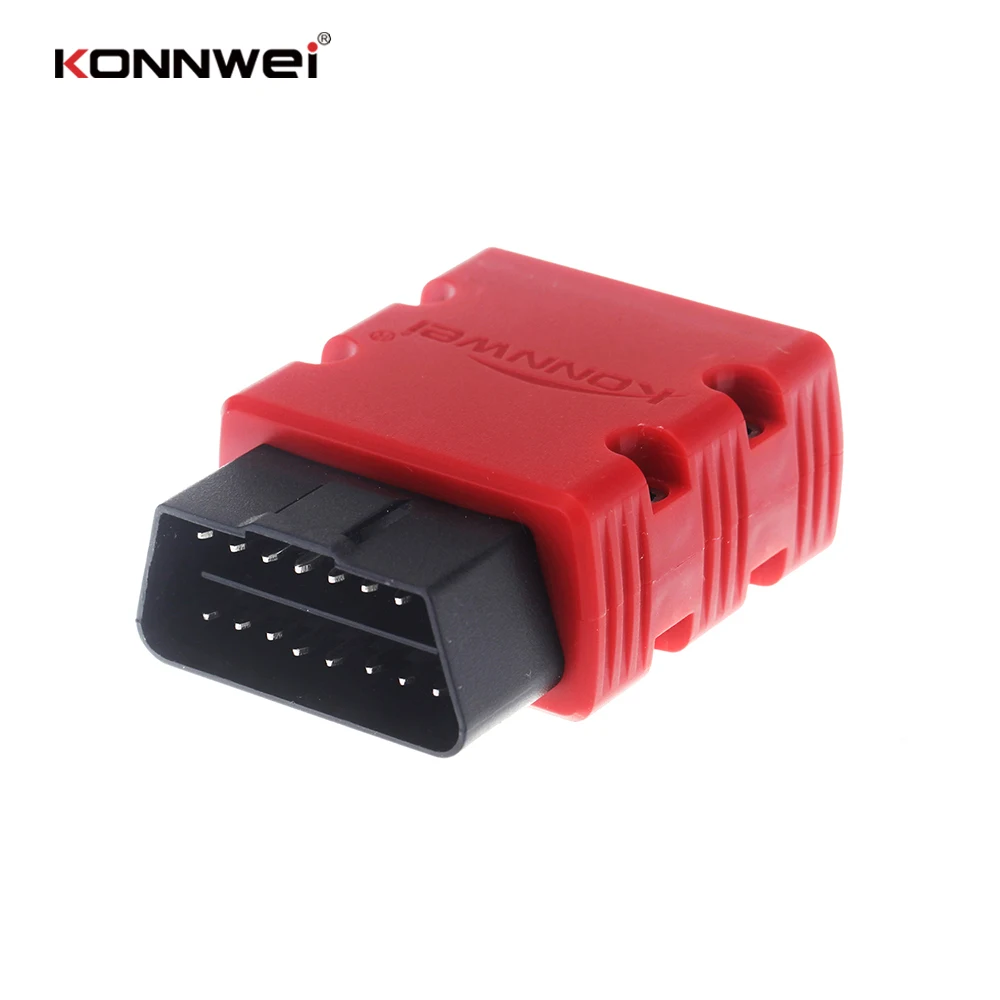

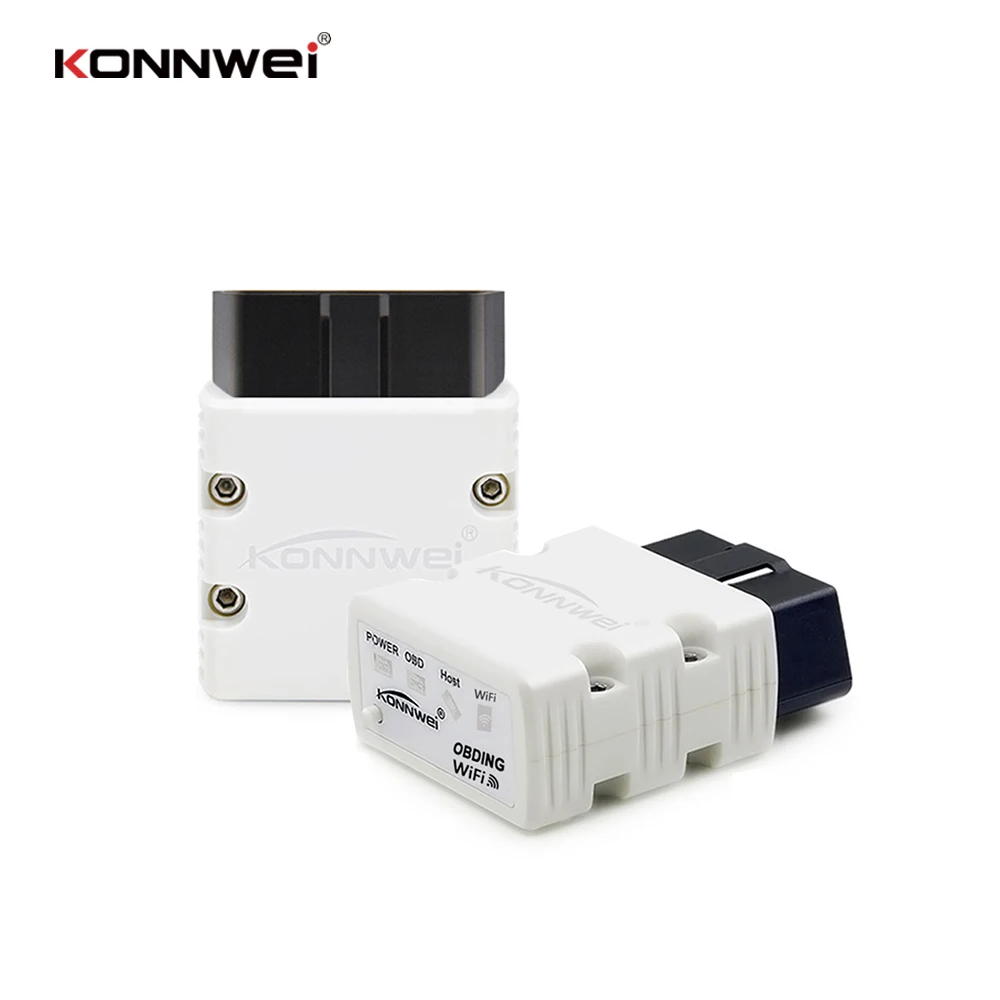

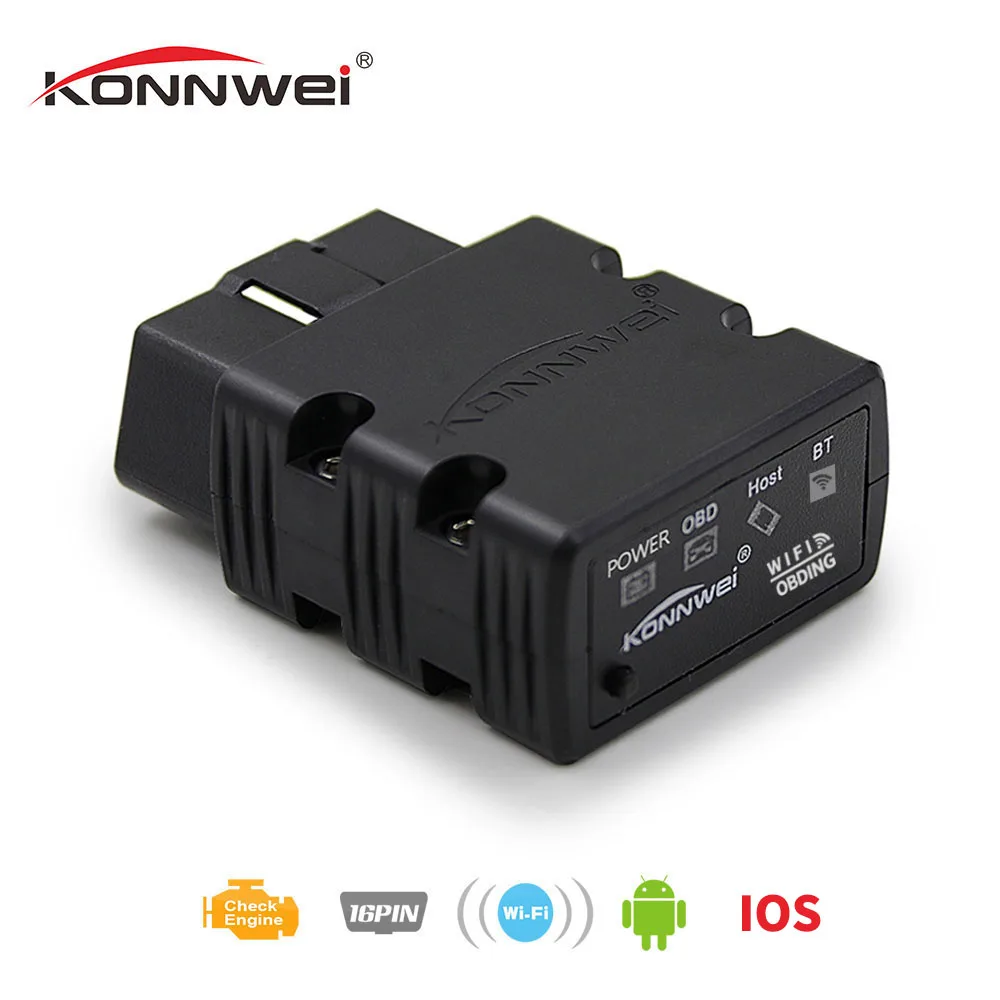

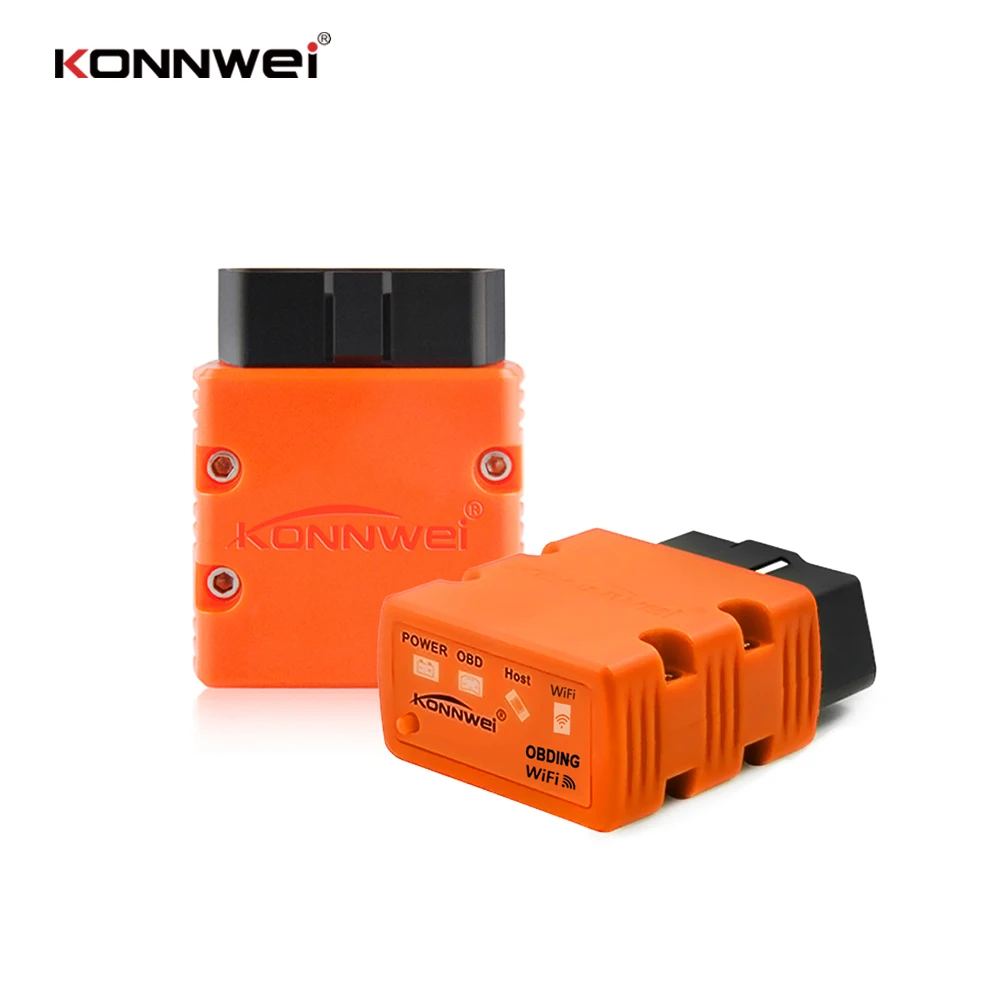

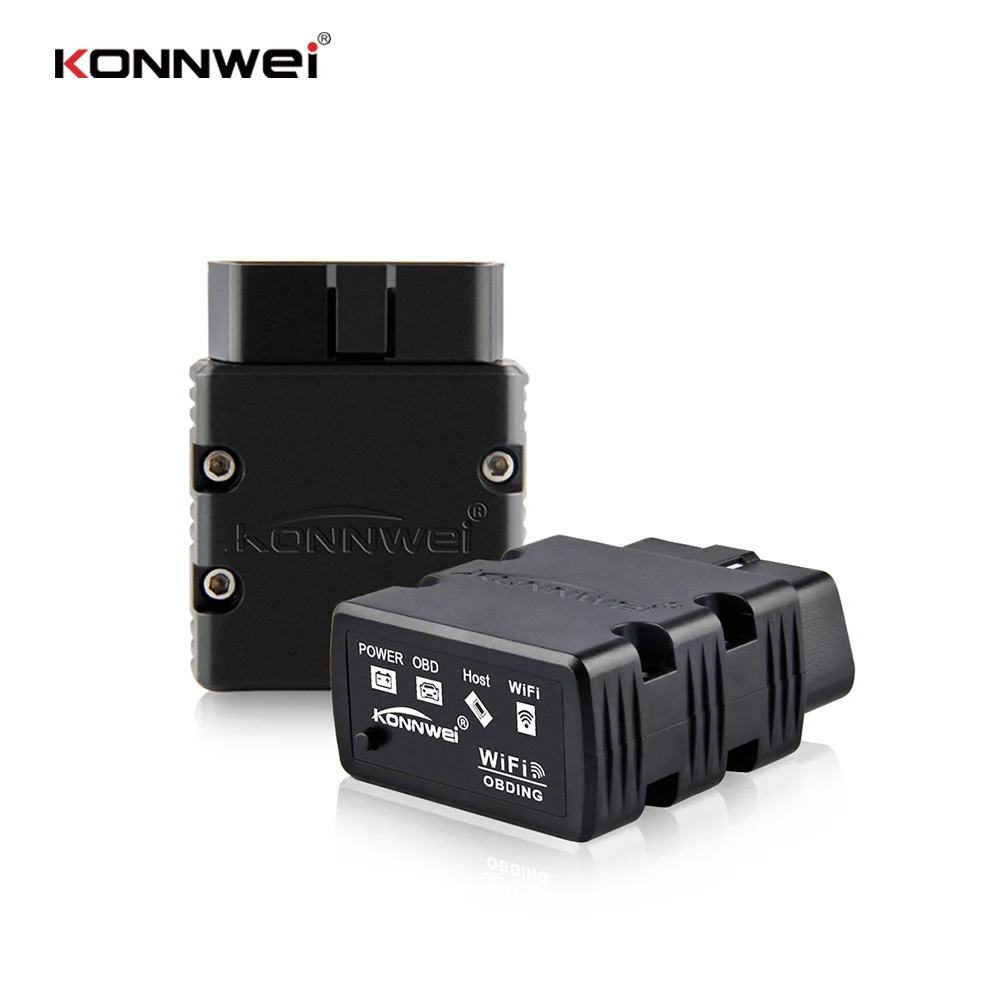

KONNWEI KW902 WIFI ELM327 Auto OBD2 Code Reader Scanner MINI Diagnostic Scan Tool Work For IOS And Android

KONNWEI KW902 WIFI ELM327 Auto OBD2 Code Reader Scanner MINI ELM327 KW902 WIFI Diagnostic Scan Tool Work  For IOS And Android

Specification:

SSID: CLKDevices

Port: 35000

Range: 50 ft (Line of sight)

Antenna: Internal

Power Consumption: 0.75 Watts (With Power Switch)

Wifi Standard: 802.11a/b/g

Operating Temperature: -15 to 100 Deg Celsius

Plastic: Automotive Grade

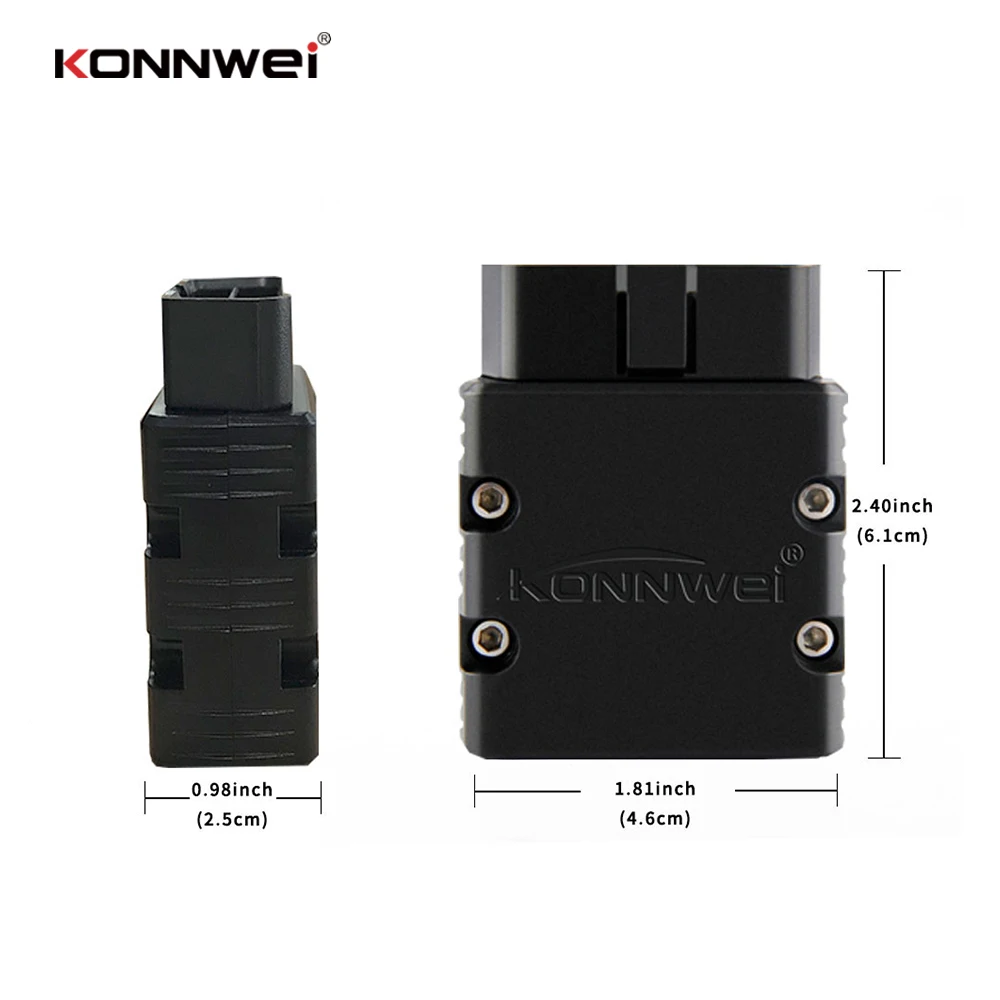

Physical Dimensions: 2.75 x 1.25 x 1.2 inches

Description:

 KONNWEI KW902 WIFI & Bluetooh is following protocols:

(1) SAE J1850 PWM(41.6Kbaud);

(2) SAE J1850 VPW(10.4Kbaud);

(3) ISO9141-2(5 baud init,10.4Kbaud);

(4) ISO14230-4 KWP(5 baud init,10.4 Kbaud);

(5) ISO14230-4 KWP(fast init,10.4 Kbaud);

(6) ISO15765-4 CAN(11bit ID,500 Kbaud);

(7) ISO15765-4 CAN(29bit ID,500 Kbaud);

(8) ISO15765-4 CAN(11bit ID,250 Kbaud);

(9) ISO15765-4 CAN(29bit ID,250 Kbaud).

             KW902 wifi obd2 scanner is able to detect and interpret these protocols automatically. It also provides support for high speed communications and a low power sleep mode. It use AT commands to communicate with a host device (PC, notebook, iPhone, iPod touch, iPad and so on).

        There are plenty of software packages available, which are fully compatible with CLK. Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc.

        You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and very well explained.CLKis measuring only 2.7 x 1.25x 0.9 inches, and it comes attached with a 6 ft OBDII cable for easy installation.

         It also comes included with a power switch built-in to prevent the need for having to constantly disconnect your unit from the OBDII port.It is compatible with 1996 and later vehicles. Connecting to your iPhone / iPod touch is made by WIFI connection in adHoc mode.

          With proper software installed in the host device, you may have following parameters read out from your vehicle:

Function :

Vehicle Speed

RPM

Fuel Consumption*

Engine Coolant Temp

Fuel Pressure

Calculated Engine Load

Throttle Position

Intake Manifold Pressure

Air Intake Temp

Timing Advance

Mass Air Flow

Fuel Level

Barometric Pressure

EVAP System Vapor Pressure

Fuel Trim
