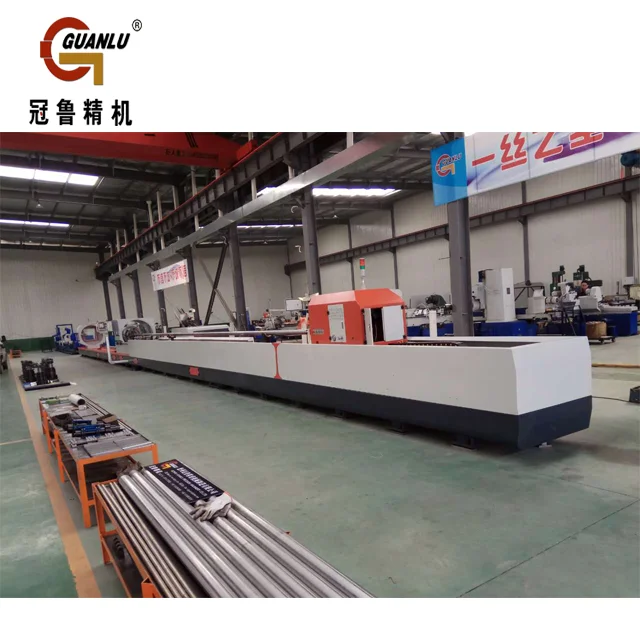

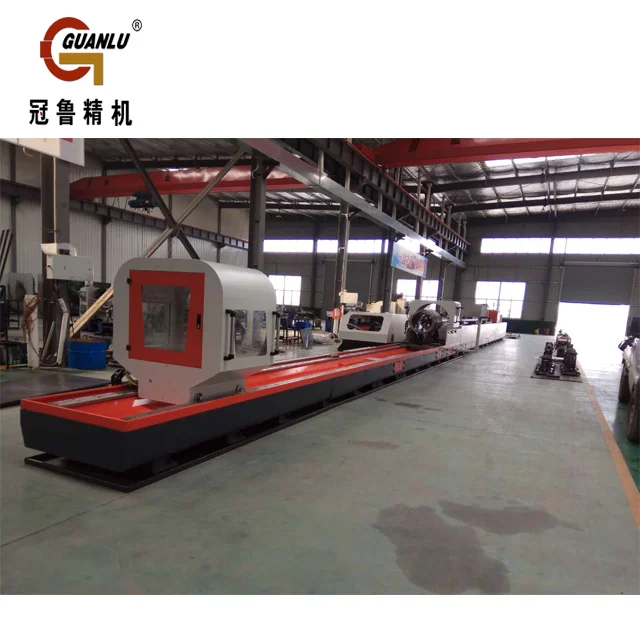

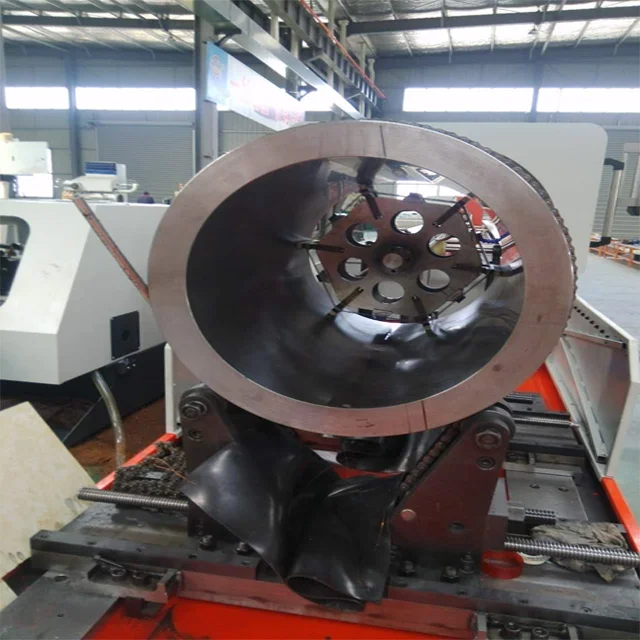

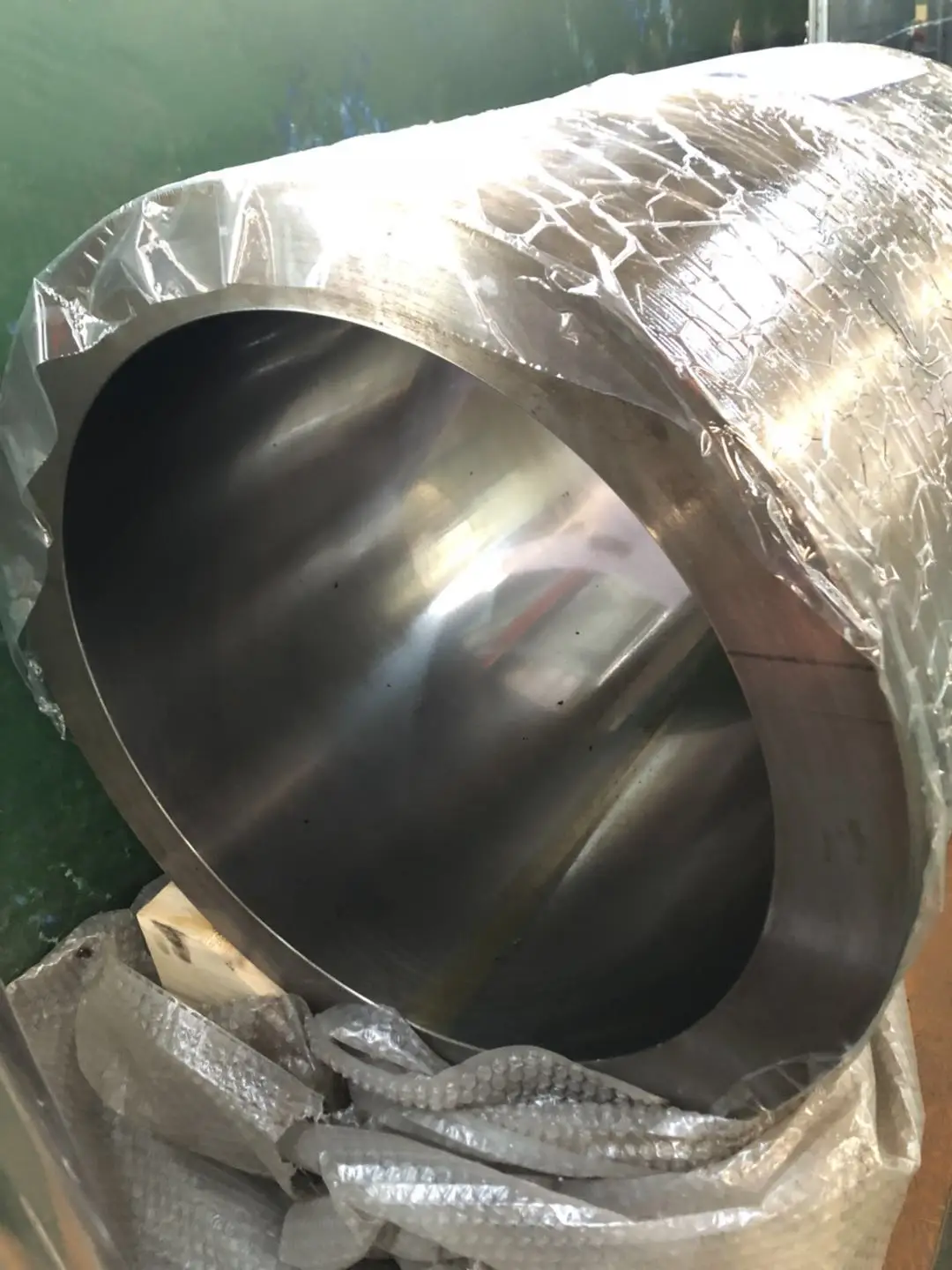

Цилиндрическая горизонтальная машина для заточки глубоких отверстий

Item

Specification

Machine name

Horizontal deep hole honing machine

Machine Model

2M2135×10000mm

Deep hole honing machine diameter range

Φ40-Φ350mm

Deep hole honing length

Max. 10000mm

Center height: carrier body guide surface to honing bar

350mm

Clamping jobs diameter range

Φ60-Φ400mm

Honing box spindle speed range

25-250r/min stepless

Honing box spindle reciprocate speed range

1-20m/min  stepless

Honing box motor power

7.5KW(servo motor)

Coolant pump flow

100L/min(adjustable)

Coolant box volume

950L

Honing head expanding system oil pump motor power(servo control)

0.75Kw

Coolant pump motor power

0.25Kw

Reciprocate motor power

5.5Kw

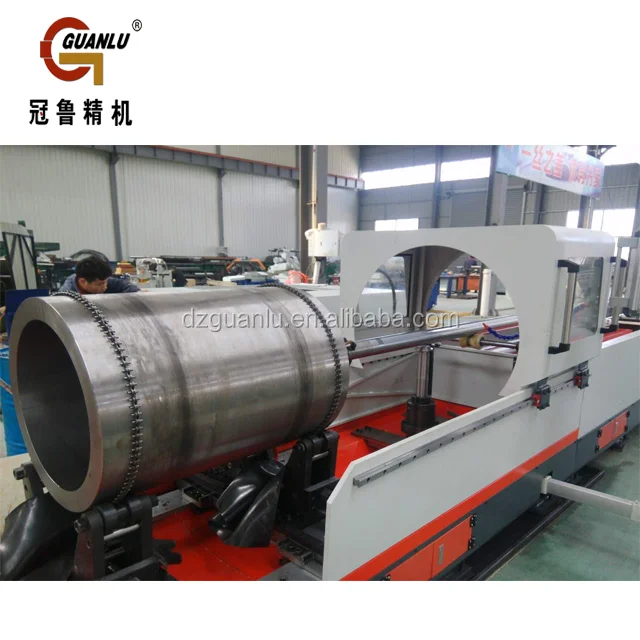

Workpiece clamping mode

Chains clamping

Workpiece location

l V rest and U wheel(depends on the workpiece size).

l Centering the workpiece by adjusting the screw.

Workpiece honing oil infeeding

Honing bar(inside honing oil) delivery and outside honing oil through oil hose.

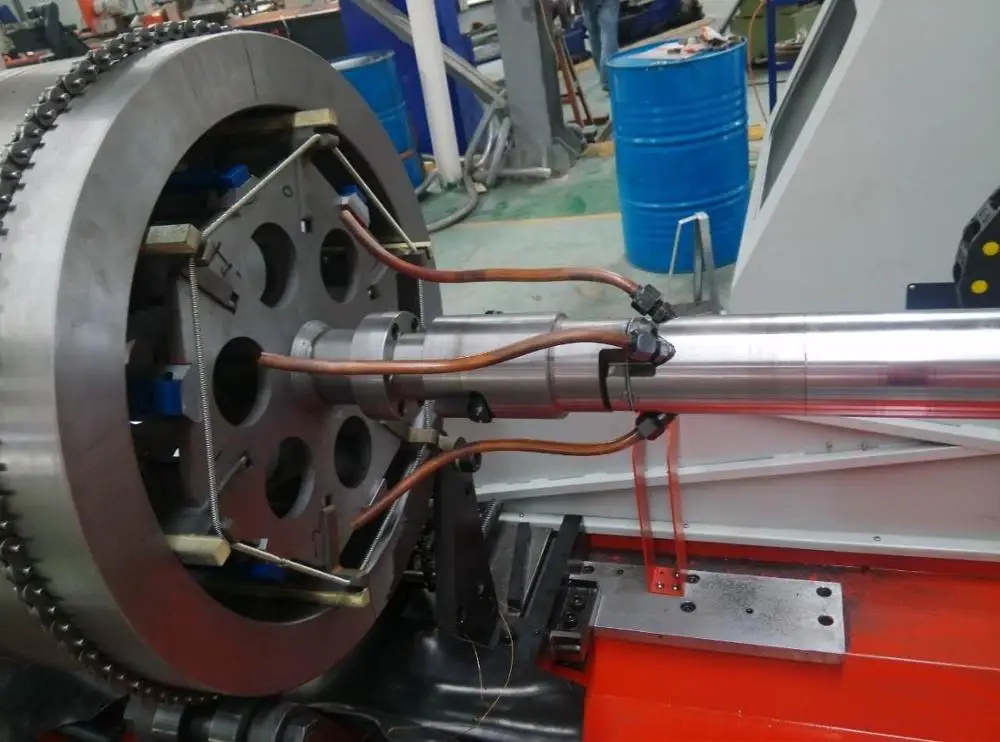

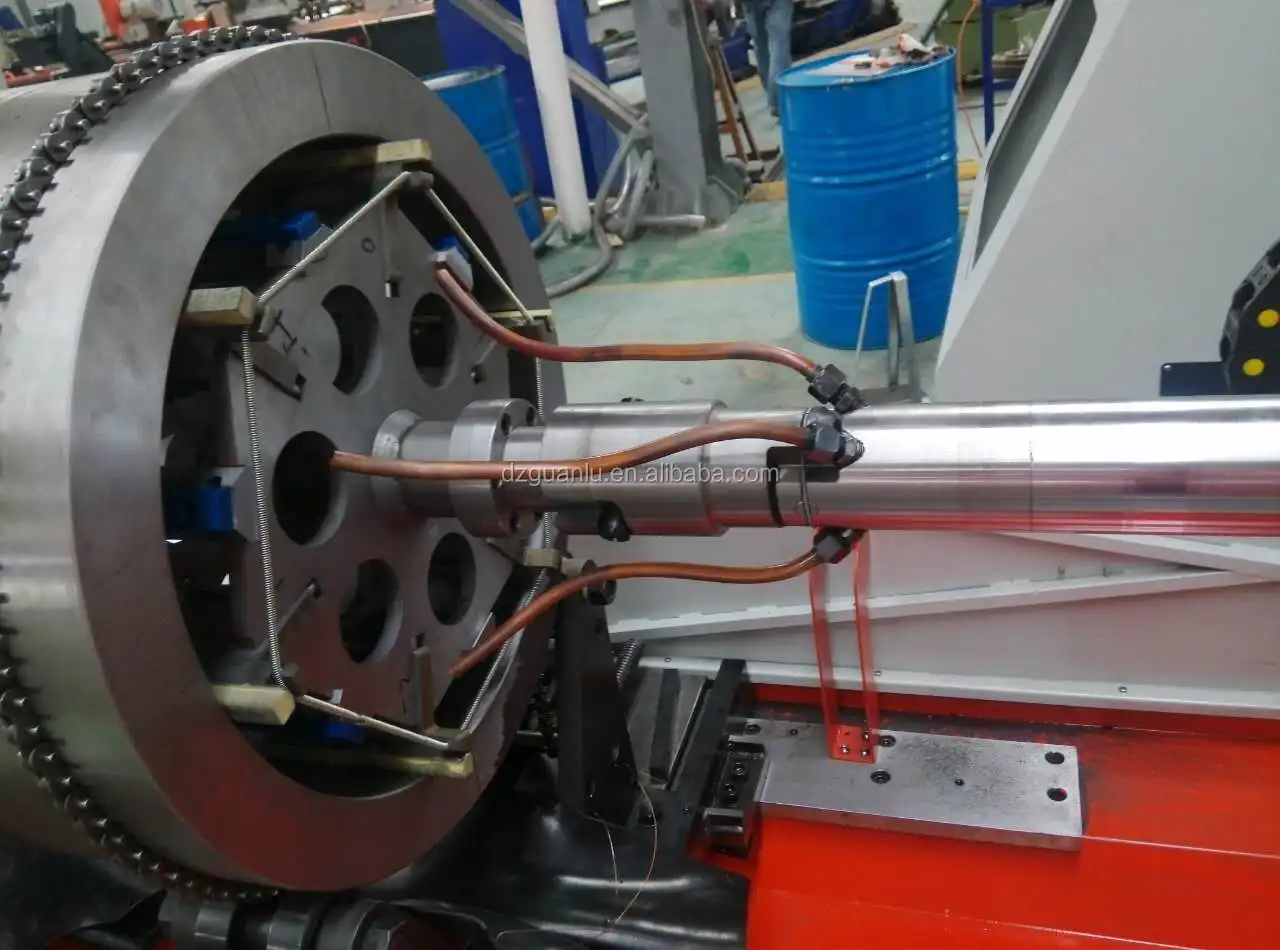

Honing head

l Installed on the honing bar, and the honing bar is driven to rotate and do axial infeeding by honing box.

Honing head drive

Driven though honing box spindle rotation, and do axial motion.

Honing head expansion

by servo motor(0.75Kw)

Honing box

Mounted on carrier.

Honing box motor

7.5KW(Servo motor)

Honing box spindle speed range

25-250r/min stepless

Coolant tank

Floor Mounted

Coolant pump flow

10L/min

Honing head expansion servo motor power

0.75kw

Coolant volume

950L

Coolant pump motor power

0.25kw

Honing head cooling pump

(Inside oil feeding)

Multistage type(inside oil feeding 1.5kw)

Honing head cooling pump

(outside oil feeding)

AB-200(0.75kw)

Paper filter and magnet filtering

20μm level of purity

Honing oil

HY-80(Chinese brand), dynamic viscosity 3-6 cm2 per seconds, flash point: 130 , frozen point: -30census.

Lubrication system

l Honing box is self lubrication system (fill in lubrication oil into honing box, lubrication all parts during gear rotating).

l Round linear lubrication is intermittent lubrication (Single shot type centralized lubrication system).

Lubrication system pressure

0.8MPA

Lubrication tank capacity

1.5L

Oil level sensor

Low level sensing-light alarm and bell alarm.

Lubrication oil type

Mineral base oil.

Machine controlling system

Delta PLC

Adjustment of stroke position

Set position on PLC panel

Operation console

Touch screen colour HMI

Electrical cabinet

Inside the machine base(save space)

Air circulation

Exhaust fan(two sets)

Supply voltage

3 phase,380V, 50HZ(to be confirmed by customer)

Total connected power

About 15KW
