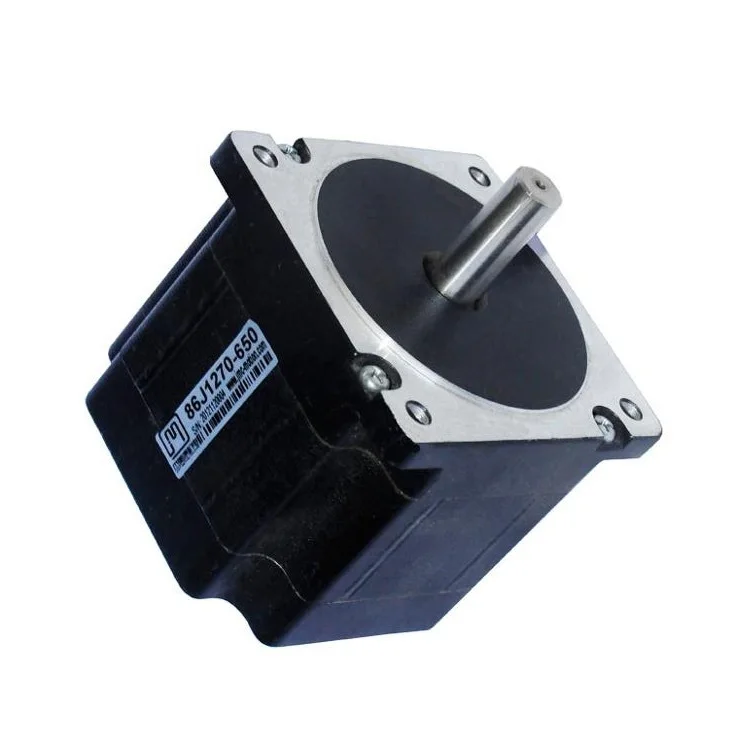

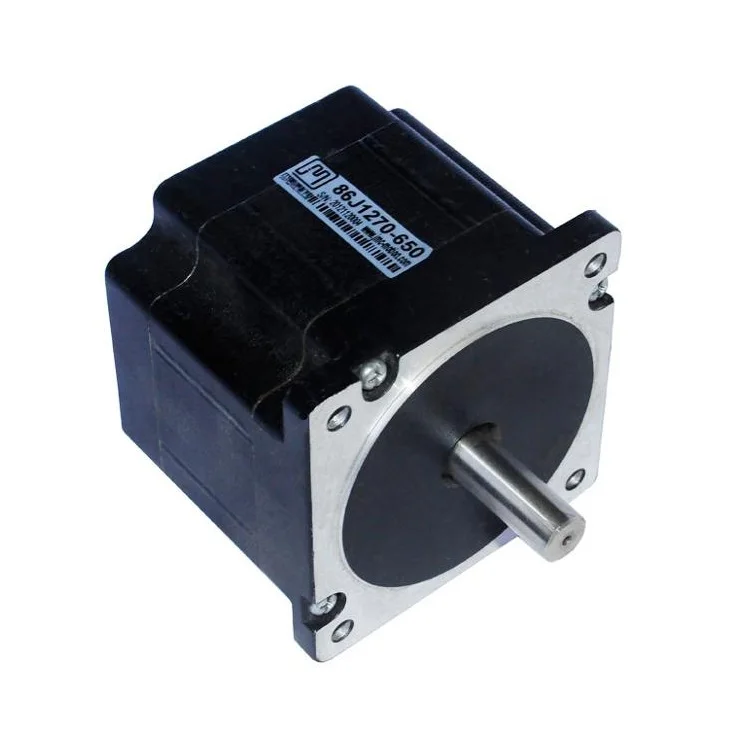

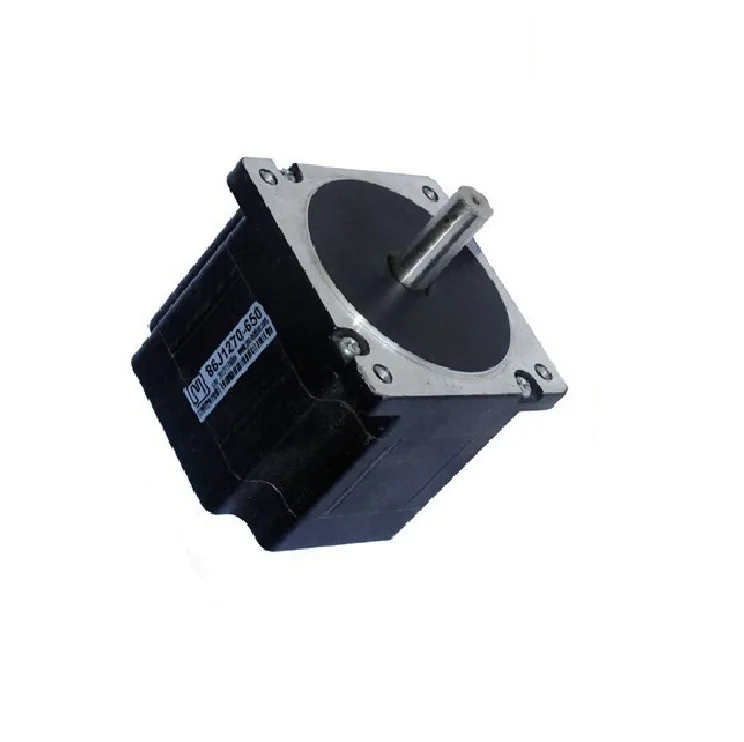

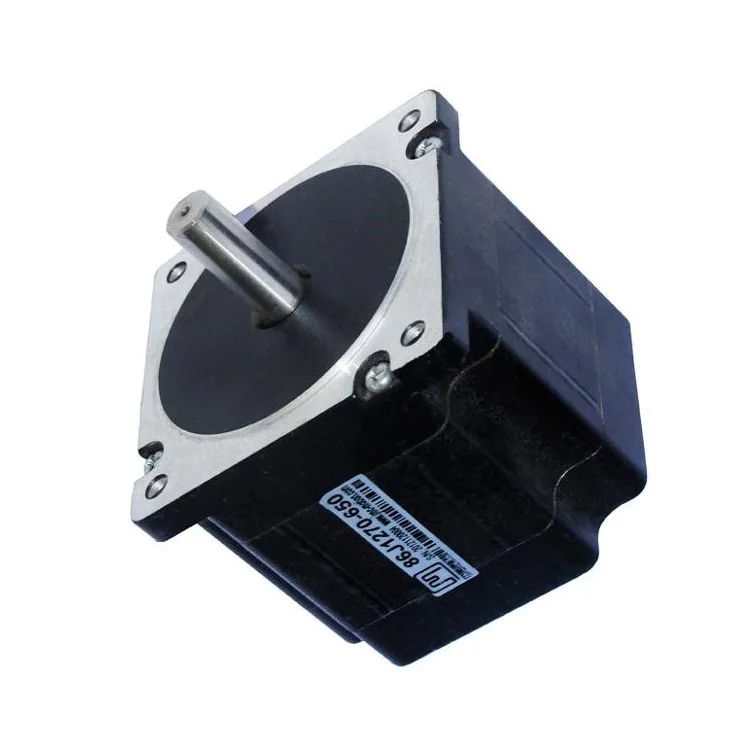

JMC 3 фазный Электрический мотор nema 34 цифровой шаговый сервопривода для станка с ЧПУ комплект

Common ratings

Step angle:1.2^o

Positional accuracy:±/-5%

Number of Phase:3

Temperatuure rise:80^oC Max

Dielectric strength:500VDC

Insulation resistance:1.4Ohm(500VDC)

Radial play:0.06mm max.(load 450g)

Insulating class:B

characteristic

Low Noise

Work Smooth

High Accuracy

High Torque

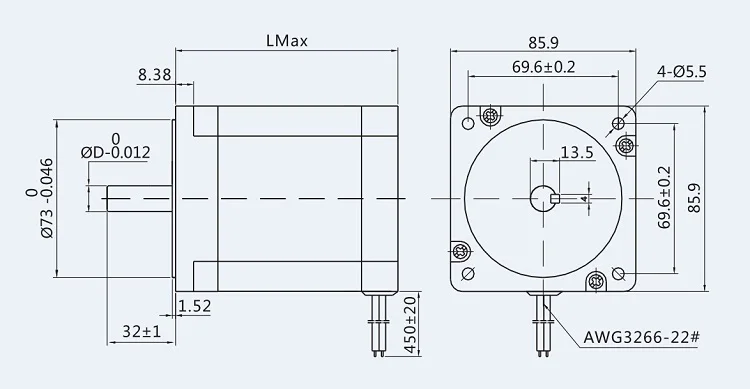

Parameter

 Step angle: 1.2

Nema:34

Holding Torque(N.m) 2.2

Current phase:5.0A

Resistance phase :0.96

Inductance (mH) 2.4

Detent torque(gcm)1000

Rotor Inetria(g-cm):1100

Lead wire No: 6

Weight:1.7kg

Length:70mm

Shaft:12mm

Match driver :3DM860

 Parameter:

,

Every year, we will have booth in many international exhibitions to show our products and meet our customers.

Welcome to see you in next one !

 Shenzhen Just Motion Control Electromechanics Co.,Ltd established in 2007, we have 10 years experiences in the motion cotrol area.

Our main products are stepper motor drives, step motors, AC servo motor systems, integrated step servo motors, integated step AC servo motors,DC brushes and brushless motors and drive systems.we also provide complimentary mechaical products.suchas motor couplings, gearboxes, and linear motions.

Our products are widely used and applied in the following industries:semiconductor,textile, packaging,laser,woodworking, printing,advertising,clothing,marble and ceramic,robotics and military.

Our customers come froms all around the world:European, America, Canada, Middle East,Asia and so on!

Sincerely hope we can have channce to cooperate!

Q1. What are your products can be use to ?

A: Our products can be use in CNC routers ,CNC milling machine ,engraving machine, packaging machine,filling machine, cutting machine, printing machine,laser machine, carving machine, labeling machine and so on.

Q2. What  kind of Payment methods do you accept ?

A: We can accept Paypal ,Western Union ,TT

Q3: What kind of shipping methods do you use ?

A:1)For samples or small batch , air shipping  is recommended . (DHL,Fedex,TNT UPS ,EMS or Aramex) ,We will provide the tracking No. Once we get it after we ship out the products.

2)For mass production or big batch, ocean shipping/sea shipment is recommended .

Q4: What is the lead time of my products?

A: Lead time : For standard samples , 2-5 days will be OK .

For mass production , the lead time depend on the quantities you need .

Note:

Sometimes your local customs may charge tax from you. then you should pay it to get the package, sometimes not have.The exact delivery time is delayed on the post office and customs, we can't control it. If the product is delayed, pls pay more patience to wait and ask us to extend delivery dates for you.

Q5:What is your warranty time ?

A:Warranty time : 12 months. And we provide life-long technical service and after-sale service.

Q6:Can i get a free sample?

A:Sorry, we don’t provide the free sample.
