Кри XTEAWT E0 0000 00000BLE3 светодиодных чипов для High end факел Трековый Светильник направленного света упаковка свет

Optimized for directional, high lumen applications, from indoor and outdoor to portable and lamp retrofits, the XLamp® XT E LED delivers high performance and high reliability in the industry standard XP/XT footprint. The XT E LED offers the benefits of the XT/XP platform compact and proven 3.45 mm x 3.45 mm package and established ecosystem  enabling lighting manufacturers to simplify the design process and shorten time to market. The XT E LED is available in royal blue and white. The XT E White LED offers a high efficacy option. In this document, the term White denotes the white XTE LED without regard to its efficacy. The terms Standard and High Efficacy are used when necessary to differentiate the performace of the High Efficacy XTE LED from the XT E LED without the high efficacy option.

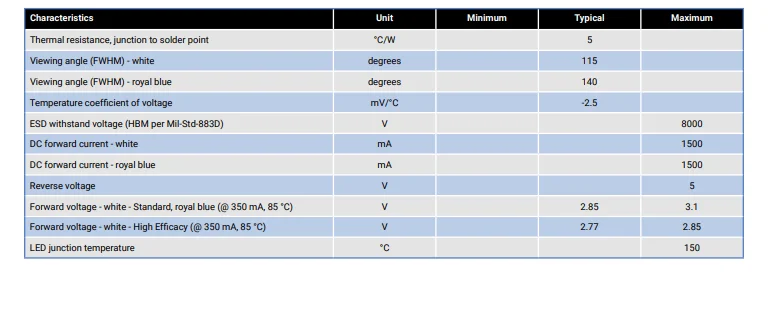

 • Maximum Vf for High Efficacy XTE White: 2.85 V

• Available in 70 80 and 90CRI minimum white

• Binned at 85 °C • Available in 2200 K CCT

• Thermal resistance: 5 °C/W

• Wide viewing angle: 115°to140°

• Maximum drive current: White 1.5 A, Royal Blue 1.5 A

• Electrically neutral thermal path • Vf binning supported for XT E White and Royal Blue • XT E Royal Blue sorted into 2.5nmwavelength bins

• Unlimited floor life at ≤ 30 ºC/85% RH

• Reflow solderable  JEDEC J STD 020C compatible

• RoHS and REACh compliant

• UL® recognized component (E349212)
