Косметическая пластиковая трубка делая

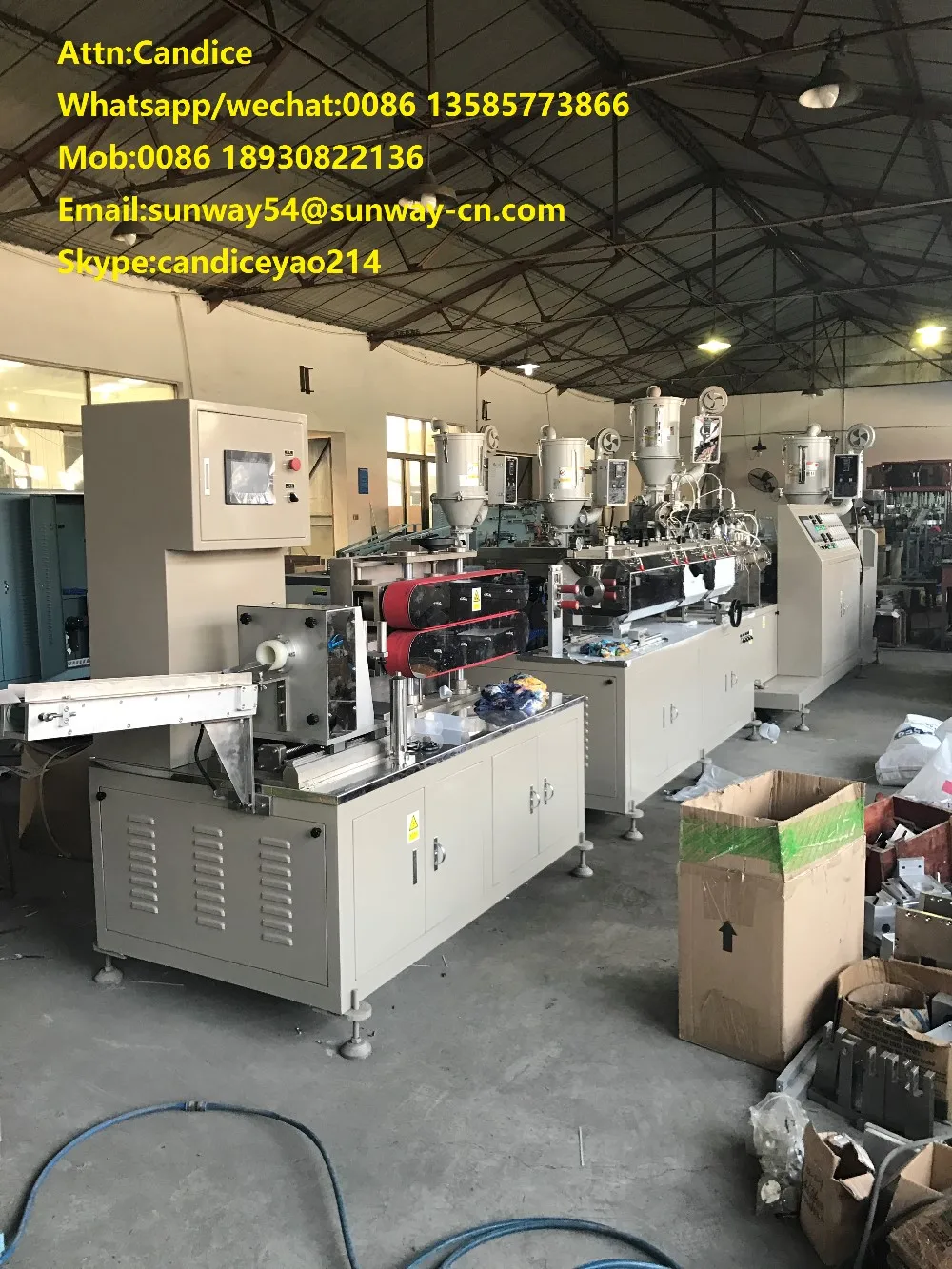

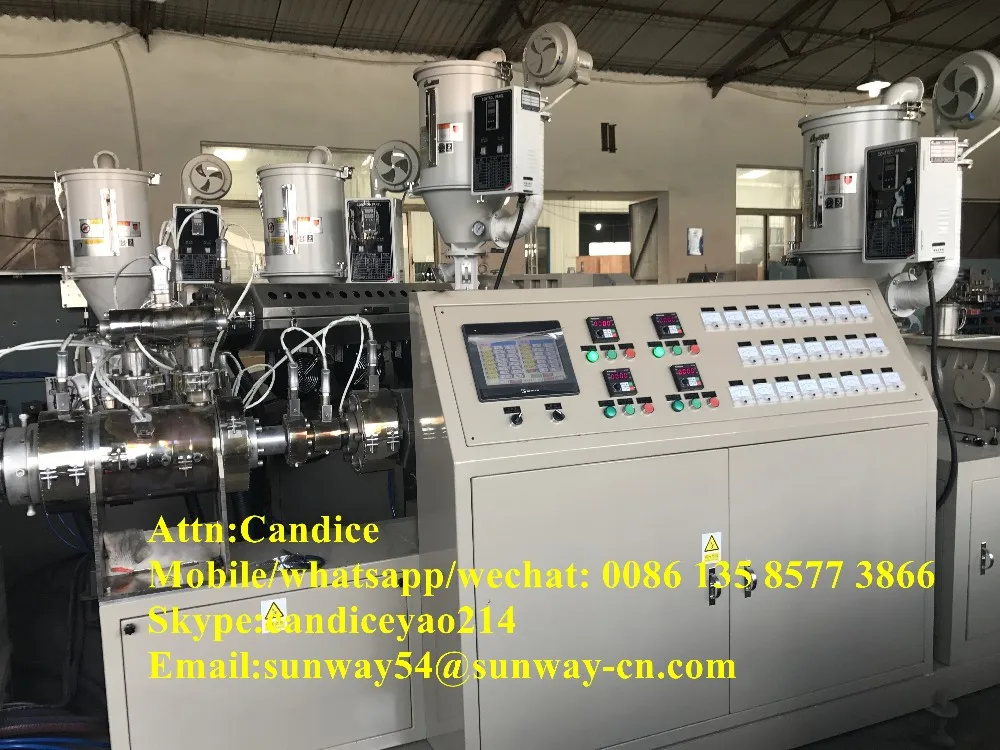

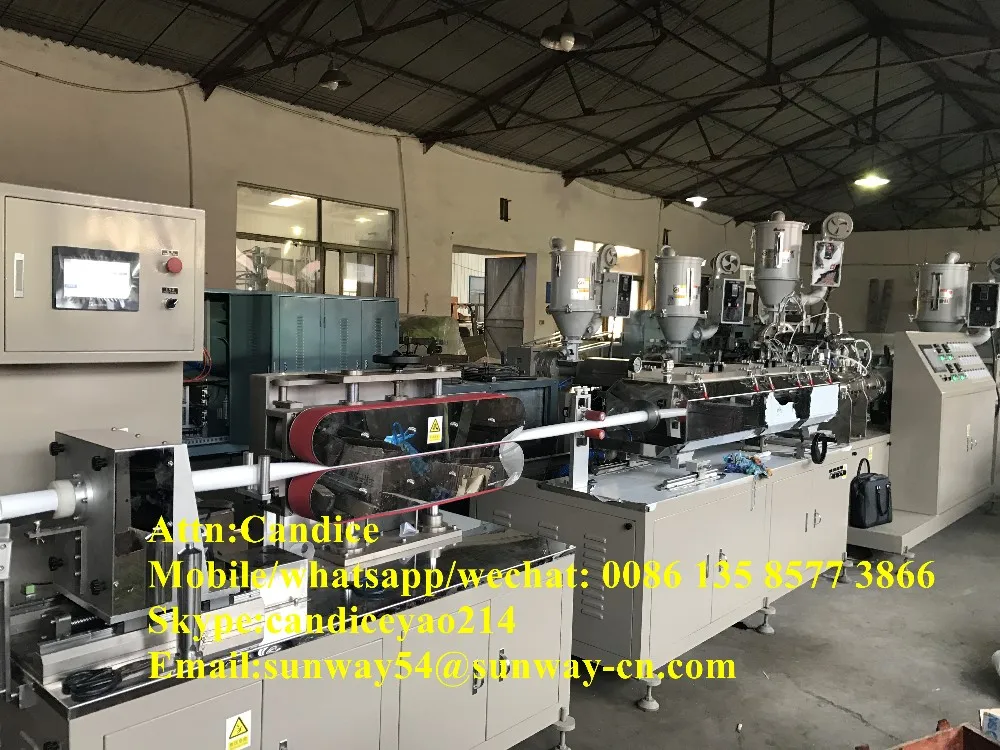

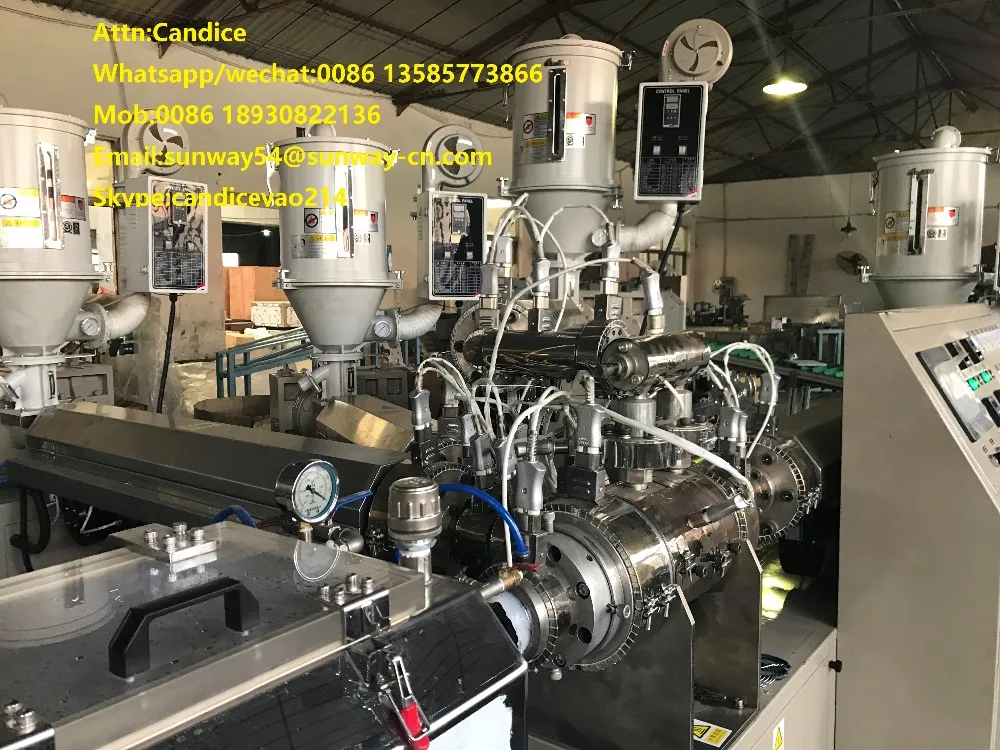

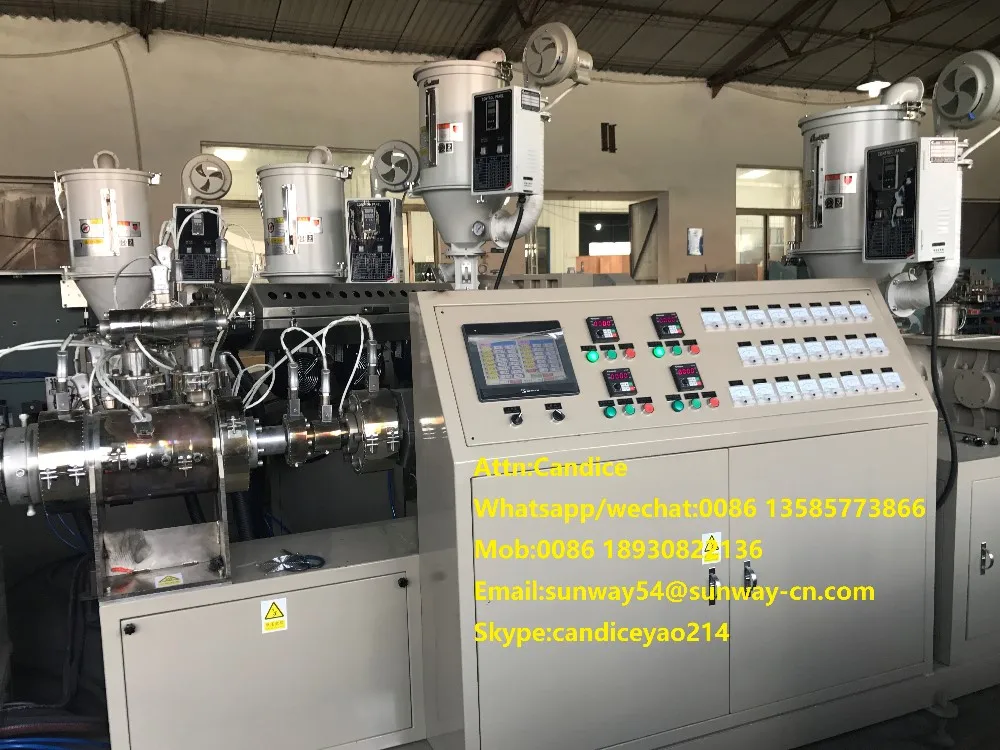

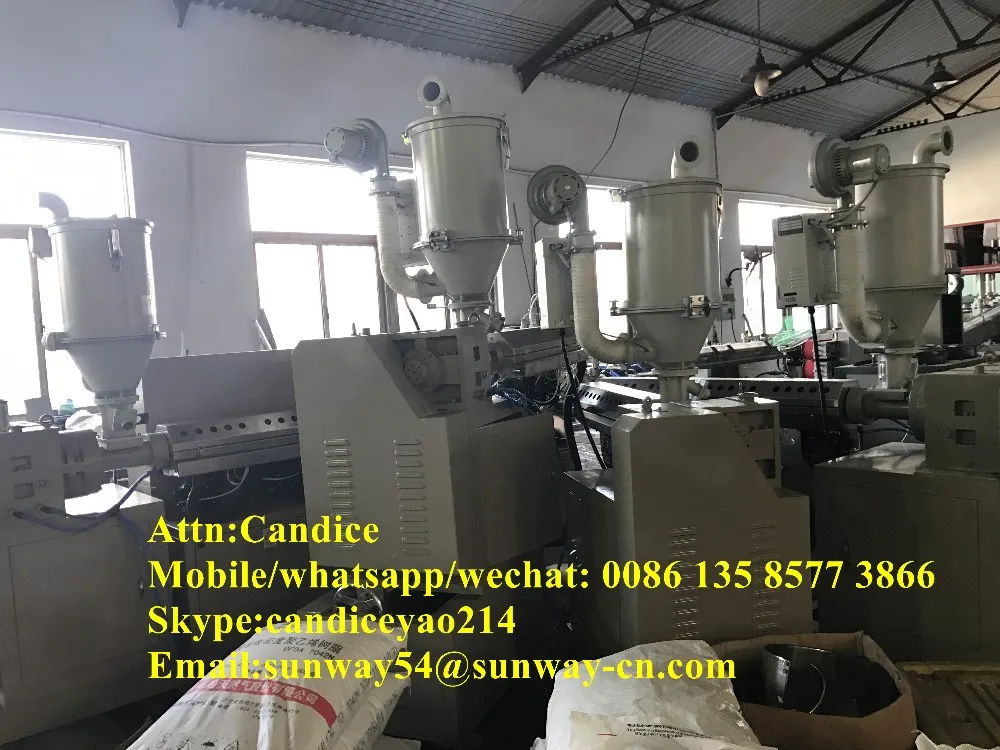

THE FEATURES OF CO-EXTRUSION TUBE

Plastic material has its own characters .In co-extrusion system, we use and combine several kinds of materials. Therefore, the characters of single layer tube can't compete with the complex characters of co-extrusion tube.

1.\tGlossy surface ( using :EVOH/RESIN/PE)

2.\tExtensive colour combination ( using :PE+PEARL/PE+PLGMENT)

3.\tExcellent barrier property (using : PE/TIE RESIN/EVOH/TIE RESIN/PE)

4.\tScratch and dust free (using :LDPE/LDPE/LLDPE)

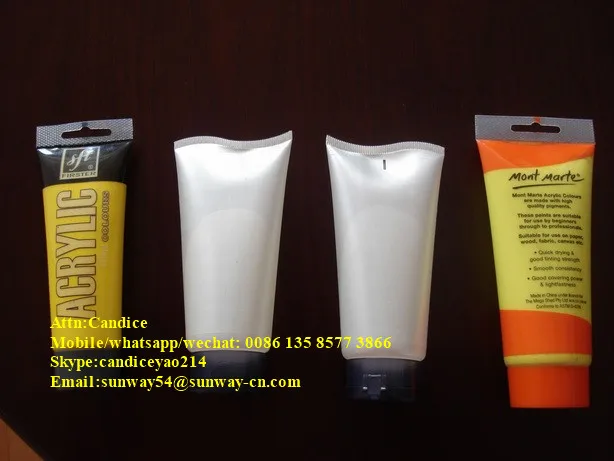

Co-extrusion is used on pesticide container, toothpaste, side window, multicolour, long preservative cosmetic...etc.



MAIN SPECIFICATIONS

1.\tScrew Dia(inner) : φ50mm,L/D:30/1

2.\tScrew Dia(resin) : φ40mm,L/D:28/1

3.\tScrew Dia(EVOH) : φ35mm,L/D:26/1

4.\tScrew Dia(outer) : φ45mm,L/D:32/1

5.\tScrew Type :Full Flight

6.\tMotor :7.5HP×1pcs, 5P×2cs, 10×1pcs

7.\tWater Consumption:60L/min

8.\tPower Consumption:95.5kw

9.\tExtrusion Linear Speed:8m/min(φ50mm)

10.\tCutting Speed:100pcs/min

11.\tTube Dia Range: φ19~60mm

12.\tMachine Size:6800×3500×2300mm

13.\tTotal New Weight: approx 5200kg

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Beverage bottle, cosmetic bottle, medicine bottle, jar etc.
Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

* Inquiry and consulting support.

* Sample testing support.

* View our Factory


After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas

A: We are factory.

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
