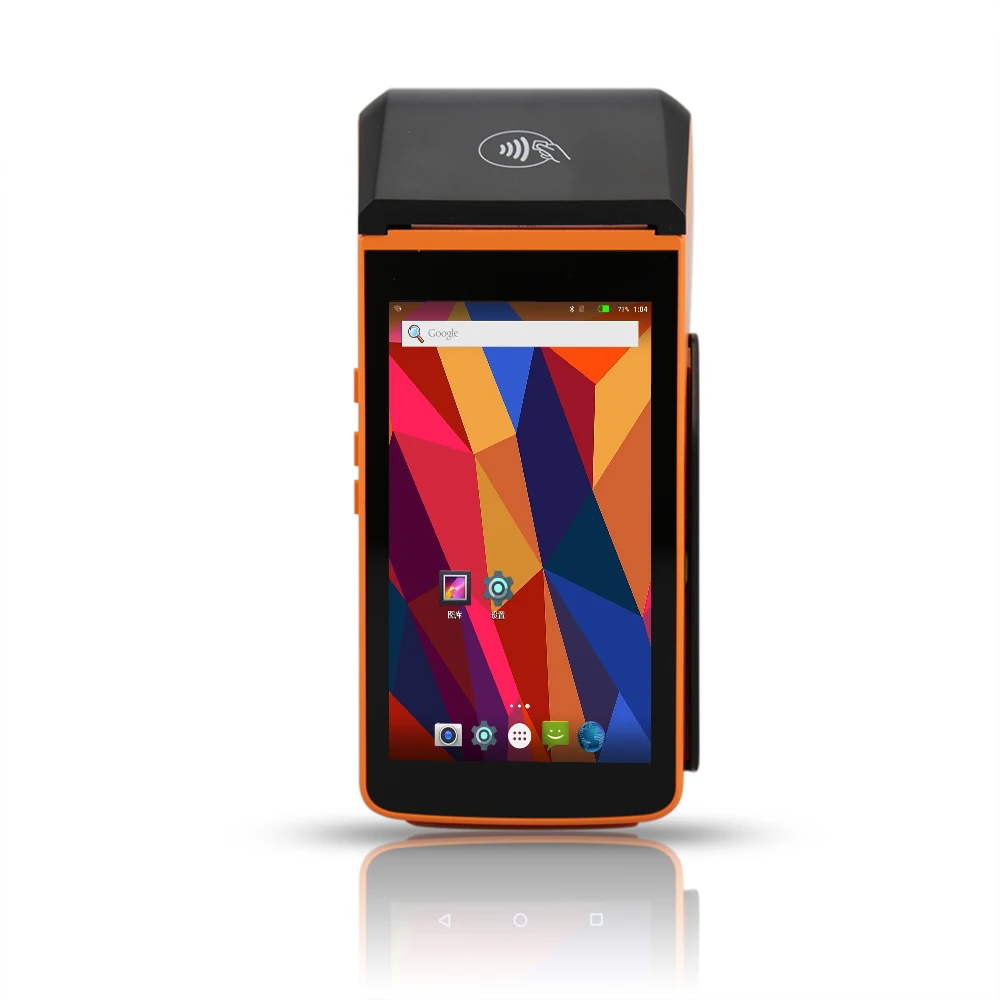

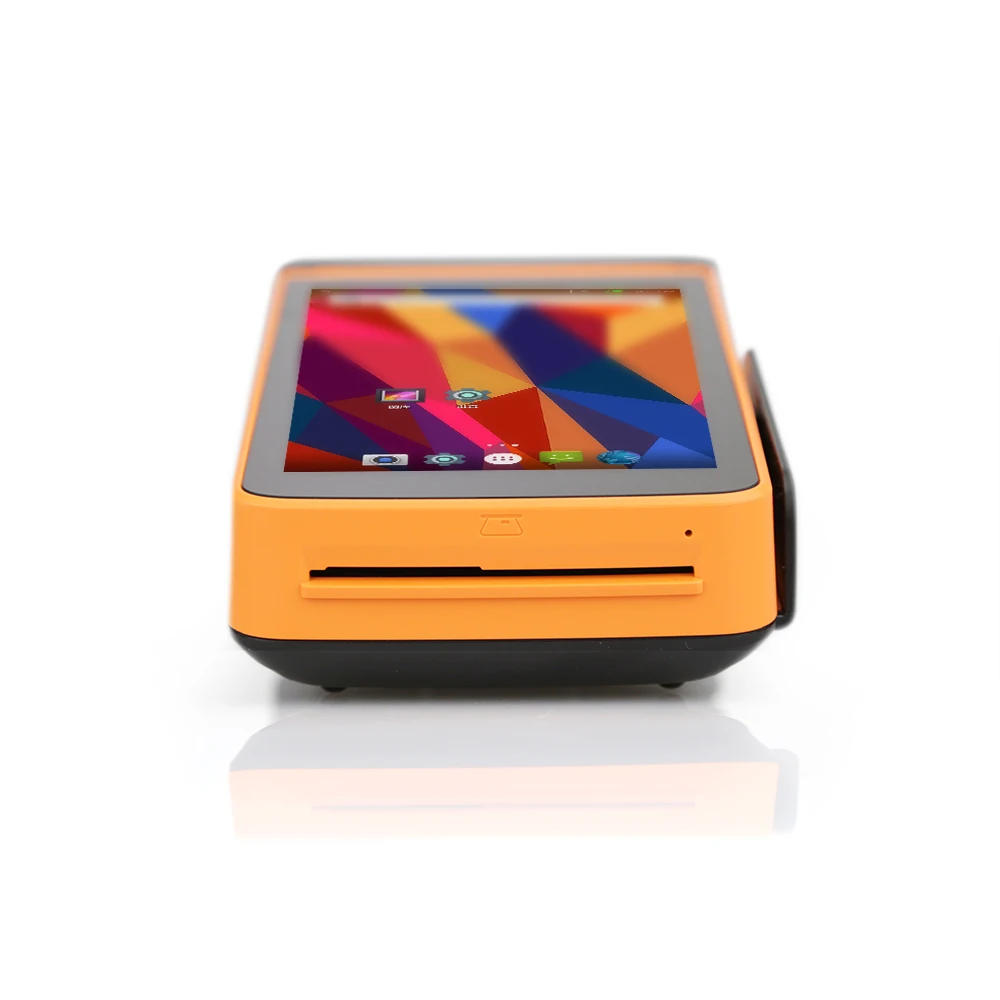

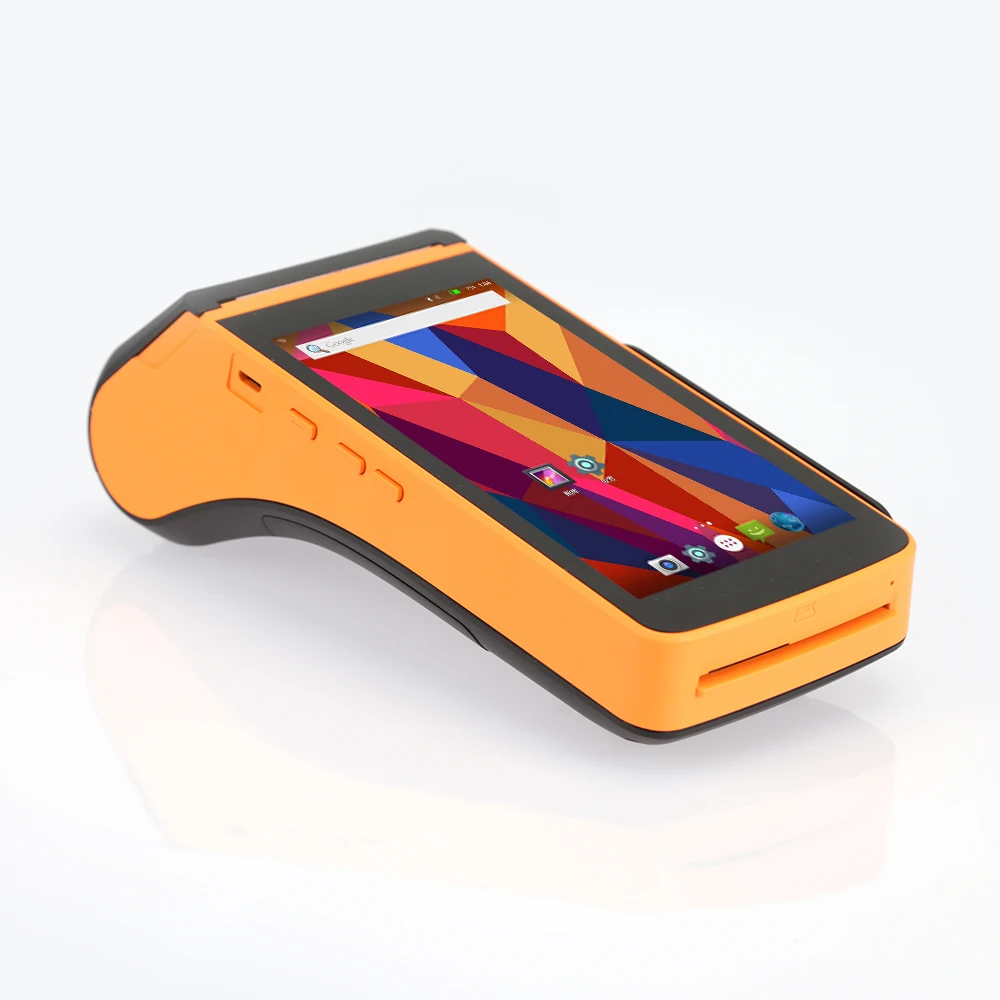

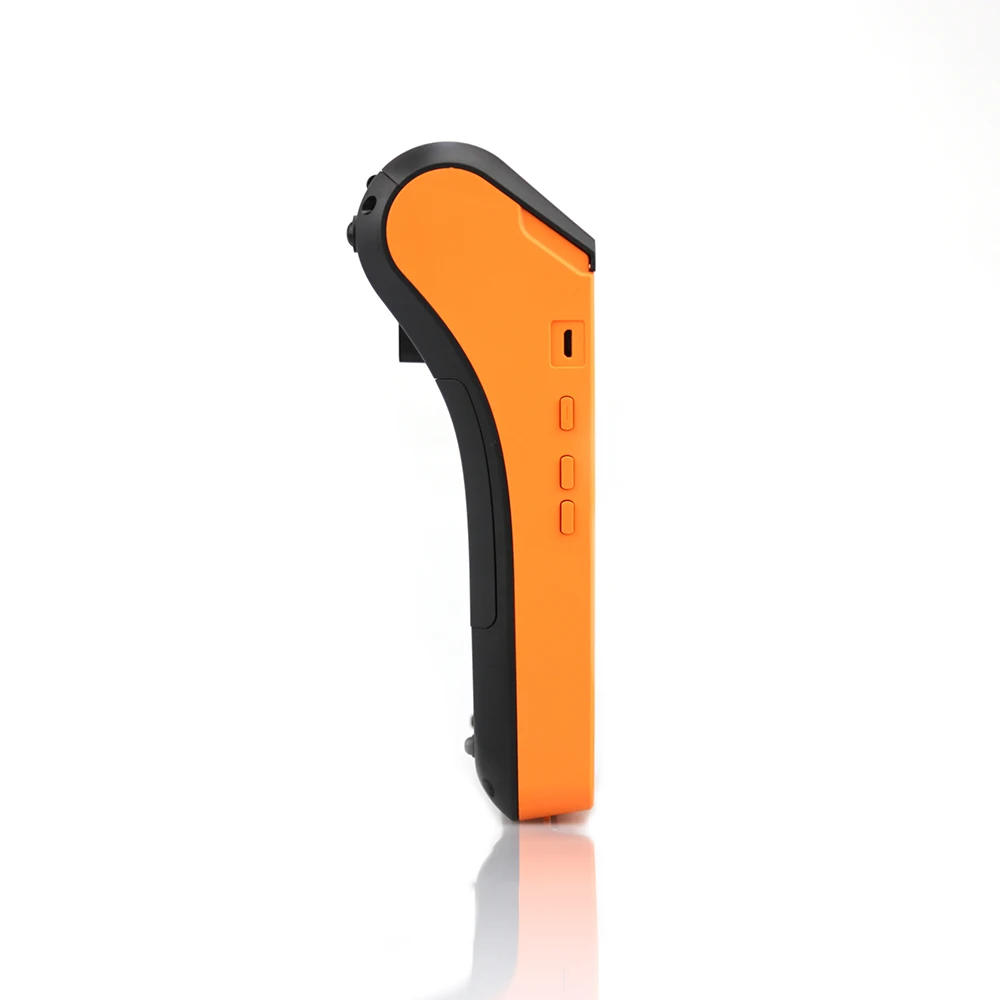

TS P20L android Ручной бесконтактный считыватель магнитной полосой чип смарт устройство для считывания кредитных карт оплаты pos терминал

P20L Brief Introduction

Intelligent multimedia handheld POS terminals, products integrated intelligent tablet and financial POS functions as a whole, adopt the mainstream of intelligent technology, use 4G, 3G, 2G, WIFI, and other communication technology, the safest android version 7.0. security chip meets with the requirement of the PCI, reaching the highest safety standards of international PCI5. X, made it to the absolute security of financial consumption. Realize to swipe magnetic stripe card, read smart IC card and contactless IC card, QR code tracing code, etc, which is the flagship product in the field of financial payment.

Function module

technical index and performance

OS

Android 7.0

CPU

Main: MTK 64 4 core processor, faster 1.3 Ghz, safety: 32 safety control

memory

8GB capacity, SDRAM: 1 GB capacity

Displayer

5.0 -inch, high-resolution color display, capacitive touch screen

Card reader

1/2/3 track, two-way read card

IC card reader

1.8 V and 3 V or 5 V card

contactless card reader

ISO/IEC 14443 Type kathi Jones from A&B, Mifare card

SAM Card reader

1 PSAM booth, support 3 v card

Communication mode

FDD-LTE, TDD-LTE, WCDMA, GPRS, WIFI, Bluetooth

Thermal printer

paper 58 mm wide, 40 mm thick paper

camera

The rear hd camera

voice

Built-in speakers, supports audio playback and recording

video

video hardware decoding, support HD720p

power

4300 mAH rechargeable lithium battery, working>6 hours, charging time<4 hours

button

1 power button, 2 function buttons

physical interface

One USB OTG interface, one MIC

language

Chinese and English

multiple applications

for multiple applications, can store and run multiple applications at the same time

remote down load

Support the TMS remote download, breakpoint following, error retransmission

Overall dimensions

82mm*183mm*64mm(32mm)

weight

400g

Certifications

EMV; PCI; Visa pay Wave; Visa's approval
the product through unionpay require all of the safety assessment testing certification, a number of measures to guarantee the safety of the financial transactions
