Датчик давления плава 1/2 20UNF PT123

Датчик давления плава 1/2 20UNF PT123

Категория: >>>
Поставщик: Chengdu Sand Electronic Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

Product Application

This series high-temperature melt pressure sensor / transmitter are mainly used in conventional for
measurement of high temperature melt pressure. They are used in petrochemical industry, chemical textile, plastics and rubber industries, new materials and other industries, with advantage of high accuracy, stable, big output, strong dynamic performance advantages, good generality etc.

Main Features

1 A variety of connectors to facilitate the user to select 5PIN or 6PIN;

2 1/2 "-20, M14 x 1.5, M22 x 1.5, G3 / 4" A variety of mounting dimensions to facilitate the user to select;

3 Accuracy: ± 0.5% FS, ± 1.0% FS (default);

4 Output signal: Pressure sensors; 2.0mV / V, 3.0mV / V, 3.33mV / V; Pressure transmitter: 1 ~ 5V, 0 ~ 10V, 0 ~ 20mA, 4 ~ 20mA;

5 Temperature drift: ≤ 0.3MPa/100 ℃;

6 Probe Max Temperature: 300 ℃ or 400 ℃;

7 corrosion resistant coating to extend the service life of 3 to 5 times; (optional)

8 Thermometric Config:

Thermocouple: E, J, K type, etc.,

Thermal Resistance: Pt100 etc. (Optional)

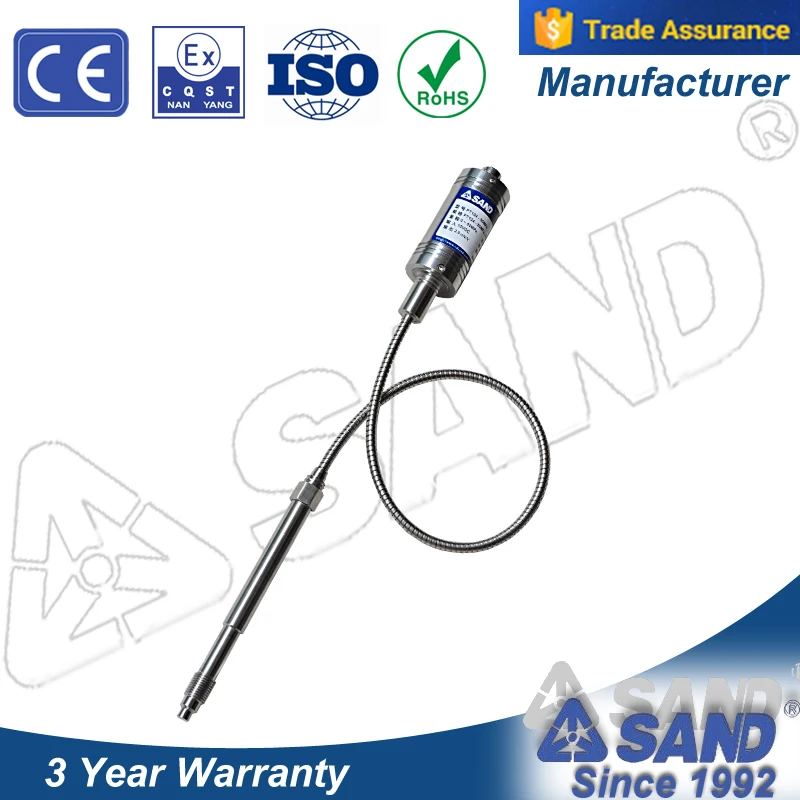

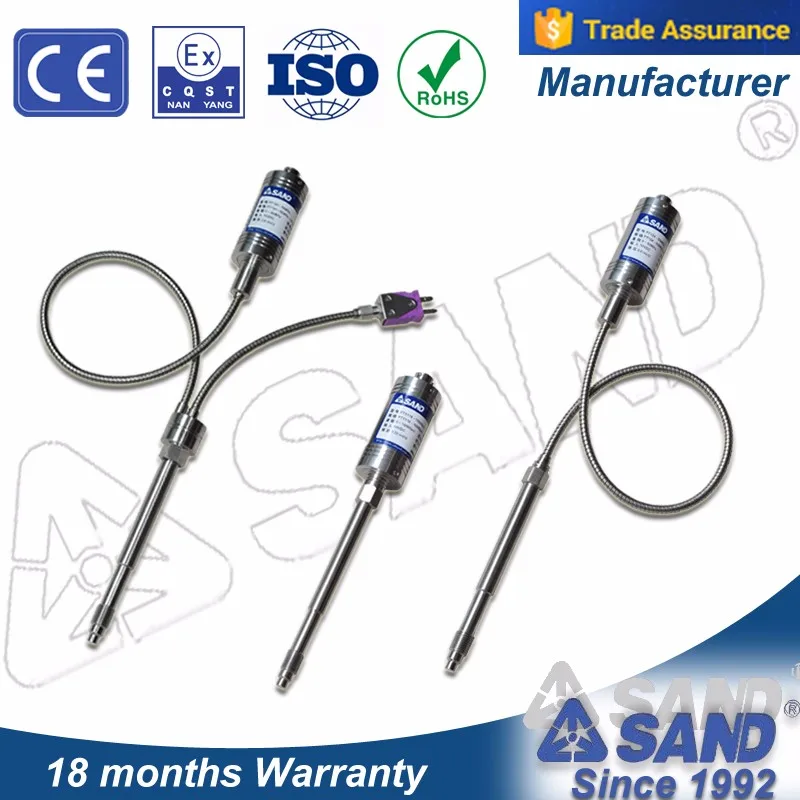

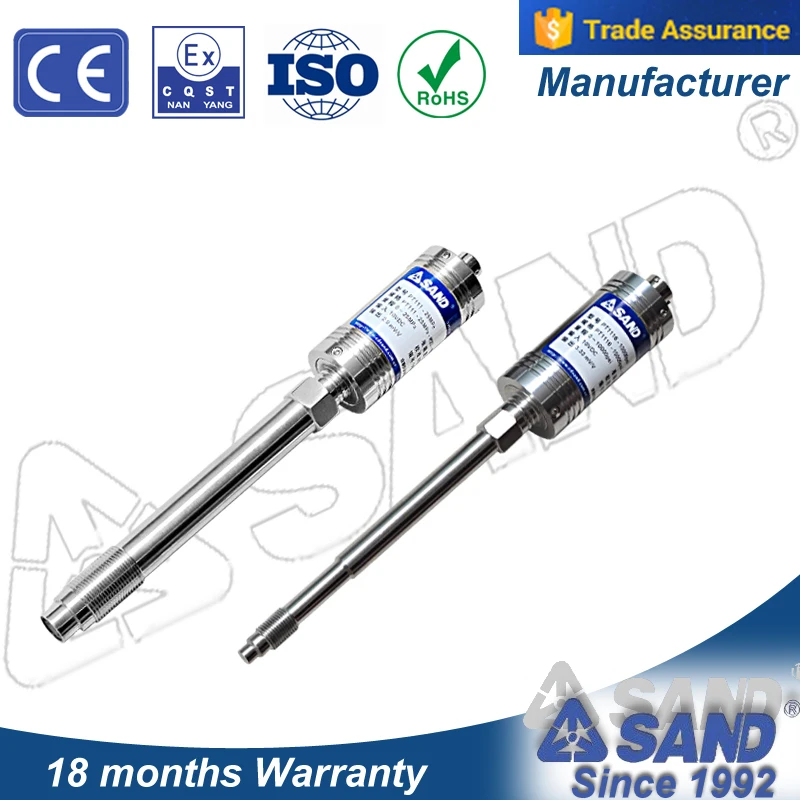

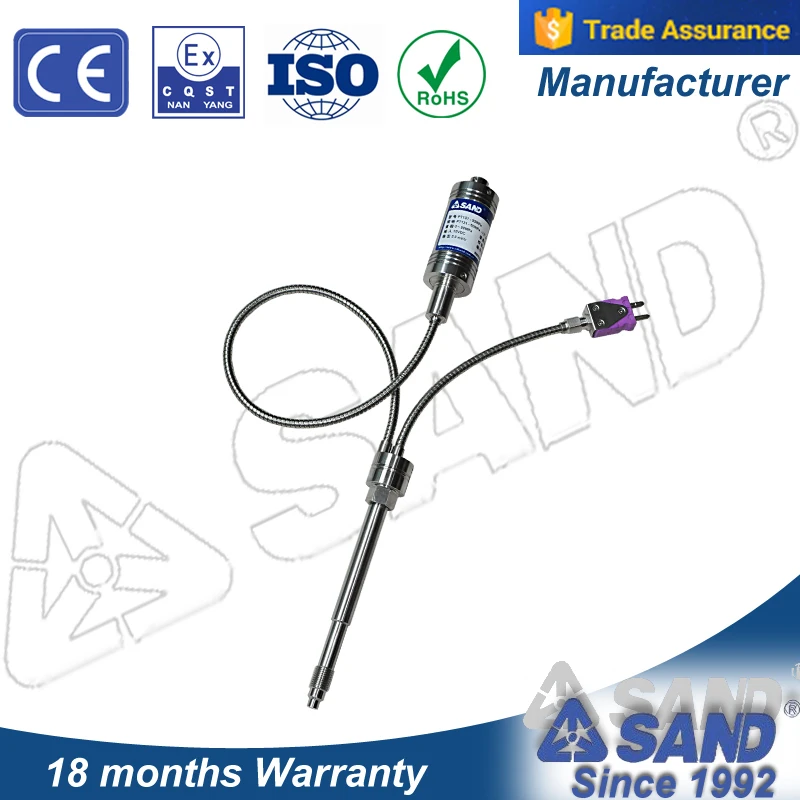

Product picture

Performance

Order Format

Packing & Delivery
