Паяльный инфракрасный нагреватель

1.Description

1, The product uses high-speed stability of the master MCU, with advanced intelligent temperature measurement and control technology, temperature measurement, temperature control fine.

2, The product has a temperature correction compensation function, reducing the use of the machine environment requirements, so that the machine in the temperature changes in the environment to maintain a stable temperature measurement quality.

3, The product has a constant temperature timer function, so that the machine to maintain a constant temperature environment to meet the diverse needs of users.

4, The product is equipped with PC-side control software, heating curve editing management and other operations have been simplified.

5, The product is equipped with the control software provides a variety of curve input, to facilitate the setting of a variety of curves.

6, The control software original graphics curve display module, real-time dynamic display curve, to achieve WYSIWYG, the abstract figures will be displayed to the user intuitively.

7, Control software to provide a variety of solder paste data, users can set the curve for reference.

(1) A large infrared soldering area

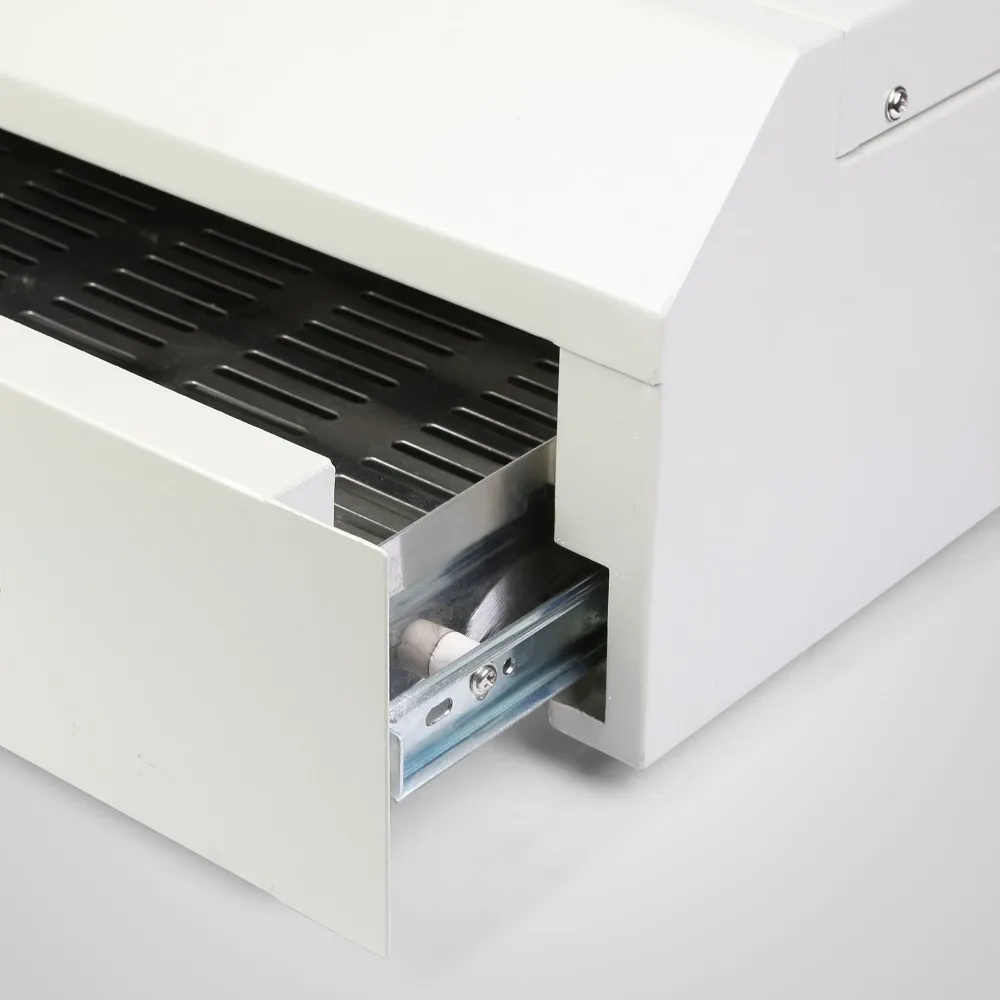

Drawer size: 400*600mm; this increases the usage range of this machine drastically and makes it an economical

investment.

(2) Choice of different soldering cycles

Parameters of eight soldering cycles are predefined and the entire soldering process can completed automatically from

Preheat, Soak and Reflow through to cool down.

(3) Special heat up and temperature equalization with all designs

Uses up to 2500 Watts of energy efficient Infrared heating and air circulation to re-flow solder.

(4) Ergonomic design, practical and easily operated

Good build quality but at the same time light weight and a small footprint allows the T962C to be easily bench

positioned transported or stored.

(5) Large number of available functions

The T962C can solder most boss-eyed or double-face PCB boards small parts, for example CHIP, SOP, PLCC, QFP,

BGA etc. It is the ideal rework solution from single runs to on-demand small batch production

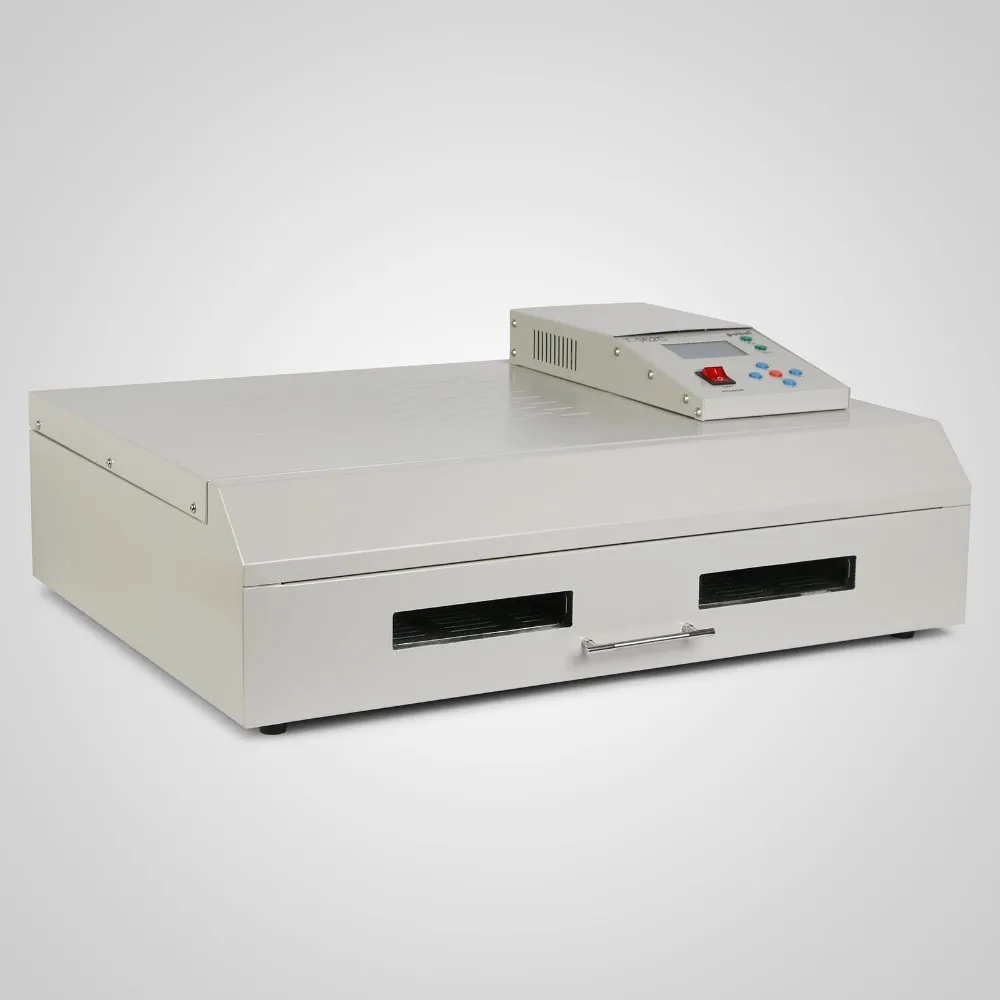

Reflow Oven T962C Front View

Reflow Oven T962C Back View
