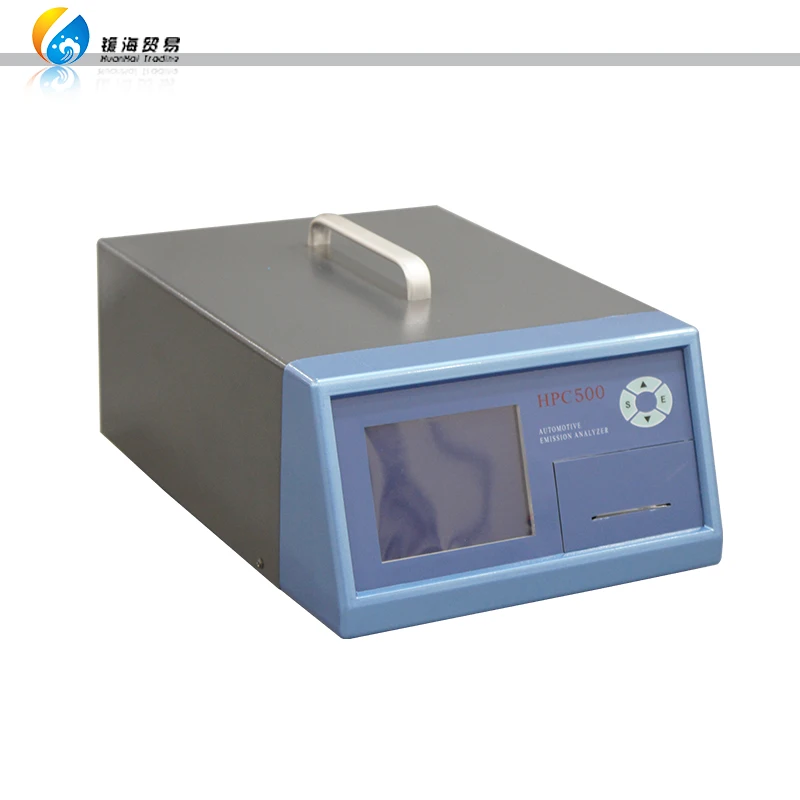

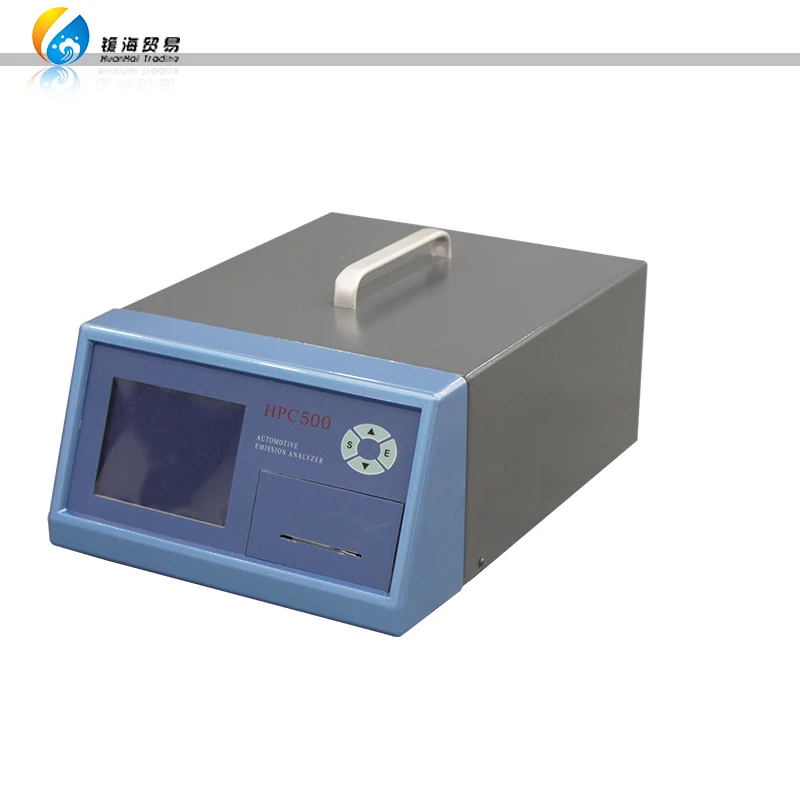

Китайское Оборудование для тестирования выхлопных газов автомобильный тестер выбросов

Main Features:

The large screen liquid crystal display, ( Chinese or English ) menu;

The use of German imports of infrared detector, O2and NOX sensor, vibration resistance, good stability, high precision;

The measurement of CO, HC, CO2for O2, NOX, COcor, concentration and the lambda value, speed, temperature, flow, pressure;

With the single, double idle idle, general measuring function;

Vehicles capable of measuring gasoline, LPG, CNG, alcohol and diesel fuel;

According to the new standard and the United States BAR97standards development, in line with the ISO3930or OIMLR99 I level precision;

With the automatic zero adjustment, automatic cleaning, automatic temperature compensation, pressure compensation;

With the HC residue measurement, traffic monitoring, gas leak check;

The machine has self diagnostic function, fault when prompted, until the troubleshooting can continue measurement;

With speed, temperature measurement, built-in printer or digital (Analog ) interface network;

The license plate number input and 2000 groups of data storage, reference function, clock display;

Main technical parameters:

Measuring range:HC: 0~10000×10^-6(ppm)vol,CO: 0~10×10^-2(%)vol )

              CO2: 0~20×10^-2(%)vol, O2: 0~25×10^-2(%)vol

              NOx: 0~5000×10^-6(ppm)vol,

              R.M.P: 0~9999r.m.p   OIL TEMP:0~150℃

              Lambda: 0.50~3.00    COcor:0~10×10^-2(%)vol

Indicating error:HC±12×10^-6(ppm)vol ( absolute error ) or±5% ( relative error )

        CO±0.06×10^-2(%)vol ( absolute error ) or±5% ( relative error )

             CO2±0.5×10^-2(%)vol ( absolute error ) or±5% ( relative error )

        O2±0.1×10^-2(%)vol ( absolute error ) or±5% ( relative error )

        NOx±25×10^-6 (ppm)vol ( absolute error ) or±4% ( relative error )

Stability:moment drift≤±3%

Repeatability ≤±2%

Resolution: HC:1×10^-6(ppm)vol, CO: 0.01×10^-2(%)vol,CO2: 0.1×10^-2(%)vol,

O2: 0.01×10^-2(%)vol, NOx: 1×10^-6(ppm)vol, Lambda: 0.01,

R.P.M:10r.p.m,  OIL TEMP:0.1℃

Response time: 95% response is not more than 10 seconds

Preheating time: 8min ( preheating 3min emergency detection )

Output mode:Output mode can display, print gas concentration maximum value, average value, the minimum value of the license plate number, test time, date, speed, temperature and COcor value of lambda,, can interface with computer networking

And-use temperature: -5~50°C,  Relative humidity: ≤90%

Power:     AC100~240V 50/60Hz or DC12V( Add power inverter)

Power consumption: 40VA

Dimension:  420 (L )×310(W)×170(H)mm

Weight:     9kg

Heibei Huanhai Import & Export Trading Co.,Ltd was established in year of 2014. It is specialized in manufacturing transformer oil tester, hipot tester ,protection relay testers and other testing equipments. The company has many foreign trade sales consultants with 10 years of experience , providing customers with the best service solutions and products. Our products with ISO 9001 and CE certified are exported to many countries and regions all over the world. The company is in the same group as Huazheng electric.

We insist on customer orientation and provide you with high quality products, reasonable prices, timely delivery and efficient service. We are willing to work with global clients for joint development and create value and success for our customers continuously.

We have our own manufacturing factory,pls see the below certificate,we are the direct supplier.

We are a new enterprise engaged in development,produce & sale a serious of power system products, such as Cable fault tester,  transformer test class, lightning arrester test class, comprehensive test class.

From the date of purchase within one year instrument,the warranty time is 12 months.This is the piriod of free repair replacement, lifetime supply of maintenance and technical services. If the instrument has been found anomalies or malfunctions please contact us to arrange the most convenient treatment options.

From the date of purchase within one year  is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
