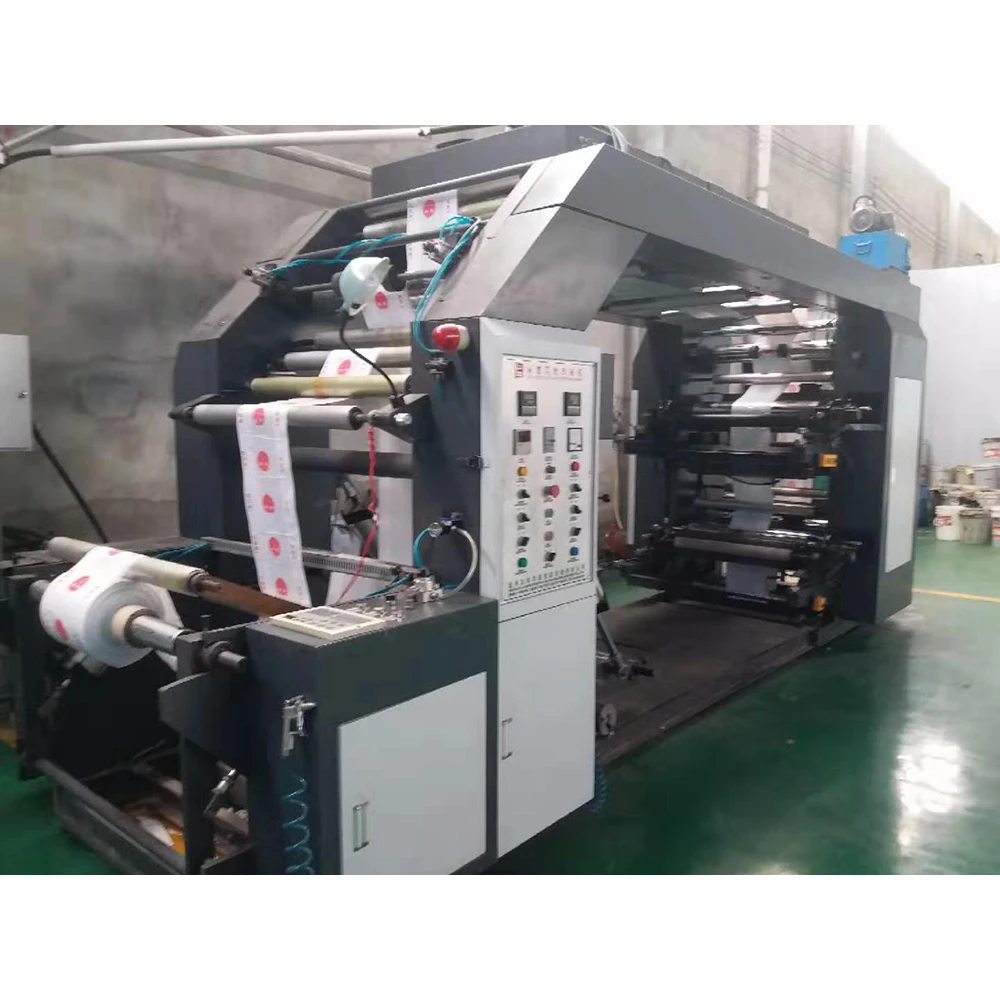

Флексографическая печатная машина Ruian RUIGAO для двухцветной пластиковой пленки лучшего качества

Флексографическая печатная машина Ruian RUIGAO для двухцветной пластиковой пленки лучшего качества

Категория: >>>
Поставщик: Ruian Ruigao Machinery Factory

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

Technical Variables

\t Type	\t YT-2600	\t YT-2800	\t YT-21000	\t YT-21200
\t Max.Effective Printing Width	\t 560mm	\t 760mm	\t 960mm	\t 1160mm
\t Max.Web Width	\t 600mm	\t 800mm	\t 1000mm	\t 1200mm
\t Max.Printing Speed	\t 60m/min	\t 60m/min	\t 60m/min	\t 60m/min
\t Max.Mechanical Speed	\t 70 m/min	\t 70 m/min	\t 70 m/min	\t 70 m/min
\t Max.Diameter of Roll Material	\t 450mm	\t 450mm	\t 450mm	\t 450mm
\t Internal Diameter of Roll Core	\t 76mm	\t 76mm	\t 76mm	\t 76mm
\t Rang of Repeat Printing Length	\t 191-914mm	\t 191-914mm	\t 191-914mm	\t 191-914mm
\t Accuracy of Registration	\t ±0.5mm	\t ±0.5mm	\t ±0.5mm	\t ±0.5mm
\t Plate Thickness (Both side adhesive included)	\t 2.38mm	\t 2.38mm	\t 2.38mm	\t 2.38mm
\t Heating Power	\t 4Kw	\t 6Kw	\t 8Kw	\t 10Kw
\t Total Power	\t 8Kw	\t 10Kw	\t 12Kw	\t 12Kw

Detailed Images

Main Features

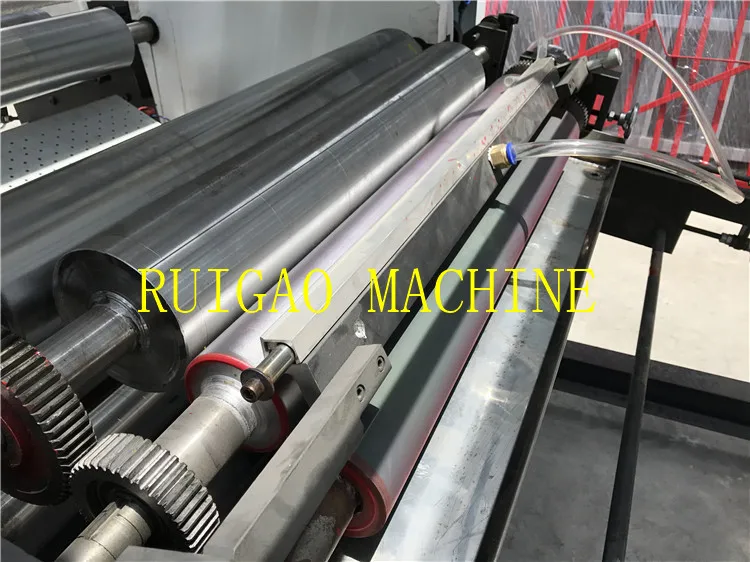

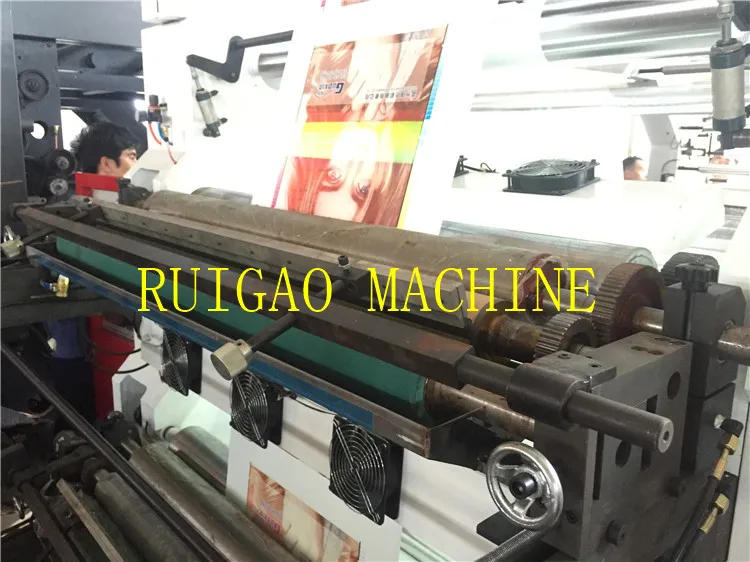

Name: Helical Gear
Brand: RuiGao
Original: CHina
It is high quality helical gear, which is highly precesion and processed by Taiwan processing center.

Main Features

Name: Ink Pump
Brand: RuiGao
Original: China
Easy to pump ink.No Manual works.

Main Features

Name: Automatic Tension Controller

Brand: Ruigao
Original: China
It is Automatic Tension Controller, which can adjust the tension of printing materials automatically. No manual mistake.

Main Features

Name:Air Shaft

Brand:Ruigao
Origianl: China
It can tight the material,easy to unwinder

Main Features

Name: Ink Motor

Brand: RuiGao
Original: China
The Ink roller is controlled by this separate ink motor,so the ink is not easy to dry.

Name:Adjust Bar, Hard Screw

Name: EPC

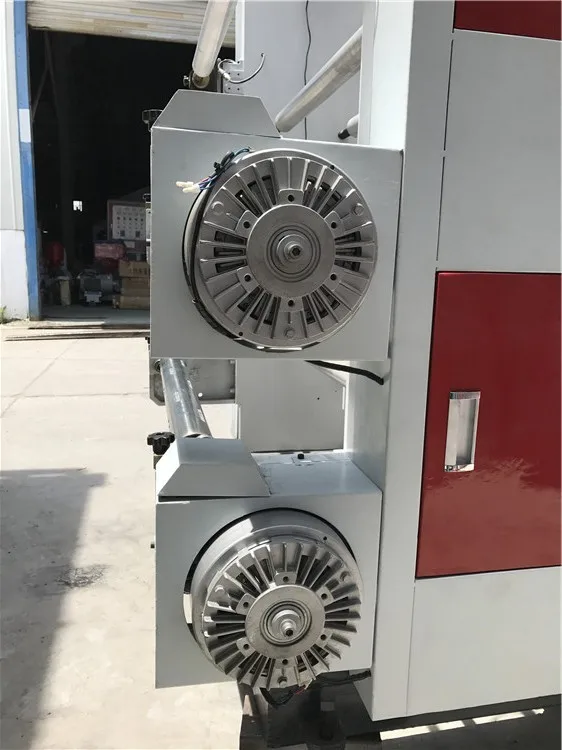

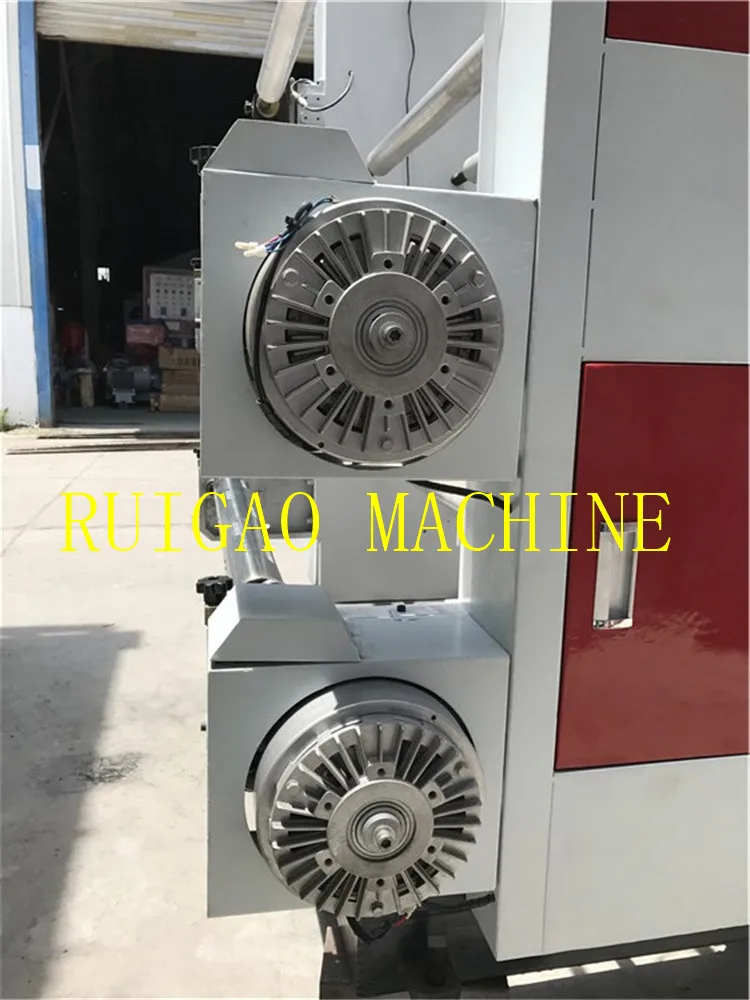

Name:Automatic tension Brake

Film Blowing Machine

91.8% Response Rate

High Quality Shopping Bag Making Machine

91.8% Response Rate

Automatic Patch Bag Making Machine with Good Quality

91.8% Response Rate

1,Q: Your factory is trading company or factory?
A: We are factory. We have more 2100 square meter workshop and 23 workers containing the 2 installment engineer and 1 electric engineer.
We are Factory, so we have cost advantage than others

2, Q: How do your company control the machine quality?
A: First we control the raw materials quality.
Second, we control the quality of machine when we are processing.
Third, Our installment engineer will test machine.

3, Q: How about payment term, payment safety and delivery time?
A: We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight.
Delivery time is 20 to 30 days. It is according to order quantity.

4,Q: What is your company after sale service?
A: Our installment engineers are available. Normally it will take about 7 to 10 days for all.
Our guarantee is one year. If there is any spare parts is broken, we can send them freely to you.
