BWIN оптовая продажа 2 0 мм канавки Твердые cnc карбидные вольфрамовые стальные шариковые концевые фрезы
- Категория: >>>
- Поставщик: Shenzhen Bwin Precision Tools Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 62076084118:
Описание и отзывы
Характеристики
Products Description

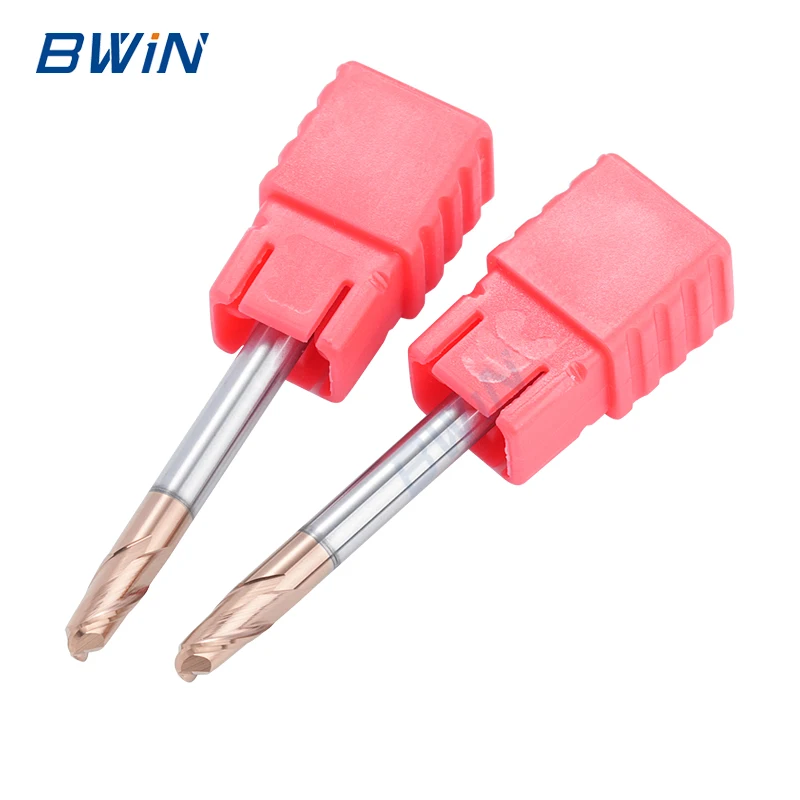

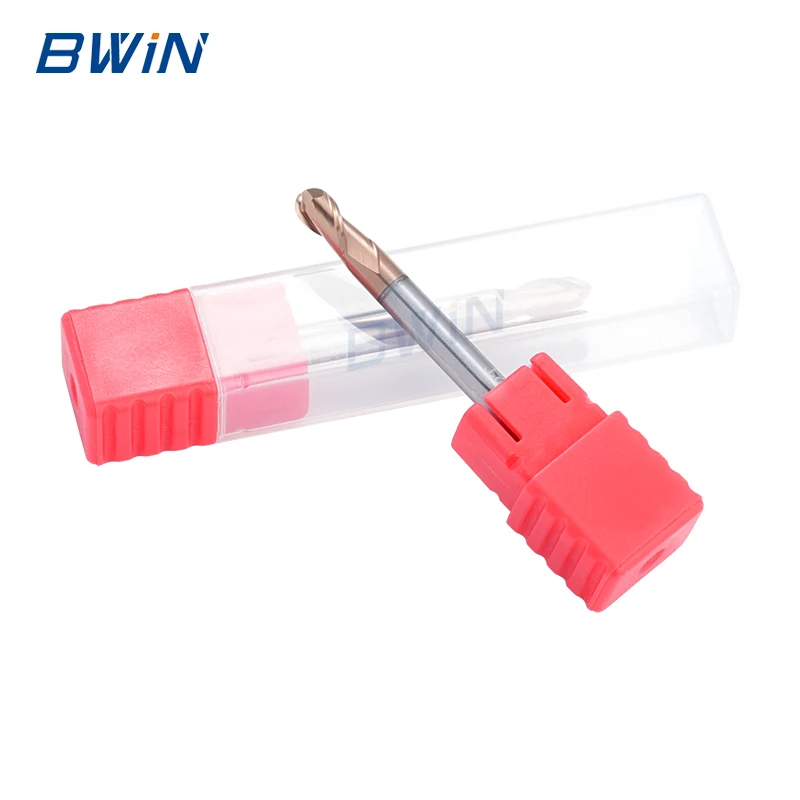

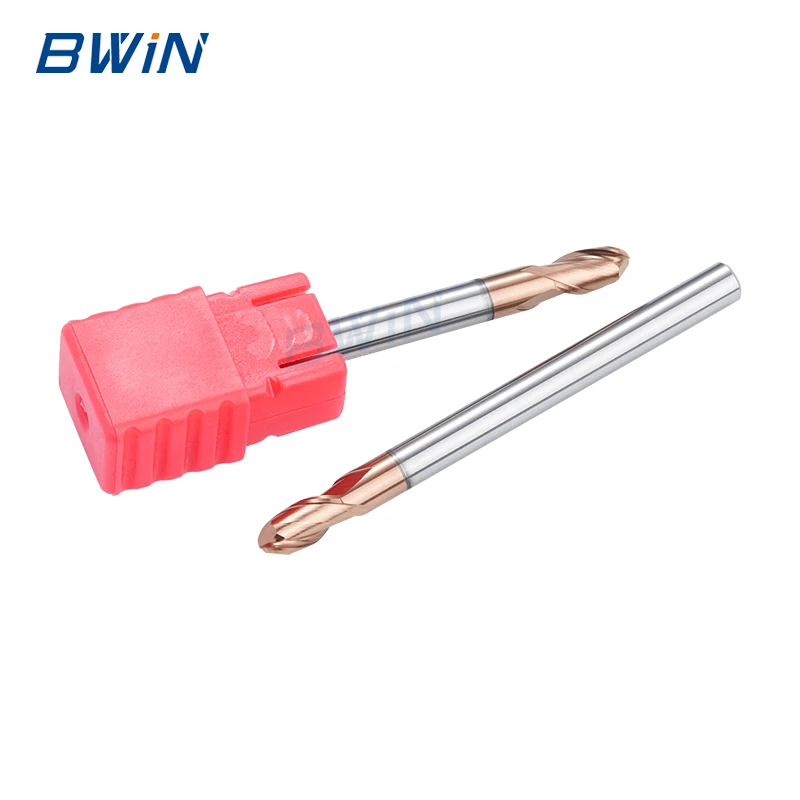

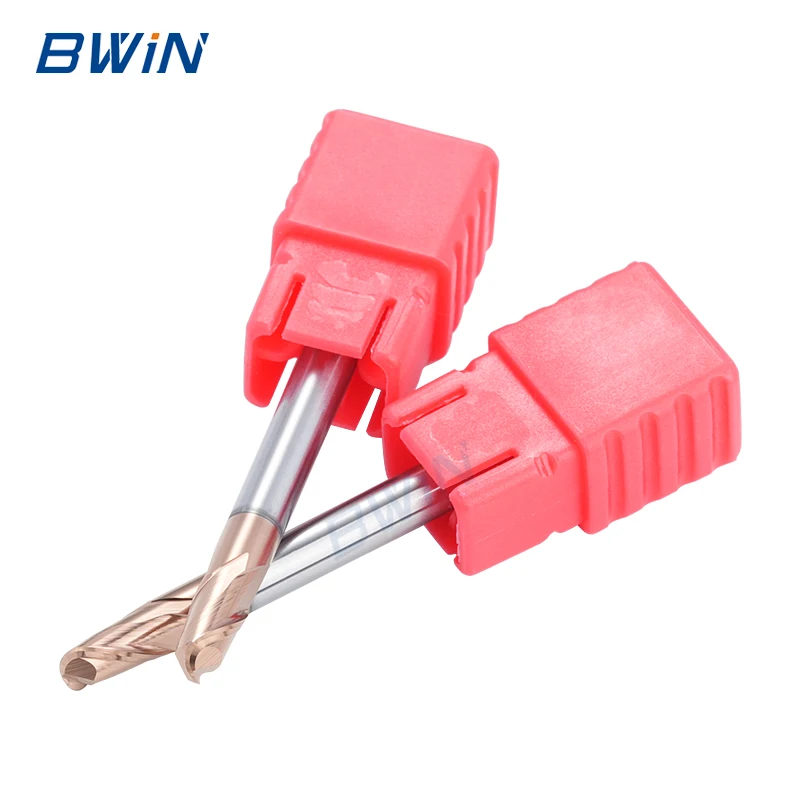

BWIN wholesale 2.0mm 2flute solid cnc carbide tungsten steel ball nose end mill milling cutter
Product Name | carbide tungsten ball nose end mill milling cutter | |
Material | Tungsten carbide | |
Flutes | 2/4 flutes | |
Coating | AlTiN, TiAlN, TiSiN, AlTiSiN, TiN, Nano blue, or your requirements | |
Shank Diameter | 1mm-20mm | |
Overall Length | 50mm-150mm | |
Suitable For | Cast iron, Stainless steel, mould steel, carbon steel, titanium alloy, tool steel, heat-treated steel, wood, etc | |
Usage | High speed cutting | |
All the specs can be customized | ||
1. High quality carbide rod:
All cutting materials are from international famous brands, high hardness, long tool life.
Grade | HRC45 | HRC55 | HRC60 | HRC65 |
Materials | YG10X | ZK30UF | ZK40SF | GU25UF |
Grain size: 0.8um Co: 10% Flexural strength: 3320N/mm2 | Grain size: 0.6um Co: 10% Flexural strength: 4000N/mm2 | Grain size: 0.5um Co: 12% Flexural strength 4300N/mm2 | Grain size: 0.5um Co: 10% Flexural strength: 4300N/mm2 |
2. Super coating:
Good coating can improve tools life and production efficiency, and we provide professional suggestions according to your cutting requirements.
Item | Color | Hardness (HV) | Thickness (UM) | Oxidation Temp.(℃) | Friction Coeffient |
AlTiN | Black | 3300 | 2.5-3 | 900 | 0.3 |
TiAlN | Violet | 2800 | 2.5-3 | 800 | 0.3 |
TiSiN | Bronze | 3600 | 3 | 1000 | 0.45 |
AlTiSiN | Blue | 4000 | 4 | 1200 | 0.4 |
Nano | Blue | 42(GPA) | 3 | 1200 | 0.4 |
The key cutting products we selling as below: | ||
◆ Carbide inserts ◆ Solid Carbide End Mills ◆ Turning Bar Tool ◆ Face Milling Tool | ◆ Drills & Reamers & Thread Cutters & Burrs ◆ Thread Tapper Tool ◆ CNC Chuck & Adapter ◆ Precision Tool Vise ◆ Other Accessories | |
Specification | Flute Dia(φ) | Flute Length (C) | Shank Dia(D) | Overall Length(L) |
R0.5x3Cx4x50L | 1 | 3 | 4 | 50 |
R1x6Cx4x50L | 2.0 | 6 | 4 | 50 |
R1.5x8Cx4x50L | 3.0 | 8 | 4 | 50 |
R2x10Cx4x50L | 4.0 | 10 | 4 | 50 |
R2.5x13Cx6x50L | 5.0 | 13 | 6 | 50 |
R3x15Cx6x50L | 6.0 | 15 | 6 | 50 |
R4x20Cx8x60L | 8.0 | 20 | 8 | 60 |
R3x20Cx6x75L | 6.0 | 20 | 6 | 75 |
R4x25Cx8x75L | 8.0 | 25 | 8 | 75 |
R5x25Cx10x75L | 10.0 | 25 | 10 | 75 |
R6x30Cx12x75L | 12.0 | 30 | 12 | 75 |
R5x40Cx10x100L | 10.0 | 40 | 10 | 100 |
R6x45Cx12x100L | 12.0 | 45 | 12 | 100 |
R7x40Cx14x100L | 14.0 | 40 | 14 | 100 |
R8x40Cx16x100L | 16.0 | 40 | 16 | 100 |
R9x40Cx18x100L | 18.0 | 40 | 18 | 100 |
R10x45Cx20x100L | 20.0 | 45 | 20 | 100 |
Tips: The above specifications are standard Size, with a large amount of stock. At the same time, we support OEM customized production, the diameter is 0.2mm to 25mm, the Total length is 50mm to 200mm, include inch size end mill , the number of Flute is 4F, 5F, 6F, 8F and the logo could becustomized.
Our Company
COMPANY PROFILE
Shenzhen BWiN Precision Tools Co.,Ltd. is a main professional supplier in CNC Carbide inserts, Turning tools and Milling tools, BWiN manufacture with integration of R&D, Design and Sales. We insists the principles of "High quality, Competitive price and Excellent service."
BWiN manufacture has over 1500 square meter factory area and storehouse. We are leading OED&ODM manufacture many years of experience in this filed. BWiN have various kinds of products and they are 70% for expert. Our customers are from all over the world, such as North America, Europe, South America, the Middle east, East Asia and Africa. The quality control standards are based on ISO9001 certifications. BWiN relies on advanced automatic machining center and complete testing testing method, control all aspects of production and operation according to the standard process. We have an outstanding team of designers to continuously launch innovative product design, in order to meet the needs of the international marked. Welcome send inquiry to us, we will provide high quality products and excellent service for you!
BWiN manufacture has over 1500 square meter factory area and storehouse. We are leading OED&ODM manufacture many years of experience in this filed. BWiN have various kinds of products and they are 70% for expert. Our customers are from all over the world, such as North America, Europe, South America, the Middle east, East Asia and Africa. The quality control standards are based on ISO9001 certifications. BWiN relies on advanced automatic machining center and complete testing testing method, control all aspects of production and operation according to the standard process. We have an outstanding team of designers to continuously launch innovative product design, in order to meet the needs of the international marked. Welcome send inquiry to us, we will provide high quality products and excellent service for you!
FAQ
1. Are you manufacturer or trading company?
We are professional manufacturer with more than 10 years experience in this field.
2. How to place an order?
1.Fill your Order List in our online Inquiry System.
2.Directly contact our salesperson by E-mail / Skype / Whats App
2.Directly contact our salesperson by E-mail / Skype / Whats App
We will make a feedback to you ASAP after receive your order list.
3. What is your payment terms?
T/T, Paypal, Western Union, Alibaba assurance for different circumstances.
4. What's your delivery way?
Express delivery, DHL, TNT, FEDEX , EMS, air shipping, sea shipping are available for your request.
5. Do you offer OEM?
Yes, we do. We have laser machine lasering your logo and tool specification on the body of tools. Also, we can print customized on plastic boxes.
6. How about the delivery time?
Usually delivery time is 2~3 days after receiving the advance payment. For the customized product, 7-10 days after receiving the advance payment.
