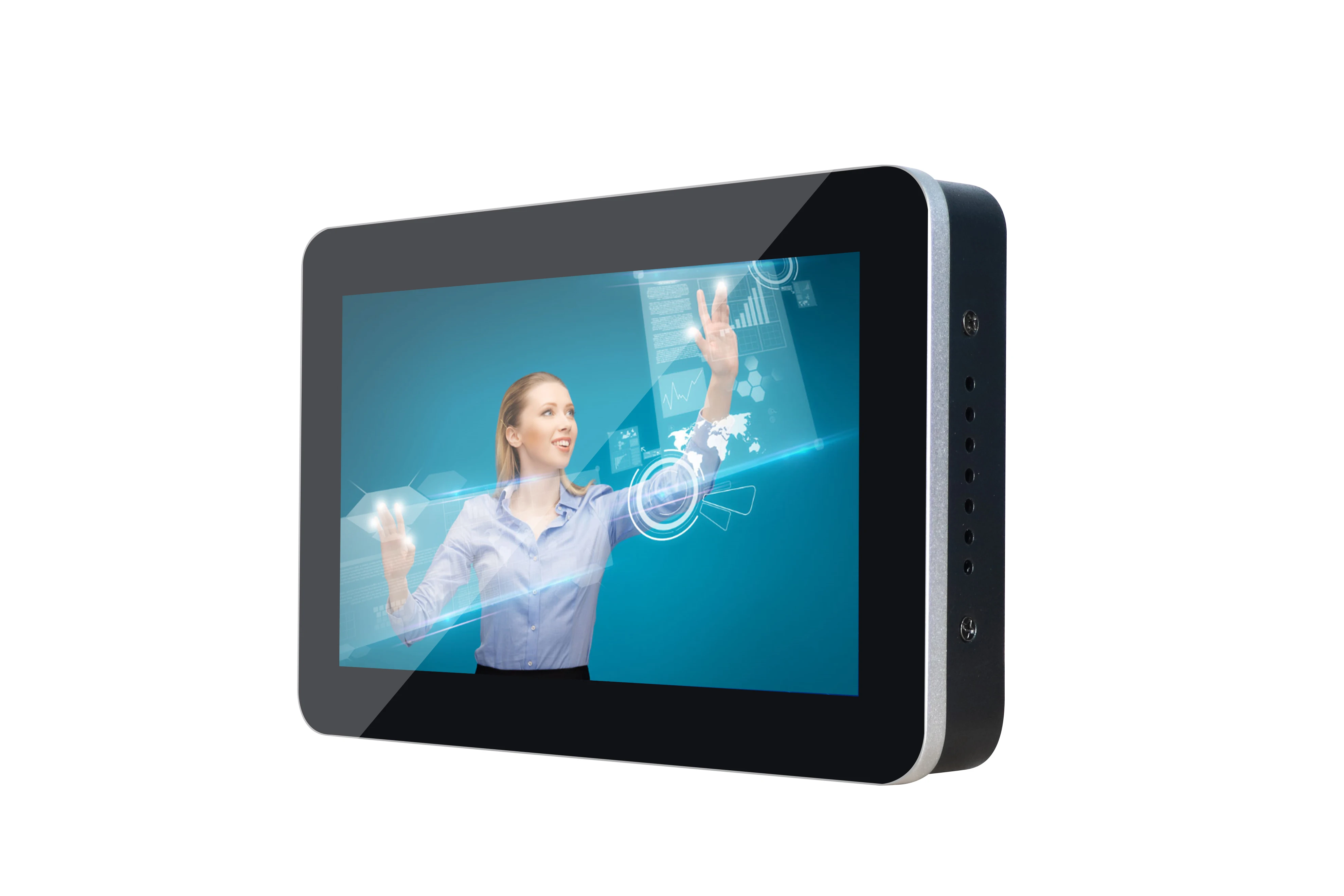

7 inch capacitive touch screen display monitor VGA HDMII input
Product Description
ITD new PCAP multi-touch screen monitor new series is fully-integrated, off-the-shelf unit that combines Projected Capacitive Touch Technology with vandal proof, in an industrial/commercial -grade LCD flat panel, with a sleek‚ IP65 NEMA 4, and true flat front surface industrial design. These multi-touch displays with HMI interface provide a full range of industrial-grade units with multi-function capabilities and brilliant displays.
Features
•High contrast color TFT LCD displays
•Supports DDC 1/2B for Plug & Play compatibility
•Advanced OSD control for picture quality adjustment
•Aluminum frame and rugged steel back chassis, true flat surface
•10 simultaneous multi touch points PCT/PCAP touch Sensor
• Eliminates dust and debris build-up at the edge and corners of the display
•Provides improved power efficiency and reduced consumption
•Responds to a light touch in activating response
•Easy-to-clean surface without bezels
•NEMA 4, IP65 rated for front panel
•Various mounting solution: rear mounting(mounting brackets added), VESA mounting, side mounting brackets, desktop stand, floor stand for above 15.6”
•LED backlight lifetime: 50000hours
•CE, FCC, RoHS Compliance
Specification
BASIC PARAMETERS
2. 1 General
Model | ITD07OFT5K1 |
IP | IP65(for front panel only) |
Outline Dimensions | Width: 190mm Height: 122mm Depth: 28.8mm |
Weight(N.W/G.W) | 0.74Kg / 1.75Kg (Approx.) |
Packing Dimension | 330(W) × 280(H) × 95(D)mm |
Speakers | 8Ω3W |
LCD Type | 7"Active matrix TFT-LCD |
Video Input | VGA and HDMI, Audio |
Recommend Resolution | 1024×600@60Hz,75Hz |
OSD controls | Allow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
Power Supply | Type: External Brick |
Power Consumption | 6W |
Mount Interface | 1)VESA 75×75mm 2)Mounting Brackets optional |
Regular Warranty | 1 Year for TFT Panel and 2 Years for Others |
Agency Approval | FCC,CE,RoHS Certified |
2. 2 LCD Specification
Active Area(mm) | 155.5(H) x 87.5(V) |
Resolution | 1024×600 |
Dot Pitch(mm) | 0.150×0.150 |
Nominal Input Voltage VDD | +3.3V(Typ) |
Viewing angle (L/R/T/B) | 85°/85°/85°/85° |
Contrast | 800:1 |
Luminance(cd/m2) | 300 |
Response Time(Rising/Falling) | 10/15ms |
Support Color | 16.7M |
Screen Scanning | 60Hz |
Backlight MTBF(hr) | 50000h |
2.3 Touch Screen Specification
Type | Projected Capacitive Touch Screen |
Resolution | 4096×4096 |
Light Transmission | 85%±5% |
Touch Life Cycle | 50 millions times |
Touch Response time | 5ms |
Touch System Interface | USB A type |
Operating System Support | Plug and Play for Windows 7/8/10,Linux Kernel 3.18.12 or above Drivers for Windows CE/XP, Android |
2.4 External AC Power Adapter
Output | 12V DC/3A |
Input | 100-240 VAC, 50-60 Hz |
MTBF | 50000 hr at 25°C |
2.5 Environment
Operating Temp. | -10~60°C |
Storage Temp. | -20~70°C |
Operating RH: | 20%~80% |
Storage RH: | 10%~90% |

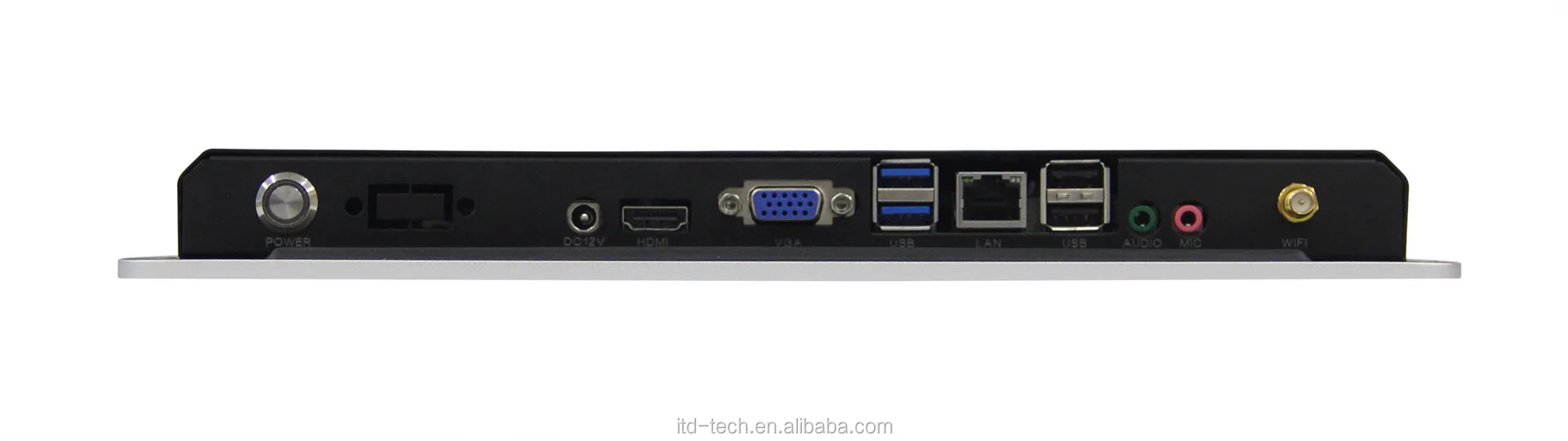

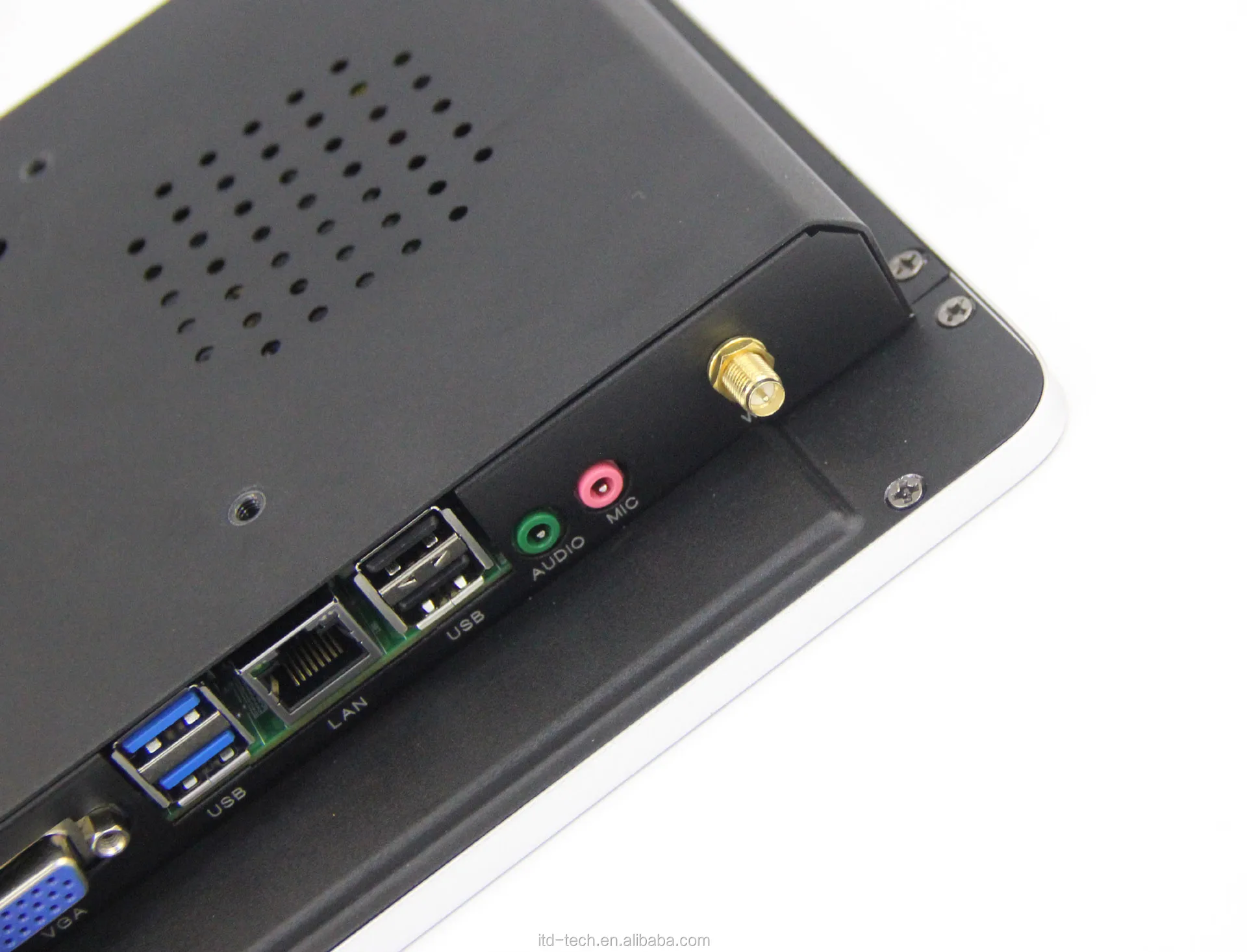

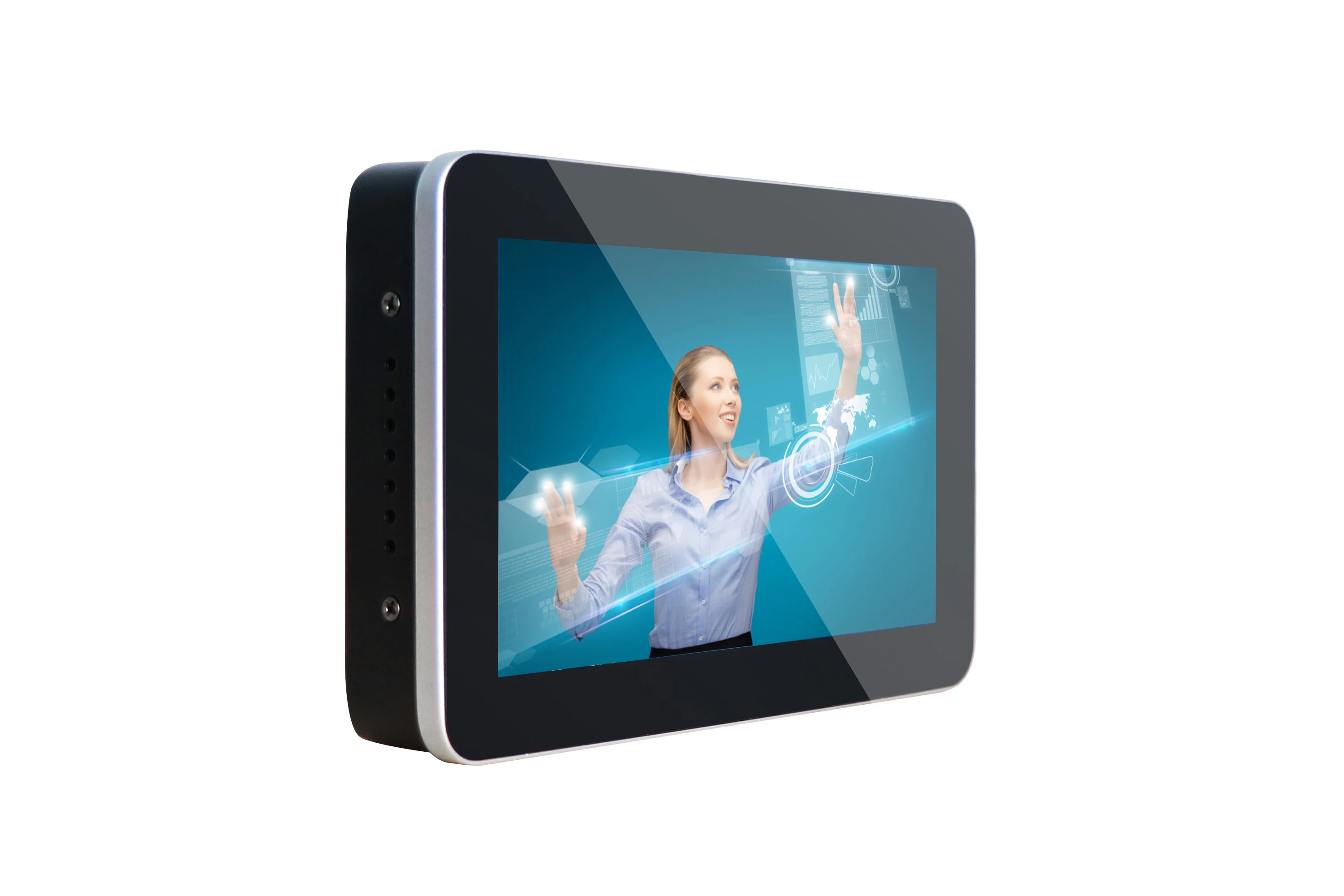

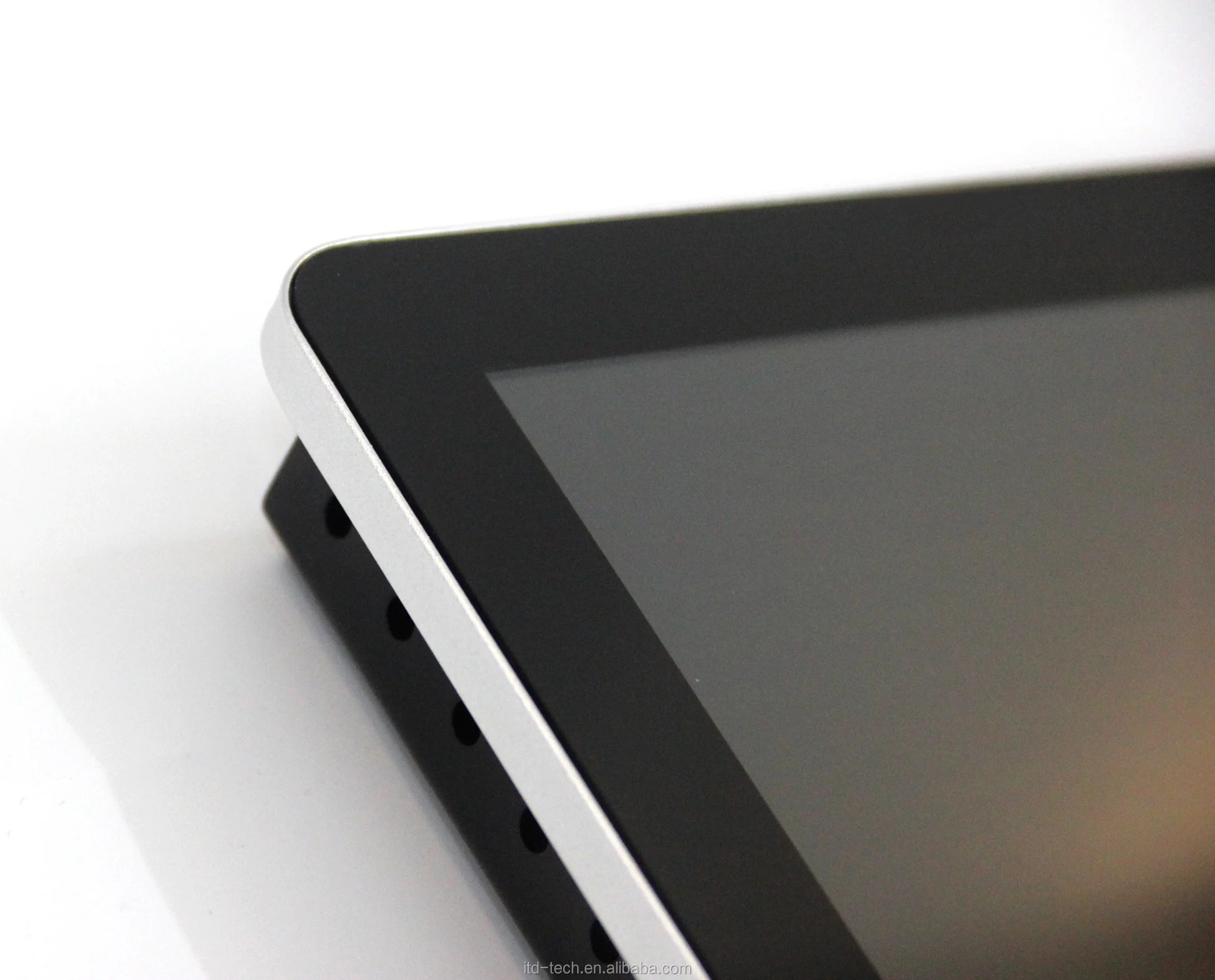

Product Display
Packaging & Shipping
Firm, safe, standard cartons with foams
Wooden Shelf or Boxes for big sizes and big quanity
Our Services
Professional&reliable Pre-sales service
1-3 years’ warranty with DOA, RMA and Paid Service
All ITD products come standard with a 2-year comprehensive warranty. Additionally, our extended warranty service, offered up to 3 years, provide extra peace of mind that any problem will be solved quickly and effectively. ITD also offers tailored service contracts to meet our partners’ specific needs.
With service and support centers in Hong Kong, China mainland, Europe, we are able to respond quickly and efficiently to ensure uninterrupted productivity for our customers. We are committed to speedy turnaround times on repairs and service needs.
- DOA Service (Dead On Arrival):
To run DOA within 1 month after shipment. Goods are guaranteed to exchange when it is returned.
New product operation would be completed within 5-20 working days. Round trip shipping costs are paid by ITD. The following failures are allowed to be serviced by DOA:
A: The image cannot display normally.
B: It cannot be powered on.
C: The internal functions of monitors are out of work.
- RMA Service (Return Merchandise Authorization):
To run RMA within 24 months after shipment (TFT LCD panels come with 12months' warranty). Maintenance time lasts from 5 to 20 working days according to the difficulty and specific situation. Returning shipping cost after maintenance is paid by ITD.
Company Information
Похожие товары

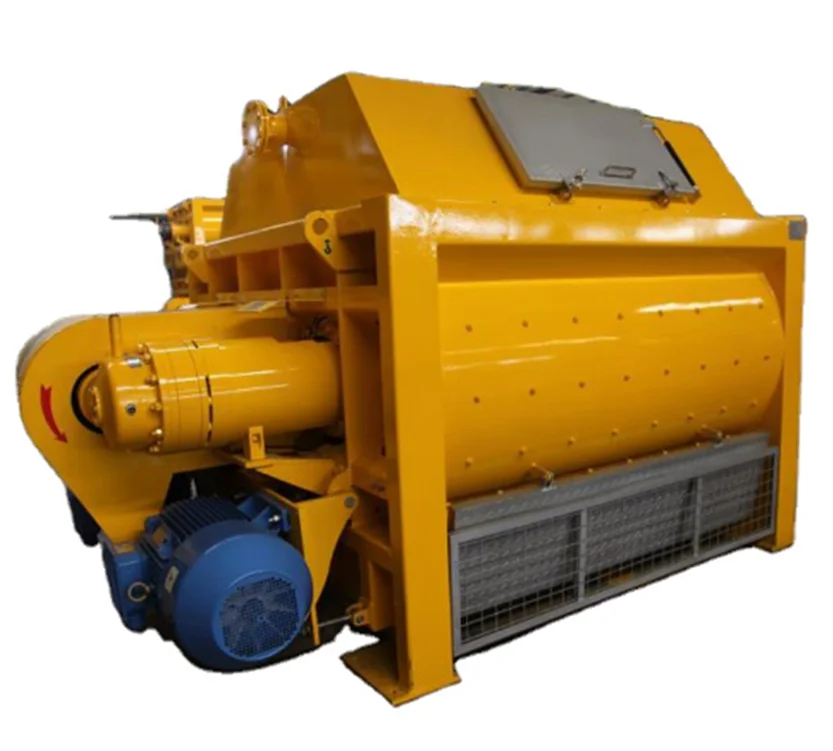

Sicoma MAO 2500 selfloading Автоматическая электрическая гидравлическая Бетономешалка с двойным валом из Китая для
28 770,00 $ - 28 775,00 $

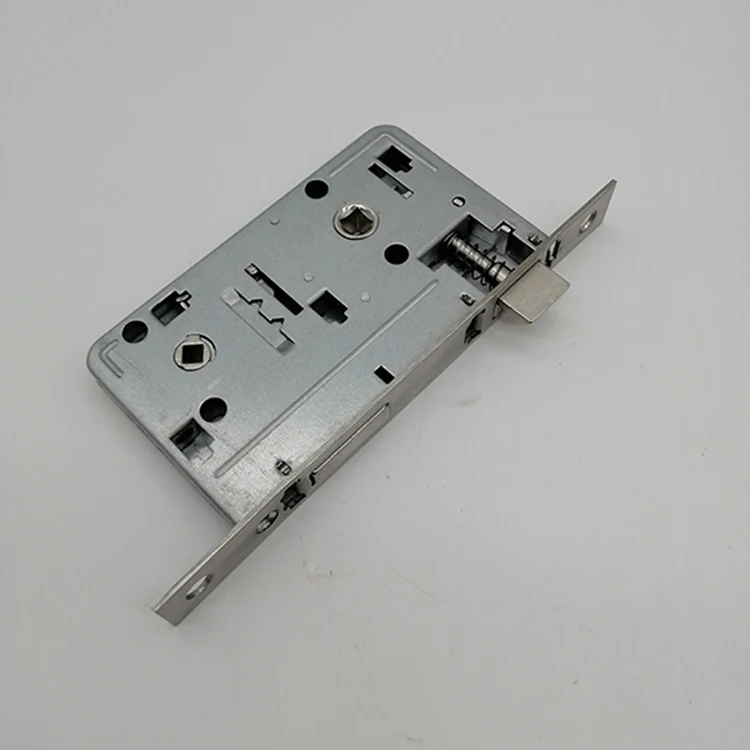

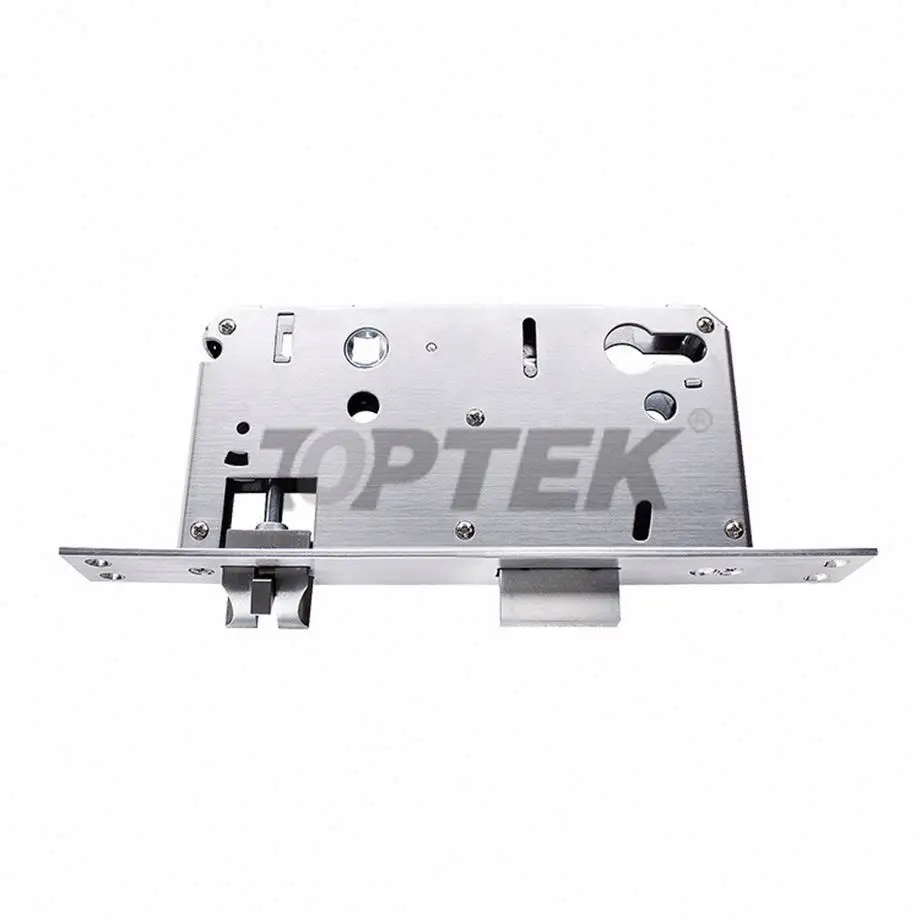

Вэньчжоу, дверной замок 7040, марокканский замок keyman, дверной замок, врезной дверной замок
2,90 $ - 6,00 $

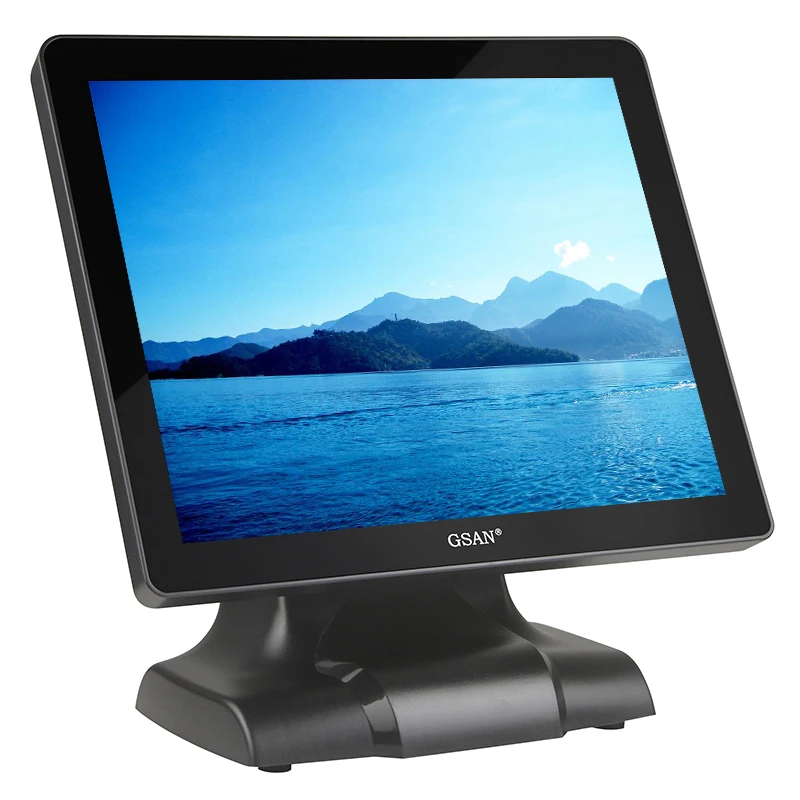

Дисплей с сенсорным экраном Панель при измерении ёмкости отображаются чётко сенсорный экран 17 дюймов Емкостное касание сенсорный дисплей
99,50 $ - 110,00 $

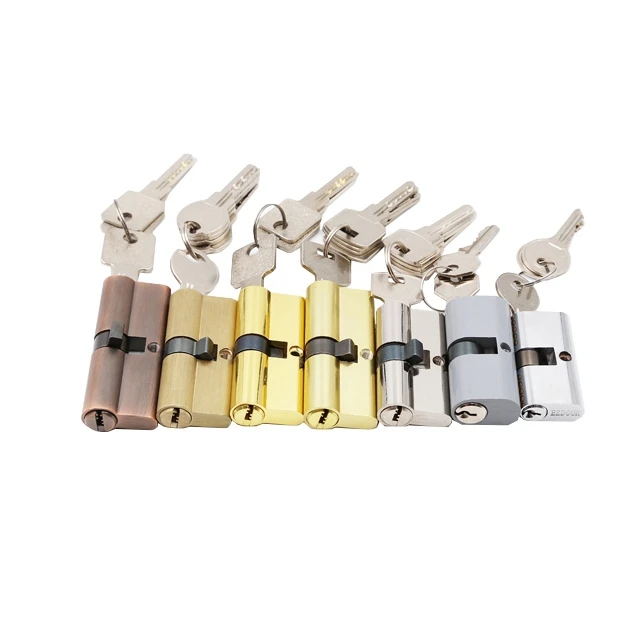

Европейский стандарт безопасности 85 мм полностью латунный цилиндр блокировки
0,80 $ - 1,80 $

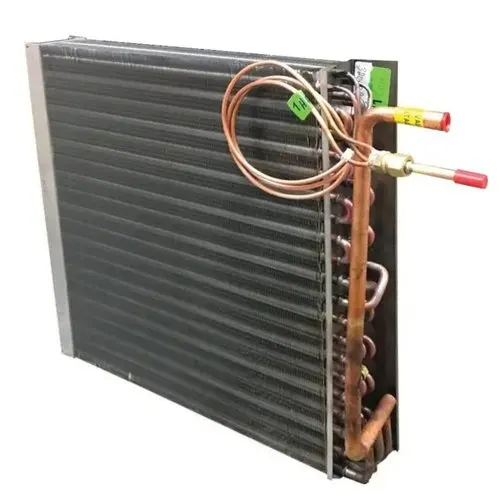

Испарителя

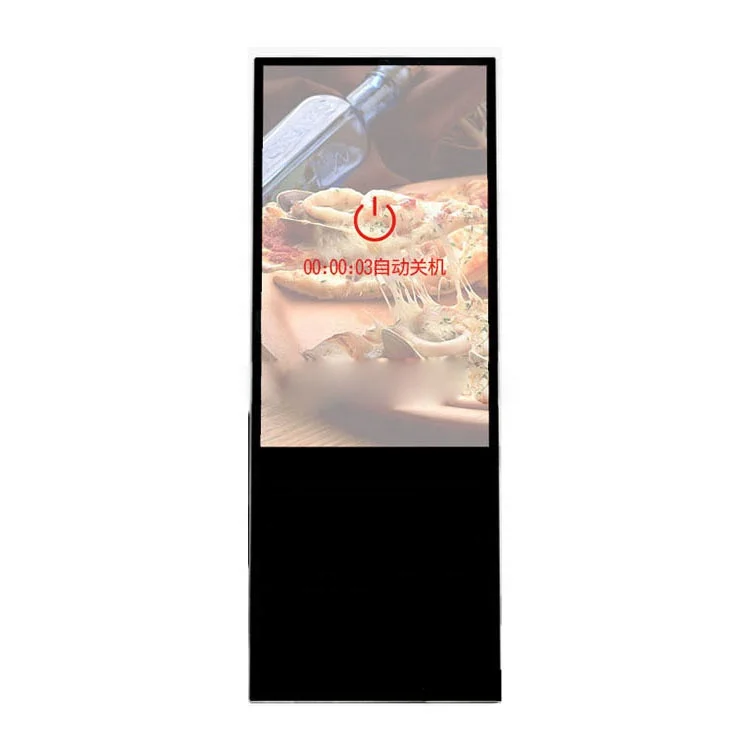

Аффилированная программа, цифровой дисплей с вывеской, Стоковая цена, экран дисплея для маркетинга киоска, сенсорный дисплей
