Product Description

Brick force making machine for sale border bloquera automatica

Product details

After-sales Service Provided	Engineers available to service machinery overseas
Molding cycle	15-20s
Vibration frequency	4500-5100times/min
Vibration Force	80KN
Pallet size	1100x900mm
Brick type	hollow block solid brick pavers
Rating pressure	16-21MPA
Product Keywords	brick force making machine for sale

brick force making machine for sale

Product Description

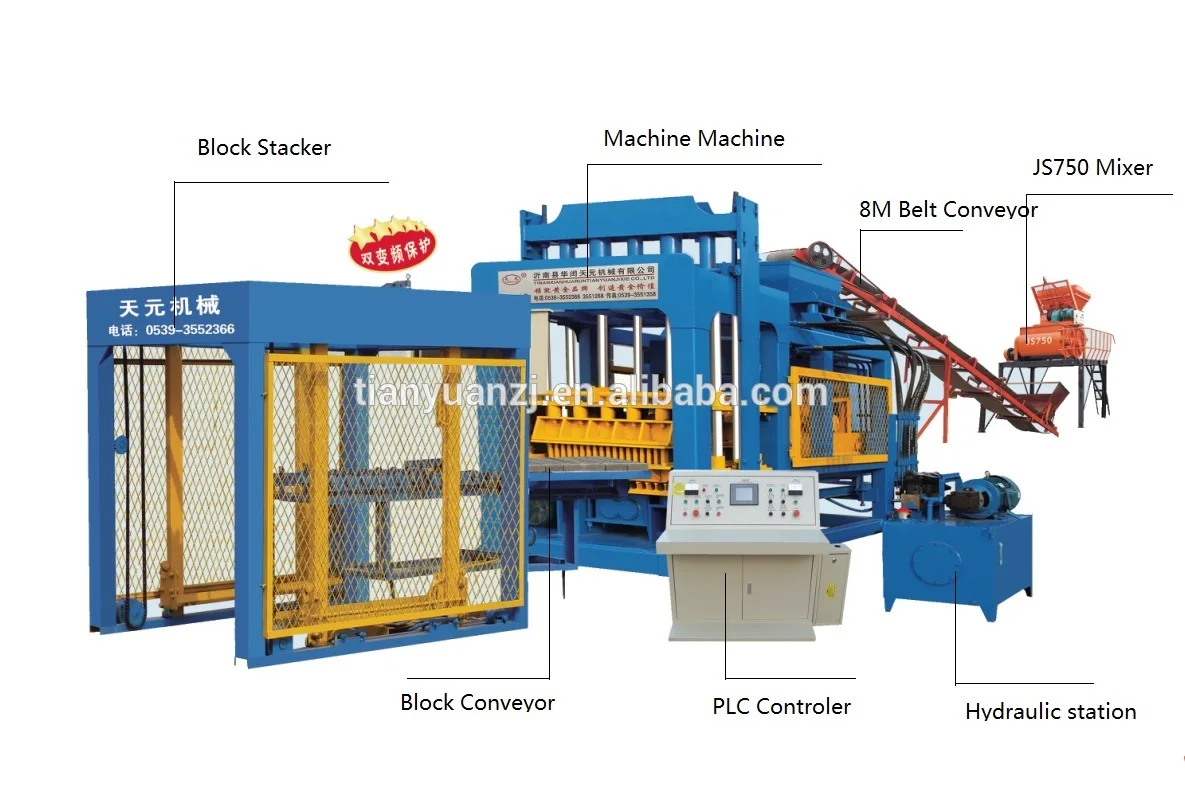

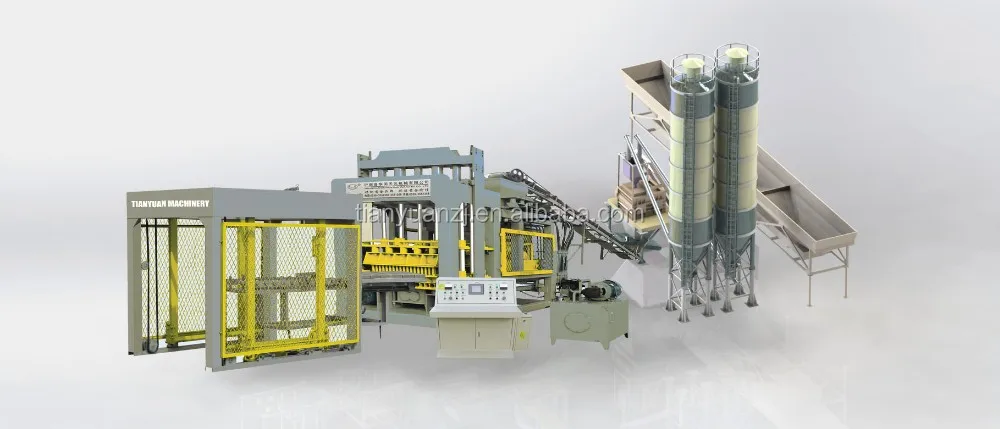

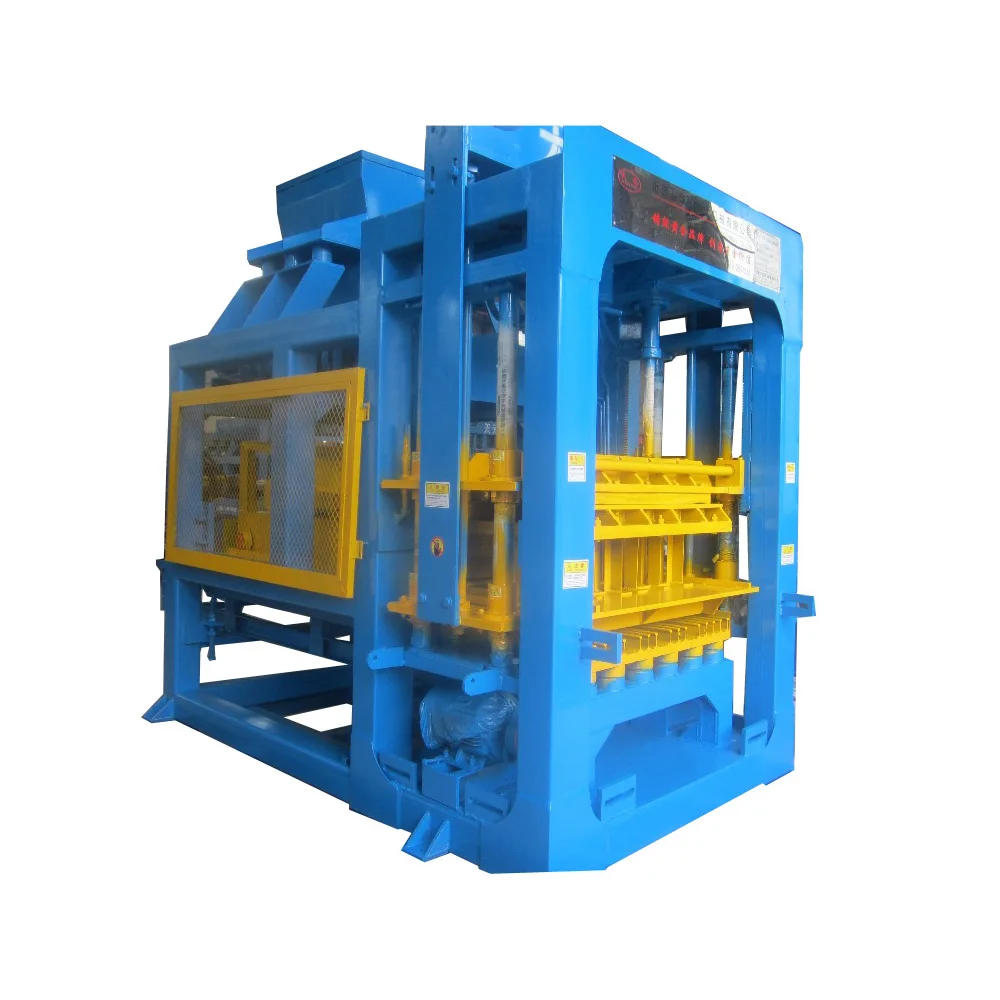

Fully Automatic Concrete Block Making Machine Cement Brick Production Line QTY10-15

Parameters of main machine
Forming Cycle	15-20S	Pallet size	1150x850x25mm
Rated pressure	20-25Mpa	Weight	8500kg
vibration Force	55KN	Vibration Frequency	5000-5500r/m
Demolding method	Hydraulic system	Overall Dimension	360023002550mm

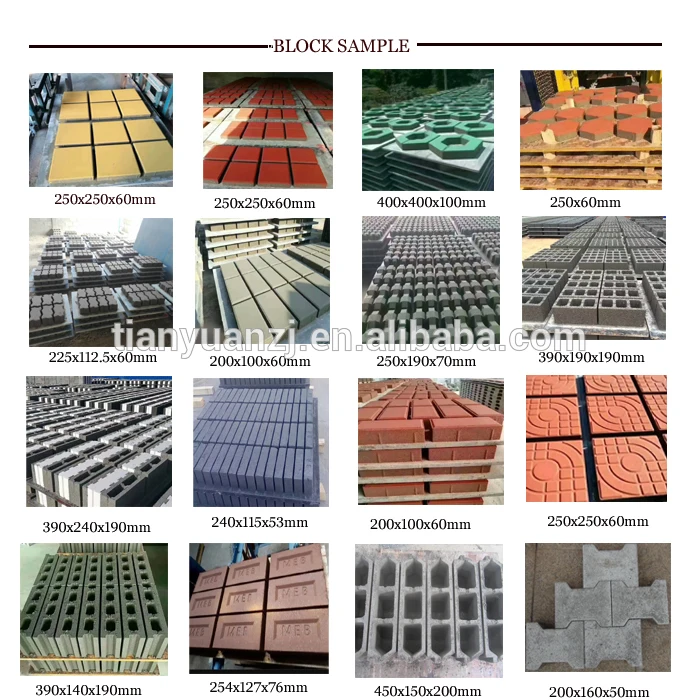

Capacity for common block sizes
400x100x200mm	20pcs/mould	4800pcs/hour	38400pcs/shift
400x150x200mm	14pcs/mould	3360pcs/hour	26880pcs/shift
400x200x200mm	10pcs/mould	2400pcs/hour	19200pcs/shift
Zigzag paver (225x112.5x60mm)	27pcs/mould	6480pcs/hour	51840pcs/shift

Main Features

-The advantage of Molding Machine,
1- Automatic with Siemens PLC control system and Touch-operating Panel, Double Delta frequency converters, use less labor.
2-Hydraulic transmission,mechanical vibration, and hydraulic pressing and forming are adopted
3- Adopting the advanced forced material-feeding & distributing device, More durable.
4- It could make many kinds of color-faced pavement tiles, color-faced grass-planting bricks and curb bricks, as well hollow blocks and interlocking wall bricks by changing different molds.
5- Quality Insurance:
PLC and Motors from Siemens Brand, Hydraulic from Germany Brand Yk.Switch from Siemens or CHTN.
Molds are made of Manganese steel, long lifetime.
6- Certificate: ISO quality control, CE (MD+LVD).- European Quality.

Detailed Images

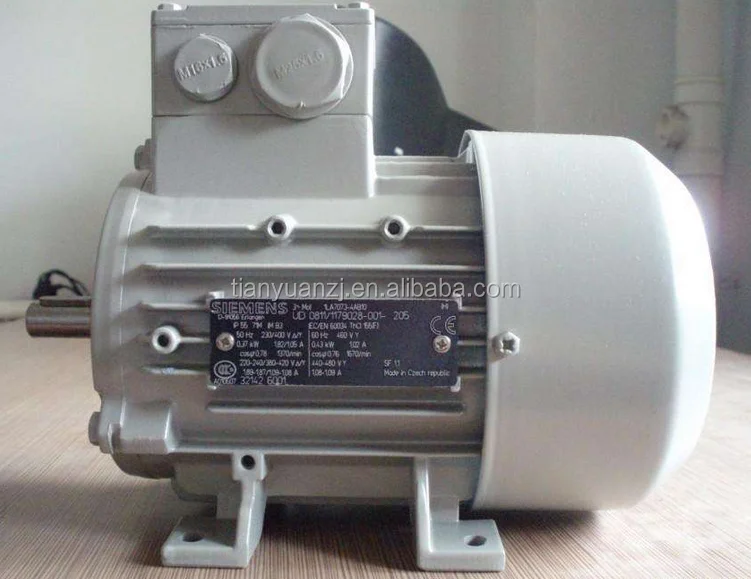

Motors

Brand: Siemens

Original: China

Voltage: client local required.

Power: 0.75-15kw, different required by different parts.

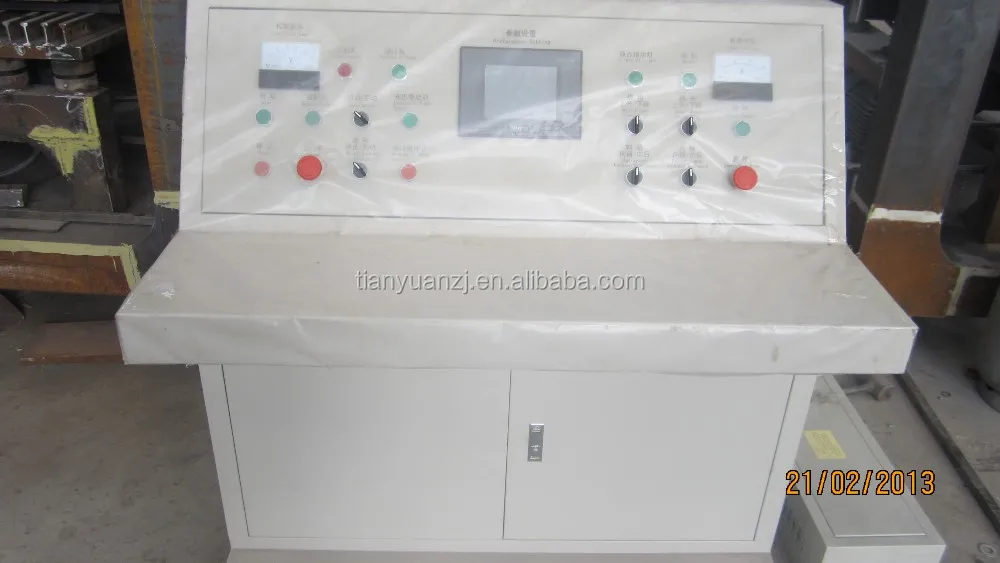

PLC control

Brand: HUALI or Siemens

Language: English and Chiinese

Frequency converter: 2sets

Original: China

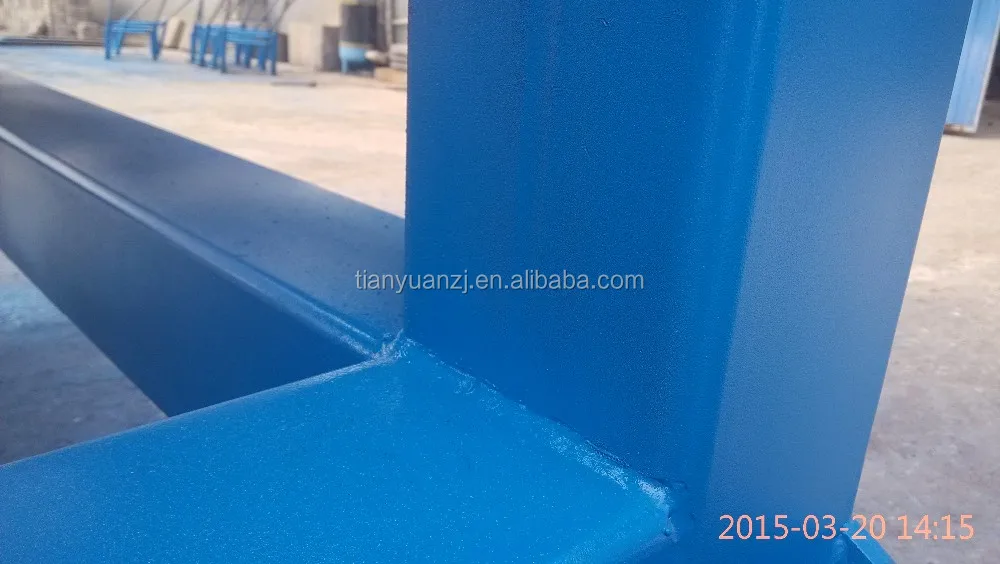

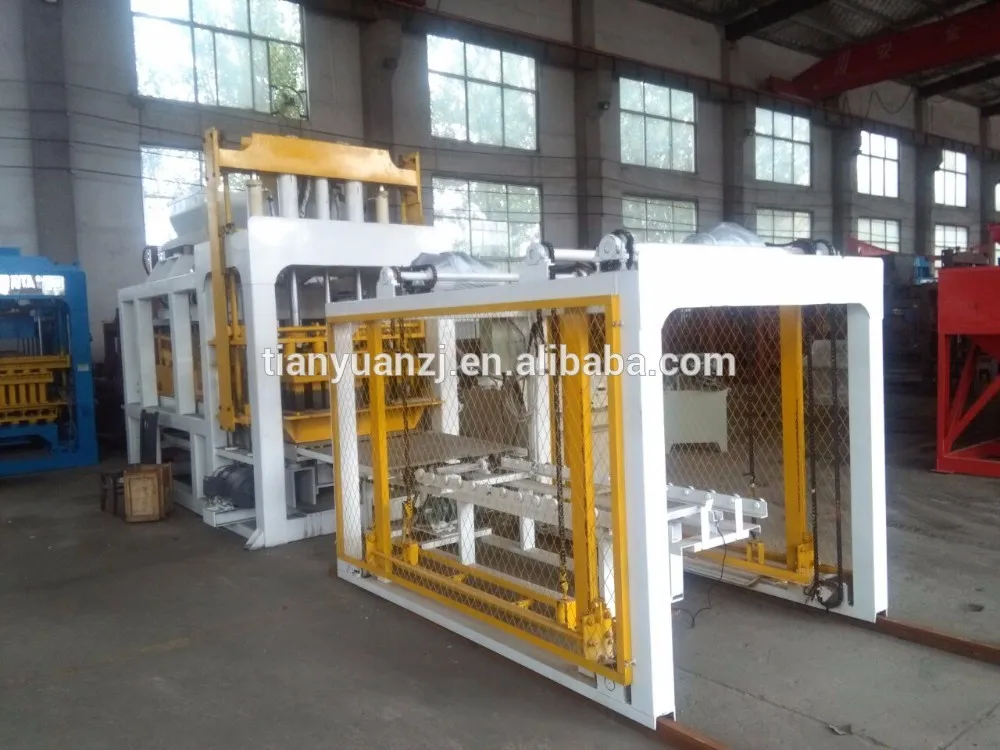

Brick machine frame

Material: 45# steel

Processing technology: Electric welding

Painting: First Anticorrosive paint, then client required color.

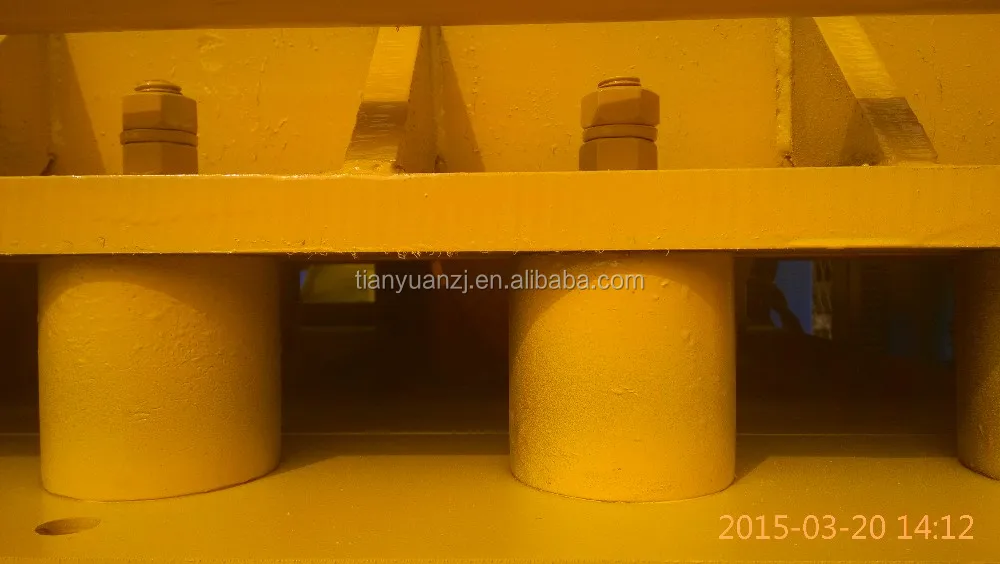

Damping rubber sleeve

Material: rubber

Quantity: 14pcs

Function:It damps vibration force to protect main machine and moulds from the heavy vibration table.

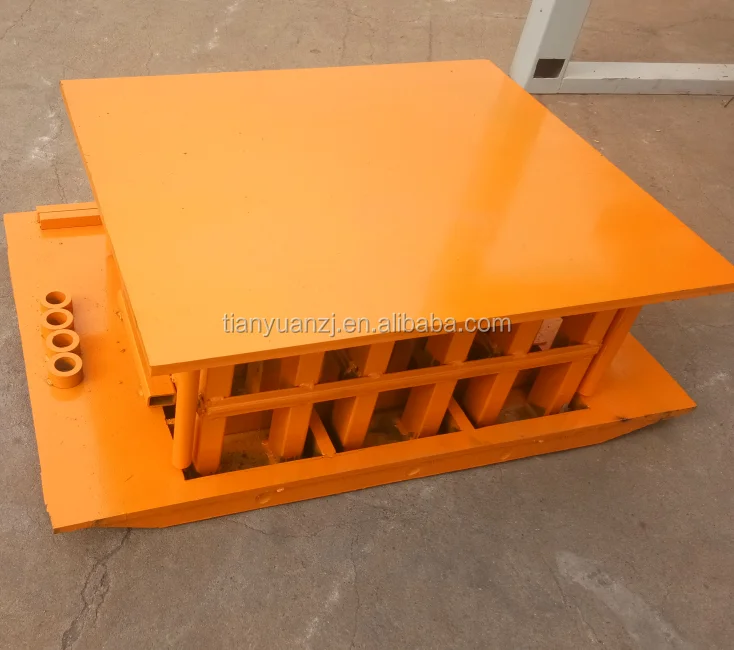

Block mould

Material: Manganese steel
Processing technology: Line cutting
Heat treatment: Yes

Weight: 500-600kg/set

Service life: over 800,000 times

Our Company

Yinan Huarun Tianyuan Machinery CO.,Ltd.

------ Real and professional manufacturer

1) History and production capacity:

Eestablished in 1999, Our company covers an area of 80,000 square meters and has more than 420 technical staff members, including 20 senior engineers and 40 assistant engineers.We have 6 productione lines,which have enough productivity to satisfy products needs from home and abroad.

2) Products:

Automatic block/brick making machine: QTY12-15, QTY10-15, QTY8-15, QTY6-15A, QTY6-15C, QTY4-15A, QTY4-15C, QTY4-20C, QTY3-15. (also for various color pavers, interlocking blocks,etc.)

Semi automatic block/brick making machine: QTY4-20C, QTY3-15, QTJ4-25,QTJ4-26D, QTJ4-26C,QTJ4-35B2(also for paving and interlocking brick,etc)

Manual block/brick making machine: QTJ4-40, QTJ4-45,QTJ40-3A

EPS insert insulation block making machine: QTY8-15, QTY6-15, QTY4-15A, QTY4-20

Perlite insulation panel making machine: BWY-A, BWY-B, BWY-C, BWY-D, BWY-H

3) Market:

Africa: Egypt, Libya, Algeria, Sudan, Niger, Nigeria, Somalia,Uganda,Congo, Zamia, Mozambique, South Africa, etc

Asia: Saudi Arabia, Oman, UZ, KZ, India, Bangladesh, Nepal, Mongolian, Burma, Vietnam,Indonesia,etc.

America: America, Canada, Brazil, Columbia, Honduras ,etc.

You are welcome to come and visit.
