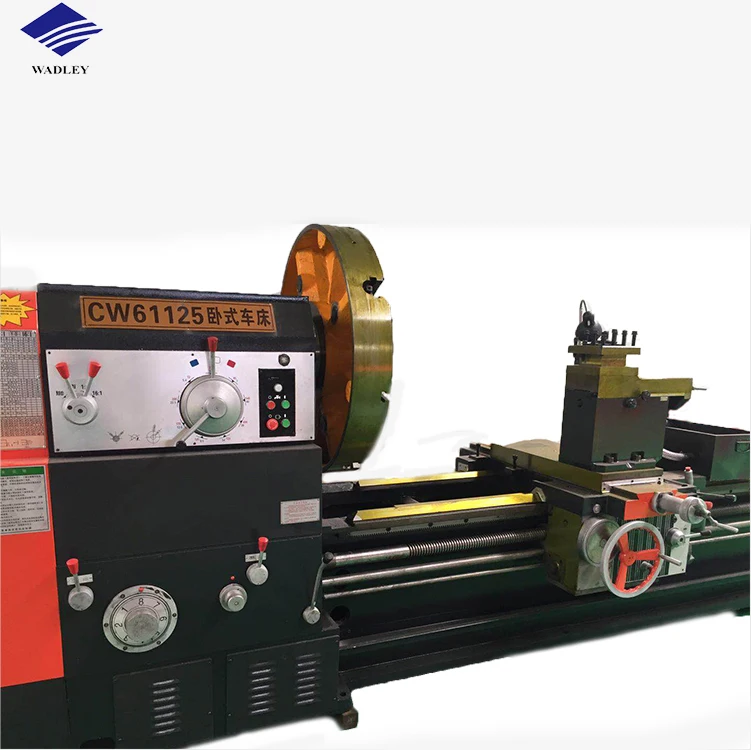

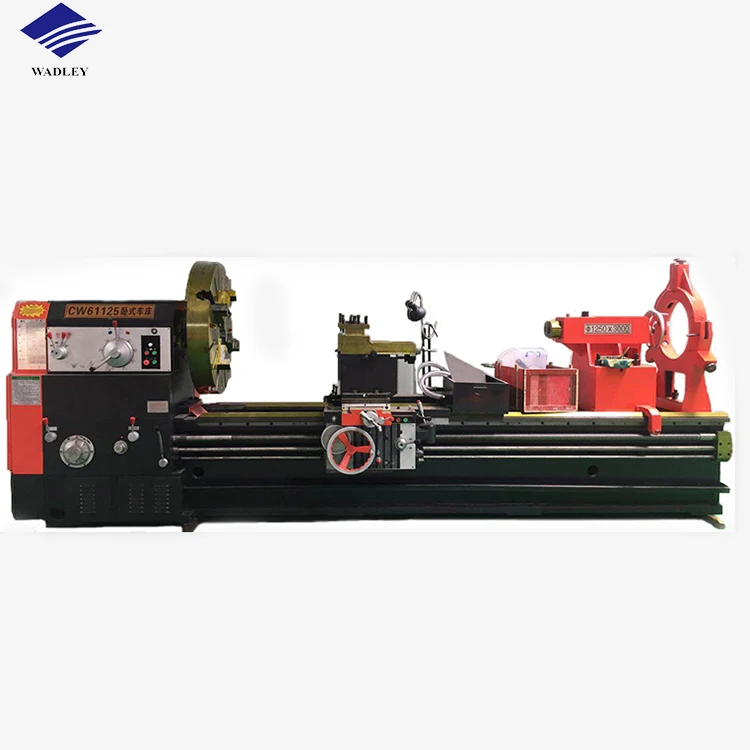

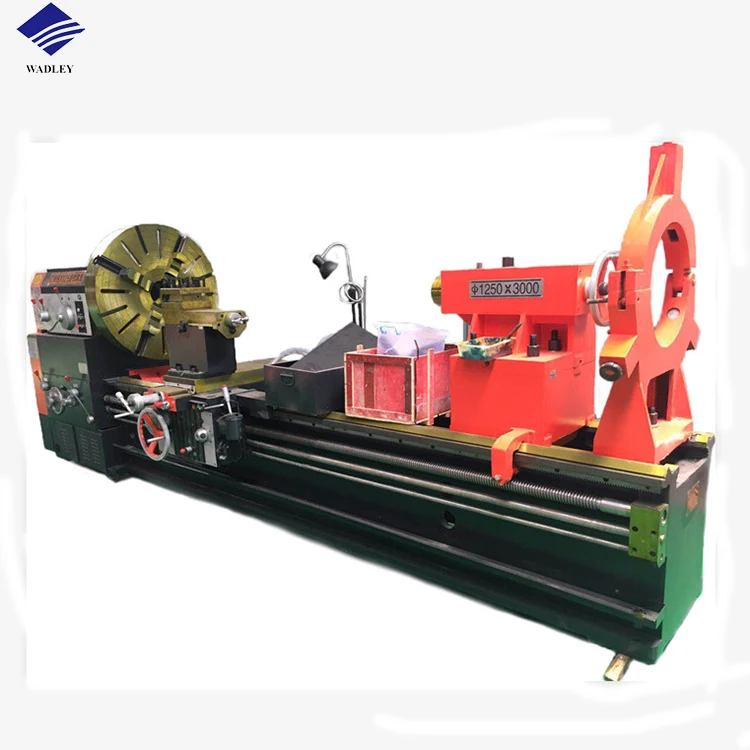

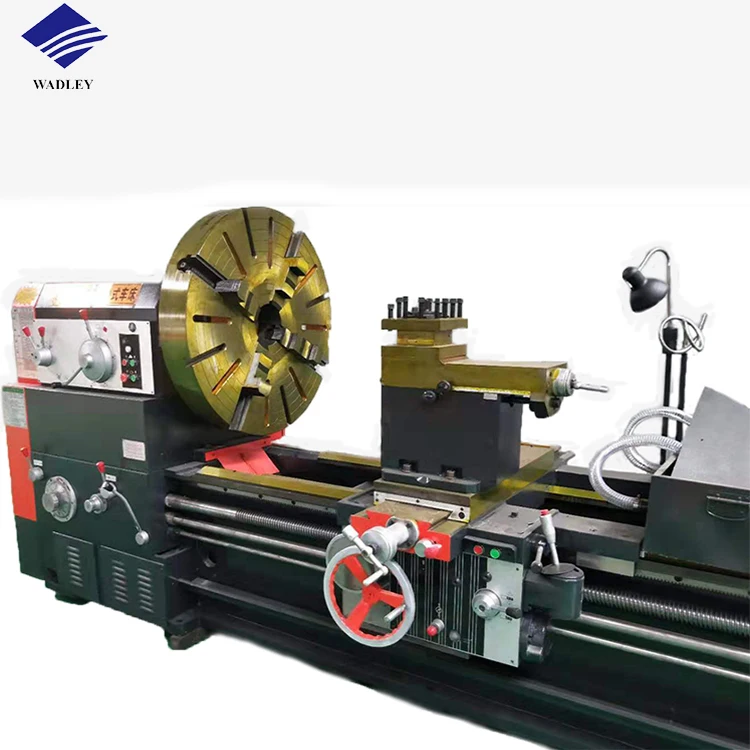

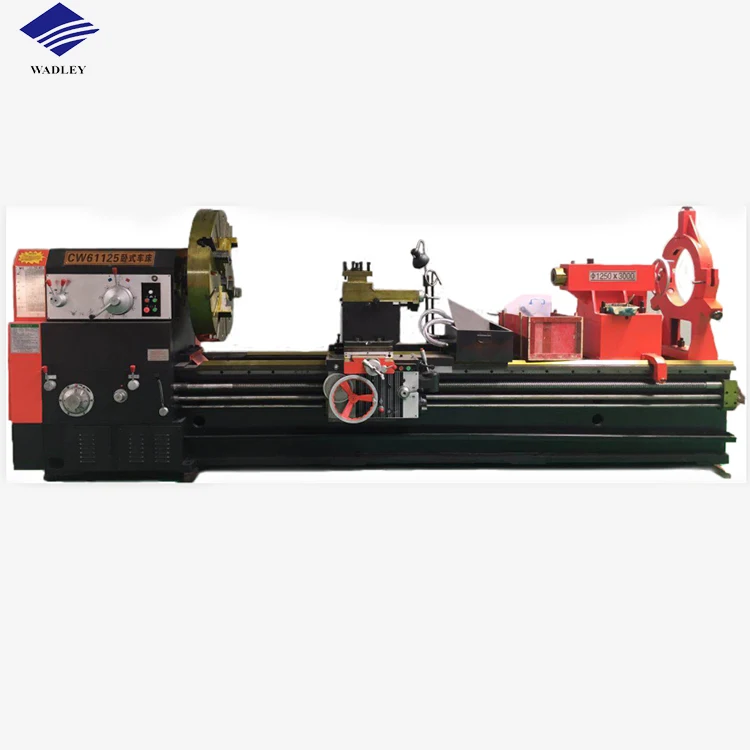

Высокоточный металлический Настольный Токарный станок/Производитель Обычных Токарных Станков
- Категория: >>>
- Поставщик: Henan Wadley Cnc Machinery Co. Ltd.
Сохранить в закладки 62083598459:
Описание и отзывы
Характеристики
Product Description
A. This machine can undertake a variety of turning work piece, it can turning the various parts of the outer circle, inner hole, end and metric thread, Whitworth, module thread and pitch diameter of the thread forming surface; in addition, you can also meet drilling, every hole, sets and other materials process requirements. It can also be used in hard cutting tool for powerful cutting, processing a variety of ferrous and non-ferrous metals.
B. The width of the side wall of the double bed ribs, inner ribs with box and diagonal reinforcement integral bed structure, high integral rigidity.
C. The machine has the advantages of high power, high speed, low noise, strong rigidity, high precision and good accuracy. It also has the advantages of easy operation, flexible operation, convenient operation, safe and reliable. In addition, the machine tool used in the production of brand-name manufacturers of AC frequency conversion speed control device, the four gear step less speed control, in the original ordinary lathe based on the increase of the working accuracy, stable and reliable.
D. This machine tool is driven by AC variable frequency speed regulation motor. After sliding gear, I realized that I, II, III, IV four gear shift frequency conversion speed control, which has good torque characteristics and functional characteristics, and the sliding plate has the advantages of fast movement and convenient operation.
B. The width of the side wall of the double bed ribs, inner ribs with box and diagonal reinforcement integral bed structure, high integral rigidity.
C. The machine has the advantages of high power, high speed, low noise, strong rigidity, high precision and good accuracy. It also has the advantages of easy operation, flexible operation, convenient operation, safe and reliable. In addition, the machine tool used in the production of brand-name manufacturers of AC frequency conversion speed control device, the four gear step less speed control, in the original ordinary lathe based on the increase of the working accuracy, stable and reliable.
D. This machine tool is driven by AC variable frequency speed regulation motor. After sliding gear, I realized that I, II, III, IV four gear shift frequency conversion speed control, which has good torque characteristics and functional characteristics, and the sliding plate has the advantages of fast movement and convenient operation.
Technical parameter
| Item | Specifications | Units | CW6163E |
| Machining range | Max.swing over bed | mm | 630 |
| Max.swing over cross slide | mm | 350 | |
| Max.turning length | mm | 1000-12000 | |
| Bed width | mm | 550 | |
| Spindle | Spindle nose code | C11(D11) | |
| Diameter of the spindle | mm | 105 | |
| Spindle inside taper | mm | Metric 120 1:20 | |
| Range of spindle speeds | r/min | 10-700 | |
| Spindle speed series | four gears to change speed ,no grade to change frequency | ||
| Feeding system | Longitudinal and transverse feeding number range | mm/r | 56;0.1-12 |
| Screw pitch | 12 | ||
| Number range of the thread under Metric system | mm | 44;1-120 | |
| Number range of the thread under British system | mm | 26;14-1 inch | |
| Number range of the module thread | mm | 45;M0.5-M60 | |
| Number range of the diametric thread | mm | 24 28-1 | |
| Slide fast moving speed | mm/ min | 4000 | |

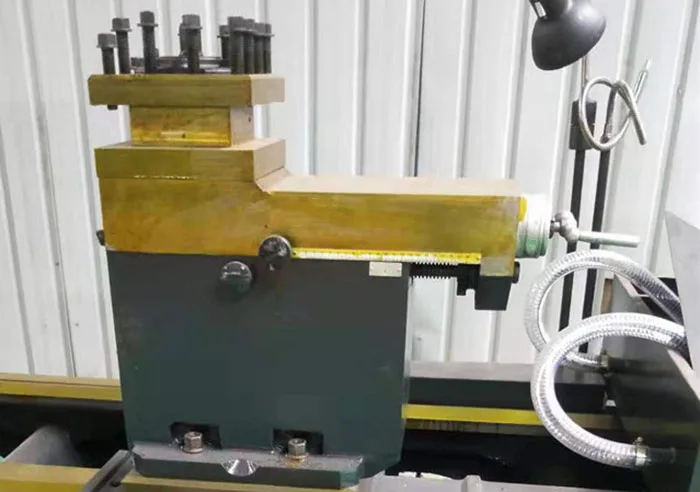

| Knife rest | Max cross travel of turret | mm | 420 |
| Max travel of compound slide | mm | 200 | |
| Tool section size | mm | 32*32 | |
| Tailstock | Sleeve diameter of tailstock | mm | 100 |
| Sleeve trip of tailstock | mm | 250 | |
| Cone hole taper tailstock's sleeve | Morse | Morse 6 | |
| Main motor power | kw | 11 | |
| Size | L*W*H | mm | 4000*1320*1500 |
| Weight | Net weight | kg | 4050 |

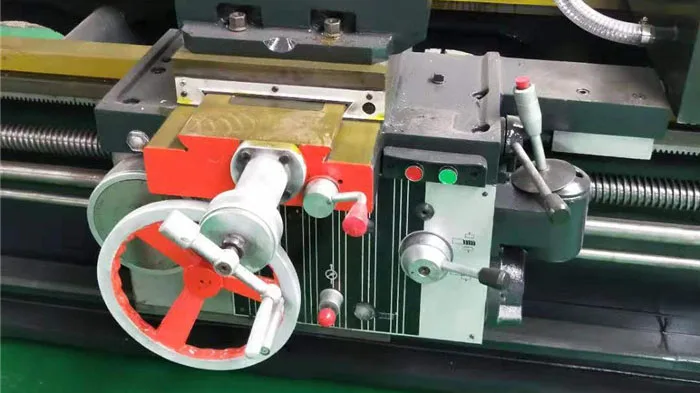

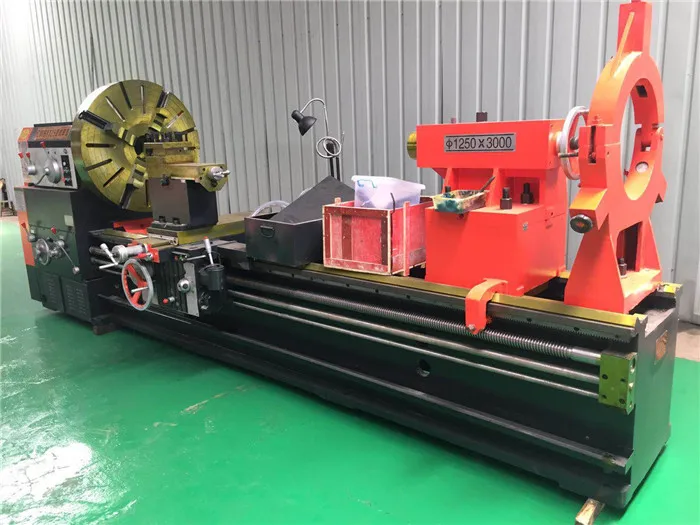

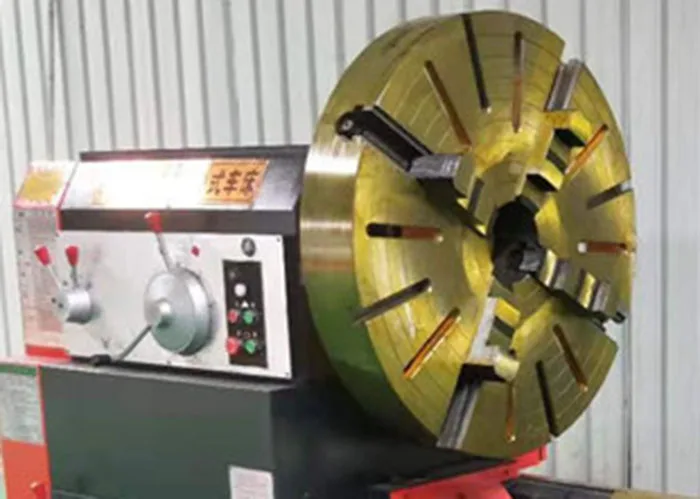

Detailed Images

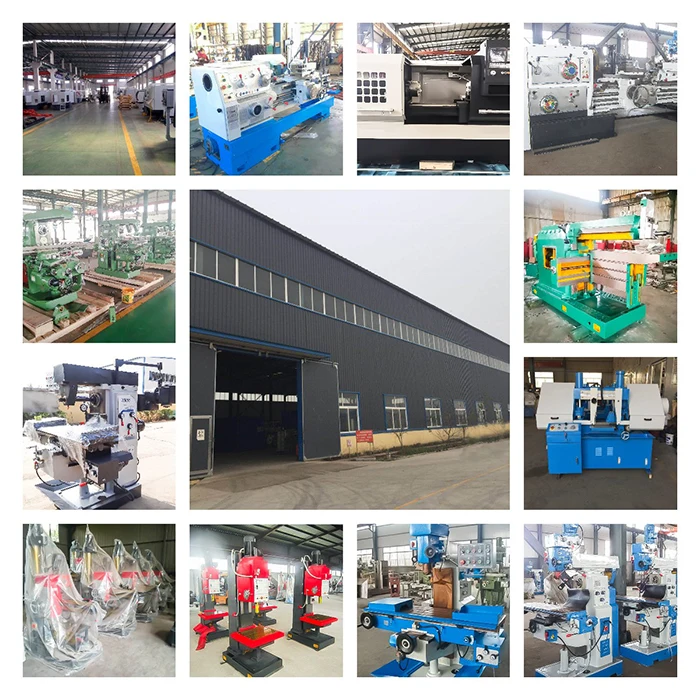

Company Information
Packing&delivery:
FAQ
Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q6.Can I trust you?
Sure, we're Made in China Gold Suppliers,
Q7.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q8.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
