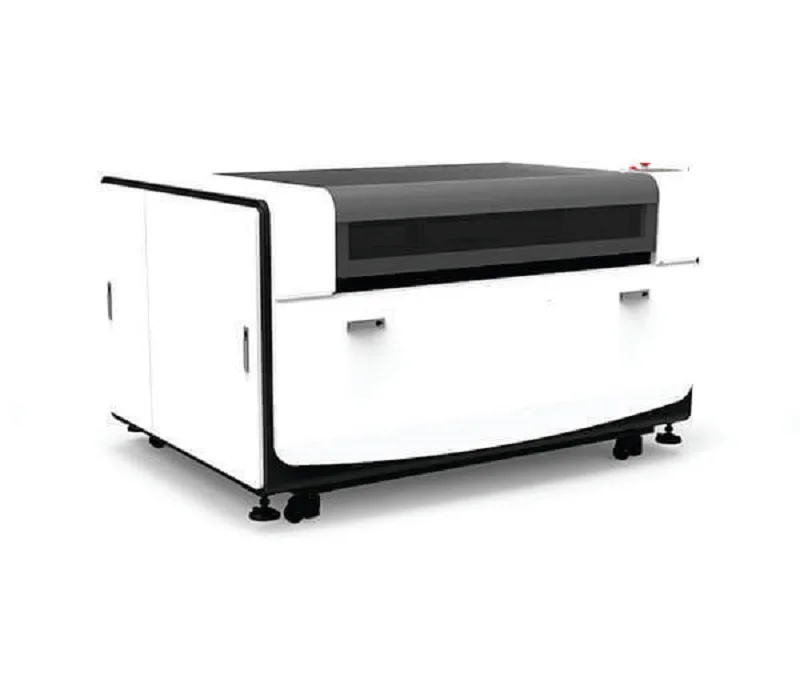

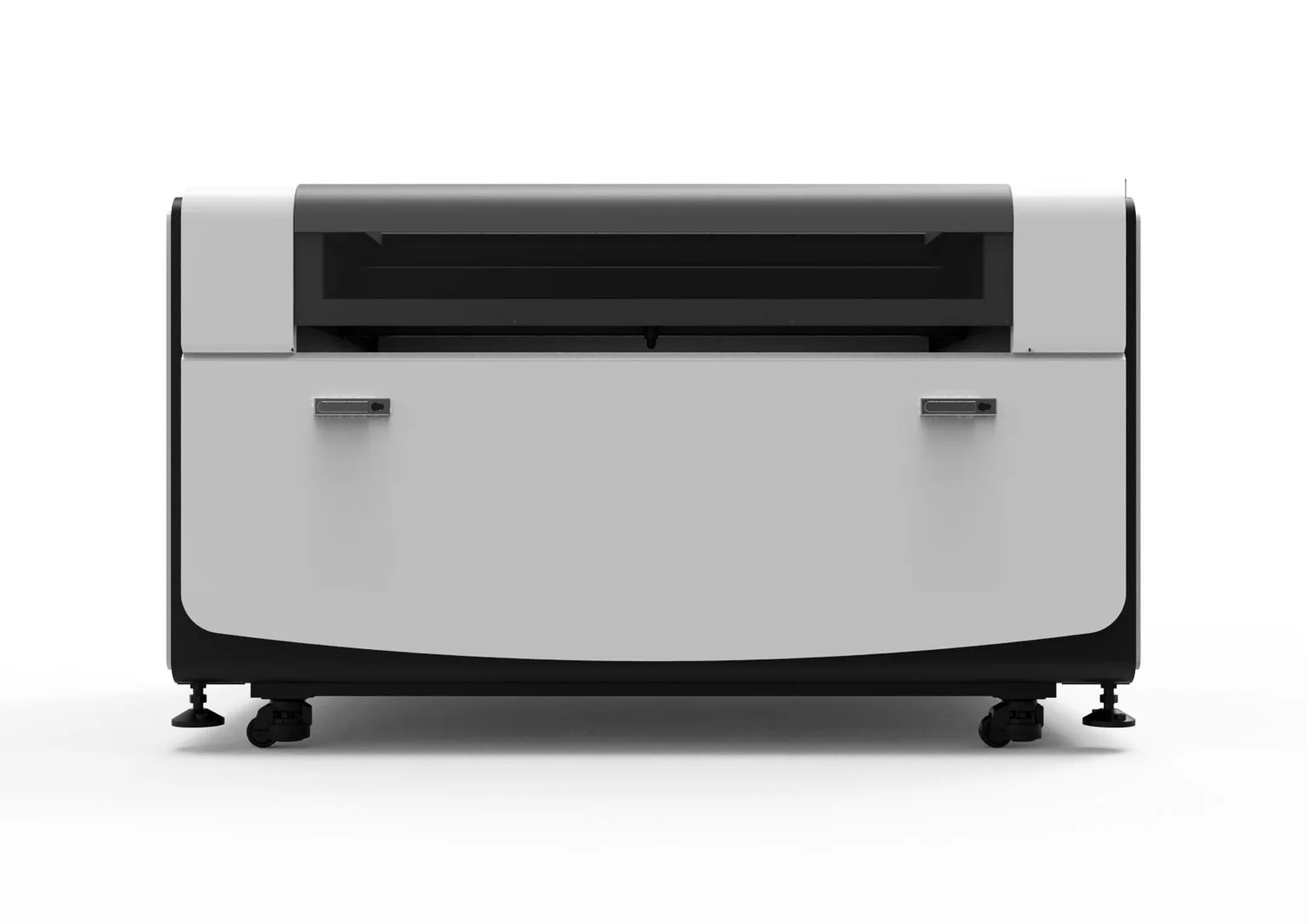

CO2 лазерный режущий станок для текстильной кожи гравировальный акрила дерева Y1390I
- Категория: Industry Laser Equipment >>>
- Поставщик: Jinan Yizhou Laser Technology Co. Ltd.
Сохранить в закладки 62089720854:
Описание и отзывы
Характеристики
Product Description
Product Application
1390 100W wood acrylic laser cutting machine
special designed for non metal materials cutting and engraving ,such as wood ,acrylic ,mdf ,plywood ,paper , leather ,farbic , rexine ,rubber ,plastic and son on , widely used in clothing, shoes, luggage, computer embroidery clipping, model, electronic appliances, toys, furniture, advertising decoration, packaging and printing, paper products, handicrafts. Household appliances, laser processing and other indu
Applicable materials:
Non-metal materials such as acrylic, double color board, Plexiglas,
Common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.
Applicable industries:
Y1390I has been widely used for engraving and cutting on nonmetal material, including Acrylic, Organic Glass, Crafts, Furniture, Glasses, Wood, PVC, Lightings, Advertising and decorating, pater, packaging lithography, mark plate, atomic stamp & seals, bamboo products, trademarks, embroidery, apparel and other industries. Adoptable for clothing tailoring, embroidery cutting, leather punch Pierced menthol cutting carving processing.
Characteristics:
1) Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
2)LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.
3) Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
4) Special Front and back running-through design, the unique door for the limitless engraved materials through.
5)Professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;
6) Water Cooling System with Alarm Protection, adopt CW-5000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
7) Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, 12000 hours Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
8)High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 0.5X0.5mm little English character perfect.
9) Red Light Pointer realizes the exact position without laser.
Non-metal materials such as acrylic, double color board, Plexiglas,
Common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.
Applicable industries:
Y1390I has been widely used for engraving and cutting on nonmetal material, including Acrylic, Organic Glass, Crafts, Furniture, Glasses, Wood, PVC, Lightings, Advertising and decorating, pater, packaging lithography, mark plate, atomic stamp & seals, bamboo products, trademarks, embroidery, apparel and other industries. Adoptable for clothing tailoring, embroidery cutting, leather punch Pierced menthol cutting carving processing.
Characteristics:
1) Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
2)LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.
3) Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
4) Special Front and back running-through design, the unique door for the limitless engraved materials through.
5)Professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;
6) Water Cooling System with Alarm Protection, adopt CW-5000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
7) Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, 12000 hours Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
8)High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 0.5X0.5mm little English character perfect.
9) Red Light Pointer realizes the exact position without laser.
Technical Parameters
Working size | 1300*900mm |
Cutting depth | ≤25mm（according to material） |
Laser power | YONGLI AS6 130W |
Laser type | CO2 glass laser tube |
Laser power supply | 150W |
Mirror and Lens | 25mm Dia. Si mirror; 20mm Dia. Znse IIV-VI lens |
Engraving speed | 1-60000mm/min |
Control system | RDC6442S/RDC6445G RUIDA |
Control Software | RDWORKS V8 |
Working Table | Up and down table |
Laser head | with Pen style Auto focus and red dot positioning |
Protector | XY dust cover protection |
Safety system | Three light alarm system+case open working stop system |
Air compressor power | Haili 165W |
Motor&Driver | Stepper Motor&Driver |
Exhaust fan Power | 550W |
Transmission | Italy PEK linear rail+ONK belt |
Cutting speed | 1-10000mm/min |
Resolution ratio | ≤0.0125mm |
Interface | USB2.0 |
Minimum shaping character | letter 0.5mm, Chinese 0.5mm |
Cooling type | Circulation water cooling CW5000 |
Support format | JPG,JPEG, PLT, DST, PLT, BMP, DXF, AI |
Voltage | 110V/220V 50HZ 60HZ |
Operating temperature | 0-45C |
Operating humidity: | 5-95% |
Warranty | Machine:1 year, Laser tube:12 months |
N.W/G.W | 450KGS/500KGS |

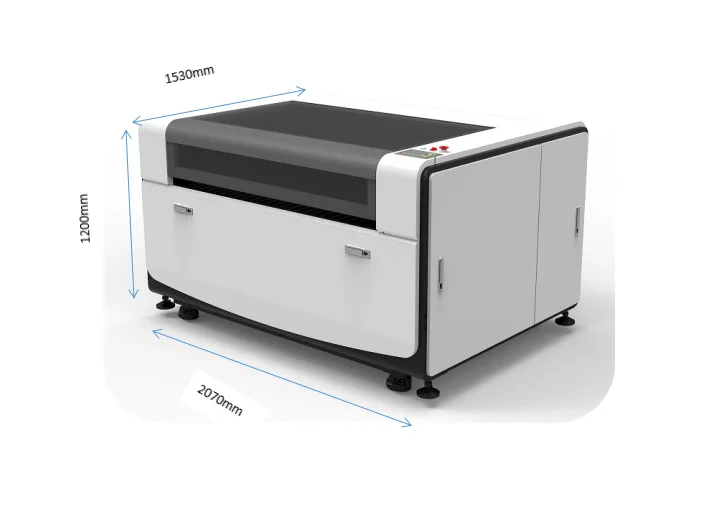

Size | 2.07*1.53*1.2m 40Q container:14SETS |
Detailed Images
Red dot Positioning and Auto Focus
Red dot positioning: Make start point visible.
Auto focus:control the up and down table to ensure the
Optimal focal length between the processed materials and the lens.
Auto focus:control the up and down table to ensure the
Optimal focal length between the processed materials and the lens.
Warning Light
Green light indicates running fine
Yellow light indicates standby states
Red light indicates a problem with the running machine
Yellow light indicates standby states
Red light indicates a problem with the running machine

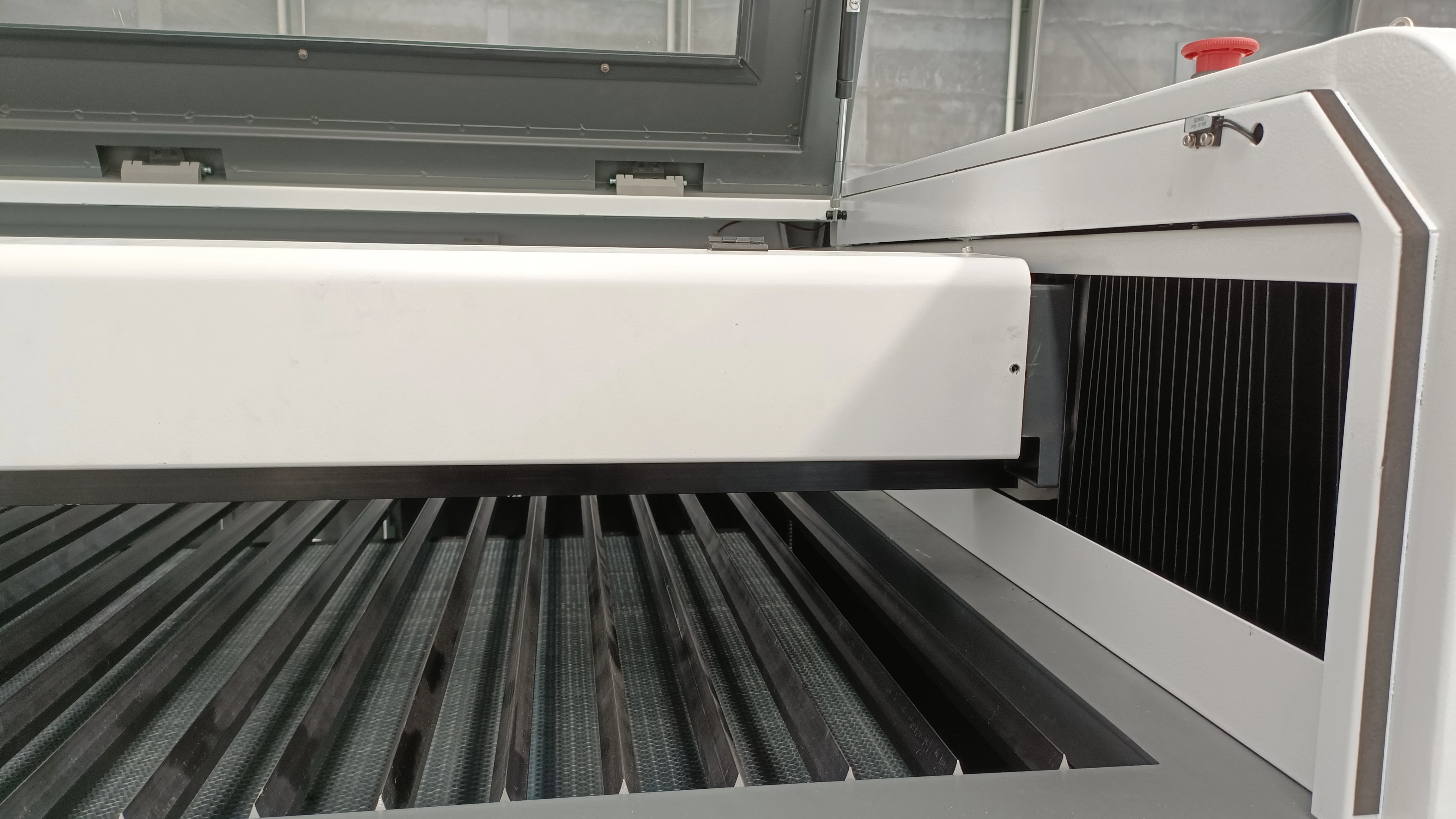

Double Table
Table: double table: honeycomb+sword blade
up-down motor: two phase stepper motor driving.
combined to auto focus function
transmission: high precision ball screw
up-down motor: two phase stepper motor driving.
combined to auto focus function
transmission: high precision ball screw
XY Dust Protector
X axis: steel case protect linear rail and belt
Y axis: dust cover protect dust and water out of transmission
Y axis: dust cover protect dust and water out of transmission
Foot and Wheel
Easy to fix the machine on floor and easy to move the machine to the different place by wheel
Powerful and Long Life Laser Tube
Model:AS6 YONGLI;Length:1650mm related power:130W Peak power:160W working current:30mA Diameter:80mm working life:12000hours Warranty:12 months
Powerful Chiller
Powerful cooling capacity, makes machine working normal in HOT countries and seasons.
Model:CW5000
voltage:110V/220V 50HZ/60HZ
Weight:24KGS
volume:6L
Working Current:1.4-2.1A
Size:58*29*47cm
compressor power:0.4HP/50HZ 0.52HP/60HZ
Cooling capacity:2361btu/h 50hz 2999btu/h 60hz
Maximum flow:10L/min
Model:CW5000
voltage:110V/220V 50HZ/60HZ
Weight:24KGS
volume:6L
Working Current:1.4-2.1A
Size:58*29*47cm
compressor power:0.4HP/50HZ 0.52HP/60HZ
Cooling capacity:2361btu/h 50hz 2999btu/h 60hz
Maximum flow:10L/min
Easy operation LCD controller
Ruida RDC6442G/S system is a new generation system for 4-Axis control of laser engraving and cutting. Support Multi language.
With USB or WLAN Communication port
20mm Dia. Znse Lens
Diameter:20mm Focus length:50.8mm
Edge thickness:2.5mm
1.Double size AR coating high transmance 99.5%
2.USA CVD ZnSe Materials,up to 300W laser Resistance
Edge thickness:2.5mm
1.Double size AR coating high transmance 99.5%
2.USA CVD ZnSe Materials,up to 300W laser Resistance
25mm Dia. Si Mirror
Silicon Mirror is a Silicon substrate, which has good optical and thermal properties. After coating a reflective film on Silicon surface, it can greatly improve its reflectance, which is approximately 99.8%, which can almost avoid the loss cause by reflection
Optional:CCD camera
CCD c amera can scan the materials,such as fabric,textile,KT board,etc. after scan,machine will cut the drawings contour on materials
also it can do MARK POINT cutting.
Company profile
FAQ
1. Are you a trading company or a factory?
We are manufacturers.
2.When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit,
but customized machines should be more than 25 days.
3. Do you provide equipment operation training after sale?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and
operation training. All of our engineers have passport.
4. Can you customize the machine according to my request?
Yes. We have experienced engineers and technical team, can provide personalized service company Good working environment, the company regularly attend exhibitions, improve the company's ability, strengthen communication and
learning, and provide good services for customers
We are manufacturers.
2.When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit,
but customized machines should be more than 25 days.
3. Do you provide equipment operation training after sale?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and
operation training. All of our engineers have passport.
4. Can you customize the machine according to my request?
Yes. We have experienced engineers and technical team, can provide personalized service company Good working environment, the company regularly attend exhibitions, improve the company's ability, strengthen communication and
learning, and provide good services for customers
Похожие товары
2022 новый продукт 1000 Вт 1500 2000 машина для волоконной лазерной резки по хорошей
Станок для лазерной резки металла 500 Вт/600 Вт/700 Вт/800 Вт станок алюминия
32 340,00 $
20w 30w jpt mopa волоконная лазерная маркировочная
2 199,00 $ - 2 499,00 $
Горячая Распродажа машина для резки прокладок
Портативный Настольный волоконно-лазерный гравировальный станок маркировочные машины металлический лазерный

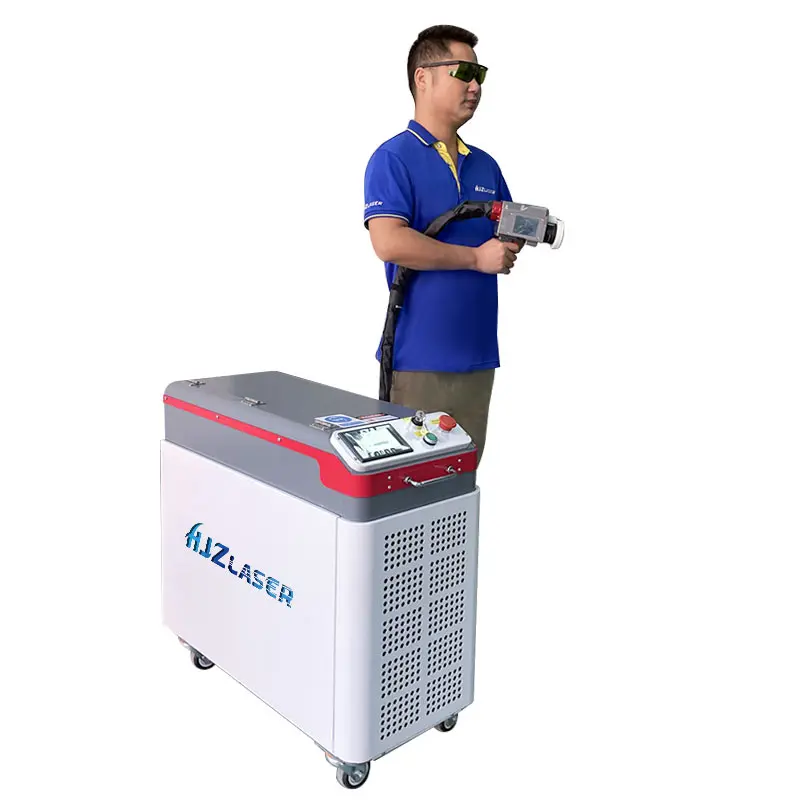

200 Вт 500 1000 1500 2000 CW аппарат для непрерывной лазерной очистки цена ржавчины и
3 900,00 $ - 6 200,00 $

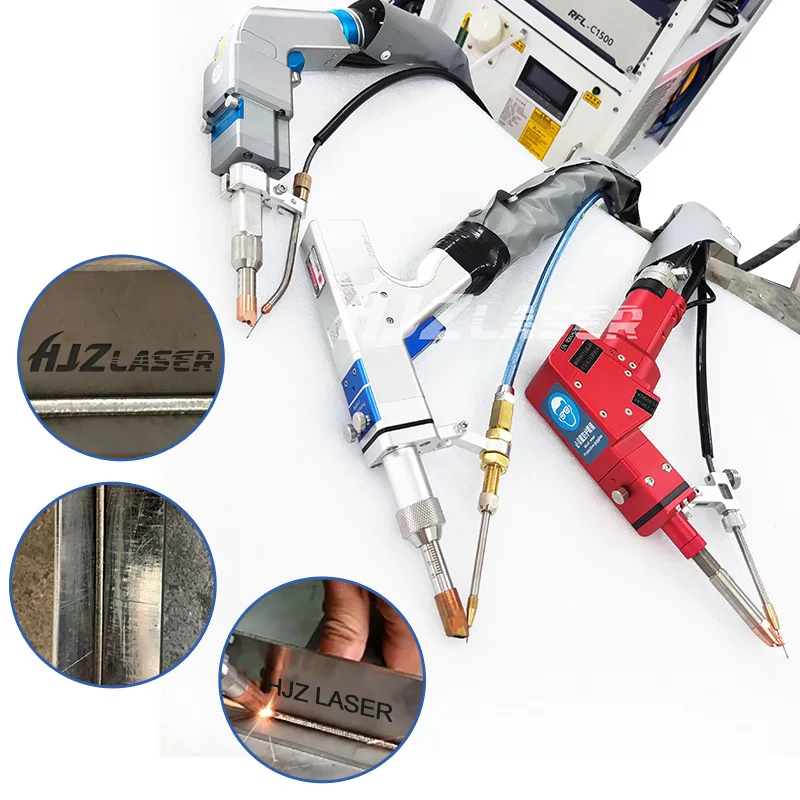

Высокочастотный сварочный аппарат 4 в 1/алюминиевый аппарат/сварочные проволочные
