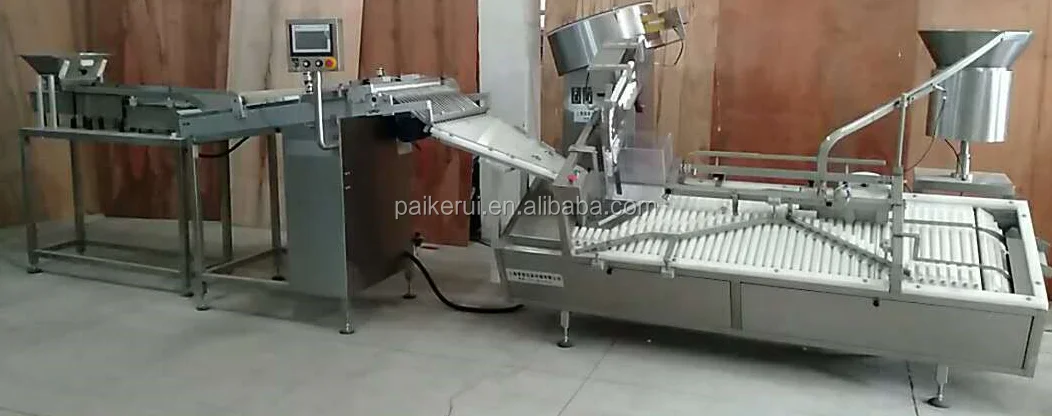

                      Horizontal effervescent tablet tube filling and packing machine

Machine description:

Fully automatic tube fiiling and capping machine realizes electromechanical integration.Automatic sort bottle, push tablet, sorting cap, press cap (or screw cap).The degree of automation is the first in China. The machine is controlled by computer and the Chinese menu of the touch screen is displayed. The machine is easy to operate and easy to maintain.

Technical Parameter:

1. Speed:60-80 tubes per mintute

2. Push accuracy: more than 99%

3. Applicable specifications: tube

4. Capping rate: more than 99%

5. Push mode: continuous

6. Air source: buyer provide

7. Power: 1100W single phase 220V

8. Dimensions: 4500MM (long) * 1700MM (width) * 1800MM (high)

Main electrical configuration

1.Motor Origin: Shanghai

2.Frequency converter: Mitsubishi

3.PLC:Siemens

4.Touch screen: Siemens

5.Fiber Amplifier: Autonics

6.Relay: Omron

7.Power switch: Shanghai brand

8.Pressure Regulator: Shanghai

Note: mechanical parts

1.Tube unscrambler: Made by our factory

2.Tube track: Made by our factory

3.Tube tray: Made by our factory

4.Bottle base: Made by our factory

5.Push tablet device: Made by our factory

6.Cap sorter: Made by our factory

7. Cap track: Made by our factory

8. Pressure cap head: our factory

The mechanical interlocking parts are produced by the factory except for the purchase of standard parts.
