Горячая Распродажа Shengong Заводская разрезающая доска многопильный станок для пилы
- Категория: >>>
- Поставщик: Jinjiang Shengong Machinery Manufacture Co. Ltd.
Сохранить в закладки 62095320576:
Описание и отзывы
Характеристики
Product Description

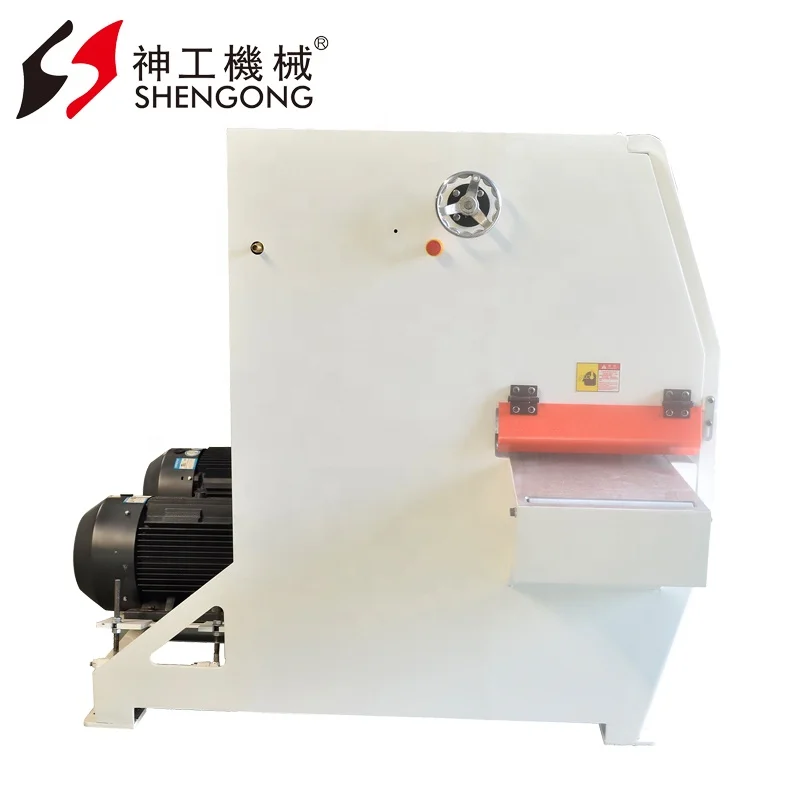

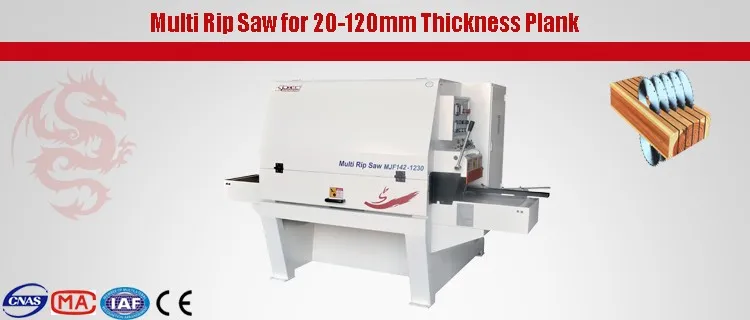

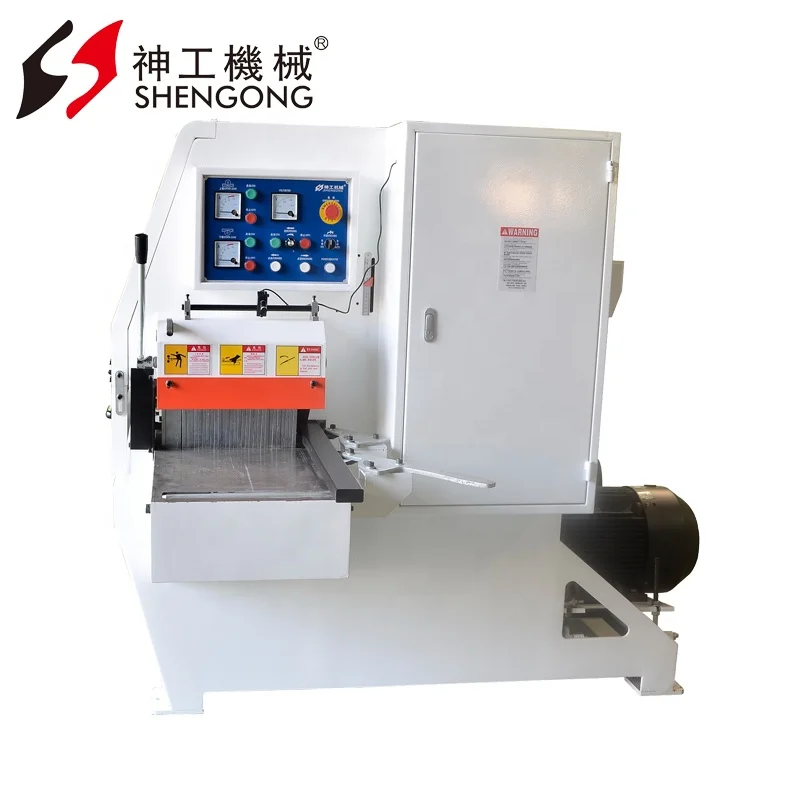

Shengong MJF142-1230 Multi Rip Saw Machine For Sawmill
We Are SHENGONG, The Most Professional Factory Who Makes Wood Multi Rip Sawmill Machine In China!!!

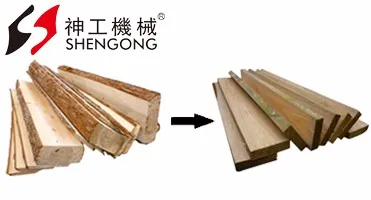

MJF142-1230 is to cut plank into pieces of final board, such as WOOD Pallet Board, Finger joint board and other specification board.
Cutting Plank thickness from 20 mm to 120mm. Width≤ 400mm.
Wood Material: Pine, Acacia, Rubber Wood, Eucalyptus, Fir, Teak etc.
Application:Woodworking industry, such as board making, laminated wood, boarded, floor, packing case and pallet board, as well as building trades.

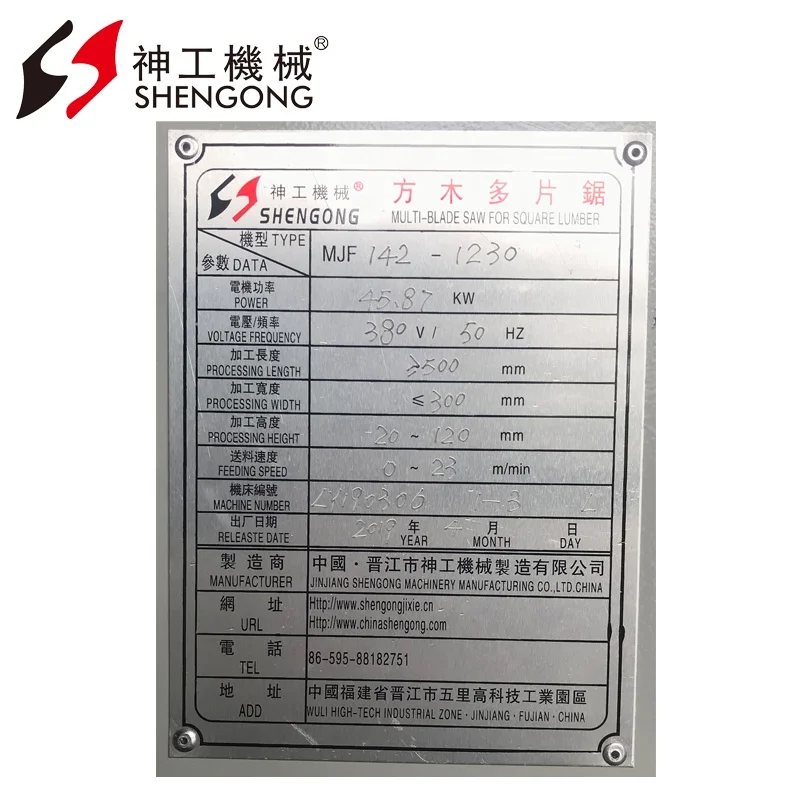

SPECIFICATIONS FOR PLANK MULTI RIP SAW MACHINE | ||||||
Engergy | Total Motor Power | 44.5Kw Or55.5kw | ||||
Voltage | 380 V or customized | |||||
Frequency | 50HZ or customzied | |||||
Performance parameters | Processing Plank Thickness | 20mm-120mm | ||||
Processing Plank Length | ≥500mm | |||||
Processing Plank Width | ≤300mm | |||||
The Max Passing Plank Width | Not limit | |||||
Feeding Speed | 0-20m/min | |||||
Machine Parameters | Appearance Size | 2680*1780*1560mm | ||||
Net Weight | 1950KG | |||||
Capacity-Average 100mm thickness and 300mm width plank | 30m³/8 hours | |||||
Main Features
1) Up& Down Spindles For installing Multi Saw Blade. Easy in installation and maintenance.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts. Like Mitsubishi.
3) Saw Kerf:2.2mm, saw with scraper which get flat surface after sawing. No need planing again.
4) Energy-saving and low wast due to multi-blade design.
5) With water cooling system to cool saw blade and spindle which keep them longer life.
6) To replace Band saw and at least three times capacity of Band Saw.
Certifications
Detailed Images

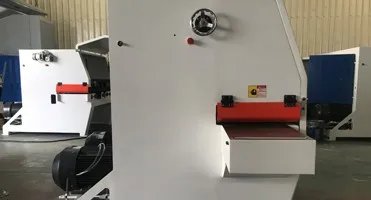

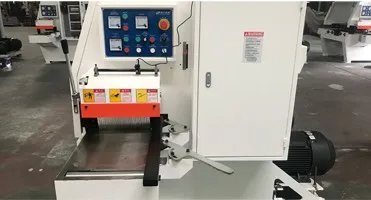

In Feed Plank Part
Laser for guidence.
Anti-kickback finger fix position.
Return plank back in safety and convenience.
Main Features

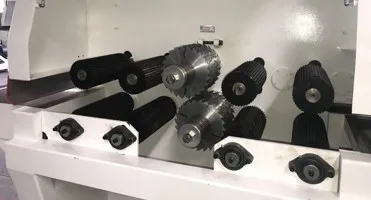

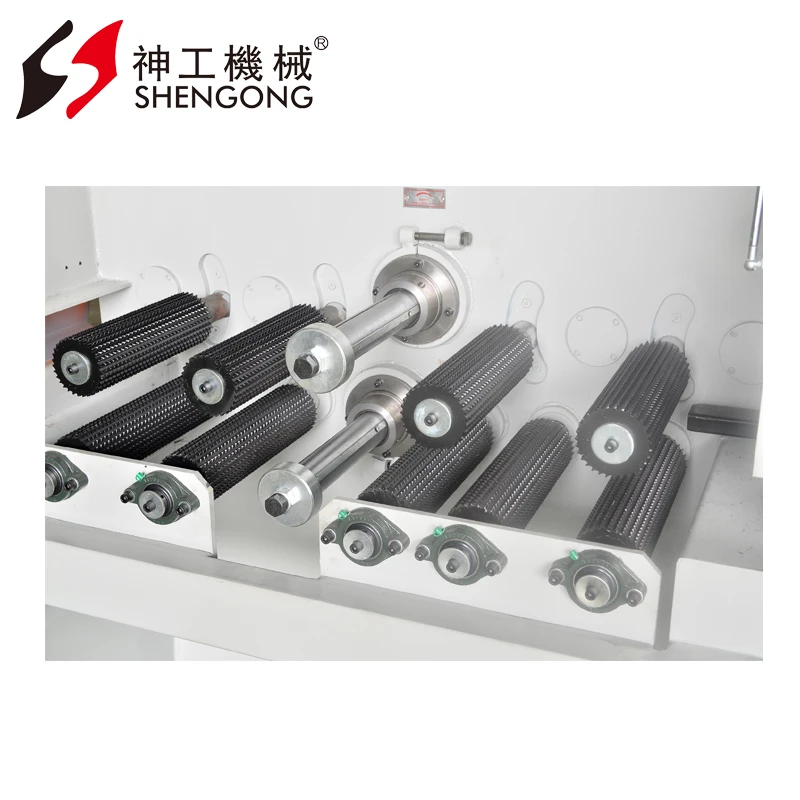

Up and Down Saw Arbors For Multi Saw Blades Installation
Saw kerf: 2.2mm
For Plank Thickness:20mm-120mm
For Plank Width:≤300mm
Press roller for stable feeding.
Bearing Ring Japan Brand.
Out Feeding Plank Parts
Cutting height adjustment, scale indication and synchoronized lifting.
Urgent Stop Button In Case Anything happens.

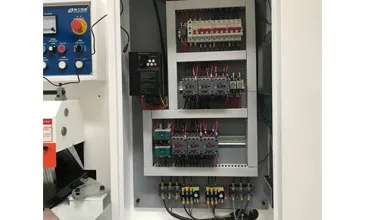

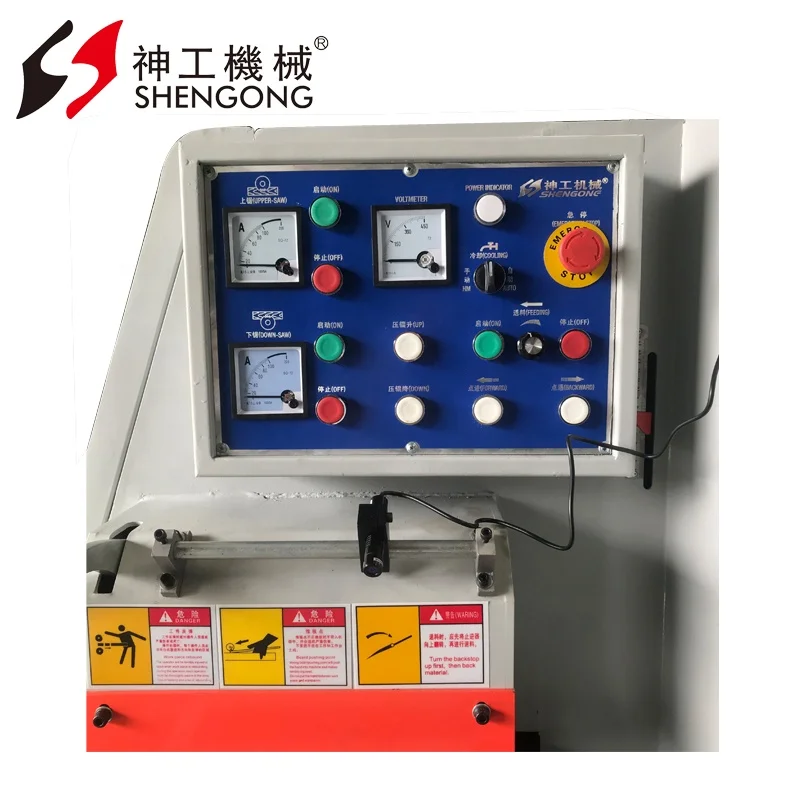

Electric Box
Inverter Brand: Mitsubishi Or Other Famous Brand
Proper Electric Circuit Design For Safety.
Parameters Adjustable.
Our Service
Our Company

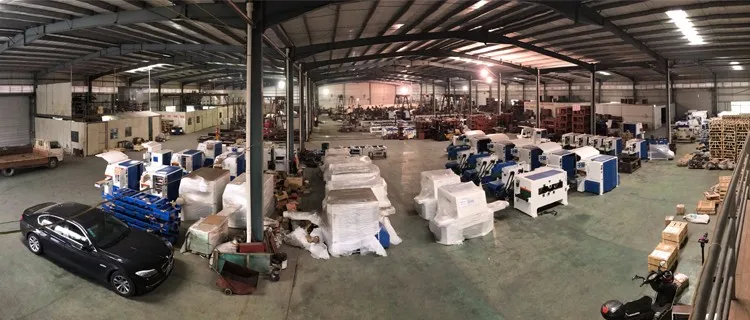

SHENGONG WORKSHOP
Founded in 1980s, Jinjiang Shengong Machinery Manufacture Co.,Ltd. has been developed into a High-tech enterprise which is specialized in R&D and the manufacture of Woodworking Machine.
With decedes of effor, we have strong innovation ability and modern equipments. Our company is always dedicated in creation of new products according to actual demands of woodworking and the advantages of woodworking machines.
With unique mechanical structure and advanced performance, our high-quality products stand on the top of nation woodorking machine industry.
With the belief of "all for users", we offer perfect after-sales service and own high reputation that well received by customers.
Our products hot selling all over the country, Southeast Asia Countries, Africa Europe, South America Etc.
FAQ
Why Choose US!-Quality Ensures Our Future!
1. Are you factory or trading company?
Answer: We are factory and have 30 years manufacture experience in Wood Machine and 10 years Experience in Wood Multi Rip Saw Machine
Have 8 years experience in Exporting.
2. What certificate you have?
Our factory has got CE and ISO9001:2008. We have sold to Iceland, South Korea, Greece, Bulgaria, Latvia, Chile, Paraguay, Russia, Vietnam, Thailand, Malaysia, Singapore etc...
Quality Is Our Culture!
3. When you will reply us?
We value Your Enquiry sent to us. Ensure quick and competitive offer within 24 hours!
Also once order is confirmed, we put your order into our tight production schedule, ensure your punctual delivery time.
4. What is the machine doing? What is the min length? Sawing Diameter?
We offer expert suggestion and professional technical support in time. Please just call me or mail me!!
5. How about after-sales service?
We deal with complains within 24 hours.
Packing & Delivery
Packaging | ||
Size | 2900(L) * 2000(W) * 1760 (D) | |
Weight | 2000KG | |
Packaging Details | The normal package is Plywood Box(Size: 2900*2000*1760). But If you need wooden box, will need extra charge. Each Wooden Box Charge USD 150. | |
Packaging | ||
Size | 2680 (L) * 1780(W) * 1560 (D) | |
Weight | 1950KG | |
Packaging Details | The normal package is plastic film(Size: 2680*1780*1560). By LCL Cargo. | |
Related Products
Похожие товары
Водонепроницаемая этикетка lexan из поликарбона
Машина для тестирования утечки радиатора. Как я могу получить обнаружение утечки?
CAIWEI Заводская оптовая продажа Портативный мини портативный ЖК-проектор с питанием от батареи видео проектор
215,00 $ - 265,00 $

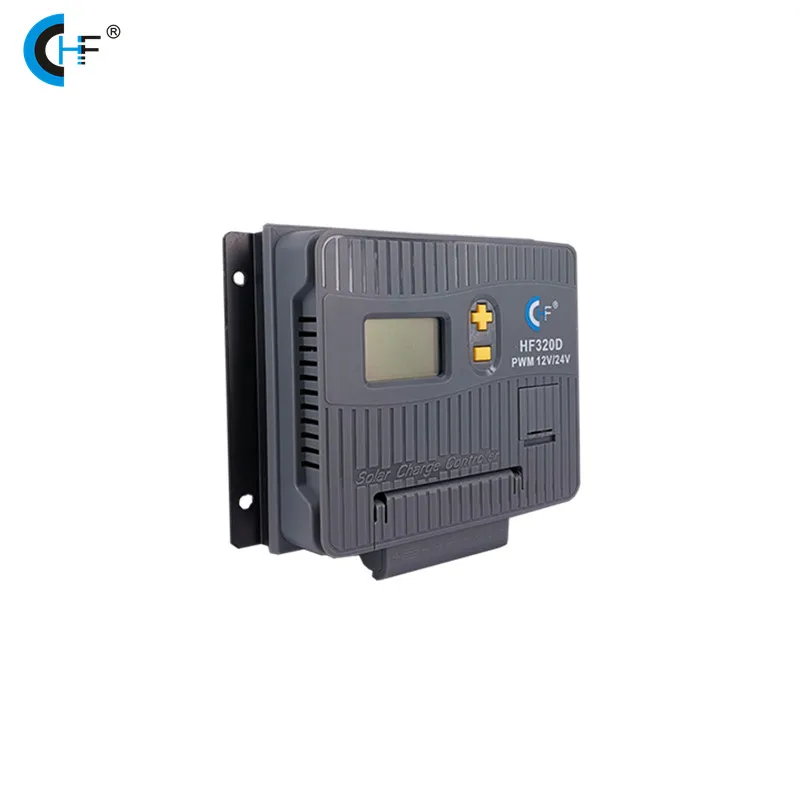

Hanfsolar производитель новый стиль 12V/24V 36v48v высшего качества блок управления установкой на солнечной батарее 20A ШИМ
