Машина для производства мини-листового металла, автоматическая подача, автоматическая подача
30 280,00 $
Автоматическая машина для плетения проволочной сетки с ЧПУ новой технологией
- Категория: Other Metal & Metallurgy Machinery >>>
- Поставщик: Hebei Kaiye Machinery Equipment Co. Ltd.
Сохранить в закладки 62097892853:
Описание и отзывы
Характеристики
Product Description

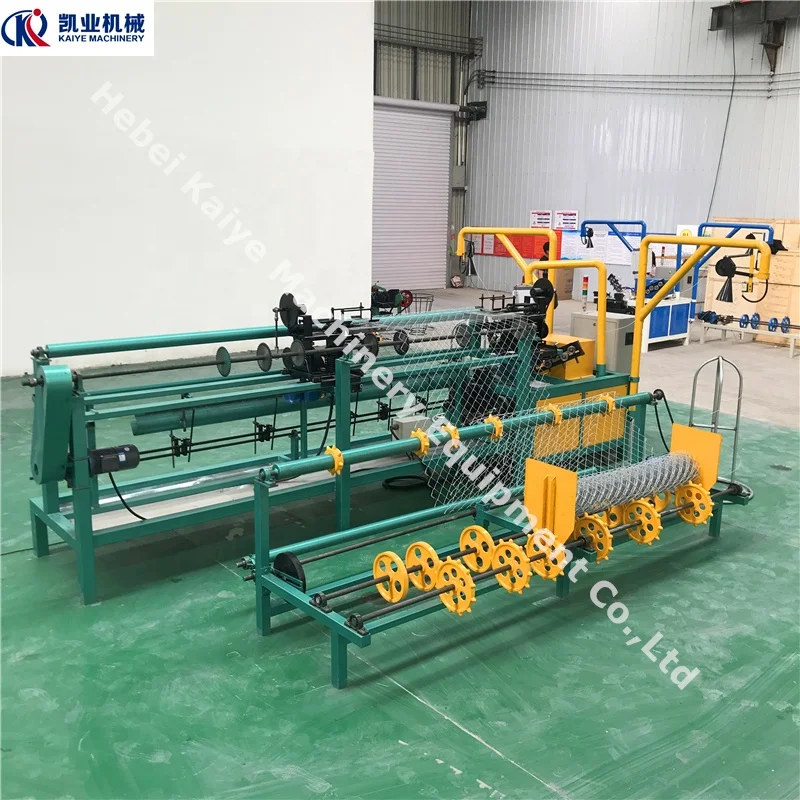

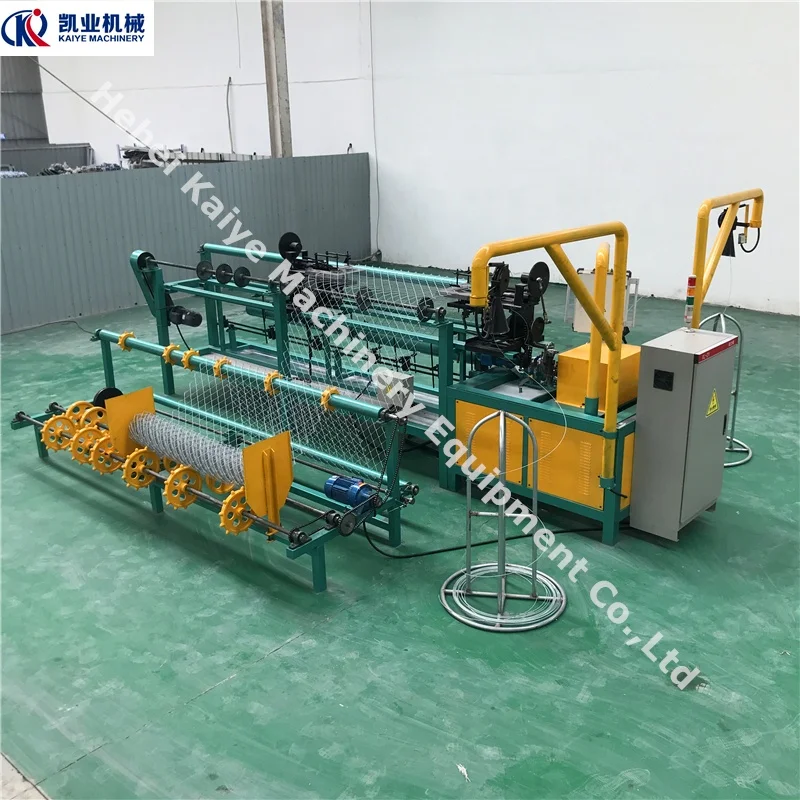

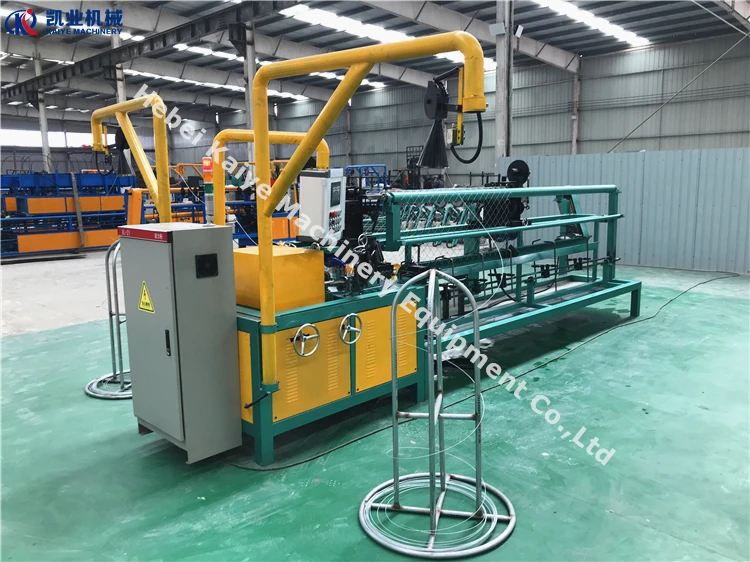

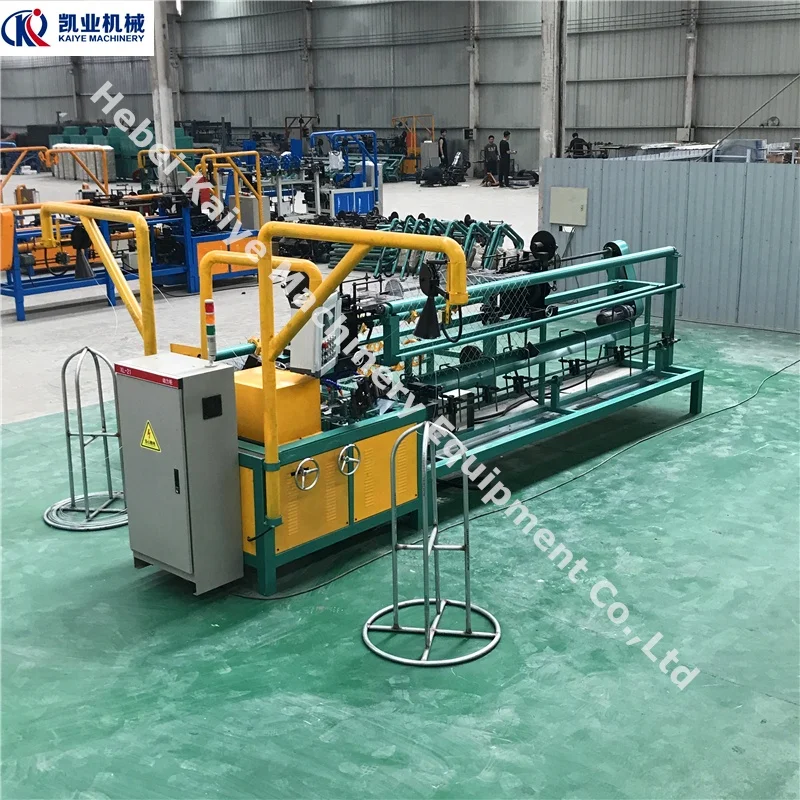

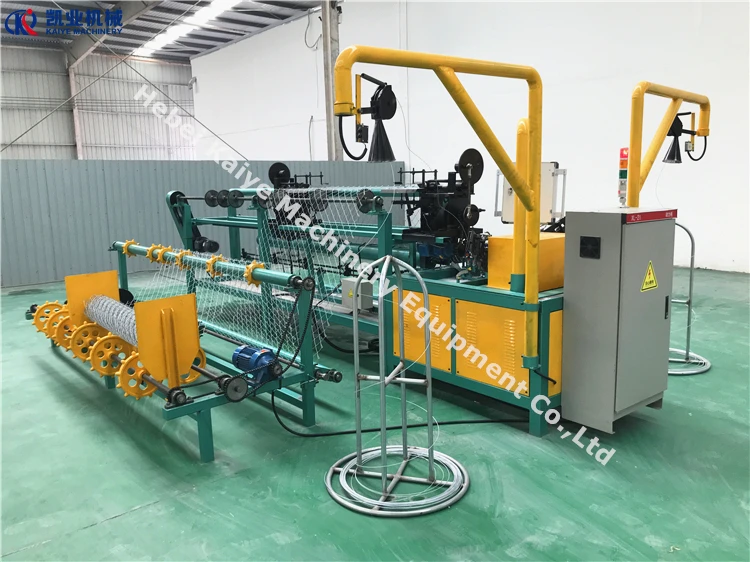

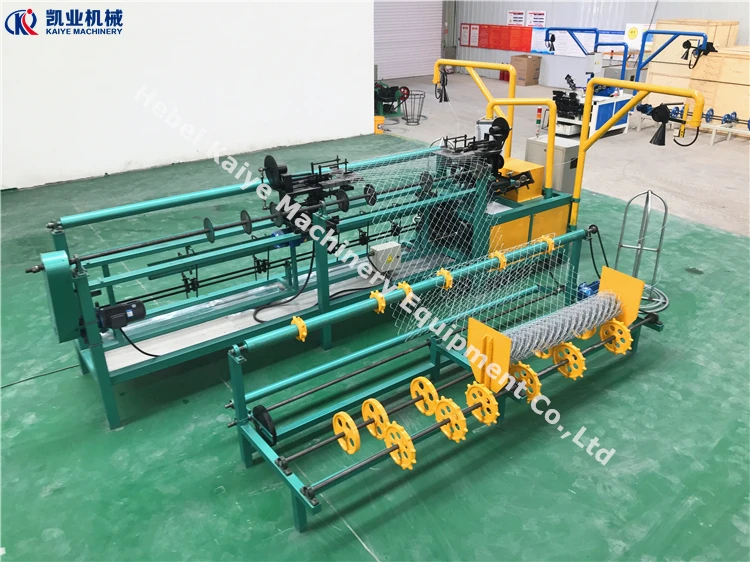

Automatic CNC chain link fence machine with new technology
1. Machine description
Chain link fence making machine also called diamond mesh machine,spiral fence machine,cyclone fence machine,orthorhombic machine.our fully automatic chain link fence machine is higher speed than the similar machinery.this chain link fence machine is running smooth and reliable performance,the product is flat.
2. Production Process
Heavy type pay-off device(Two sets)→ Wire detection system→ Double wire feeding system →Mould and Soap device→Edge method(Two sets) →Mesh collecting system
Full automatic chain link fence machine includes: main machine, weaving machine ,mesh rolling machine and border wire treating machine as well as all related accessories,it can produce many different hole size of the mesh with different molds.The machine is controlled by PLC system,we can set the length of the fence by PLC program.
Machine Features
➊➡The machine adopts aluminum alloy cantilever box for operation, which is simple and convenient.
➋➡The mesh rolling system is equipped with brake device, so the wire mesh will not reverse.

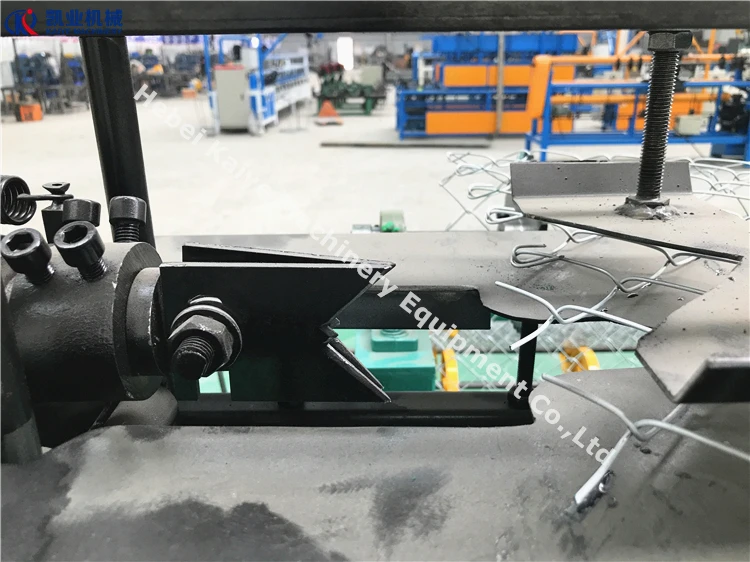

➌➡The cutter device is also equipped with a brake system for more accurate positioning.

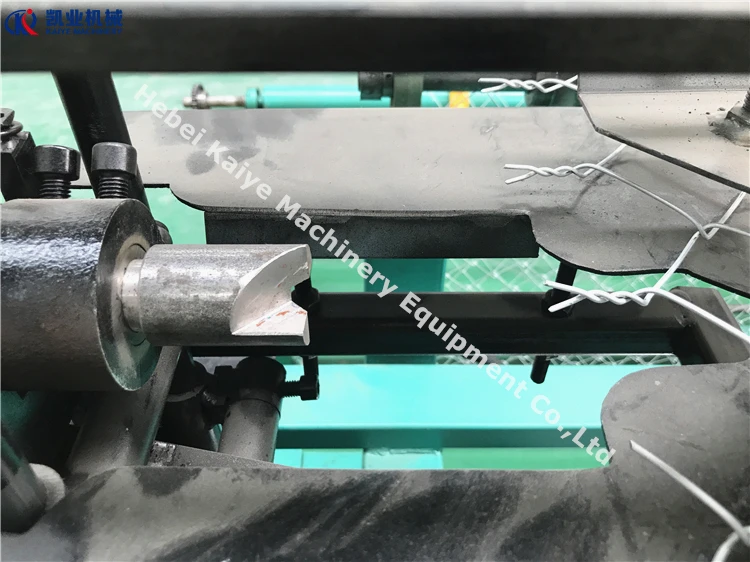

➍➡The machine is equipped with two sets of edge system ( hook edge and twisted edge).
➎➡The machine will give an alarm when the coil is disordered.
➏➡Single mold double screw (independent R & D patent certification).
➐➡The connecting line uses aviation plug, which is convenient for customers to install machinery.
➑➡The machine is equipped with remote control device, which is convenient for employees to operate the machine.
➋➡The mesh rolling system is equipped with brake device, so the wire mesh will not reverse.
➌➡The cutter device is also equipped with a brake system for more accurate positioning.
➍➡The machine is equipped with two sets of edge system ( hook edge and twisted edge).
➎➡The machine will give an alarm when the coil is disordered.
➏➡Single mold double screw (independent R & D patent certification).
➐➡The connecting line uses aviation plug, which is convenient for customers to install machinery.
➑➡The machine is equipped with remote control device, which is convenient for employees to operate the machine.
Specification
Model | KY-G-3000 | |
Mesh width | 500-3000 mm (can be customized) | |
Mesh size | 25-100 mm | |
Wire diameter | 1.8-4.2 mm | |
Production speed | 100-180 m²/h | |
Mesh edge | Hook edge and twisted edge ( 2 sets edge system) | |
Machine weight | 4500 KG | |
Mechanical dimension | 5800*2600*1800 mm | |
Number of moulds included | 1one set(1Knife plate, 1Mold barrels) | |
Drive system type | Servo motor(EURA) 5.5KW | |
PLC brand | Delta | |

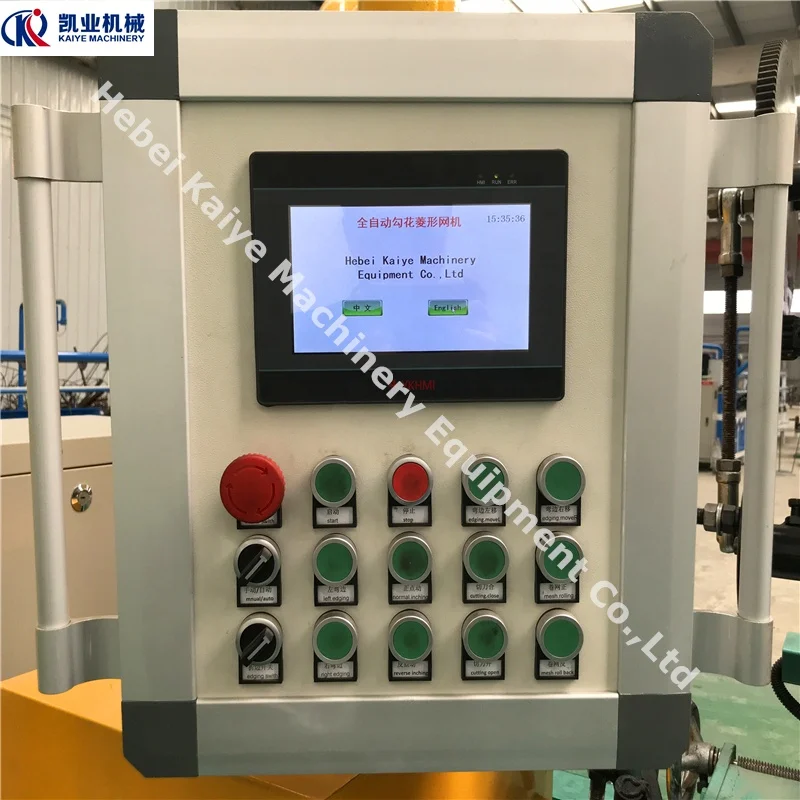

Adjustment parameters | On the touch screen | |
Note: We can produce machines according to customers' requirements. | ||
Detailed Images
Dear all my friends and clients:
Our machine have all the features of the normal machine , besides we have our core advantages with the new technology.
Our machine have all the features of the normal machine , besides we have our core advantages with the new technology.
(1)Mesh width adjustment
We add a motor to automatically adjust the width of the wire mesh, so that we can input the wire mesh width on the screen directly, which is very convenient.
(2)Anti-backward system
The mesh rolling system is equipped with brake device, so the wire mesh will not reverse even if machien is stop.
(3)Heavy wire bobbin
The wire bobbin uses heavy-duty type, which increases the height and diameter of the round pipe, so that more wires can be placed and disordered wires can be prevented.

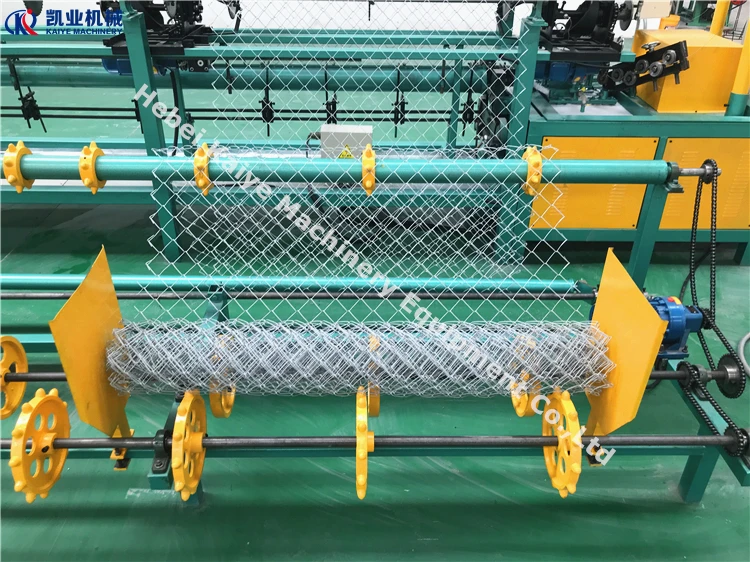

(4)Mesh rolling machine
As you can see in the left picture, our mesh rolling machine adds an automatic tension controller, which can make the finished product firmer and more beautiful.
(5)mould
Our mold specifications are many, can meet the needs of different customers, mold after special alloy processing, durable.
(6)Remote control
Each set of machinery is equipped with remote control start stop machinery, so that each employee can look after 3 sets of machinery, saving labor costs.
Finished photos

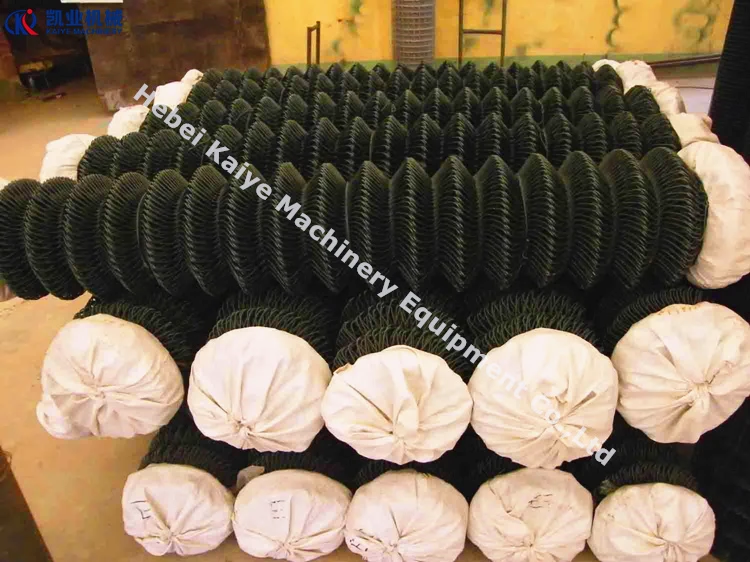

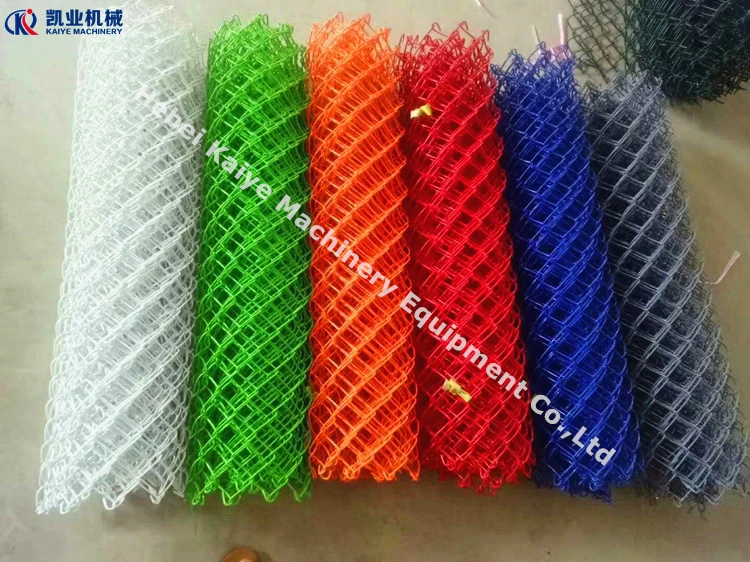

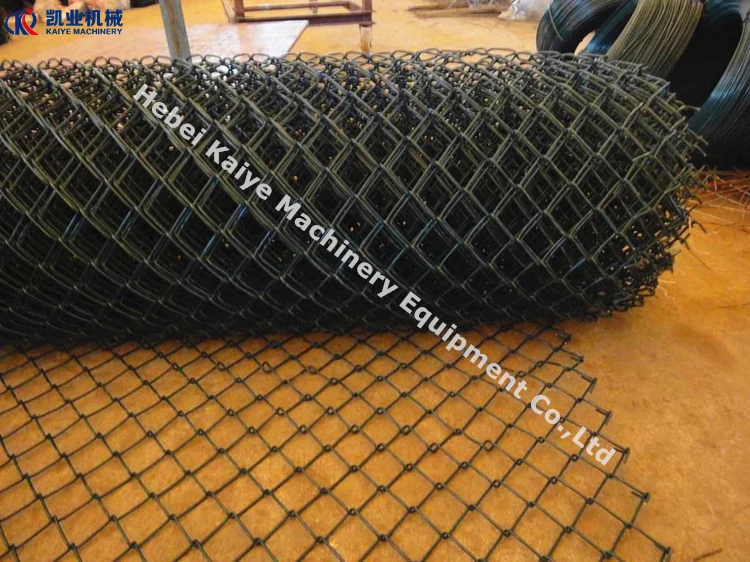

【1】The finished wire mesh can be making into mesh rolls.
This machine can make galvanized wire, low carbon steel wire, aluminumalloy wire, PVC wire, etc. the mesh surface is smooth, beautiful, not easy to corrosion, long service life, beautiful and practical.

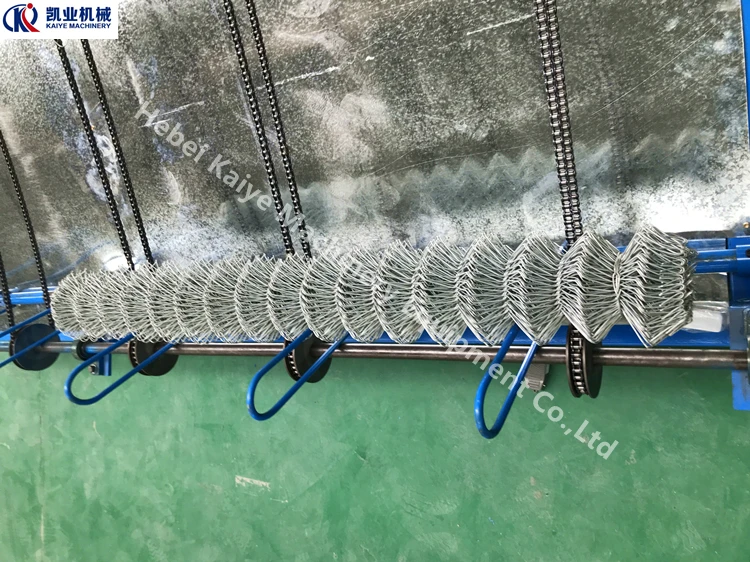

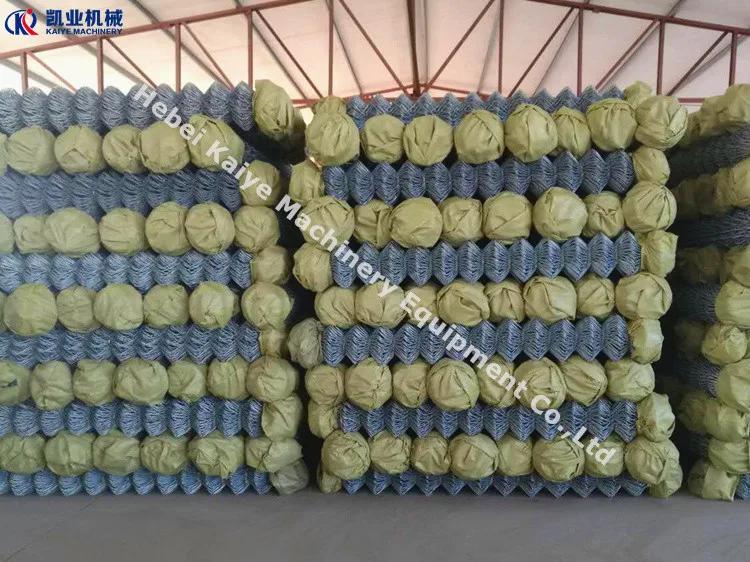

【2】The finished wire mesh can be compacted into bundles.
The mesh rolling machine and mesh Compacting machine, you can choose one of them.
Packing & Delivery

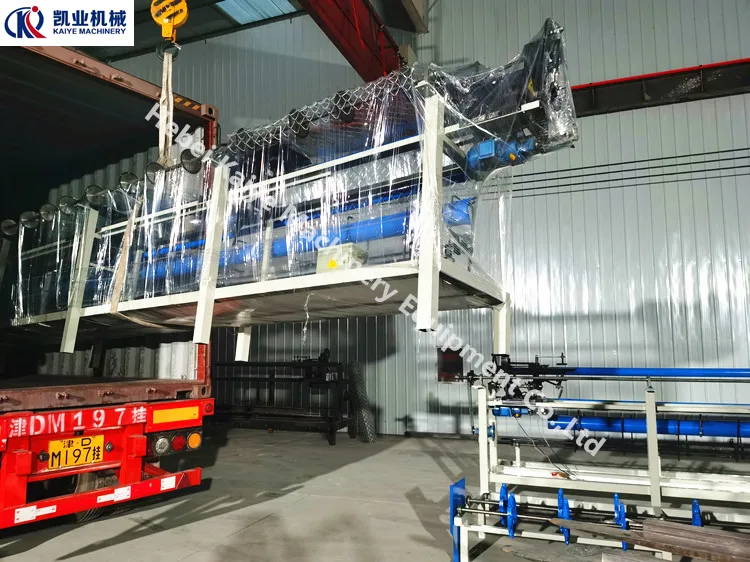

All main machines are packaged in plastic and then fixed in containers.
All accessories are packed in wooden cases.
Engineers available to service machinery overseas.
Company Profile
Factory History✅
Hebei Kaiye Machinery Equipment Co., Ltd., founded in 2002, is famous as "Hometown of wire mesh" in China. We are a professional manufacturer of wire mesh machinery.
Our company has been developing smoothly and quickly and now we have more than 150 employees.We can provide high quality machinery and excellent service.

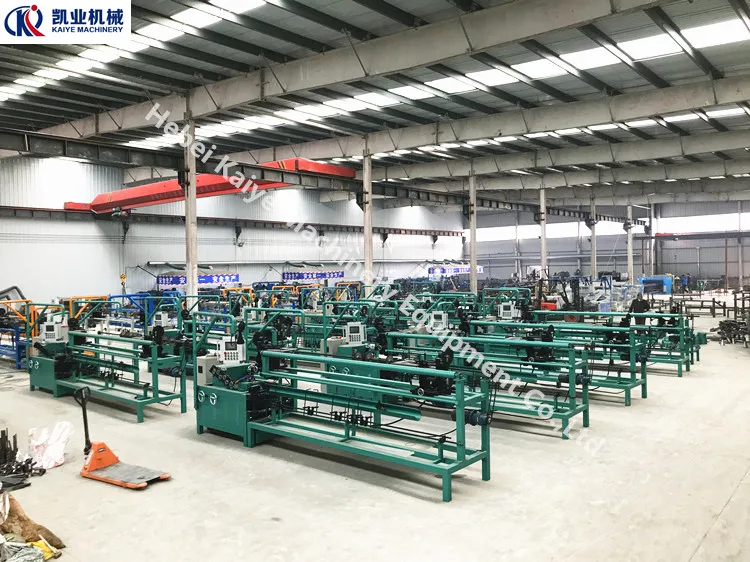

Factory workshop✅
We have our own wire mesh machinery and several pilot plants with strong technical force and advanced production and checkout
equipment.Our main products: wire mesh welding machine, 3D panel production line, reinforcement mesh welding machine, EPS panel production line, Gabion mesh machine, Chain link fence machine and so on.
equipment.Our main products: wire mesh welding machine, 3D panel production line, reinforcement mesh welding machine, EPS panel production line, Gabion mesh machine, Chain link fence machine and so on.
Factory R&D Team✅
The factory has a strong and experienced R&D team. The average working life of team engineers has exceeded 8 years. Our technology is along the most advanced international route, and we can design reasonable solutions according to the requirements of customers.
Our Service
Factory Customer️️
Kaiye's quality has been managed by the standard of ISO9001 International Quality Management System. We have built good reputation among our customers with excellent quality products, reliable services and credit. We have been supplying the domestic market and also have exported to the Romania, Turkey, Poland, Ukraine, Russia, Kazakhstan, Saudi Arabia, Vietnam, Philippines, India, Thailand, South Africa, Algeria, Australia, Mexico, Colombia, Argentina, Bolivia and Brazil.
Kaiye's quality has been managed by the standard of ISO9001 International Quality Management System. We have built good reputation among our customers with excellent quality products, reliable services and credit. We have been supplying the domestic market and also have exported to the Romania, Turkey, Poland, Ukraine, Russia, Kazakhstan, Saudi Arabia, Vietnam, Philippines, India, Thailand, South Africa, Algeria, Australia, Mexico, Colombia, Argentina, Bolivia and Brazil.
Our Service️️
Pre-sale service
1. Select equipment model.
2. Design and manufacture products according to clients' special requirement.
Services during the sale
1. Pre-check and accept products ahead of delivery.
2. Help clients to draft solving plans.
After-sale service
1. We will reply you for your inquiry in 24 hours.
2. After you get the products, we'll send technicians to your factory. Then they will guide your workers to install and debug the machine patiently untill the machine can work normally. Since our factory established, our after-sale team had been to many contries and received customers' critical acclaim.
1. Select equipment model.
2. Design and manufacture products according to clients' special requirement.
Services during the sale
1. Pre-check and accept products ahead of delivery.
2. Help clients to draft solving plans.
After-sale service
1. We will reply you for your inquiry in 24 hours.
2. After you get the products, we'll send technicians to your factory. Then they will guide your workers to install and debug the machine patiently untill the machine can work normally. Since our factory established, our after-sale team had been to many contries and received customers' critical acclaim.
