1178 выпуклый дверной замок дверная фурнитура для холодильной комнаты ручка

Сохранить в закладки 62098404678:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Products Description




Product Paramenters




Name
1178 Cold Room Lock
Material
Zinc Alloy

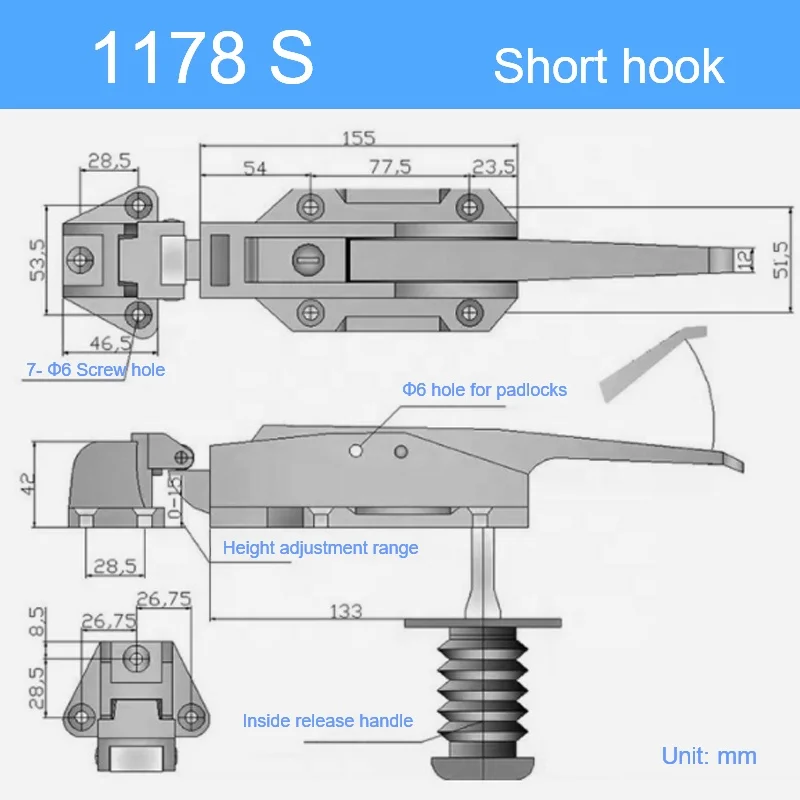

Short hook adjustable height
0-15 mm

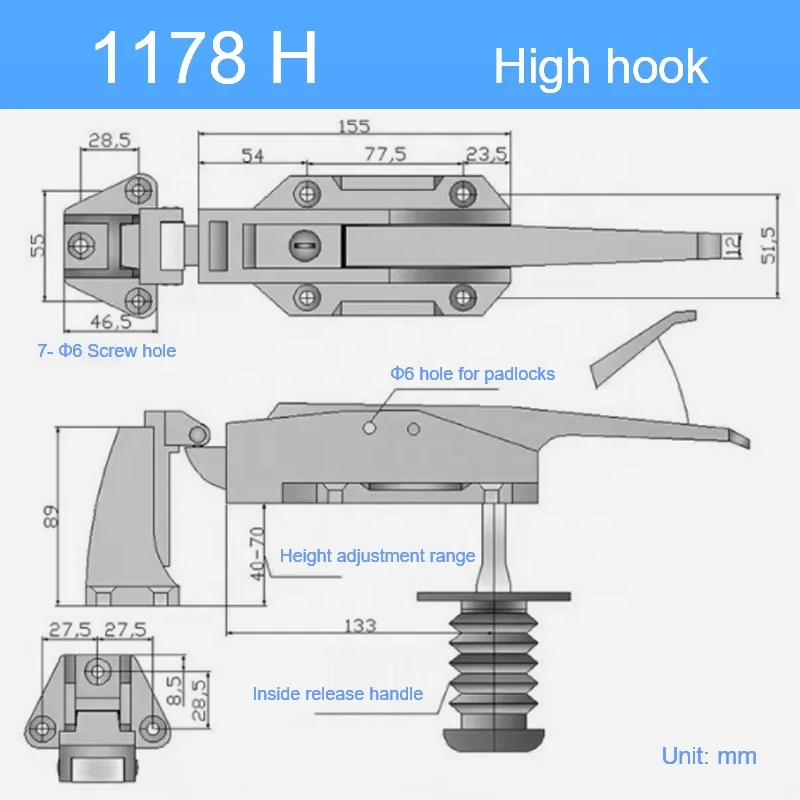

High hook adjustable height
40-70 mm
Remark
There may be slight errors in manual measurement of dimensions. Please do not open holes in advance. Please refer to the actual product received for details.


Details Images




Application Scenario

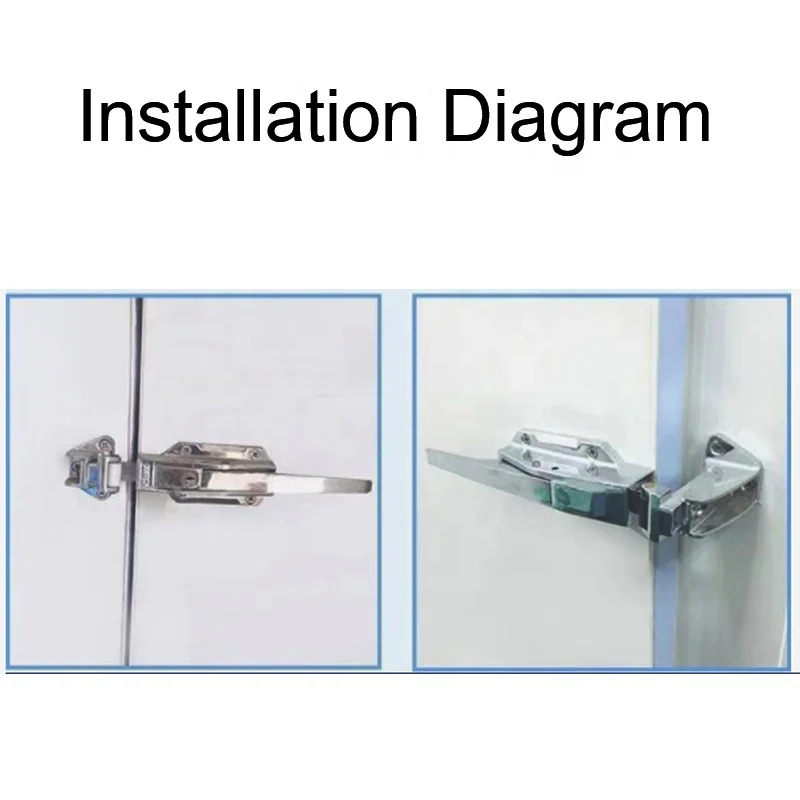

Installation Process


1. First, confirm the installation positions of the lock handle and lock hook, and ensure that the accessories of the lock are complete.
2. Insert the lock body into the hole position in sequence, align it, and fix the screws.
3. Rotate the outer and inner handles to observe if the tongue can be smoothly retracted and extended. After fastening each assembly screw, repeat the above action and test several times. If each action is not smooth, loosen the screw, adjust the position and try again until it is appropriate.




Customer Feedback








Company Profile
