Product Description

A4 paper making machine hydro pulper for paper recycling paper industry

\t
Model
\t
NHD0
\t
NHD8
\t
NHD10
\t
NHD15
\t




For more models and detail ,plc contact me freely .
\t
Volume m3
\t
0.5
\t
8
\t
10
\t
15
\t
Inner diameter of the tank mm
\t
1000
\t
2500
\t
2700
\t
3500
\t
Capacity t/d
\t
3-5
\t
45-60
\t
60-80
\t
80-100
\t

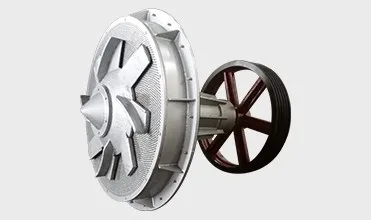

Rotor diameter mm
\t
360
\t
800
\t
1000
\t
1250
\t
Rotor speed r/min
\t
700
\t
336
\t
320
\t
320
\t
Slurry tube diametermm
\t
80
\t
250
\t
250
\t
325
\t
Inlet pipe diametermm
\t
50
\t
80
\t
80
\t
100
\t
Pulp concentration%
\t
2.5-4.5
\t
\t
\t
\t
Power
\t
4/11KW
\t
6/75KW
\t
9/90KW
\t
6/160KW
\t

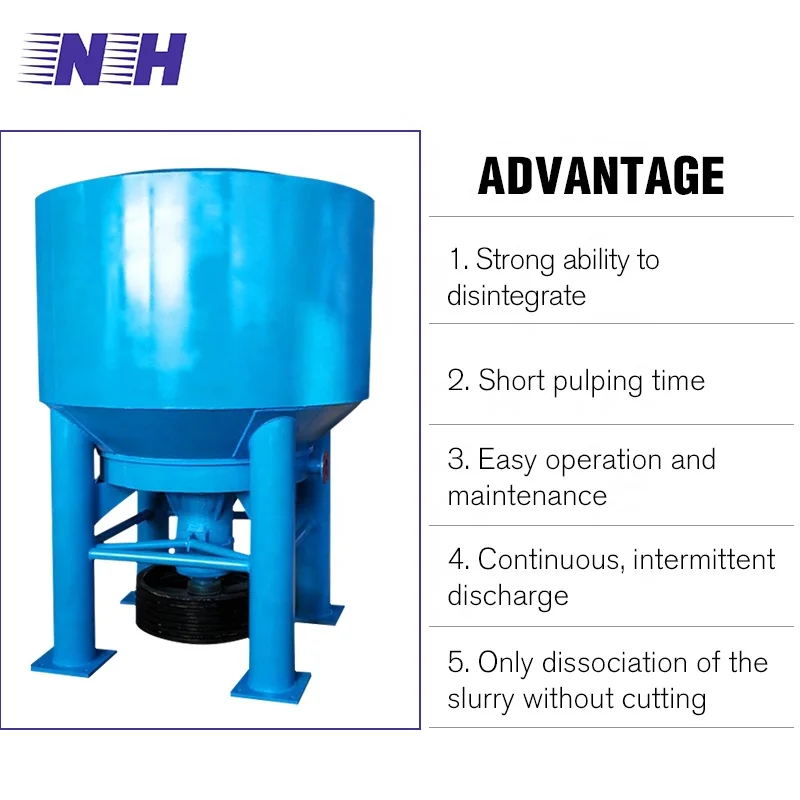

Advantage :

1. Strong ability to disintegrate ;

2. Short pulping time ;

3. Easy operation and maintenance ;

4. Continuous, intermittent discharge ;

5. Only dissociation of the slurry without cutting ;

Application
There are D and O type hydraulic pulper as your require . Vertical low-concentration hydraulic pulper is the main equipment used in the papermaking and pulp molding industry to disintegrate pulp board, paper machine broke, commodity waste paper and moisture paper. Suitable for fiber disintegration, separation, slurry purification and rough selection

Tank

The tank is made by welded steel,outside of mouth is ultra high strength steel,which used to strengthen tank, in the bottom of cone have deflector, which can make the paper pulp reflux circulating. In the bottom of tank is impurity discharge outlet."D" type hydropulper has changed the way of flow ,make the material contact more quickly with the rotor ,and reduce bearting time greatly,and improve production capacity in the condition of without increasing the power and volume .

Outlet

Rotor and outflow pulp tray locate above the bottom of the tank ,forming a low pressure area around the outflow pulp tray,to reduce the contact between impurities and cutter or sieve plate ,and prolong the service life of the cutter and seive plate .

Cutter blade

The design of cutter blade between cutter and sieve plate prevents the twining of waste materials like wire and weaving,and reduce running current.

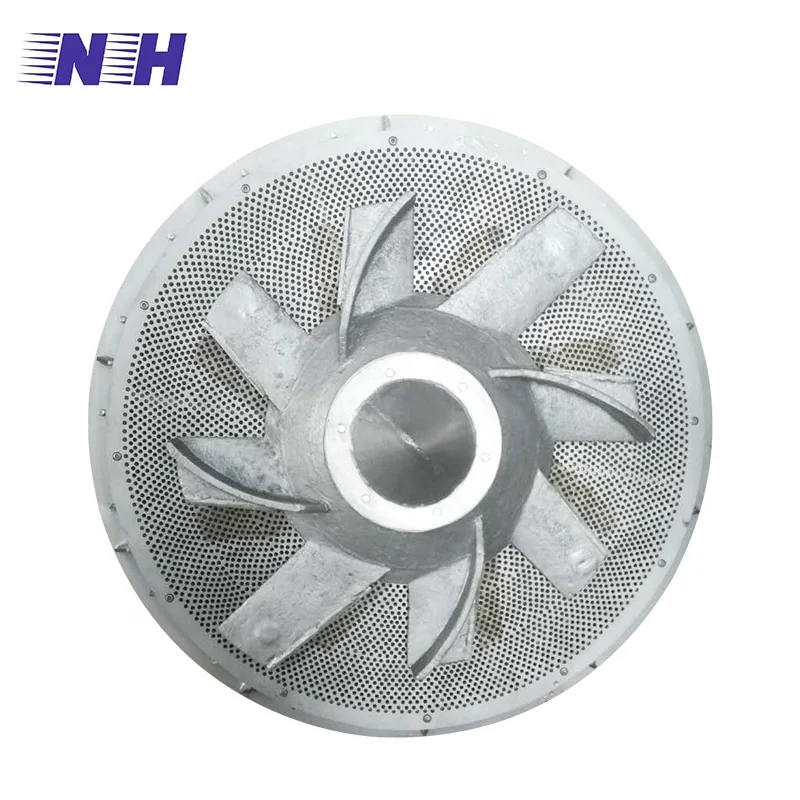

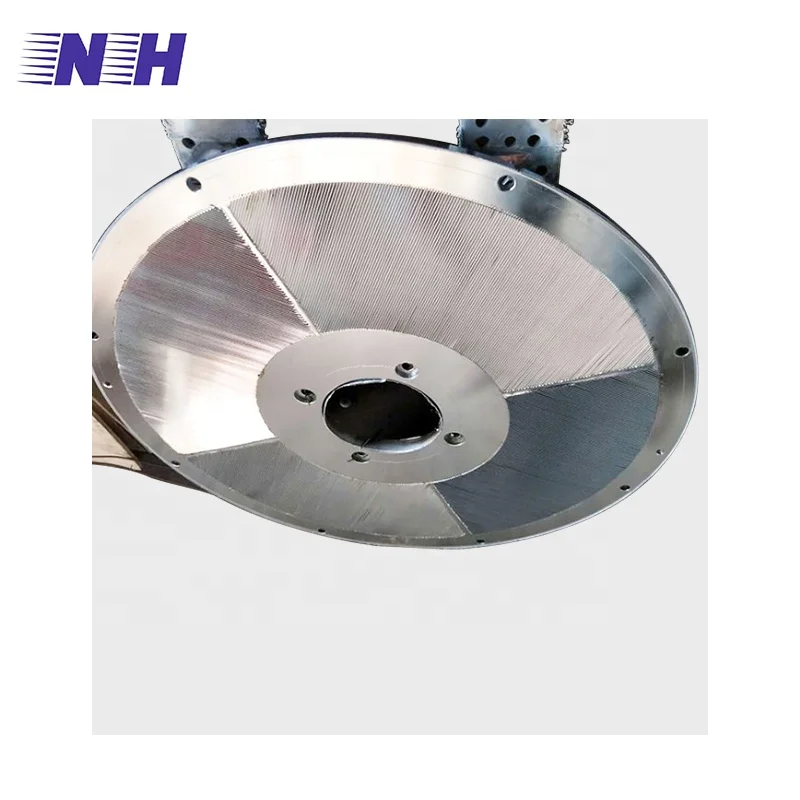

Sieve plate

Sieve plate used for screening paper pulp.

Belt wheel

A complete set of European standard belt wheel,can shorten maintenance time,improve work efficiency ,reduce operating costs.

Applications
Packing & Delivery

According to different products ,there are plastic woven bag and wooden box available.

Fatest 10 days lead time ,according to you require ,there are express/air/ocean available .

Why Choose Us

Over 30 years experience make

 a mature R&D and manufacture team.


24h pre&after sales service.


There are agents near 5 ocean ports in China to ensure the goods will be stable and fast deliveried.



Located in Henan Province,China,
have suppied products to over 20 paper mills for decades.

Related Products

Paper making felt

Stainless steel mesh

Polyester forming fabric mesh

About Us

NH Paper Machinery Industrial Group is a leading professional paper machine manufacturer in China, which specializes in making machine, paper making machine and all kinds of paper machine components manufacturing. Based on the development of local market ,we are growing to professional paper mill solution provider. NH Paper Machinery Industrial Group fully implement the guideline in business-"survival depends on quality and service ,market rely on price and brand."

Our main products are a full set of new and second hand paper making equipment with a maximum net with of 6000mm and a working speed of 700m/min.It mainly includes a packaging paper production line with an annual output of 200,000-200,000 tons, a cultural paper production line with an annual output of 1-10 million tons, a tissue paper production line with an annual output of 20,000 tons and various special paper production lines.

Look forward to hearing from you sooner and establishing a long friendly business relationship with you . We promise we will do our best to help you .Besides ,welcome you to visit our factory at anytime.

Accroding to the process, divided into different workshop .With strict quality control system to ensure the finished product quality .

D hydropulper for Paper Mill, which improves the work efficiency, and it can be used for pulping waste paper & wet strengh paper. D Type Hydrapulper is mainly used to crushing pulp board, wastepaper, deinking, and pulp purification. Through dissociating, it can maximum make the paper's fiber dissociating into fiber bundles or single fibers, while at the same time, it can maximize maintain impurity's shape and strength.

There are our team from polyester weaving mesh belt workshop and pre-sales department .

Have shippied the goods to USA, Australia, Russia, Indonesia, Uzbekistan, Tajikistan, Nigeria, Uganda, Ghana,Saudi Arabia, Kenya, Pakistan, Egypt, Bhutan,Fiji, Brazil, Paraguay, Syria, Libya etc.

We have stable cooperation relationship with our clients.

FAQ

1. Can i have a sample order for D hydropulper  ?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

2. What about the lead time for D hydropulper  ?

A: Sample needs 7-15 days, mass production time needs 1 month for order quantity more than.

3. Do you have any MOQ limit for D hydropulper?
A: Low MQQ, 1pc for sample checking is available.

4. How do you ship the goods and how long does it take to arrive ?
A: Express and ocean ship, the express usually are DHL,UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline also optional.

5. How to proceed an order for D hydropulper  ?
A: Firstly ler us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and pleces deposit for formal order.
Fourthly We arrange the production and shipping.

6. Is it OK to print my logo on D hydropulper  ?
A: Yes. Pleas inform us formally before our production and confirm the desige firstly
based on our sample.

7.Do you offer guarantee for the D hydropulper ?
A: Yes. under the right condition, we offer different time warranty for our products.

8.How to deal with the faulty ?
A: Firsty, Our products are produced in strict quality control system and the defective rate will be less
than 0.3%.
Secondly, during the guarantee period, any problem plc feel free to call us at 24 hours every day;
We will help you solve it.
