Product Description

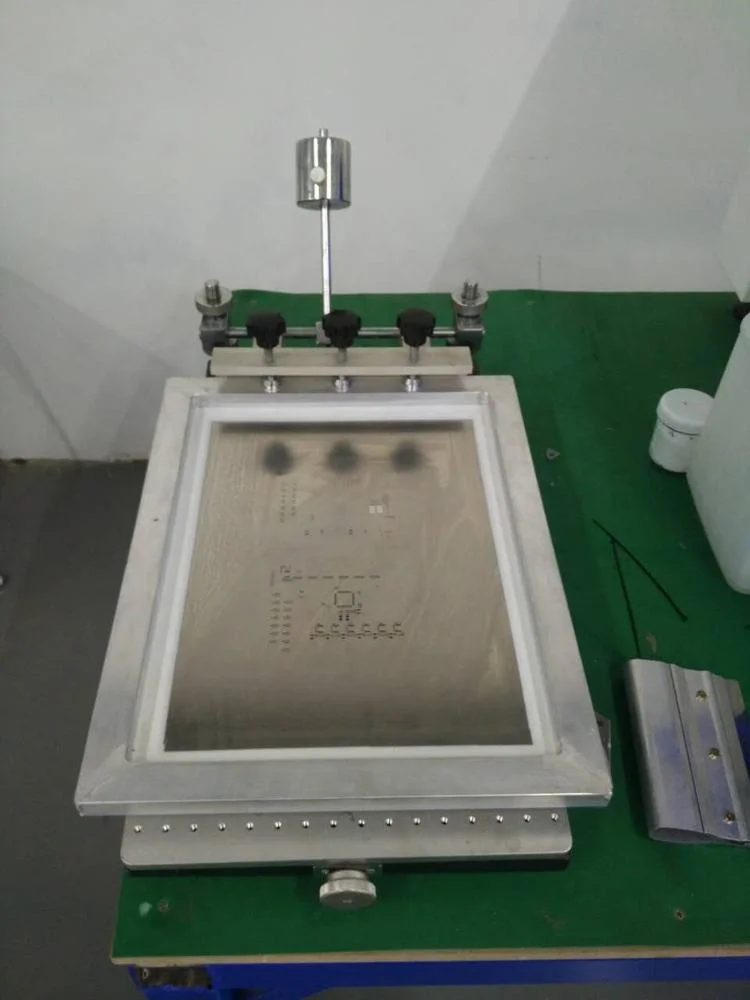

KAYO-P1000
High Precision Manual Screen Station
Product Feature
Special designed for single/double-sided circuit board tin paste or red gum printing requirements:

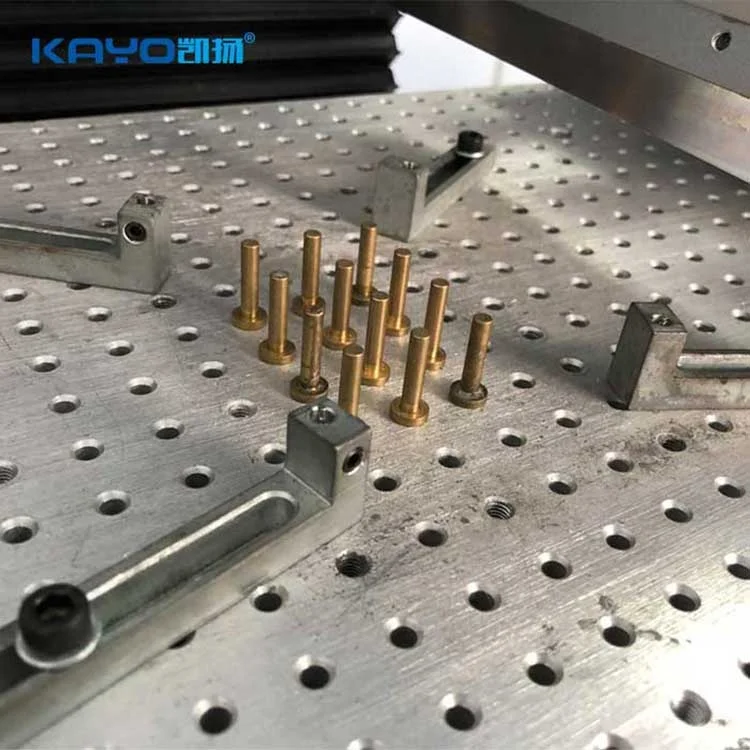

1. Universal honeycomb baseboard, movable thimble, active support block, flexible positioning PCB, easy to print double-sided PCB.
2. Base uses thickened steel plate, strong and durable.
3. Circuit board positioning uses positioning pin, fixed link and fixed plate operating, not only convenient positioning, but also to ensure the repeated operating accuracy.
4. The correcting method through the steel net moving, combined with the fine adjustment of printing platform X, Y axis to correct, convenient and rapid.
5. Steel mesh support adopts screw guide, can adjust height up and down, easy to control the thickness of PCB and the paste amount.
6. The printing screen is fixed by four knobs with platen, fast and firm.
Product Specification:
| Model | KAYO-P1000 |
| Workbench Size | 300x400mm |
| Max. Printing Size | 250x400mm |
| Max. Mesh Frame Size | 370x470mm |
| Printing Speed | Manually Controlled |
| Printed Component Height | 0-80mm |
| Workbench Vertical/ Horizontal Adjustment | 10mm |
| Printing Platform Height | 190mm |
| Repeat Precision | ±0.01mm |
| Positioning Method | Shape or reference hole |
| Dimensions | 540x380x390mm |
| Weight | 20KGS |
Company Information
Wuxi KAYO Automation Equipment Co., Ltd.is a professional manufacturer focusing in pick and place machine, reflow oven, screen printer and other smt equipment. Right now, we have integrated R&D, production and sales together.
We have 20-year experience in SMT machine, with unique understanding of SMT technology, we provide long-term professional services to domestic and foreign electronic company. It always lead SMT equipment technologies and trends in domestic market.
With good quality, competitive price, easy operation and energy saving, our products are very popular in domestic and oversea market. And all of our machines are wildly used in electronic circuit, photovoltaic, LED industry, instruments and apparatuses.
Up to now, our products are already sold in many countries such as USA, Canada, Australia, Mexico, India, Japan and Southeast Asian area. We will continue to make great efforts to satisfy the customers' requirement.
SMT Pick and Place Machine: It is our primate product, the working teams have always been dedicated to the research and development of SMT machine, which has become a widely recognized brand by customers.
Reflow Oven: Now our reflow oven has eight series, and more than 20 models. We also accept customization for our customers to meet different customers’ diverse needs.
Screen Printer: It is an indispensable equipment in the whole smt process. We provide manual, semi-automatic and automatic screen printers for your choice.
Production Process
Factory show
Customer visiting show
Exhibition show
Certificate show
1.CE for "pick and place machine" 2.CE for" Screen Printer" 3.CE for "Reflow oven"
4.IS09001 5. KAYO 6. Pick and place machine 7."Business license"
"Trademark registration certificate " " Design patent certificate " .
FAQ
1. Q: Are you a trade company or a manufacturer?
We are an professional manufacturer specialized in SMT Machine, Pick and Place Machine, Reflow Oven, Screen Printer, SMT Production Line and other SMT Products. OEM & ODM service are available.
2. Q: What is your delivery date?
The delivery date is about 20 days upon the full payment.
3. Q: What is your payment terms?
100% payment before delivery
or 50% deposit in advance and the rest before shipment.
4. Q: How is the warranty?
1. Every machine will be checked carefully before shipping out. Buyers should check the package once receiving.
2. The complete machine has a warranty period of 18 months from delivery and lifetime maintenance service.
3. We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale service.
5. Why choose us?
KAYO is the famous brand for high-end pick and place machine. We have more than 20-year professional R&D team, providing 24 hours quick response after-sales service.
contact us
KAYO Main products
KAYO main products
1.Pick and place machines
Pick and place machines parameters
| Machine Name | KAYO-2DV-25S | KAYO-A4 | KAYO-A4L | KAYO-1706-3DSG (KAYO-A6L) | KAYO-A8L | KAYO-S600 | |
| Type | Vertical | ||||||
| Mounting Heads | 2 | 4 | 4 | 6 | 8 | 6 | |
| Feeder No. | 25 | 46 | 46 | 60 | 70 | 82 | |
| Max. Mounting Speed | off visual (CPH) | 6000 | 7000 | 8000 | 13000 | 15000 | 16000 |
| on visual (CPH) | 5000 | 5000 | 6000 | 10000 | 12000 | 14000 | |
| PCB Size | Min.(W*Lmm) | 50*50 | |||||
| Max.(W*Lmm) | 295*420 | 300* 480 | 300* 480 | 370* 650 | 380* 650 | 380* 650 | |
| Camera | Total | 2 | 6 | 6 | 8 | 10 | 9 |
| Mark | 1 | 1 | 1 | 1 | 1 | 1 | |
| High-speed | 1 | 4 | 4 | 6 | 8 | 6 | |
| High-precision | 0 | 1pc of 5million | 1pc of 8million | ||||
| Visual correction | 0 | 0 | 0 | 0 | 0 | 1 | |
| Driving Motor | Progressive motor | Panasonic servo motor | |||||
| Motion Drive System | High speed digital high voltage driver | Panasonic High speed DPS driver | |||||
| Positioning Accuracy | 0.01mm | ||||||
| Support Feeding Method | 8/12/16/24/32/44mm Pneumatic and electric feeder ,vibration feeder ,tube feeding, tray IC | ||||||
| Applicable Mounting Range | Min. | 0402 | 0201 | ||||
| Max. | 15*15mm | 45mm*45mm range pin pitch ≥0.3mm SSOP,QFP, BGA etc. | |||||
| Weight(kgs) | 100 | 350 | 450 | 450 | 550 | 880 | |
| Dimensions(mm) | 1050*850*660 | 1180*1080*880 | 1095*1165*1400 | 1335*1230*1420 | 1500*1280*1410 | ||
2.Screen printer
Screen Priners parameters
| Machine name | KAYO-P1000 | KAYO-5088 | KAYO-5088C | KAYO-5088L | KAYO-YS1 | KAYO-450 | KAYO-600 | |
| Type | Manually | Semi-auto | Full automatic | |||||
| Max. PCB Size(mm) | 250*400 | 400*300 | 600*320 | 1200*300 | 400*300 | 450*350 | 610* 350 | |
| Printing Table Size(mm) | 300*400 | 500*320 | 700*350 | 1250*320 | ||||
| Stencil Frame Size | Min.(mm) | 470*370 | 470*370 | 420*520 | ||||
| Max.(mm) | 370*470 | 600*320 | 950*736 | 1500*550 | 600*550 | 737*737 | 800*800 | |
| Squeegee Length | Standard 200mm (Could lengthen according to clients’ request) | |||||||
| Squeegee Speed | Manually Controlled | 0-100mm/s | 0- 200 mm/s | |||||
| PCB Thickness(mm) | 0.2-3 | 0.4-5 | 0.6-14 | |||||
| Printing Accuracy(mm) | ±0.01 | ±0.02 | ±0.1 | |||||
| Repeat Precision(mm) | ±0.01 | ±0.02 | ±0.05 | |||||
| Machine Dimension(L*W*Hmm) | 540*380*390 | 900*1100*1680 | 1800*900*1680 | 1450*1200*1680 | 1140*1400*1480 | |||
| Weight(kgs) | 20 | 150 | 160 | 180 | 500 | 1000 | 1200 | |
3.Reflow oven
Reflow oven parameters
| Machine name | KAYO-RF330 | KAYO-RF530 | KAYO-RF430 | KAYO-RF630 | KAYO-835 | KAYO-8845 | KAYO-610L | KAYO-820L | KAYO-800L | |
| Type | Desktop | Vertical | ||||||||
| Heating Zone | upper | 3 | 3 | 4 | 6 | 8 | 8 | 6 | 8 | 8 |
| down | 0 | 2 | 4 | 6 | 8 | 8 | 6 | 8 | 8 | |
| PCB Max. Width | 300 | 350 | 450 | 300 | 400 | |||||
| Transmission type | mesh | Mesh (Can customize mesh + rail guide) | Mesh + rail guide | |||||||
| Cooling zone | 2 | |||||||||
| Heating zone length(mm) | 1000 | 960 | 1400 | 2200 | 3200 | 3150 | 2050 | 2700 | 3000 | |
| Temperature control type | Panel Button + PID Close Loop | Panel Button +PID closed-loop (Can customize PC + PID) | PC +PID closed-loop | |||||||
| upper furnace opening method | Manually Open | Double electric cylinder jacking | ||||||||
| Dimensions(L*W*H mm) | 1500*610 *670 | 1700*710 *650 | 2500*612 *1220 | 3600*700 *1220 | 4200*800 *1320 | 4600*1000 *1420 | 3600*1200 *1450 | 4600*1200 *1450 | 5050*1350*1550 | |
| Weight(kgs) | 120 | 150 | 300 | 500 | 900 | 1100 | 800 | 1000 | 2200 | |
4.Other Accessories
Похожие товары
Оригинальный Новый Фидер SIEMENS SIPLACE 12 16 мм

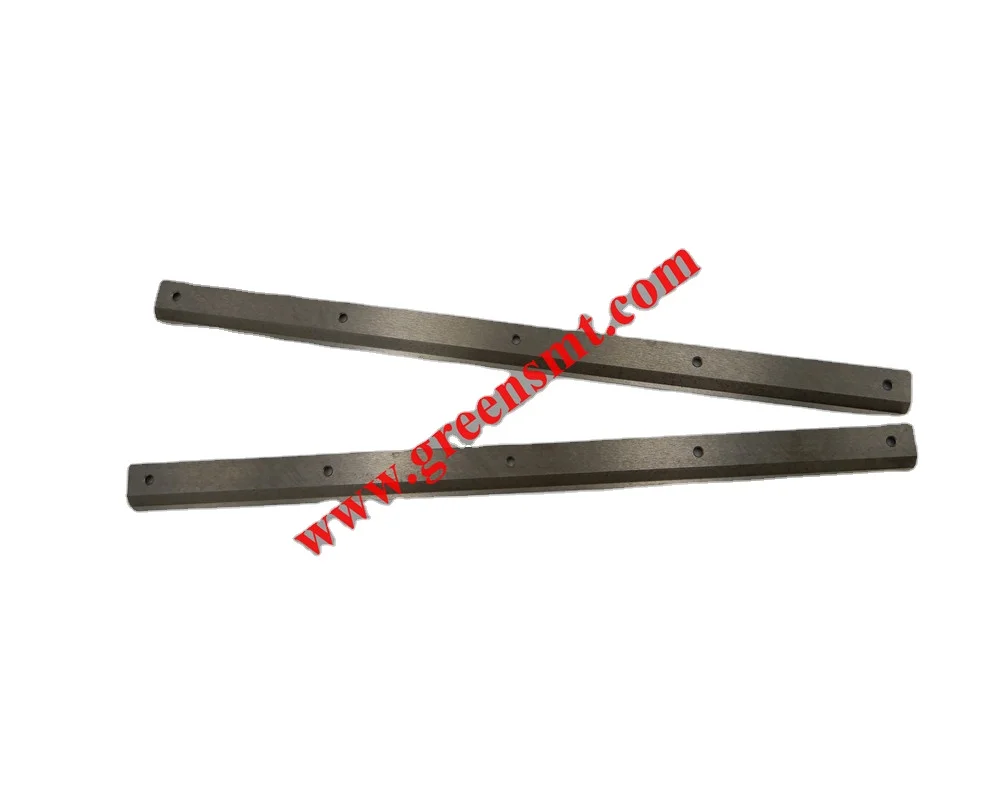

Запасные части смт GKG G5 зажим бар G4A042400E 360
Машина Smt запчасти FUJI NXT сэрвопакк SGDZ-BS60AN7A-FK

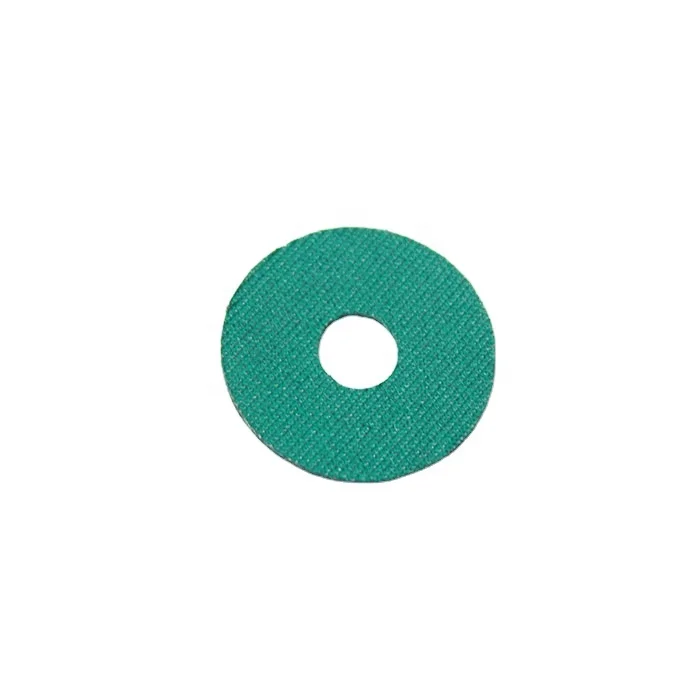

Высококачественная и прочная квадратная плоская шайба толщиной WSS5380 CP6 Фидер медная для машины

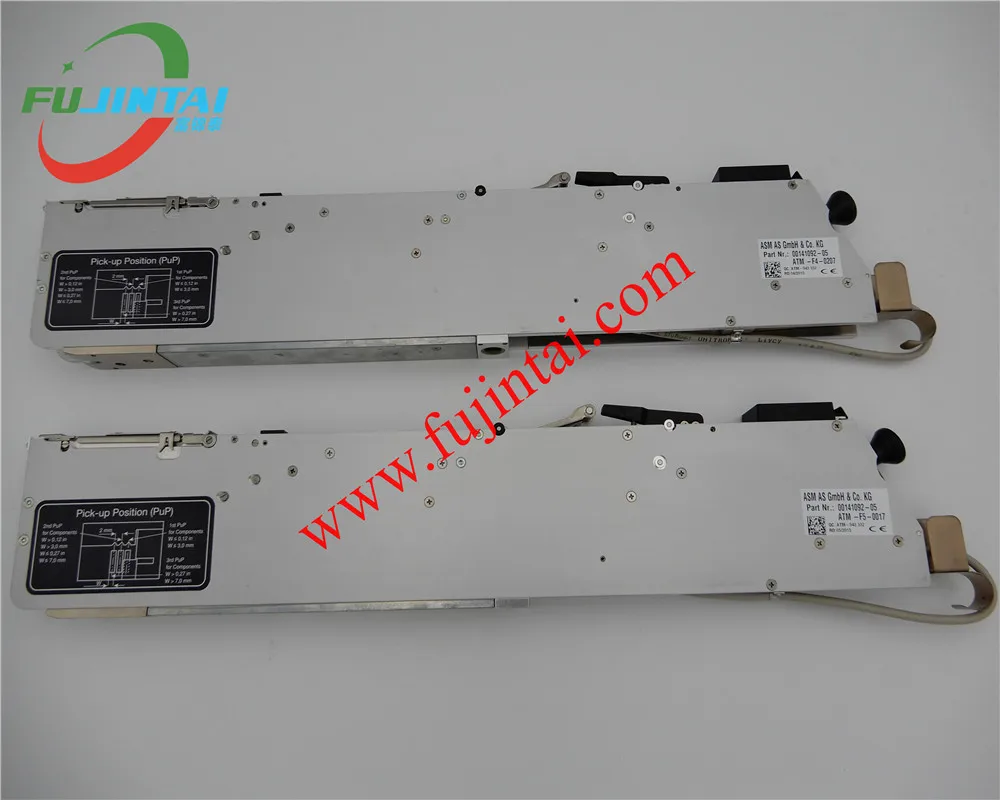

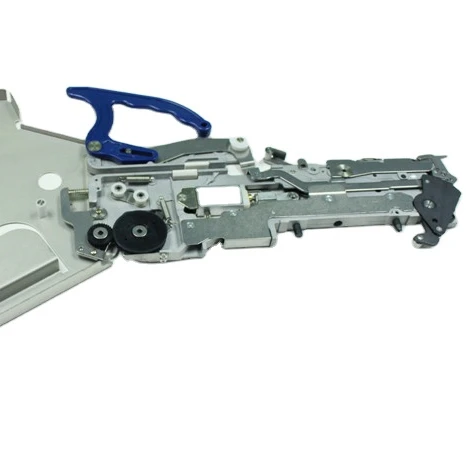

Лучшие продажи KJK-M1300-010 FS FSII 8X2mm Yamaha Фидер хорошая цена с большим запасом для SMT захвата и установки

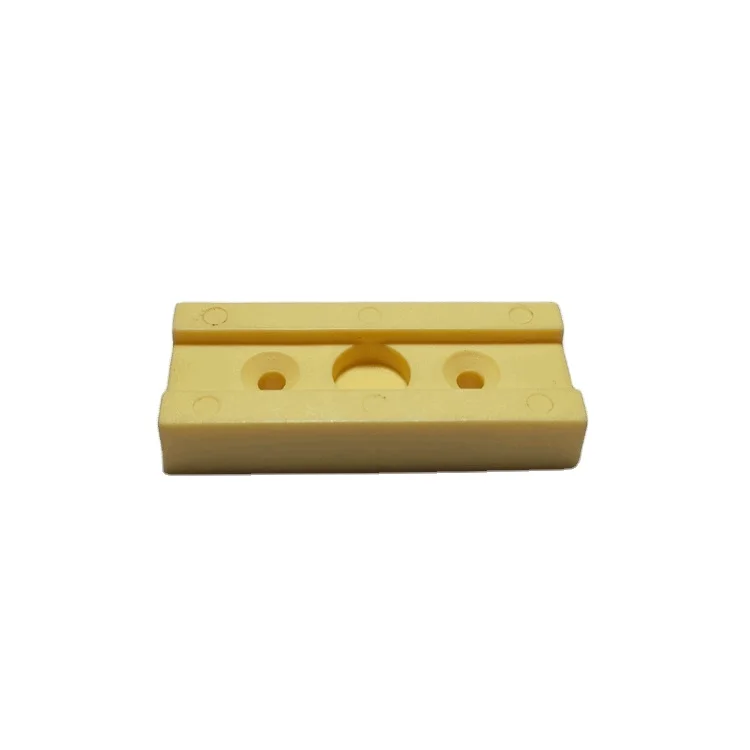

Высококачественные надежные запасные части SMT 00340871-04 ASM Y-axis тормозная колодка на продажу в наличии используется для электронного
