1 ton 2 ton Euro chain hoist electric China for sale
Product Description
European type electric chain hoist is a new type electric chain hoist. The lifting capacity is 1 ton-50ton, standard lifting height is 1m-20m, more than 20m can be customized. Compared with general electric chain hoist, european electric hoist has many advantages in structure and application.
Technical parameters of European electric chain hoist
| Mechanism item | Unit | Result |
| Lifting cpacity | ton | 1-50 ton |
| Lifting height | m | Standard:1-20m; non-standard: >20m |
| Lifting speed | m/min | Single speed/double speed(2,8m/min; 1,4m/min) |
| Working system | M3-M8 | |
| Power source | 3 Phase AC 50HZ 380V, customized |
Differences between Euro chain hoist and general chain hoist
| No. | European electric chain hoist | General electric chain hoist |
| 1 | Modularization(motor, reducer and electric equipment were separated), wearing parts are easily replaced, eg: conductive frame | Integrated design Wearing parts can’t be replaced, unless replace the entire mechanism. |
| 2 | High configuration 1) RUD chain/ FEC chain, made of titanium alloy and need no oiling. 2) Gear-grinding machining, large bite force, high precision. | 1) Chain is made of steel and easy to rust; 2) Gear goes wrong easily, and can’t repair. |
| 3 | Smooth lifting, low noise | Lifting and sloshing, loud noise |
| 4 | Lift with double speed 4/1 m/min, 8/2 m/min, protecting the motor and ensure safety. | Lift with single/ double speed |
| 5 | Single or double travelling speed | |
| 6 | The material of motor shell is die-cast aluminum. | |
| 7 | Max working grade is M8, continue working for 48 hours. | |
| 8 | The max lifting capacity can be 50 tons, the lifting height is unlimited. | |
| 9 | Lifting height < 20m, the pocket of chain is plastic; the lifting height >20m, the pocket is steel. | The pocket of chain is cloth. |
| 10 | Safety device Anti-slip chain: when the static load exceeds 1.25 times of the rated lifting capacity, the chain will slip and can’t be lifted to ensure the safety of the hoist. | No anti-slip chain. |
| 11 | Low headroom can reach 200mm (the distance from i-beam bottom to the hook center) | Low headroom is 350-400mm |
| 12 | Super low headroom chain hoist can reach 100-150mm. | |

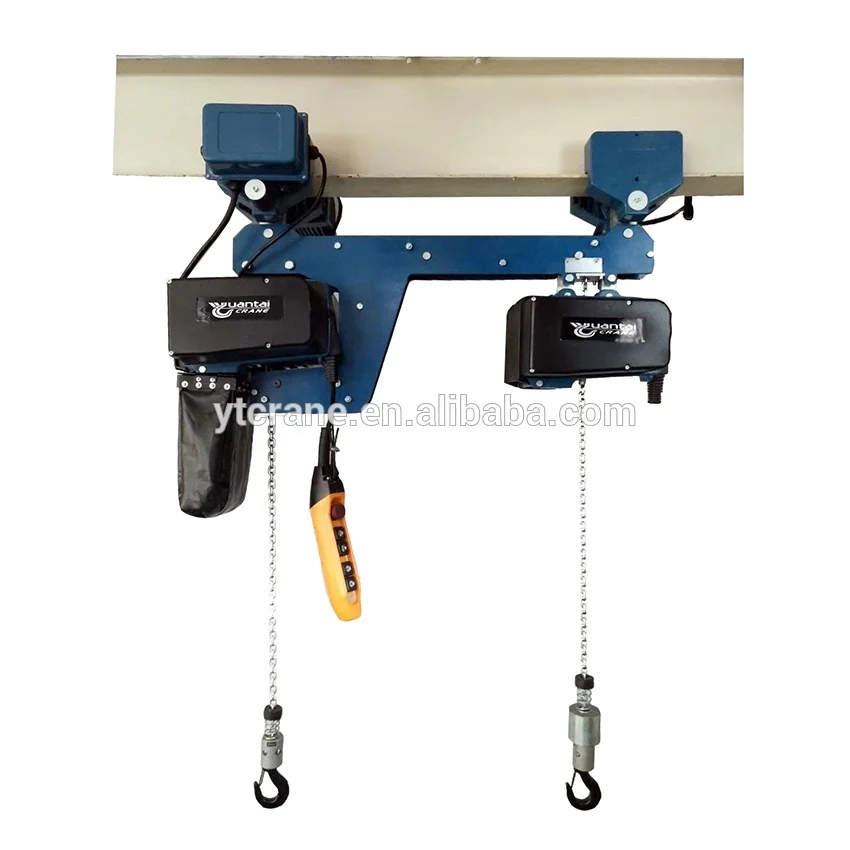

| 13 | 2 hook chain hoist lifting synchronously, with mechanical control, zero error. | Cocontactor control the 2 hook lifting, the requirements of the two sides of the same |

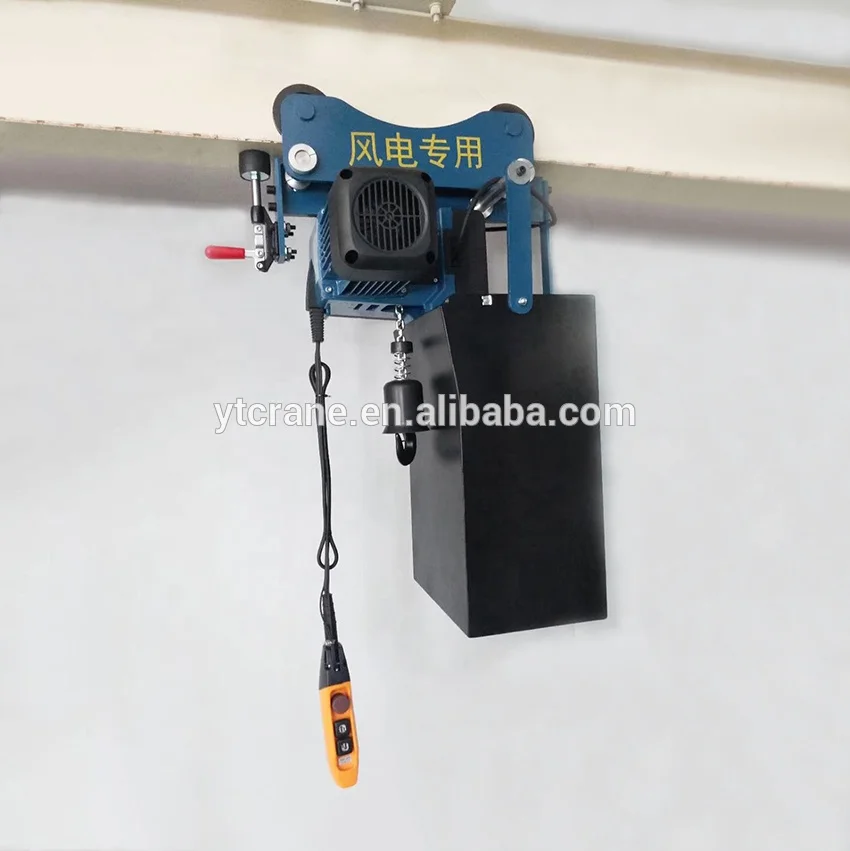

| 14 | Professional Wind electricity chain hoist can be designed. |
Production details
The european type electric chain hoist was designed with European idea, and produced in professional workshop. Every process was rigorously tested, in order to ensure the high quality of our products.
Packaging & Shipping
Euro electric chain hoist is packed by standard wooden box.
About Yuantai Crane
Henan Yuantai Crane is a professional supplier of hoist and crane. The company mainly manufactures such products: various European-style Bridge, gantry cranes, electric hoist, jib crane, winch, etc. Some key core components are original Britain SZW product. The structures are manufactured by strictly following European-style technology standards, so that the overall performance reaches advanced world level. The products are widely applicable to multiple fields such as steel, electric power, petrochemical industry, machine building, war industry, warehouse logistics and papermaking. We will offer you the best designs and provide high-standard tailor-made European-style cranes with highly-efficient technology and economic index.
CUSTOMER VISIT
Our Services
Notice:
Please inform us the following details while you send the inquiry:
1.What is the lifting capacity?
2.What is the lifting height?(Lifting height=Distance from hook to ground)
3.What is the lifting speed?(Single speed or double speed)
4.What control mode do you need?(Pendant control or remote control or cabin)
5.What is the power supply in your country?(Our standard power supply is 380V,3Ph,50Hz)
Looking Forward to Your Inquiry !
