Китайский поставщик новые продукты автоматического non сплетенный мешок 4 вида цветов флексографская печатная машина цена

Китайский поставщик новые продукты автоматического non сплетенный мешок 4 вида цветов флексографская печатная машина цена

Категория: >>>
Поставщик: Ruian Ruigao Machinery Factory

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

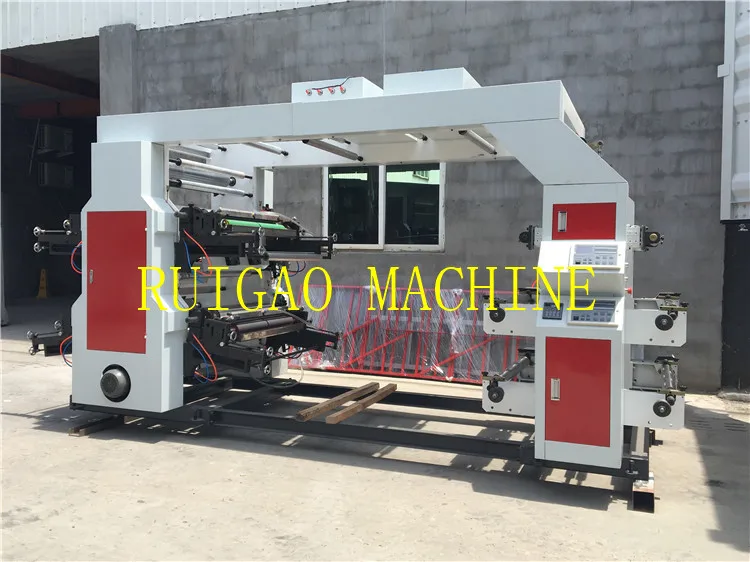

4 color non woven bag printing machine

it is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass
paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

Sample Show

Our machine can printing non woven bag, plastic bag , paper bag , paper cup etc .

Type	YT-4600	YT-4800	YT-41000	YT-41200
Max.Effective Printing Width	560mm	760mm	960mm	1160mm
Max.Web Width	600mm	800mm	1000mm	1200mm
Max.Printing Speed	50m/min	50m/min	50m/min	50m/min
Max.Mechanical Speed	60 m/min	60 m/min	60 m/min	60 m/min
Max. Diameter of Roll Material	ф450mm	ф450mm	ф450mm	ф450mm
Internal Diameter of Roll Core	ф76mm	ф76mm	ф76mm	ф76mm
Rang of Repeat Printing Length	191-914mm	191-914mm	191-914mm	191-914mm
Accuracy of Registration	±0.25mm	±0.25mm	±0.25mm	±0.25mm
Plate Thickness(Both side adhesive included)	2.38mm	2.38mm	2.38mm	2.38mm
Heating Power	8Kw	9Kw	10Kw	12Kw
Total Power	11.5Kw	15Kw	18.5Kw	22Kw
Weight of Machine	3000kg	3500kg	4000kg	4500kg
Overall Dimension	L4300×W1700×H2500mm	L4300×W1900×H2500mm	L4300×W2100×H2500mm	L4300×W2300×H2500mm

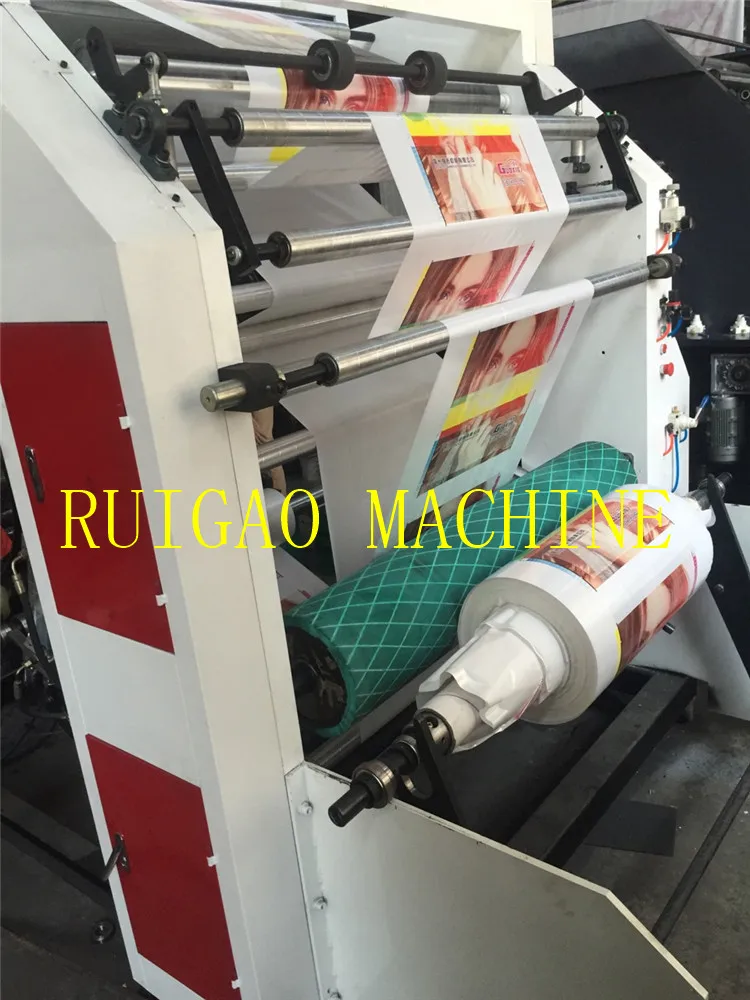

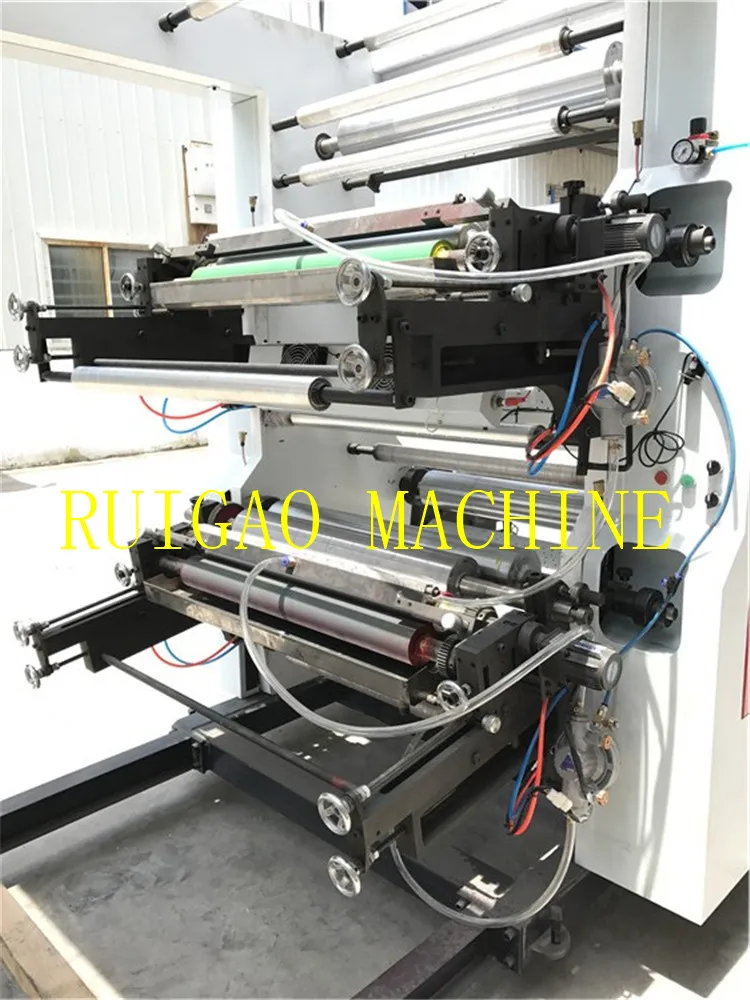

Detailed Images

Machine Parts

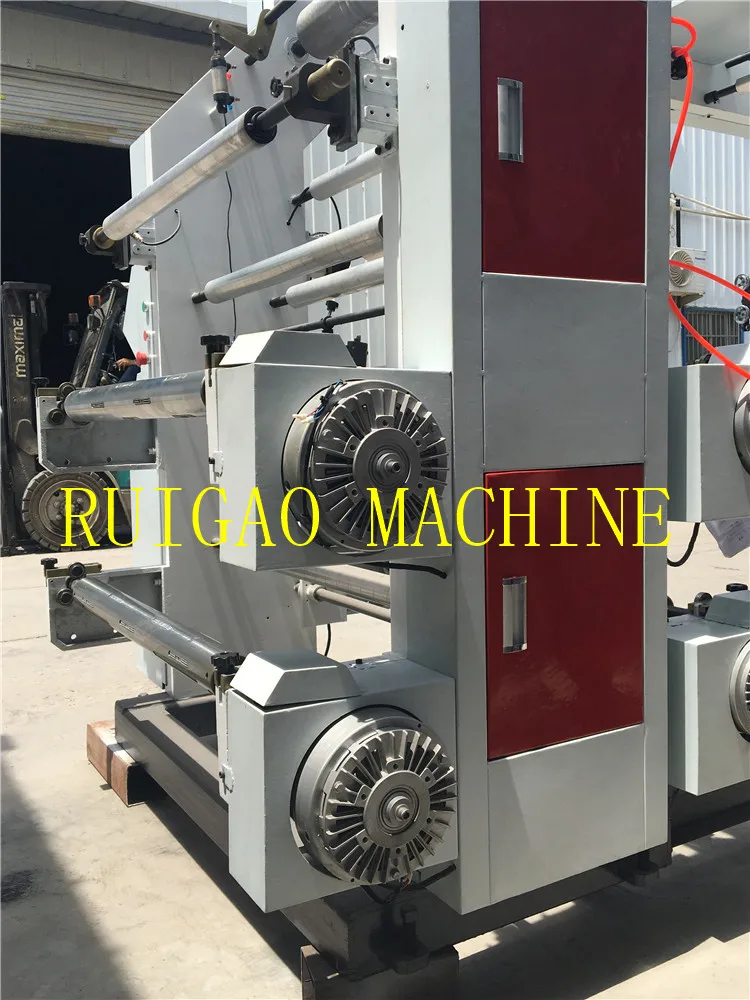

Name: Magnetic Brake
Brand: RuiGao
Original: China

This Magnetic brake is best supplier in China. it can the tension of printing materials very accurately.

Main Features
Name: single doctor blade

Brand: Ruigao
It is Germany quality blade, make ink more even

Main Features
Name: Ink Motor
Brand: RuiGao
Original: China
The Ink roller is controlled by this separate ink motor,so the ink is not easy to dry.

Machine Details
Name:Air Shaft
Brand:Ruigao
Origianl: China
It can tight the material,easy to unwinder

Main Features

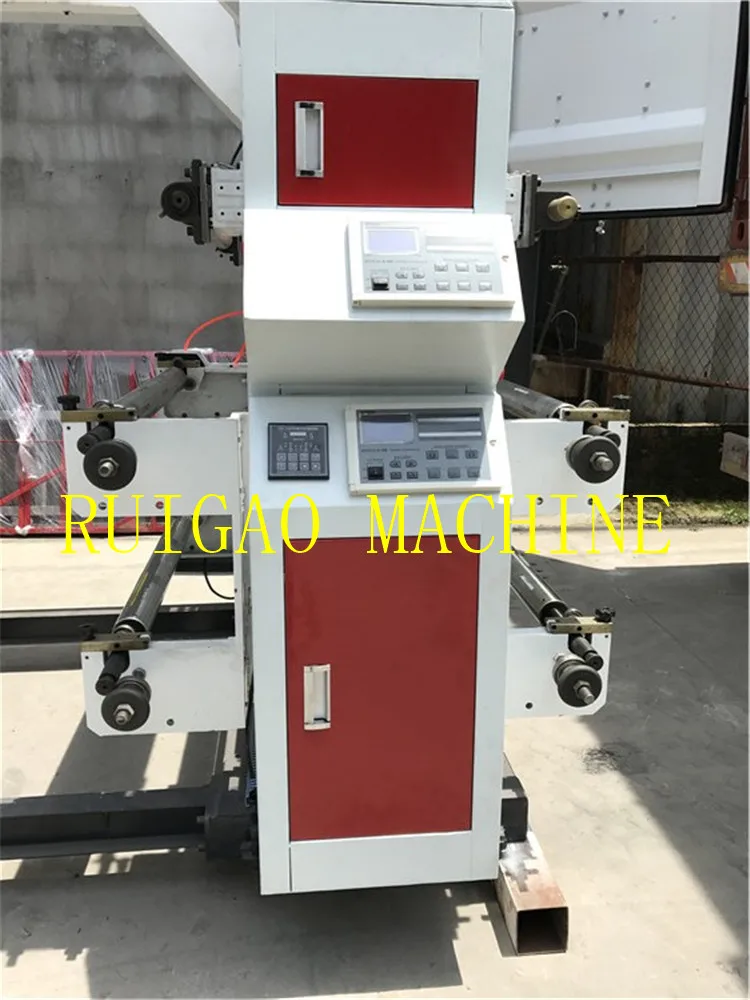

Name: Automatic Tension Controller
Brand: Ruigao
Original: China
It is Automatic Tension Controller, which can adjust the tension of printing materials automatically. No manual mistake.

Machine Details
Name:Separate Heating drying
Brand:Ruigao
Origianl: China
We design is with separate hot dring for each printing parts, which can dry faster, improve the printing speed.

Ink pump

Oil Lubrication System.

Hydraulic Lifting System

Screen Changer For Film Blowing Machine

100% Response Rate

corona treater for film blowing machine

100% Response Rate

flexographic plastic film paper bag Printing Plate Making Machine in wenzhou

100% Response Rate

Q: Your factory is trading company or factory?
A: We are factory. We have more 2100 square meter workshop and 23 workers containing the 2 installment engineer and 1 electric engineer. We are Factory, so we have cost advantage than others

2, Q: How do your company control the machine quality?
A: First we control the raw materials quality.
Second, we control the quality of machine when we are processing.
Third, Our installment engineer will test machine.

3, Q: How about payment term, payment safety and delivery time?
A: We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight.
Delivery time is 20 to 30 days. It is according to order quantity.

4,Q: What is your company after sale service?
A: Our installment engineers are available. Normally it will take about 7 to 10 days for all.
Our guarantee is one year. If there is any spare parts is broken, we can send them freely to you.
