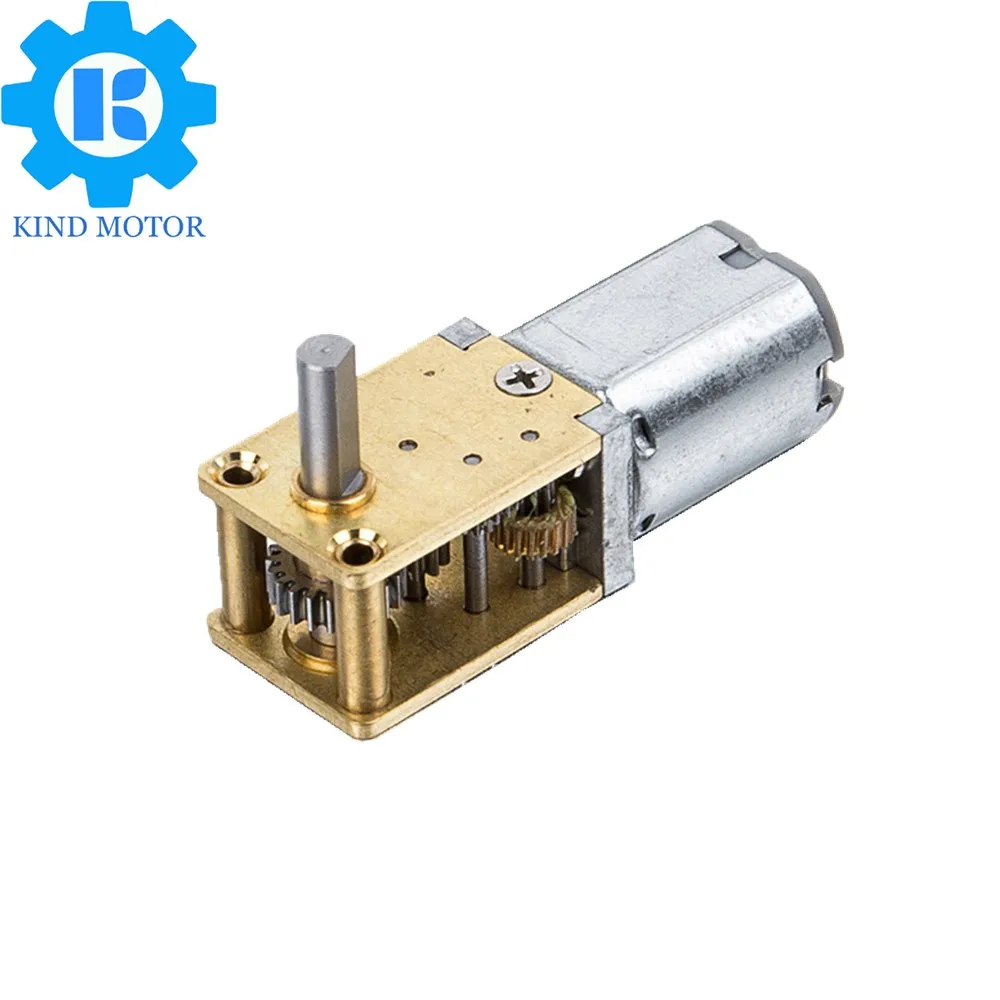

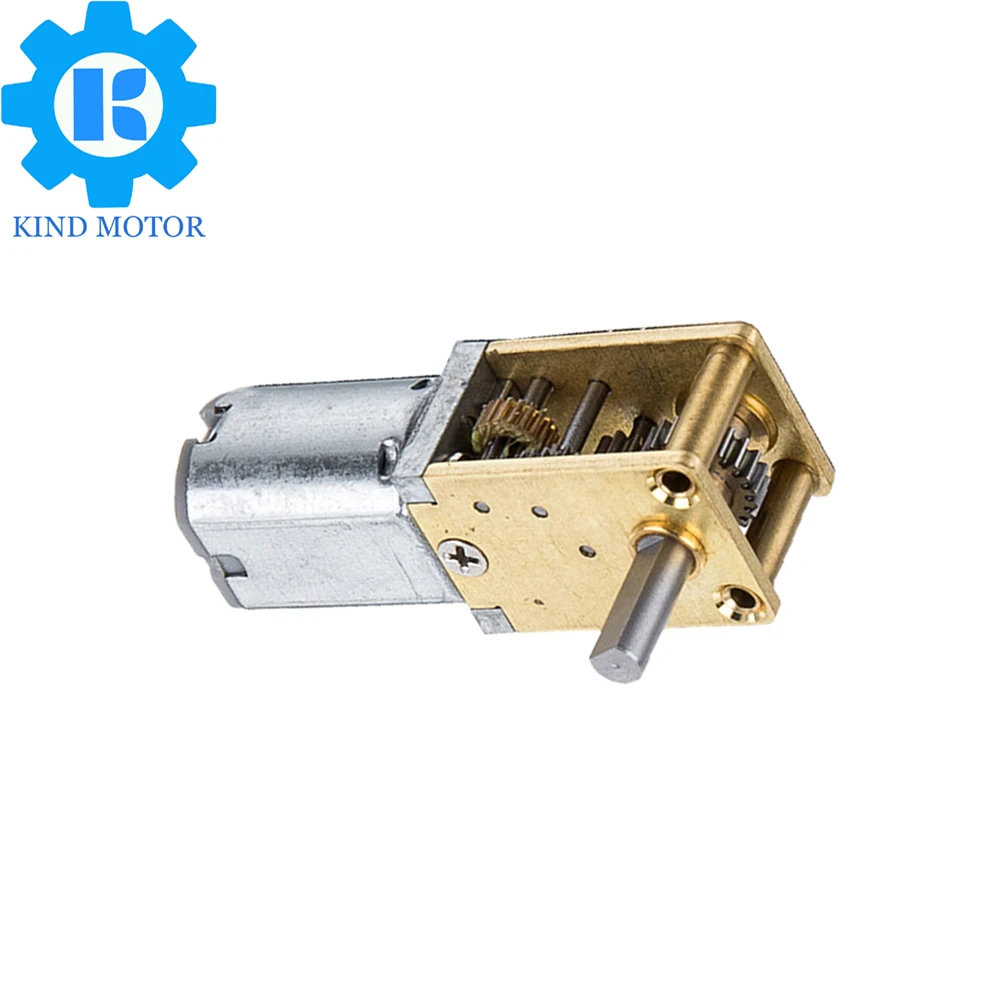

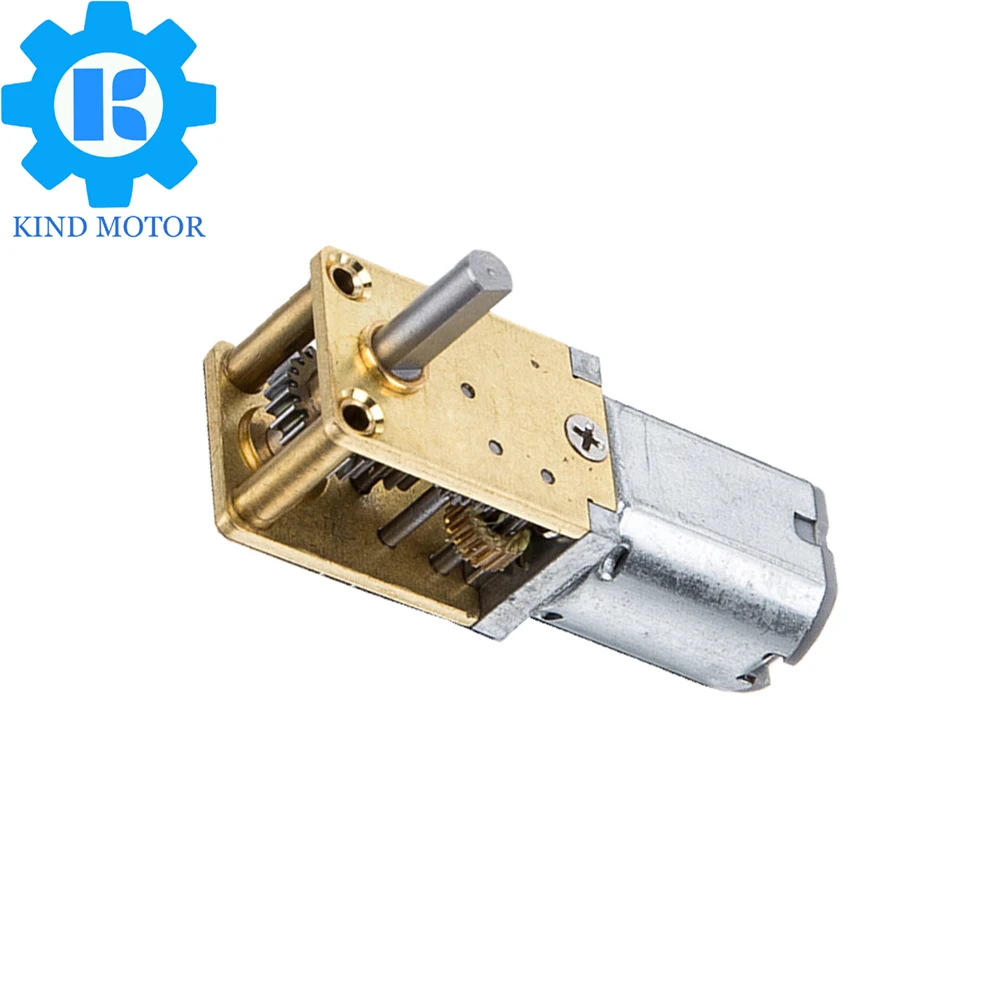

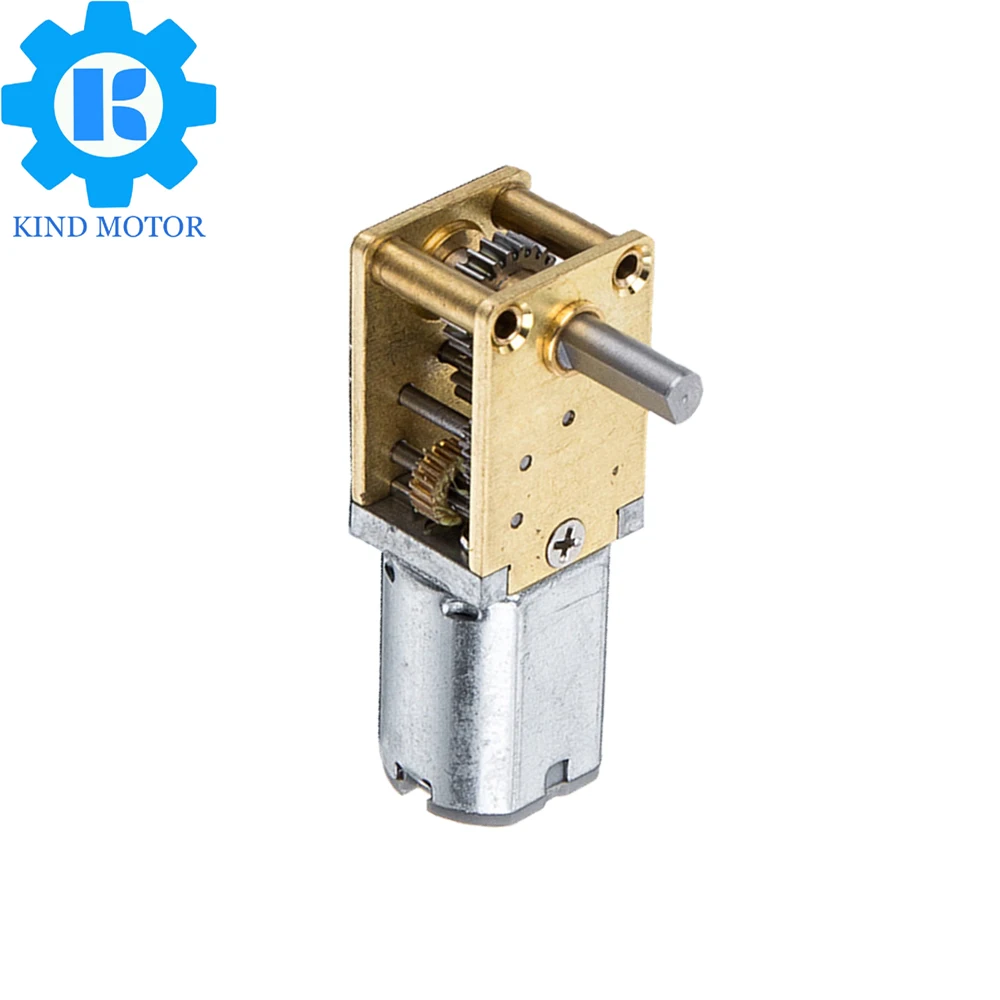

Высокоскоростной мотор редуктор с высоким крутящим моментом 12 В 24 в 90 градусов

high torque high speed 12v 24v 90 degree right angle gearbox gear motor

1. Rated Voltage: 1.5v 3v 4.5v 5v 6v 9v 12v 24v
2.Speed:10-2000RPM
3. Shaft dimension can be customized
4. Gearbox length: 10 mm
5. Motor diameter with 12mm
6. Direction: CW CCW
7. Long life, low noise
8.Can be equipped with encoder
9.Application:Robot, Home Appliance, Door Lock etc

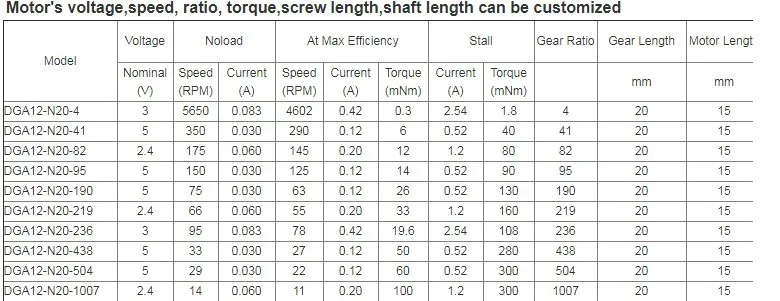

Note: It's the typical specificaitoin for reference only, Motor's votage speed, ratio, torque and shaft can be customzied after evaluation(Voltage can make from 3-12v, speed from 10 to 3000rpm, ratio from 1: 1000, toruqe from 10 to 1000g.cm)

Please tell me your requirement if can not find suitable motor.

Click for the more information!!!

10mm dc gear motor with

plastic gear

12mm dc gear motor with

encoder

24mm dc gear motor

16mm dc gear motor

37mm dc gear motor

Delivery

Q: Can you make motors customized?
A: Yes, we can and welcome.

Q: What's the deliverly time of sample and the cargo?
A:For regular specification, it needs about 3-5 working days for samples, and 15-20 working days for the cargo; For customized specification, it needs about 7-10 working days for samples, 25-30 working days for the cargo.

Q:What is your MOQ?
A:Generally, the MOQ is 1000 pieces for our motors. But we can support you with small quantity for the first trial order .

Q:Do you have motors in stocks?
A: No, all motors are made according to the customers' requirements, so it is difficult for us to make in stocks.

Q: What is the payment terms?
A:T/T, Paypal, Credit Card.etc, easy for your business.

Q:What information you need provide if you want we recommend motors for you?
A:You need provide the basic specification of the motor, like: Dimesnion, Application, Voltage, Speed and Torque. If you have samples or drawings, it's better you can send it to us.
