3d 5 оси маленький мини фрезерный станок с ЧПУ для лазерной резки металла алюминиевый Купер стальные Высокая точность 0 02 мм
- Категория: >>>
- Поставщик: Shenzhen Scotle Technology Ltd.
Сохранить в закладки 62129175091:
Описание и отзывы
Характеристики
Product Description

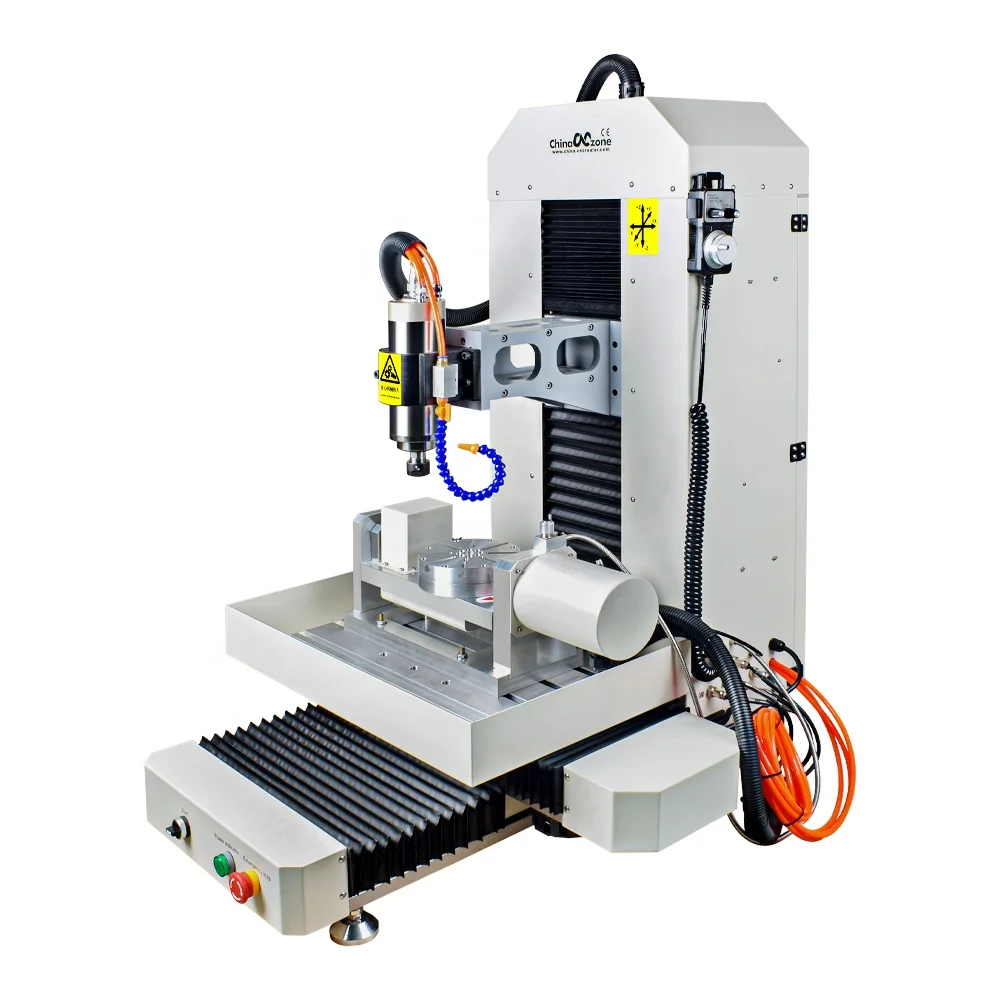

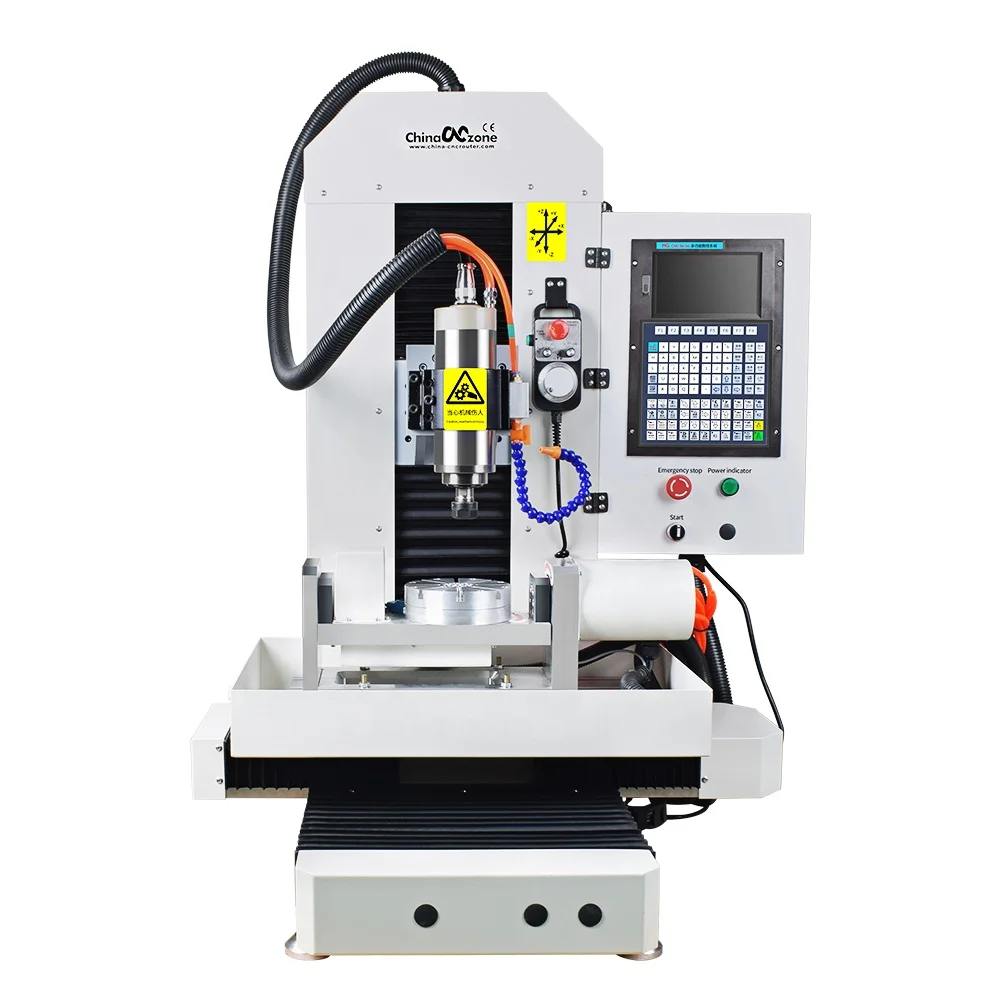

Steel structure 3040 5 axis CNC router 3D metal engraving machine
FREE TAX!!! to EU and RU!!!
1/ We will ship this machine to Moscow by Toanda from China, and transfer to you from Moscow by Russia local shipping company with door to door shipping way. the machine will be deliveried to your home.The delivery time is usually 20-40 days. and no tax fee by this way!
2/ Germany/ United Kingdom/ France/ Spain/ Italy/Poland/Austria/Belgium/Czech/Republic/Denmark/Lithuania/Bulgaria/Estonia/Greece/ Romania/Slovenia/Croatia/Luxembourg/Finland/Ireland/ Portugal/ Sweden
1/ We will ship this machine to Moscow by Toanda from China, and transfer to you from Moscow by Russia local shipping company with door to door shipping way. the machine will be deliveried to your home.The delivery time is usually 20-40 days. and no tax fee by this way!
2/ Germany/ United Kingdom/ France/ Spain/ Italy/Poland/Austria/Belgium/Czech/Republic/Denmark/Lithuania/Bulgaria/Estonia/Greece/ Romania/Slovenia/Croatia/Luxembourg/Finland/Ireland/ Portugal/ Sweden
All above country buyers free tax!!!we will ship by train to Poland, and transfer to your door by EU local shipping.
Steel structure standard USB port 3040 5 axis CNC router 3D metal engraving machine
package weight：230kg
Steel structure DSP system no need computer connection 3040 5 axis CNC router 3D metal engraving machine
package weight：290kg
Specification Sheet
* Stable stock, CE certified factory, fast delivery for max production. Offer one-stop solution for engraving business.

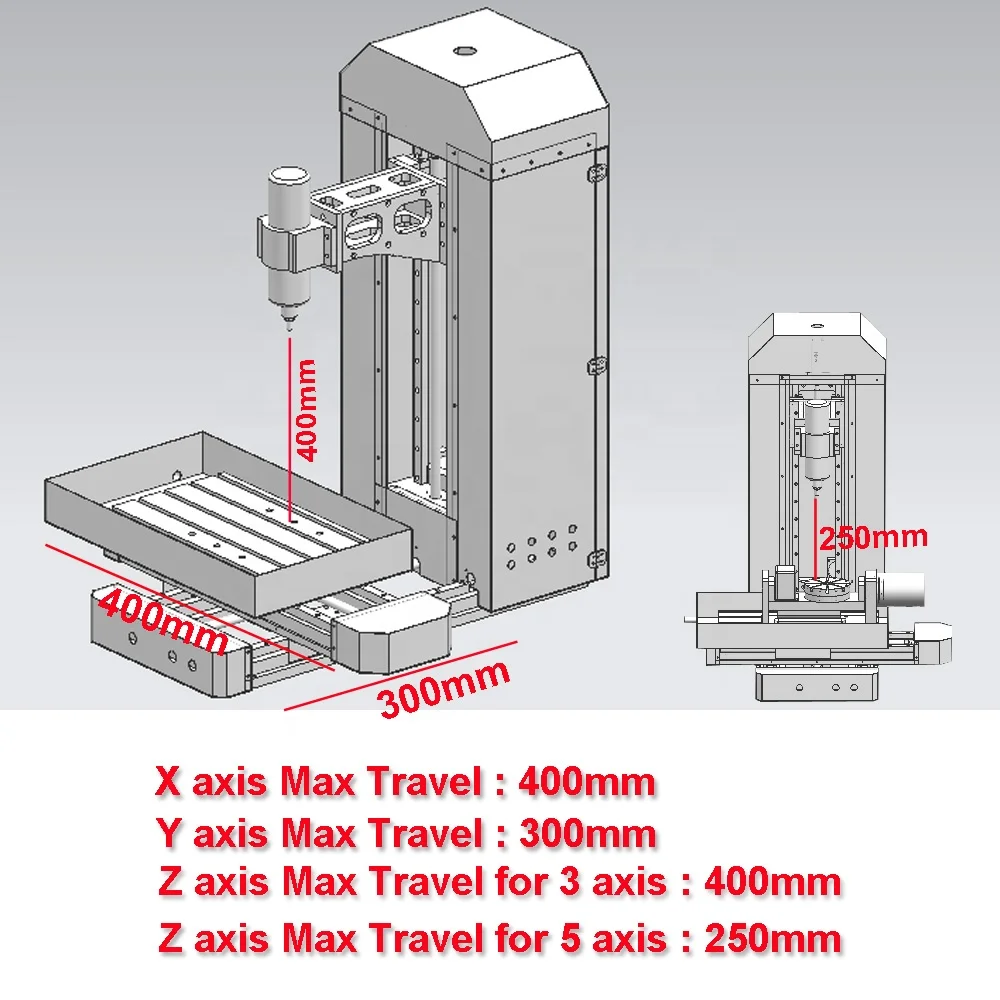

Effective working travel(3axis) | 400*300*250mm | ||
Effective working travel(5axis) | 120*120*150mm | ||
Shape dimension | 820*800*950mm | ||
Working table dimension | 400*300mm | ||
Machine frame material | 45#steel | ||
Acceptable material size | 400*300mm | ||
Driving units | X/Y/Z Axis SFU1605 Ball srew C7 level | ||
Sliding units | X/Y/Z Axis HGH20 linear guide | ||
Control units | 5pcs independent 542 step drive + MK6-V XHC motion controller | ||

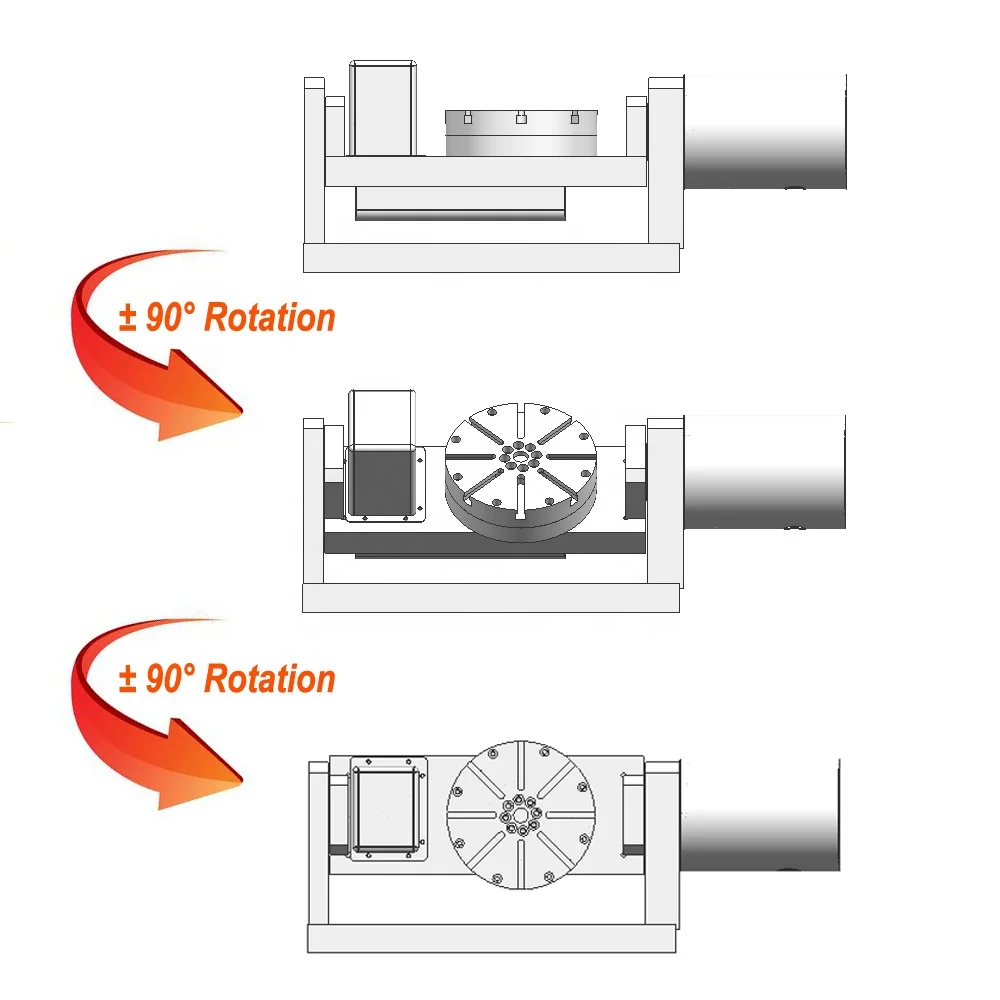

A/B axis Harmonic reducer | A axis(Rotary axis) | 360degree | |
B axis(Slope) | 90degree | ||
speed ratio | 1:50 | ||
Maximum torque | 15N.m | ||
Step motor type | 57 two-phase four wire,2A 1.8N.m,500rpm suggested | ||
58two-phase four wire,3A 1.2N.m,500rpm suggested | |||
Spindle motor | Brand new 2200W water cooling spindle, 24000RPM | ||
Principal axis collet | ER-20 1-13mm | ||
Repeat accuracy | 0.03~0.05mm | ||
Spindle precision | radial beat accuracy 0.01 mm | ||
Operating system | Newest Win10 and compatible with old version | ||
Maximum speed | 0-4000mm/min | ||
Computer connection | USB port/DSP system | ||
Command code | Tap, nc ,ncc, txt | ||
Safeguard | Limit switch | ||
Operating Voltage | AC220V/110V | ||
Warranty | 1 Year | ||
Package size | One wooden box,980*900*1200mm | ||
Gross weight | 230kg(USB port)/290kg(DSP system) | ||
Our Advantages
Overseas warehouse in the United States
Overseas warehouses in Russia
Overseas warehouse in Germany
Overseas warehouse in Poland
Higher precision because:
1.Cross slippery platform design rather than gantry design.
2.steel base sheet is heavy which can make sure less vibration when work.
3.With auto-checking function.
4.2200w water-cooled spindle.
5.Ball screw
6.Stainless Steel sink for bits cooling
2.steel base sheet is heavy which can make sure less vibration when work.
3.With auto-checking function.
4.2200w water-cooled spindle.
5.Ball screw
6.Stainless Steel sink for bits cooling
Easy operating because:
1.steel structure 3040 5 axis metal cutting carving machine
2.Steel machine frame, more stable, Stronger rigidity
3.A,B axis use Harmonic reducer, High processing progress
4.Higher precision work on aluminum, Cooper,stainless steel(accuracy≤0.05mm)
5.Machine frame fully enclosed structure design and was helpful to keep the accuracy of screw
2.Steel machine frame, more stable, Stronger rigidity
3.A,B axis use Harmonic reducer, High processing progress
4.Higher precision work on aluminum, Cooper,stainless steel(accuracy≤0.05mm)
5.Machine frame fully enclosed structure design and was helpful to keep the accuracy of screw
You can buy this machine from us without any worry because:
1.CE approved.
2.Video support.
3. English manual available.
4.Mach 3 software send with the machine as a CD.
5.Can engrave material which hardness more than 45.
6.From reliable & trustable profesional China CNC Router manufacturer
2.Video support.
3. English manual available.
4.Mach 3 software send with the machine as a CD.
5.Can engrave material which hardness more than 45.
6.From reliable & trustable profesional China CNC Router manufacturer
Product packaging
Recommend Products
The above machine is too expensive? Please look at this, the same working area can also engrave the material of the cylinder, the price is cheaper
Do you want a bigger work area? Then choose this HY6040 5axis cnc router with a working area of 400*600mm.
Company Profile
Certifications
FAQ
After service Q and A
Question 1
I want to buy this machine but i don't know how to program G code ?
Answer: We can provide fee charge service Or you can go to study .
Question 2
I don't know how to setting parameters when need to use it .
Answer: We have instructions for our machine .All the parameters is very clearly on it. We also can provide online support
service.
Question 3
I am interested in this CNC machine but i don't know how to use it.
Answer: We have video to show how to operate our machine ,If you still don't know after check the video and we can provide remote
assistance .
Question 4
How can i do if the machine damage on the shipping way ?
Answer: No matter any problem with the machine please contact us by eBay message with photos or videos . We will give you a
satisfied solution after check it.
Question 5
How long is the warranty of the machine?
Answer : This item comes with 12 months Manufacturer's Warranty from the date of customers purchased it.
Question 6
How can i do when the machine have quality problem ?
Answer : Please take a video to show your problem to us .We have professional engineer to help you solve the problem.
Question 1
I want to buy this machine but i don't know how to program G code ?
Answer: We can provide fee charge service Or you can go to study .
Question 2
I don't know how to setting parameters when need to use it .
Answer: We have instructions for our machine .All the parameters is very clearly on it. We also can provide online support
service.
Question 3
I am interested in this CNC machine but i don't know how to use it.
Answer: We have video to show how to operate our machine ,If you still don't know after check the video and we can provide remote
assistance .
Question 4
How can i do if the machine damage on the shipping way ?
Answer: No matter any problem with the machine please contact us by eBay message with photos or videos . We will give you a
satisfied solution after check it.
Question 5
How long is the warranty of the machine?
Answer : This item comes with 12 months Manufacturer's Warranty from the date of customers purchased it.
Question 6
How can i do when the machine have quality problem ?
Answer : Please take a video to show your problem to us .We have professional engineer to help you solve the problem.
Похожие товары

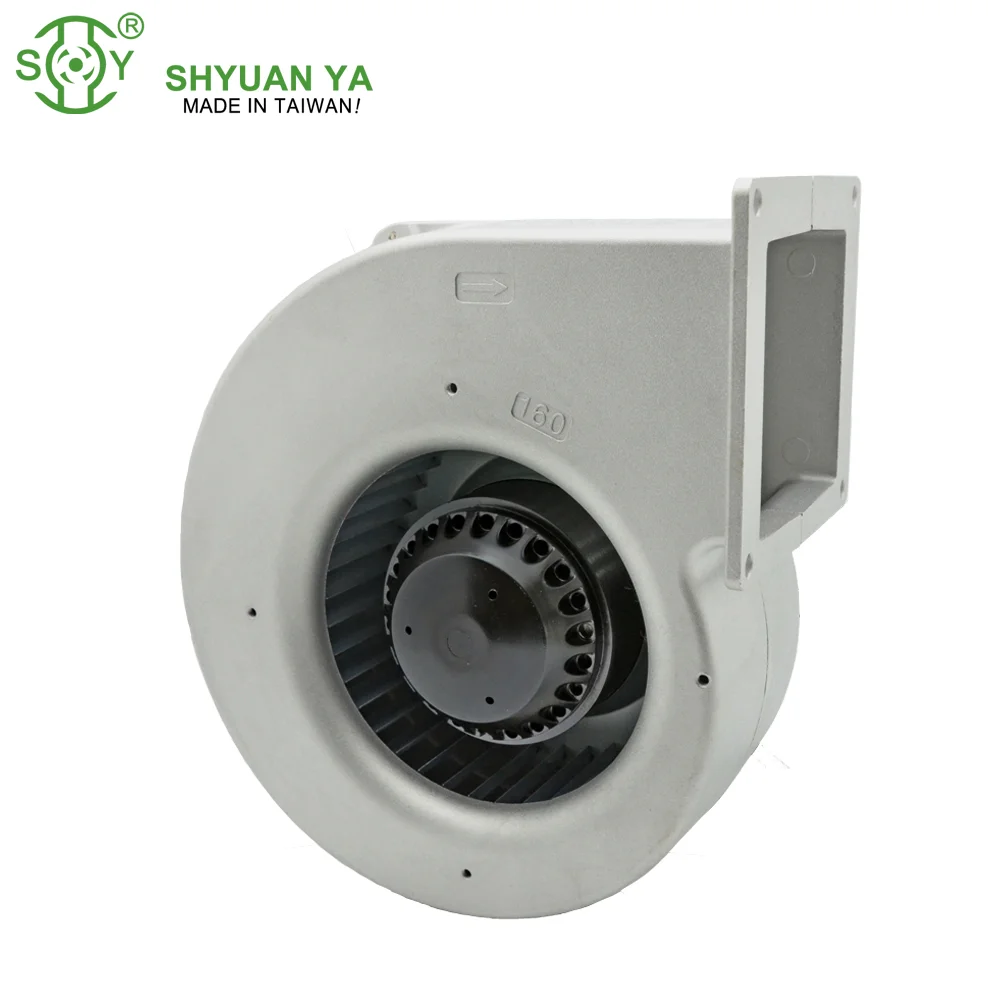

160x100 мм с кнопком вперед центрифугальные вентиляторы

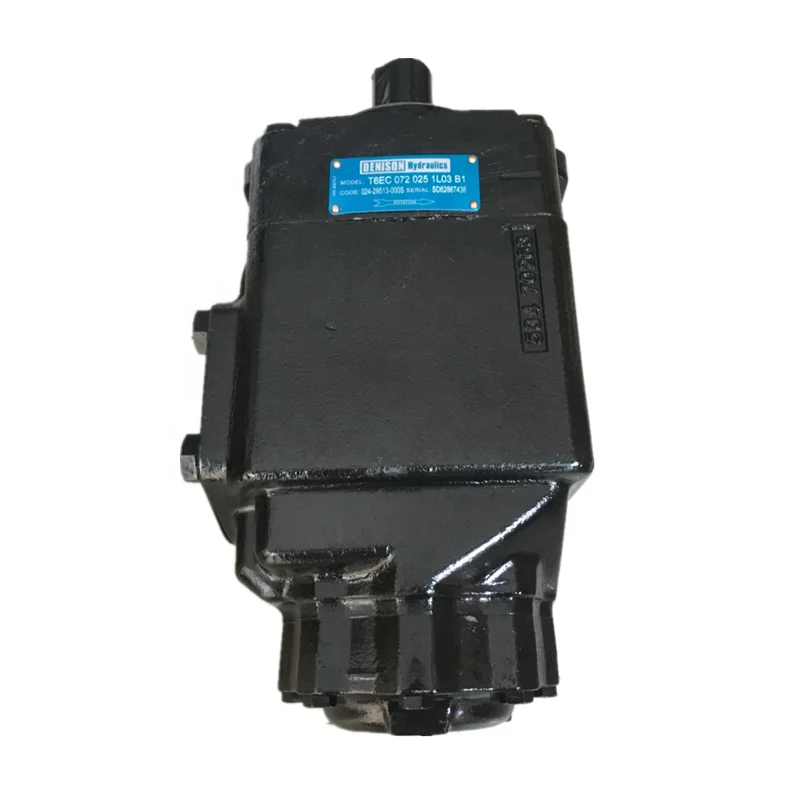

Parker одиночный двойной тройной T7EEC T7ED T7EDS T7EDLP серия Denison лопастной насос T7EDS 062 B31 1R00 A10 поворотный насос высокого давления
1 075,00 $ - 1 083,00 $
Недорогие гидравлические подъемники с гидравлическим цилиндром, 10 тонн, 20 тонн, 30 тонн, по заводской цене

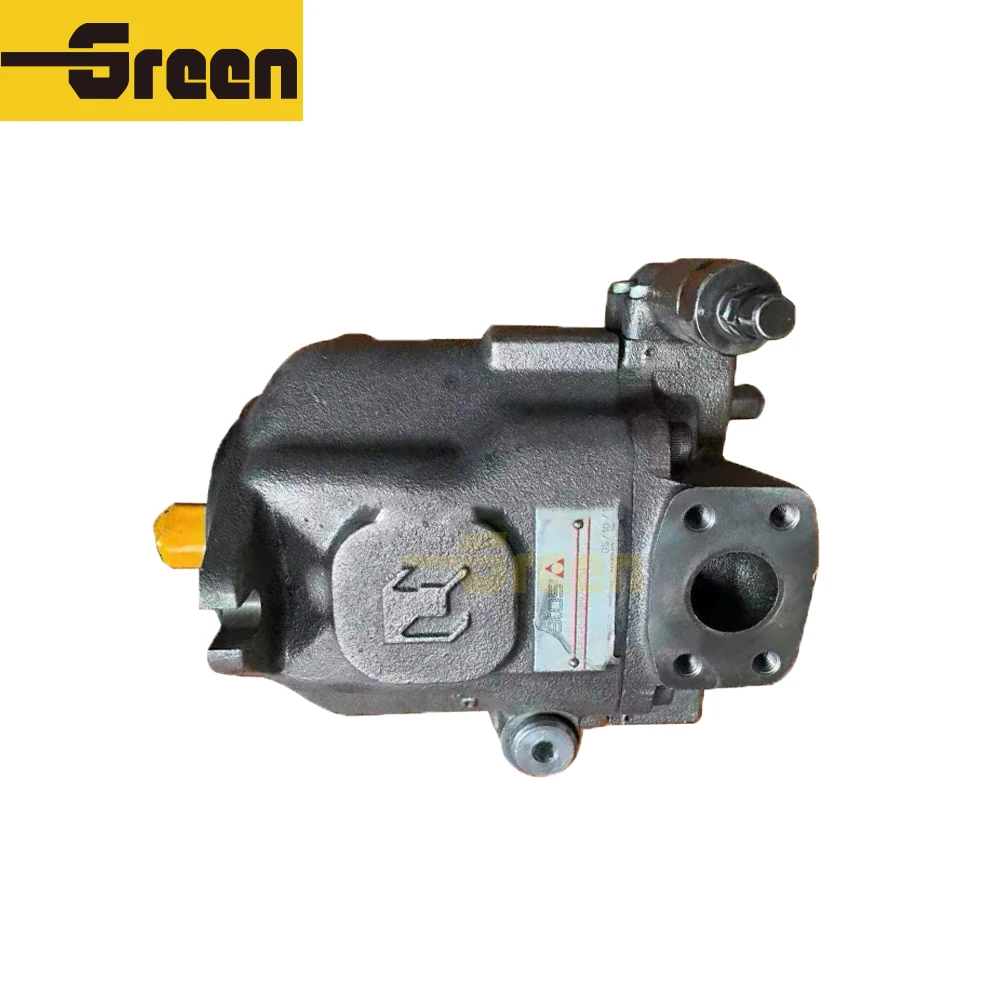

Части главного atos ПВЛ серии PVL-200 320 400 гидравлического лопастного насоса для грузовых автомобилей
50,00 $ - 500,00 $

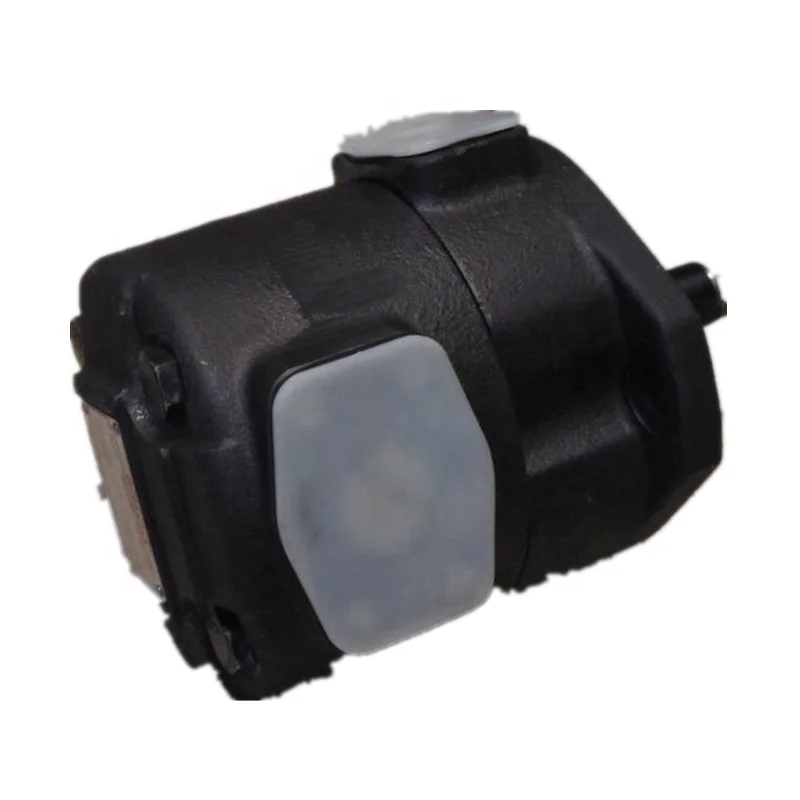

Тайвань ANSON IVP21 IVP21-21 IVP21-21-14AM серии IVP21-21-14AM-FR-86-AA-10 двойной лопастной насос
350,00 $ - 355,00 $

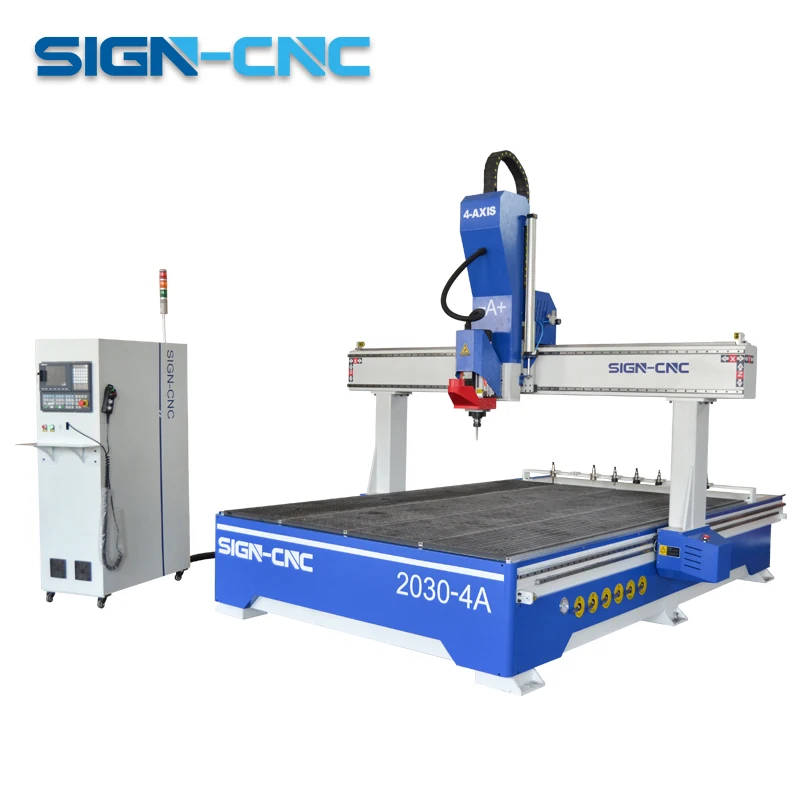

Большой размер УВД фрезерный станок с ЧПУ с вращения шпинделя для деревообработки 4 оси CNC Router машина
