Automatic mobile phone bga chips reballing machine ZM-R7830A High-end motherboard soldering rework station

ZM-R7830A Automatic BGA rework station introduction:

ZM-R7830A is a high end automatic optical BGA rework station support Air source , including compressed air and nitrogen, is changed freely to meet repairing requests.

It can repair the motherboard in high quality and high precision, reduce possibilty of the PCB board burn or turn yellow during the rework process.bga chips reballing machine

ZM-R7830A BGA rework station support nitrogen & compressed air, especially suit for repair BGAs, CGA's, CSPs, QFPs, LGA's and Other SMDs.

The ZM-R7830A main repairing process including 3 parts:

1. Automatic desolderingthe BGA– Remove.bga chips reballing machine
2. Semi- Automatic alignment the BGA – Mount.bga chips reballing machine
3. Automatic solderingthe BGA- Solder.bga chips reballing machine

After finish the 3 process, the motherboard repairing finished.

Beside the BGA rework station, we also manufacture the X-ray inspection machine. We can use the X-ray machine to test & analyze the rework quality for your viewing. It works perfect.bga chips reballing machine

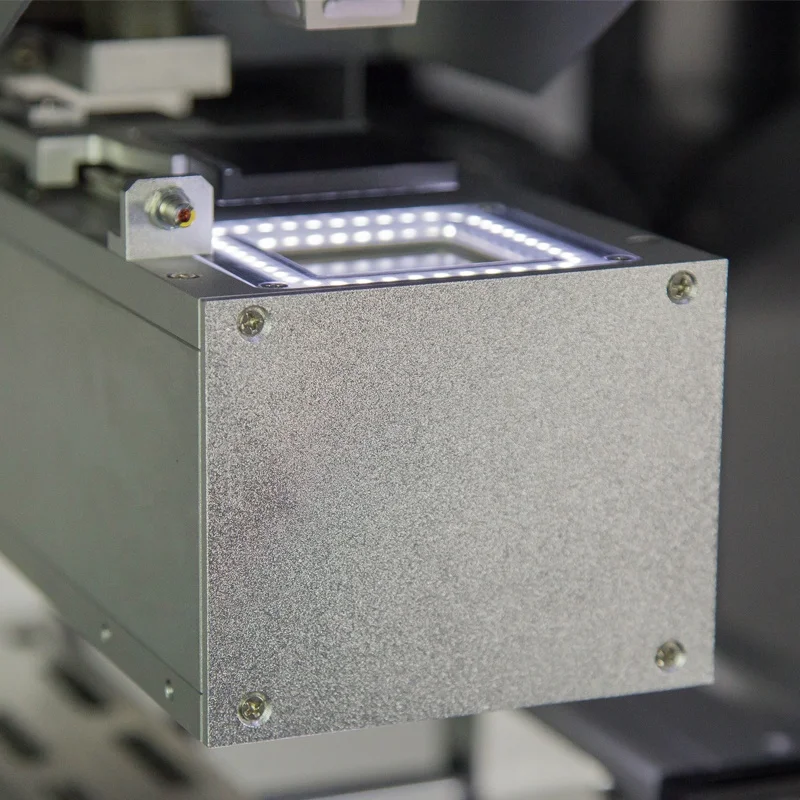

Adjustable CCD color optical system bga chips reballing machine

High automatic can avoid human error, can repair the lead-free socket 775 and double deck BGA chipset very well.bga chips reballing machine

Q: What kind of company will need the desktop high precision computer control Optical BGA rework station?bga chips reballing machine

R: There have no specific definition. But this automatic BGA rework station ZM-R6823 has been sold to many company to repair the high value motherboard, they have STRICT requirements for the Rework quality and efficiency and they have stable enough quantity that need to be repaired. It is a machine worth investment, because it can be used for 6-10 years if you use it in the proper way.

Basic parameters of the Automatic BGA rework station ZM-R7830A:

1. Power:            AC 380V 50/60Hz bga chips reballing machine
2. Total Power:     Max 5800W bga chips reballing machine
3. Heater power:   Top heater 800W bottom 800W IR 4000Wic replacement machine

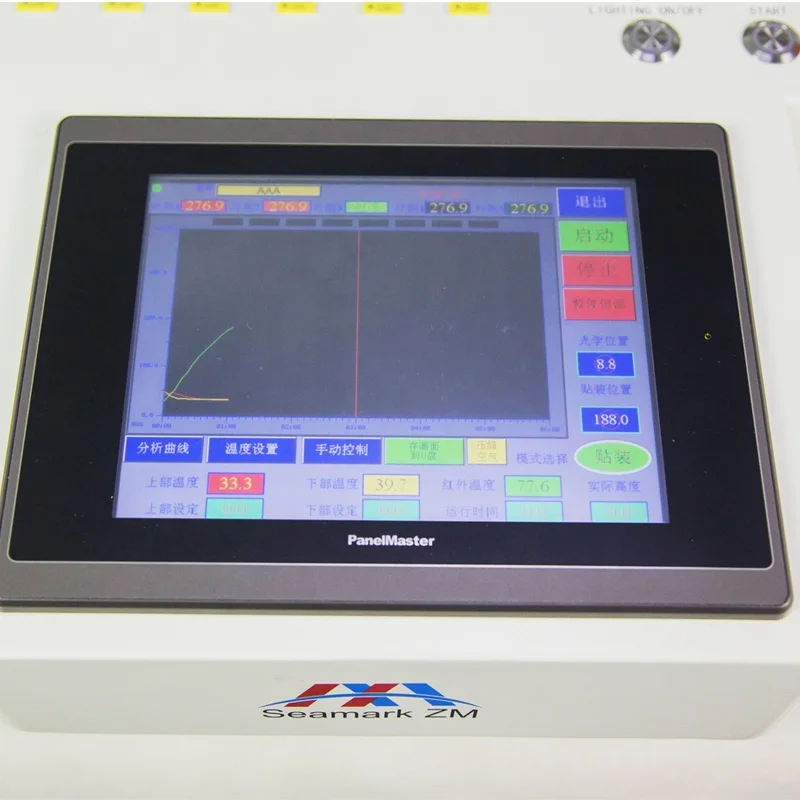

4. Electrical materials: Servo Drive( Panasonic)+10”Touch screen+Panasonic PLC+
                                Precision Thermal control systemic replacement machine
5. Temperature control: K-type thermocouple (Closed Loop)reballing machine
6. Positioning:       V-groove, PCB support + laser automatic positioning
7. PCB size:           Max 560×470mm Min 15×20 mm bga chips reballing machine
8. BGA chip:           Max 80×80mm Min 2×2 mm bga chips reballing machine
9. Dimensions:       L760×W850×H950mm(LCD stand not included)
10. Sensors:          6pcs bga chips reballing machine
11. Weight:           149kg bga chips reballing machine
12. Color:              Silver white+blue bga chips reballing machine

Advantage of the Automatic BGA rework station ZM-R7830A:

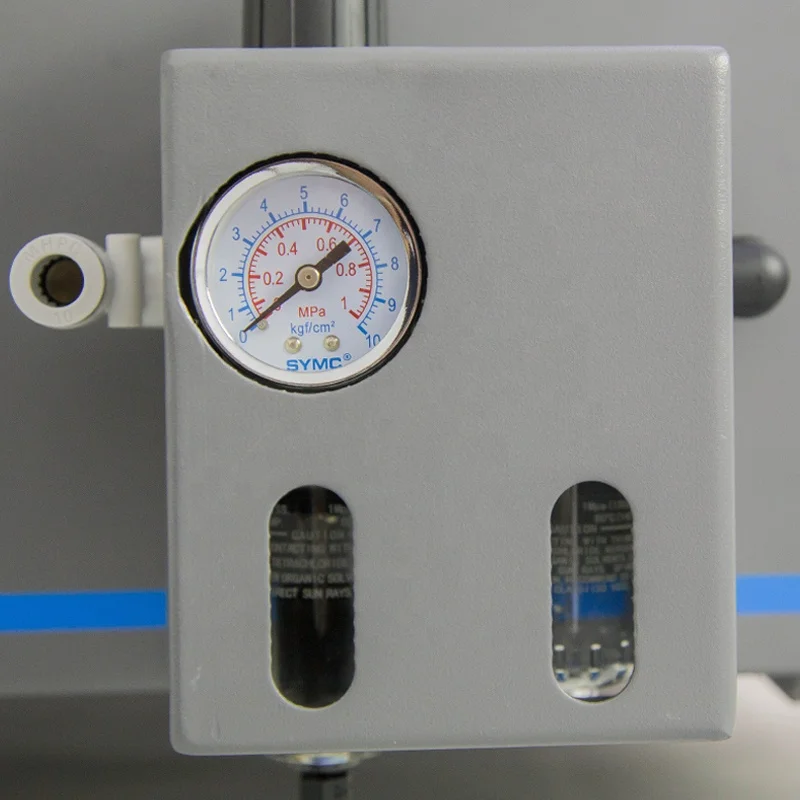

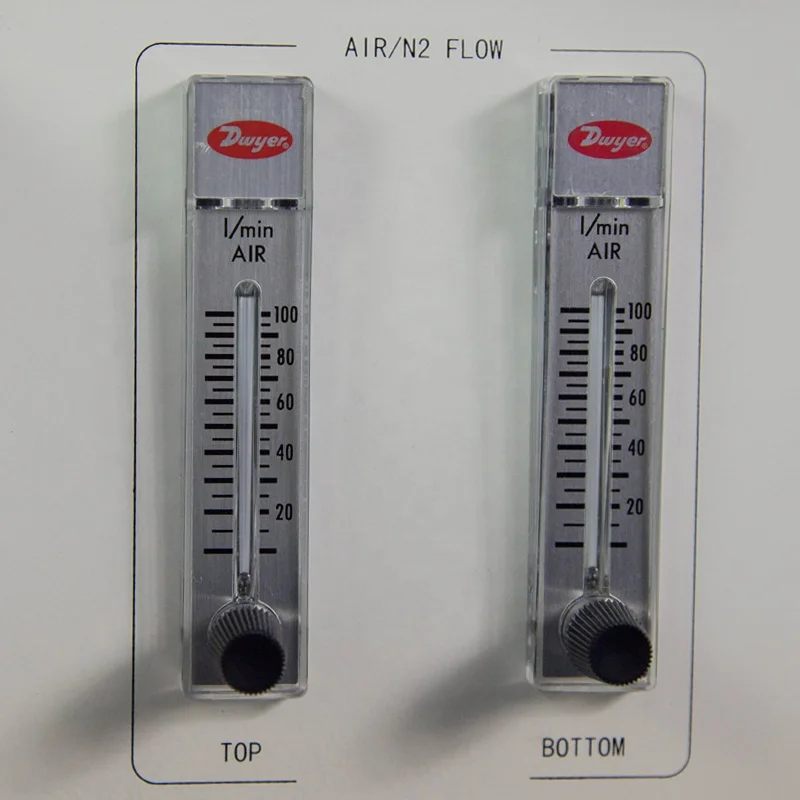

1. Air source support, including compressed air and nitrogen, is changed freely to meet repairing requests.bga chips reballing machine



2. It is convenient to use bottom heater and top heater in the meantime by the system of synchronized operation and electric lift.bga chips reballing machine

5. It can save multiple groups profiles, and analyze, set and reverse the temperature curves at any time.bga chips reballing machine

7. Flexible and removable universal fixturehas protective effects and no damage to the PCB board, suitable for all kinds of sizes of BGA repair.bga chips reballing machine

8. With CE certification, emergency button and abnormal incident power off automatically protect device.bga chips reballing machine

9. Temperature parameter has a passwordto avoid any arbitrary changes.



Automatic hot air BGA rework station ZM-R7830A Demo Video Link:



https://youtu.be/TM4FKX_cHDw



Seamark ZM Company Introduction:

https://youtu.be/SQx3hsAiEHg



Packing & Shipping of ZM-R7830A BGA Rework Station:ic replacement machine

1. Standard export wooden package for bga rework station.ic replacement machine
2. Delivery within 10 business days after payment confirm;
3. Shipping by air or by sea.bga chips reballing machine
4. Loading Port: Shenzhen or Hongkong.
Currently Zhuomao is the biggest Smart BGA rework station manufacturer in China.bga chips reballing machine
Part of testing Workshop:bga chips reballing machine

We have different ranges of bga rework station for your selection.
We can customize the BGA VGA LED SMD rework station according to your requirements.bga chips reballing machine
