Product Information




Clean Room Booth
Frameworks: Epoxy powder coated steel / Stainless steel square pipe / Extruded aluminum
Wall material: Anti-static strip curtain / Anti-static grid curtain / Sliding door
Ceiling material: Stainless steel / Cold-rolled steel with powder coated / Anti-static grid curtain / Anti-static acrylic board
Clean class: ISO 5 – 8

The soft wall cleanroom or clean booth could be manufactured with the steel with powder coated or stainless steel. And the four sides with curtain or PVC curtain.
Also, it can according the need to be designed with pass box & air shower.

The customized design is available for this soft wall cleanroom / clean booth.


Cleanliness level
Maximum allowable volumen of dust/m³
Maximum allowable volume of microorganisms
>=0.5um
>=5um
Floating bacteria /m³
Settlement bacteria/dish.30min
100
3500
0
5
1
1000
350000
2000
100
3
10000
3500000
20000
500
10
300000
10500000
61800
NA
15

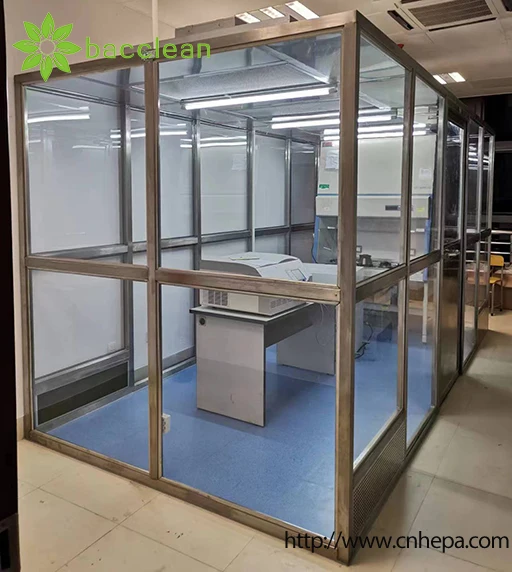

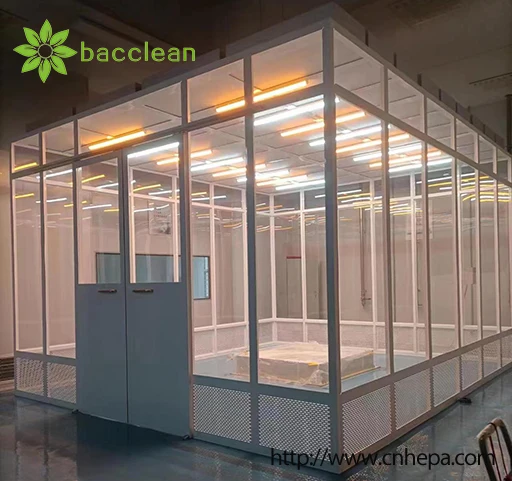

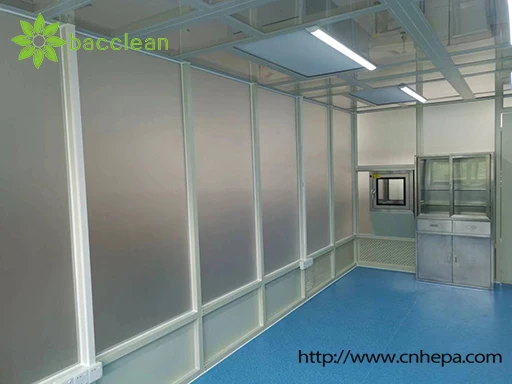

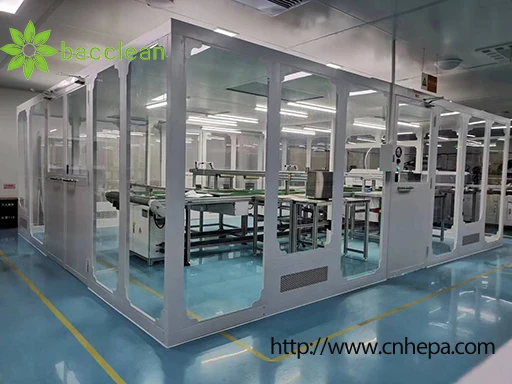

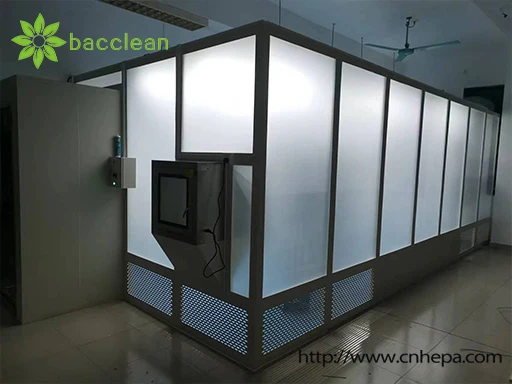

Product Display




Clean room booth


Unlike permanent, hard wall cleanroom systems, soft wall cleanrooms feature plastic, often translucent strips suspended from a ceiling or other high point of attachment.
They can also be enclosed by tightly stretched fabric on a frame.

Semiconductor fabrication, biotechnology research, and other very sensitive processes can be conducted in soft wall cleanrooms.
Many processes that don't require extreme levels of decontamination can be conducted within soft wall cleanrooms.

They are often easily installed, and some varieties are portable;
these qualities can make soft wall cleanrooms more economical than hard wall alternatives, especially for smaller-scale operations that don't require constant access to a strictly controlled working environment.


The features of the Clean booth
Soft wall Cleanroom (Clean booth) allows you to build an economical cleanroom (clean booth) in nearly any office or production space in just a few days.
All steel frame supports ceiling grid, flexible vinyl strip shields, fluorescent lighting and fan/filter units to meet cleanliness requirements from ISO 5 – 8(clean booth).
Clean booth Shields are made of static-dissipative PVC or Acrylic Sheet to control electro-static discharge.

Benefits of a soft wall cleanroom:
1. Versatile and easy to assemble, extend or modify.
2. Simplicity of the air management system.
3. Ease of access to the controlled environment.
4. Minimal change in the environment when accessing the cleanroom.




Application


Application
These soft wall cleanrooms can be used in materials development, biotechnology research,semiconductor or other industries where cleanroom conditions are required.
