Высокоэффективный и энергосберегающий испаритель холодильника
- Категория: >>>
- Поставщик: Shengzhou Lanco Refrigeration Equipment Co. Ltd.
Сохранить в закладки 62130079677:
Описание и отзывы
Характеристики
Product Description
All of our products can accept customization, accessories are UL certified and our products in the course of processing and are subject to stringent quality inspection before delivery, if there is a need, we photographed in the process every step of the process can be sent to customers.
Casing material:Galvanized steel with spray;Inner grooved Copper tube:3/8''
| High Temp Series Fan:Φ300mm Fin Space:3.5mm | ||||||||||||||
| Model | SC1 Capacity(KW) | Tube length | Surface | Circuit Vol. | Fan | InTube (inch) | OutTube (inch) | NetWeight (KG) | Drawing no. | |||||
| Airinlet Ta 10℃ Evaporation Te 0℃ | ||||||||||||||
| R22 | R404A | m | m2 | dm3 | FanMot no. | AirFlow (m3/h) | AirThrow (m) | FanMot Amper(A) | FanMot Power(W) | |||||
| LK3H301SF | 1.8 | 1.8 | 10 | 4.8 | 0.8 | 300*1 | 1100 | 3 | 0.42 | 85 | 1/2 | 5/8 | 11 | LK37 |
| LK4H301SF | 2.3 | 2.3 | 13 | 6.3 | 1.0 | 300*1 | 1000 | 3 | 0.42 | 85 | 1/2 | 5/8 | 13 | LK37 |
| LK6H301SF | 2.7 | 2.8 | 19 | 9.5 | 1.5 | 300*1 | 850 | 3 | 0.42 | 85 | 1/2 | 5/8 | 16 | LK37 |
| LK3H302SF | 3.9 | 3.9 | 19 | 9.5 | 1.5 | 300*2 | 2160 | 5 | 0.84 | 170 | 1/2 | 5/8 | 19 | LK38 |
| LK4H302SF | 4.7 | 4.7 | 26 | 12.6 | 2.0 | 300*2 | 2000 | 4 | 0.84 | 170 | 1/2 | 5/8 | 22 | LK38 |
| LK6H302SF | 5.5 | 5.5 | 39 | 18.9 | 3.1 | 300*2 | 1700 | 4 | 0.84 | 170 | 1/2 | 7/8 | 28 | LK38 |
| LK4H303SF | 7.0 | 7.0 | 39 | 18.9 | 3.1 | 300*3 | 3000 | 6 | 1.26 | 255 | 1/2 | 7/8 | 32 | LK39 |
| LK6H303SF | 8.0 | 8.1 | 58 | 28.4 | 4.6 | 300*3 | 2550 | 5 | 1.26 | 255 | 1/2 | 7/8 | 40 | LK39 |
| LK6H304SF | 9.4 | 9.5 | 71 | 34.7 | 5.6 | 300*4 | 3200 | 7 | 1.68 | 340 | 1/2 | 7/8 | 52 | LK40 |
| Medium Temp Series Fan:Φ300mm Fin Space:7.0mm | ||||||||||||||||||
| Model | SC2 Capacity (KW) | SC3 Capacity (KW) | Tube length | Surface | Circuit Vol. | Fan | Heater | InTube (inch) | OutTube (inch) | Net Weight (KG) | Drawing no. | |||||||
| Airinlet Ta 0℃ Evaporation Te -8℃ | Airinlet Ta -18℃ Evaporation Te-25℃ | |||||||||||||||||
| R22 | R404A | R22 | R404A | m | m2 | dm3 | Fan Mot no. | Air Flow (m3/h) | Air Throw (m) | Fan Mot Amper (A) | Fan Mot Power (W) | Electric Defrost (A) | Electric Defrost (W) | |||||
| LK3M301S | 1.1 | 1.1 | 0.8 | 0.8 | 10 | 2.5 | 0.8 | 300*1 | 1200 | 4 | 0.42 | 85 | 4.5 | 1000 | 1/2 | 5/8 | 11 | LK37 |
| LK4M301S | 1.3 | 1.3 | 0.9 | 0.9 | 13 | 3.4 | 1.0 | 300*1 | 1150 | 4 | 0.42 | 85 | 4.5 | 1000 | 1/2 | 5/8 | 13 | LK37 |
| LK6M301S | 1.6 | 1.6 | 1.1 | 1.1 | 19 | 5.0 | 1.5 | 300*1 | 1020 | 4 | 0.42 | 85 | 6.8 | 1500 | 1/2 | 5/8 | 16 | LK37 |
| LK3M302S | 2.2 | 2.3 | 1.5 | 1.5 | 19 | 5.0 | 1.5 | 300*2 | 2500 | 6 | 0.84 | 170 | 9.1 | 2000 | 1/2 | 5/8 | 19 | LK38 |
| LK4M302S | 2.6 | 2.7 | 1.9 | 1.9 | 26 | 6.7 | 2.0 | 300*2 | 2300 | 5 | 0.84 | 170 | 9.1 | 2000 | 1/2 | 5/8 | 22 | LK38 |
| LK6M302S | 3.2 | 3.3 | 2.3 | 2.3 | 39 | 10.1 | 3.1 | 300*2 | 2040 | 5 | 0.84 | 170 | 13.6 | 3000 | 1/2 | 7/8 | 28 | LK38 |
| LK4M303S | 4.0 | 4.1 | 2.7 | 2.7 | 39 | 10.1 | 3.1 | 300*3 | 3450 | 7 | 1.26 | 255 | 13.6 | 3000 | 1/2 | 7/8 | 32 | LK39 |
| LK6M303S | 4.9 | 4.9 | 3.2 | 3.3 | 58 | 15.1 | 4.6 | 300*3 | 3060 | 6 | 1.26 | 255 | 20.5 | 4500 | 1/2 | 7/8 | 40 | LK39 |
| LK6M304S | 5.9 | 6.0 | 3.8 | 3.9 | 71 | 18.4 | 5.6 | 300*4 | 4000 | 8 | 1.68 | 340 | 24.5 | 5400 | 1/2 | 7/8 | 52 | LK40 |

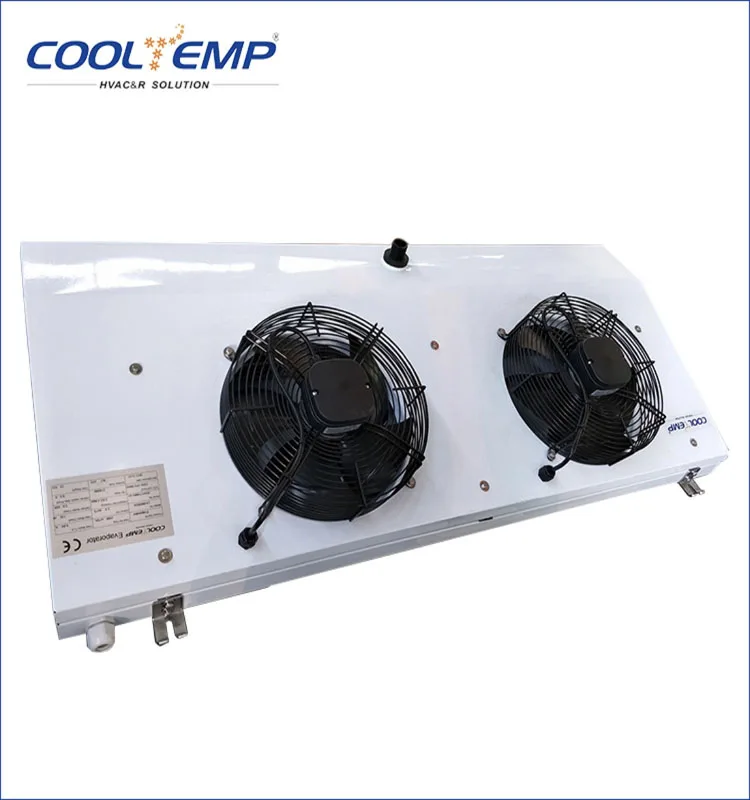

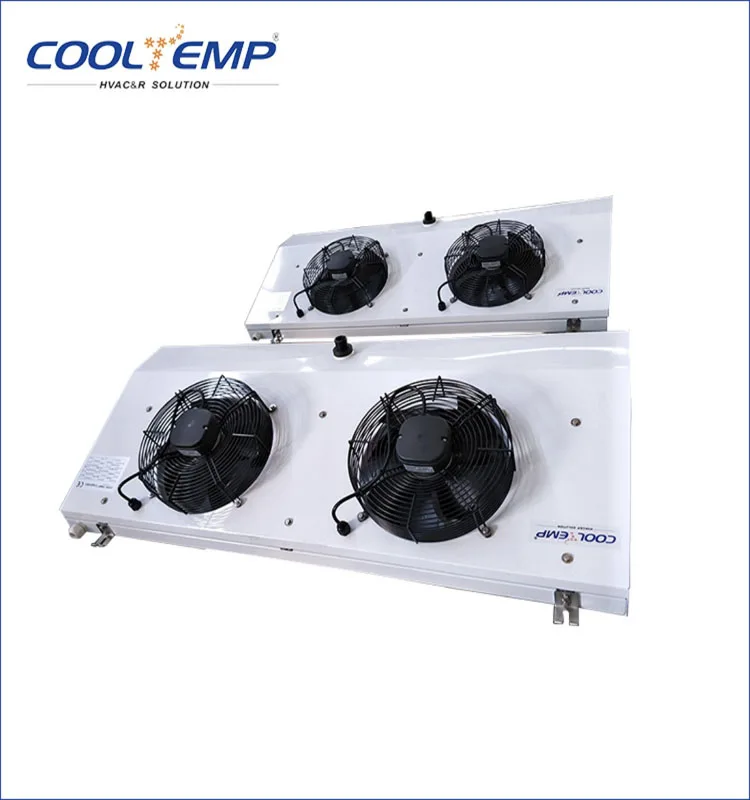

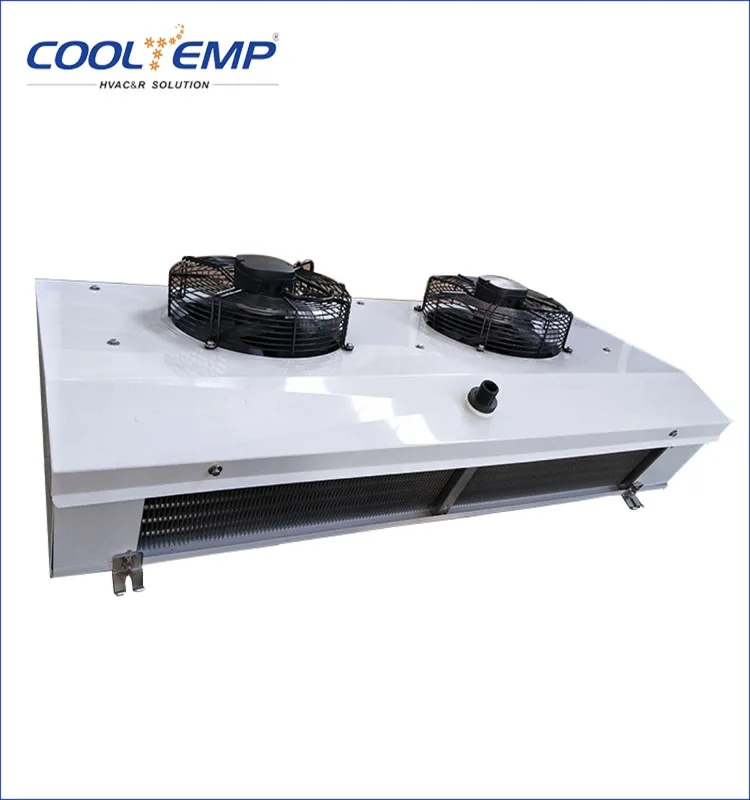

Pictures of product
Why We Say We Should Be Your Preferred Supplier ?
Service:
We put our Customer first no matter Big or Small,Your Business is most important
to us We are here to support you.
Technology
With the support of a Competent R & D team giving strong technical support
to help you make your job more easy.
Factory Equipment
We have a fully fitted factory for sheet metal processing offering a range of
materials to suit what the Customer demands are;
Coil heat exchanges manufacturing offering range fin profiles and material
required from bare type to hydrophilic fin coil(blue fin) where corrosion control
is required;
Inner grooved copper tube and smooth copper tube optional ; Vertical Tube
Expander Machine and Tunnel Dryer Machine to get efficient and make sure
our high quality products; Fully painting service either our standard choice
Blue ,Green,Black,White or Customized to your Choice.
Sales Marketing
Are Customer Focused Solve Purpose of bringing you an easy pleasant
company to deal with.
Factory Location Advantage
We are closed to Shanghai, Ningbo,Hangzhou,Yiwu etc City ,it takes around
1.5-3 hours to our factory from one of those cities by car, and it takes 2 hours
from Guangzhou/Shenzhen to our airport(Hangzhou xiaoshan airport),Warmly
welcome to visit Us When you are available,thank you !
Related Products
Our Services
Delivery time:
15 working days after the payment
MOQ:
—1 set
—If order more, the price will be more favorable
FAQ
Question:Are you a factory or a trading company?
Answer: We are a factory
Question:Where is your factory located?
Answer: Our factory is located in shengzhou city,zhejiang province you can go there by plane to Hangzhou international airport, it is about 100km from airport to our factory.
Question:Can we do our OEM logo?
Answer: Yes, we can do OEM logo for you.
Question: What is the main market for your products?
Answer: Our main market is in Southeast Asia, South America, Europe and USA.
Question: What is your warranty?
Answer: We can assure you one year against manufacturing defect.
Welcome to contact us for more details!
Похожие товары

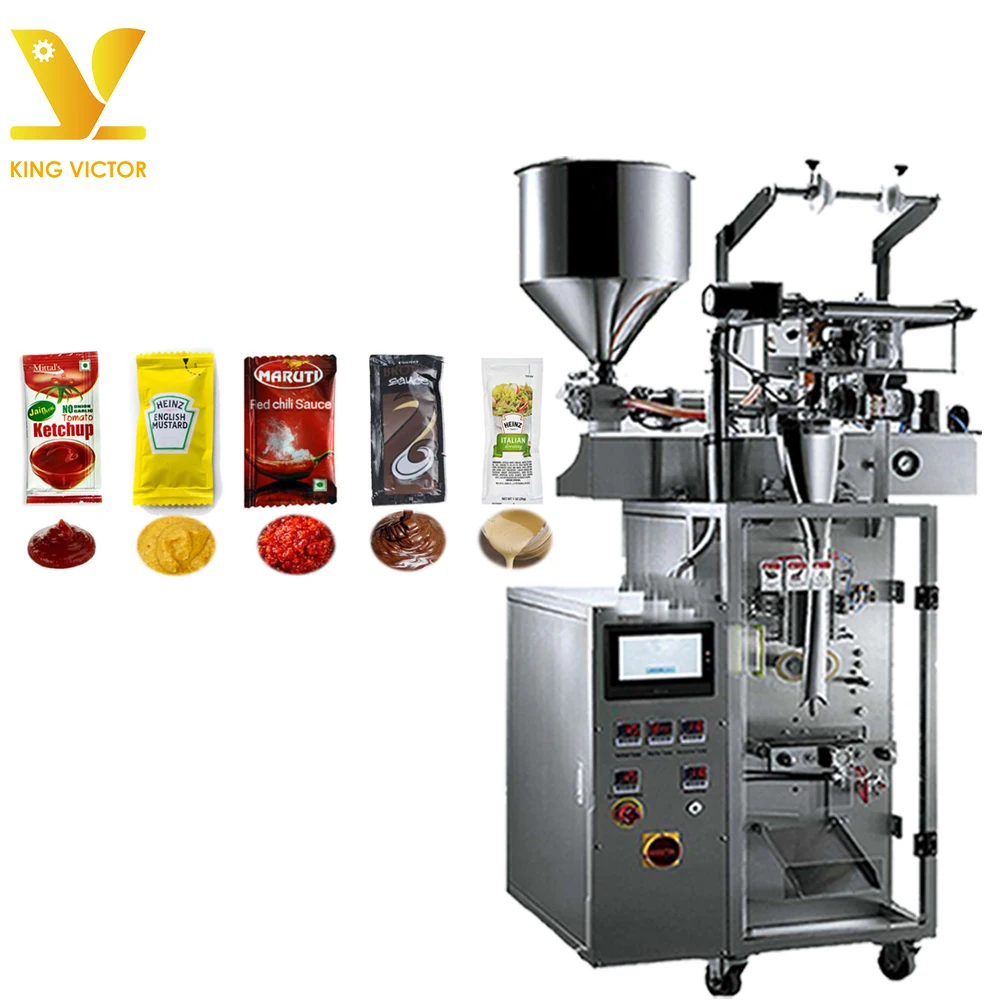

Автоматическая вертикальная упаковочная машина для томатной пасты
3 100,00 $ - 3 600,00 $

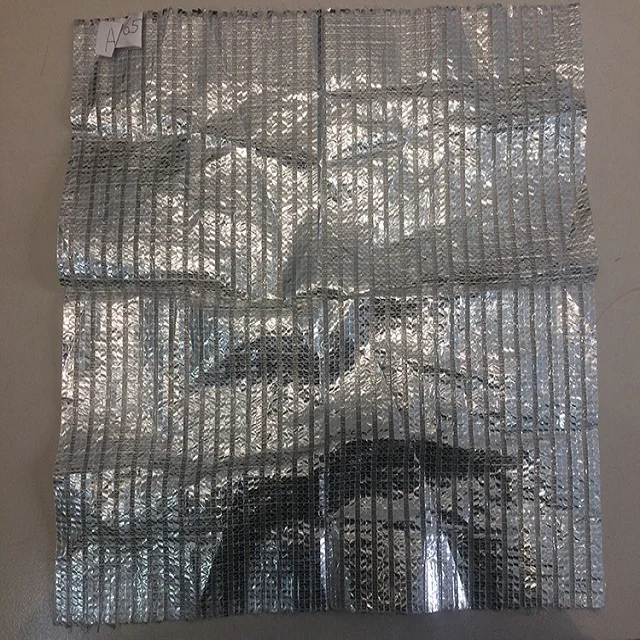

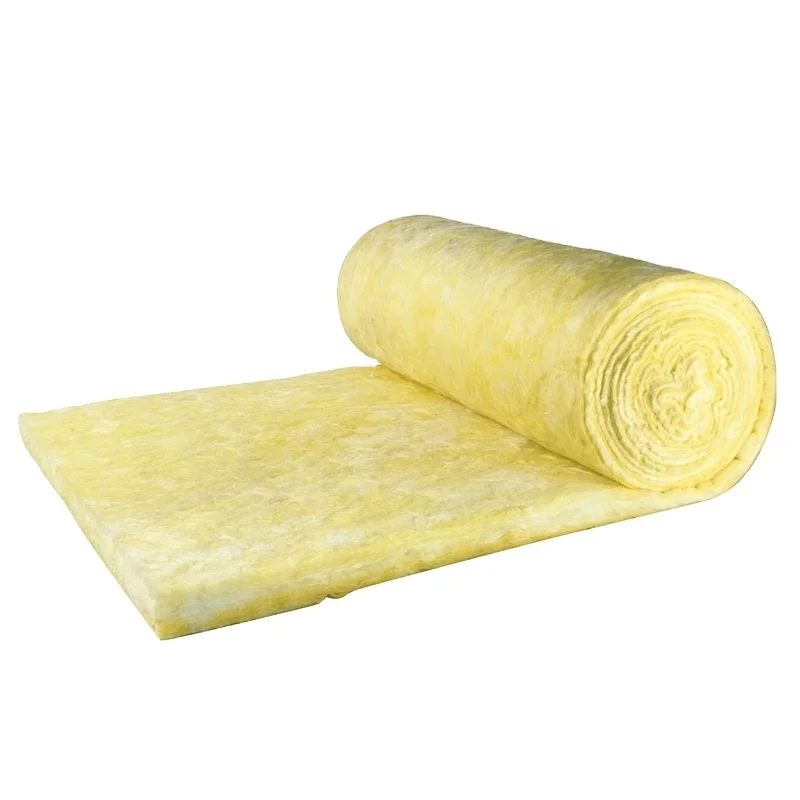

Дешевые холодные и теплоизоляционные рулоны алюминиевой фольги из стекловолокна fsk
2,00 $
Горячая Распродажа Linde HPR-280 HPR-280-02R Гидравлический поршневой насос запчасти для CAT140G CAT16G
298,00 $ - 300,00 $

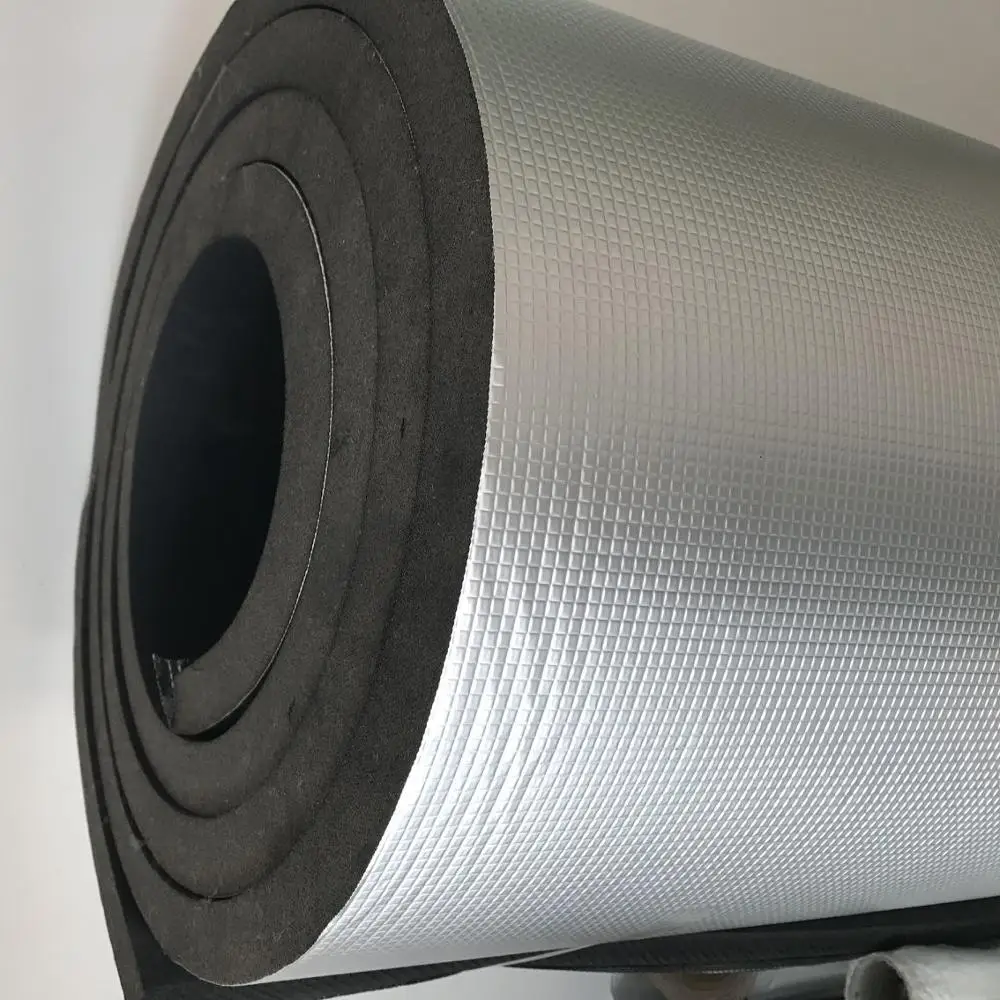

Листы из резиновой пены, изоляционные Листы Из резиновой пены с алюминиевой фольгой
23,00 $ - 30,00 $

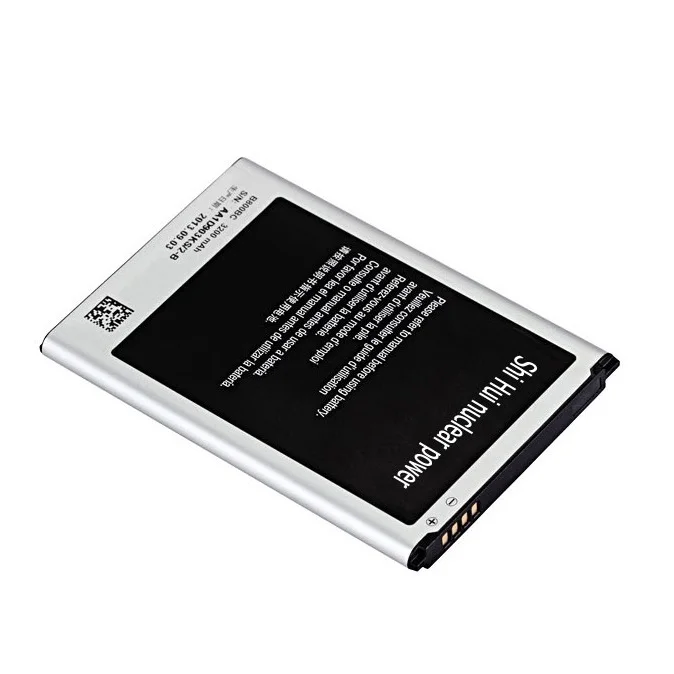

Лидер продаж, перезаряжаемый литий-ионный аккумулятор для телефона, мобильные Аккумуляторы для Samsung Note 3 N9000 N9005
2,25 $ - 2,45 $

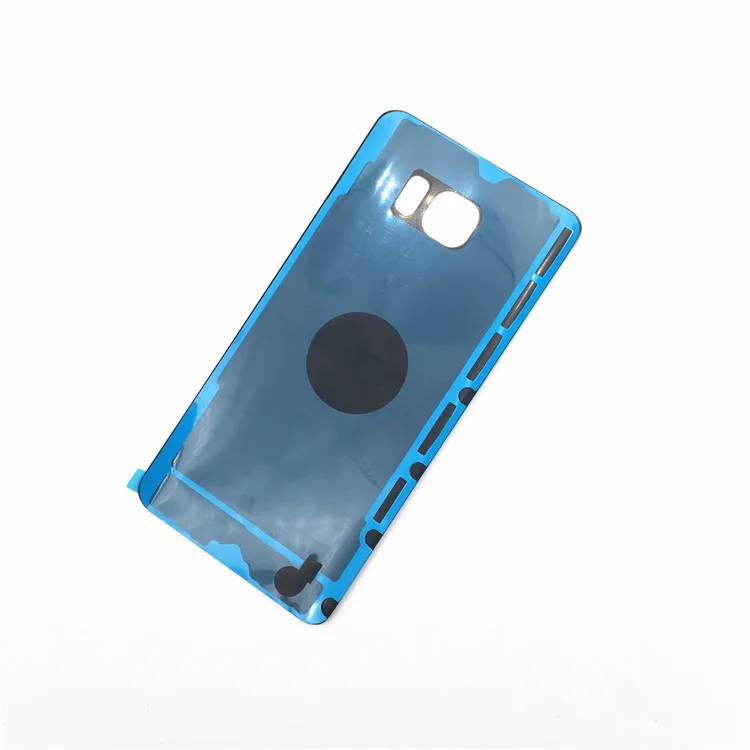

Запасные части для мобильного телефона, задняя крышка корпуса для Samsung Galaxy Note 5 6 7 8 9, крышка аккумулятора с объективом камеры, наклейка 3M

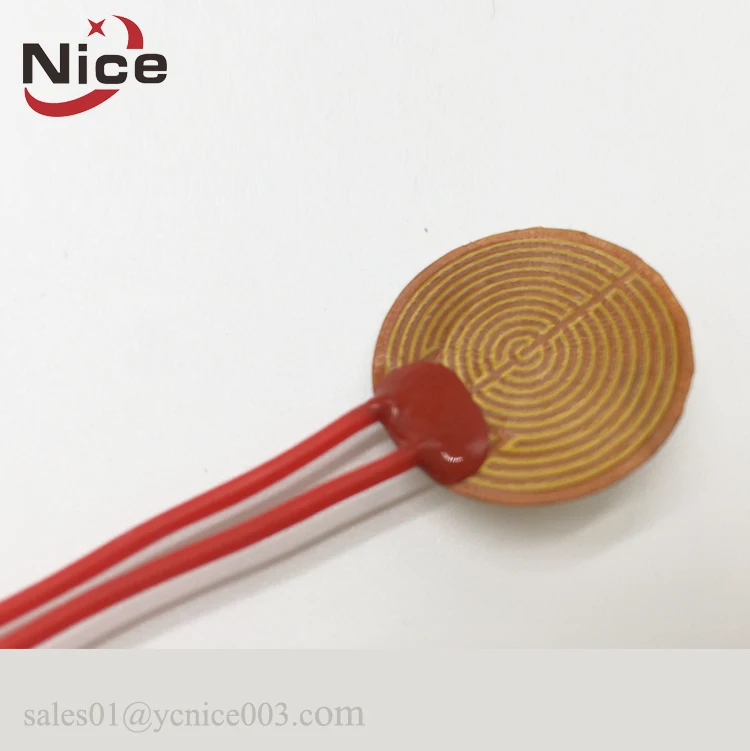

Круглый нагревательный элемент kapton из фольги с гравировкой 24 В
