ZM-R7830A Automatic BGA rework station introduction:

ZM-R7830A is a high end automatic optical BGA rework station support Air source , including compressed air and nitrogen, is changed freely to meet repairing requests.

It can repair the motherboard in high quality and high precision, reduce possibilty of the PCB board burn or turn yellow during the rework process.mobile phone repair equipment

ZM-R7830A BGA rework station support nitrogen & compressed air, especially suit for repair BGAs, CGA's, CSPs, QFPs, LGA's and Other SMDs.

The ZM-R7830A main repairing process including 3 parts:

1. Automatic desolderingthe BGA– Remove.mobile phone repair equipment
2. Semi- Automatic alignment the BGA – Mount.mobile phone repair equipment
3. Automatic solderingthe BGA- Solder.mobile phone repair equipment

After finish the 3 process, the motherboard repairing finished.

Beside the BGA rework station, we also manufacture the X-ray inspection machine. We can use the X-ray machine to test & analyze the rework quality for your viewing. It works perfect.mobile phone repair equipment

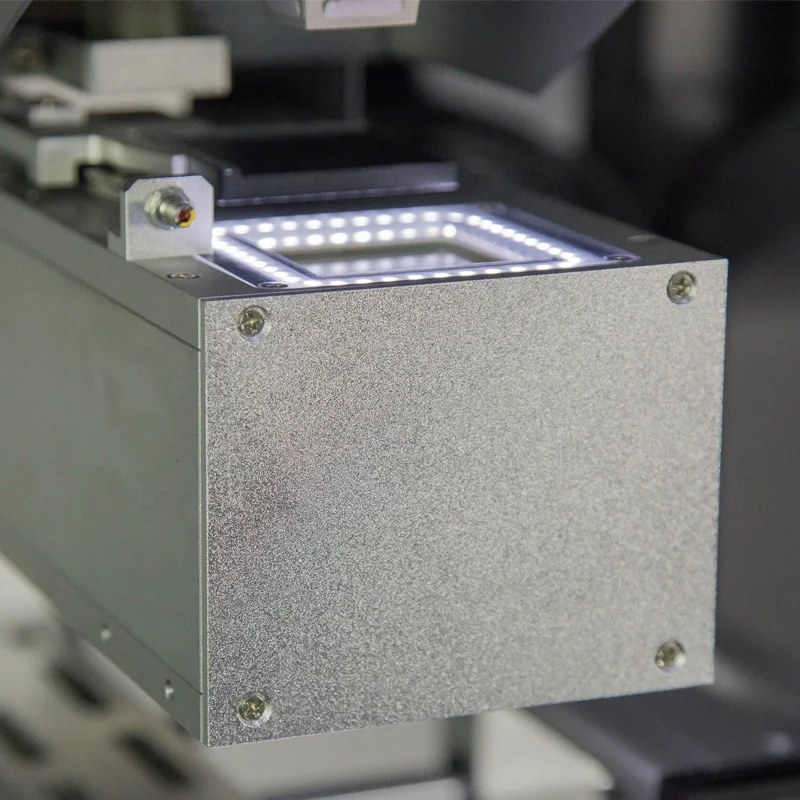

Adjustable CCD color optical system mobile phone repair equipment

High automatic can avoid human error, can repair the lead-free socket 775 and double deck BGA chipset very well.mobile phone repair equipment

Q: What kind of company will need the desktop high precision computer control Optical BGA rework station?mobile phone repair equipment

R: There have no specific definition. But this automatic BGA rework station ZM-R6823 has been sold to many company to repair the high value motherboard, they have STRICT requirements for the Rework quality and efficiency and they have stable enough quantity that need to be repaired. It is a machine worth investment, because it can be used for 6-10 years if you use it in the proper way.

Basic parameters of the Automatic BGA rework station ZM-R7830A:

1. Power:            AC 380V 50/60Hz mobile phone repair equipment
2. Total Power:     Max 5800W mobile phone repair equipment
3. Heater power:   Top heater 800W bottom 800W IR 4000W mobile phone repair equipment

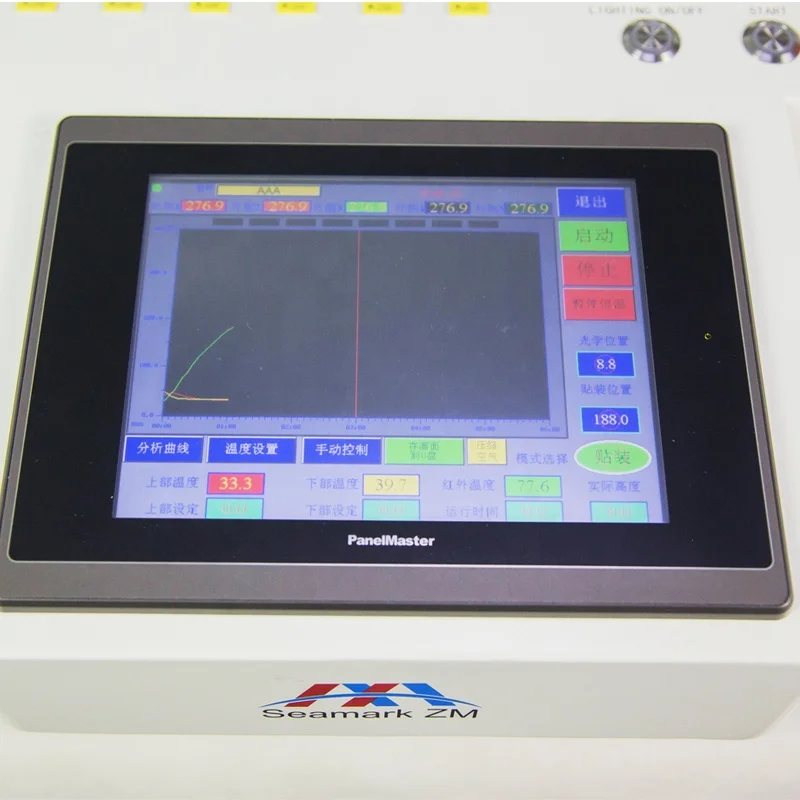

4. Electrical materials: Servo Drive( Panasonic)+10”Touch screen+Panasonic PLC+
                                Precision Thermal control system
5. Temperature control: K-type thermocouple (Closed Loop)reballing machine
6. Positioning:       V-groove, PCB support + laser automatic positioning
7. PCB size:           Max 560×470mm Min 15×20 mm mobile phone repair equipment
8. BGA chip:           Max 80×80mm Min 2×2 mm mobile phone repair equipment
9. Dimensions:       L760×W850×H950mm(LCD stand not included)
10. Sensors:          6pcs mobile phone repair equipment
11. Weight:           149kg mobile phone repair equipment
12. Color:              Silver white+blue mobile phone repair equipment

Advantage of the Automatic BGA rework station ZM-R7830A:

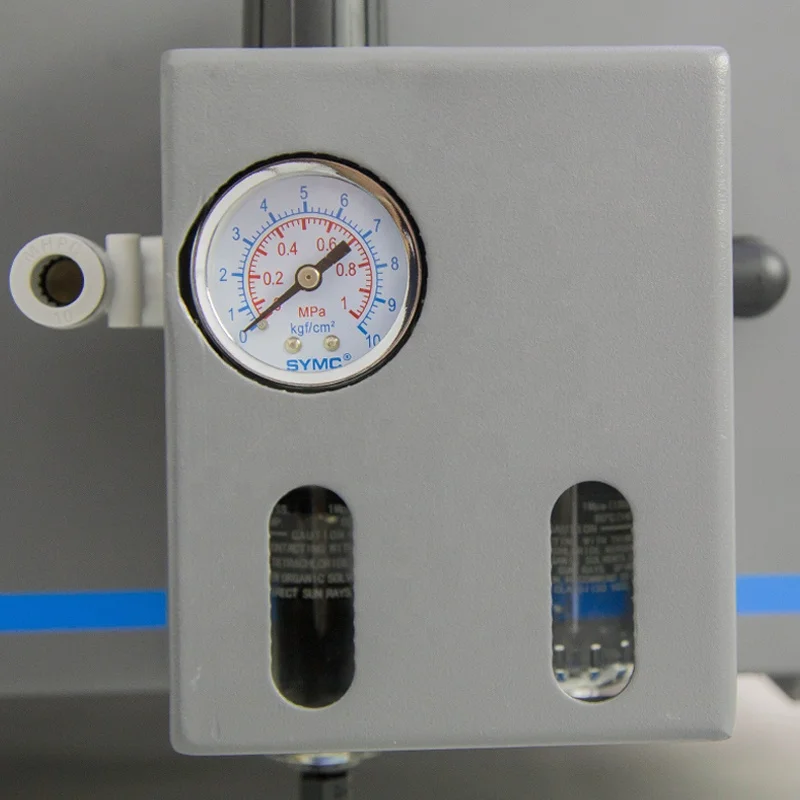

1. Air source support, including compressed air and nitrogen, is changed freely to meet repairing requests.mobile phone repair equipment



2. It is convenient to use bottom heater and top heater in the meantime by the system of synchronized operation and electric lift.mobile phone repair equipment

5. It can save multiple groups profiles, and analyze, set and reverse the temperature curves at any time.mobile phone repair equipment

7. Flexible and removable universal fixturehas protective effects and no damage to the PCB board, suitable for all kinds of sizes of BGA repair.mobile phone repair equipment

8. With CE certification, emergency button and abnormal incident power off automatically protect device.mobile phone repair equipment

9. Temperature parameter has a passwordto avoid any arbitrary changes.



Automatic hot air BGA rework station ZM-R7830A Demo Video Link:



https://youtu.be/TM4FKX_cHDw



Seamark ZM Company Introduction:

https://youtu.be/SQx3hsAiEHg



Packing & Shipping of ZM-R7830A BGA Rework Station:ic replacement machine

1. Standard export wooden package for bga rework station.mobile phone repair equipment
2. Delivery within 10 business days after payment confirm;mobile phone repair equipment
3. Shipping by air or by sea.mobile phone repair equipment
4. Loading Port: Shenzhen or Hongkong.automatic BGA rework station
Currently Zhuomao is the biggest Smart BGA rework station manufacturer in China.mobile phone repair equipment
Part of testing Workshop:ic replacement machine

We have different ranges of bga rework station for your selection.
We can customize the BGA VGA LED SMD rework station according to your requirements.mobile phone repair equipment
