Single use PDF temperature data logger TempU02

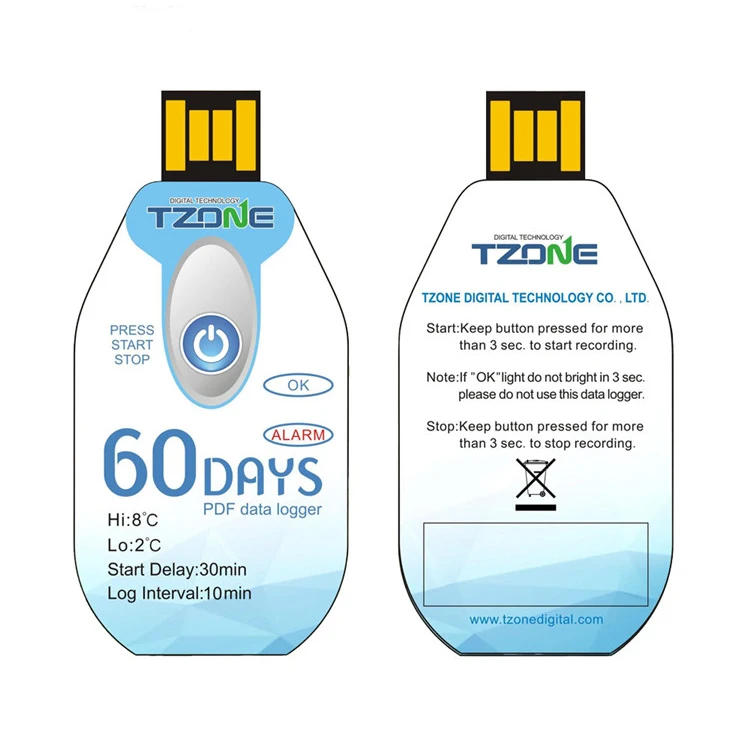

The TZONE single use PDF temperature data logger TempU02 is ideal for monitoring the transporation of pharmaceuticals, food and other temperature sensitive products.

Include the TempU02 in shipping containers or packages to create a time-based history of the conditions experienced so you can monitor and safeguard your product. The compact, lightweight, waterproof and flat design allows it to fit inside any package.

No special software or driver is required for set-up or download of data, just plug-n-play! On completion of data logging, a PDF report is automatically generated containing data summary, graph and tabular results.

Specifications

* Compact, single-use temperature logger
* No Special Software or Driver Required for Programming and Download

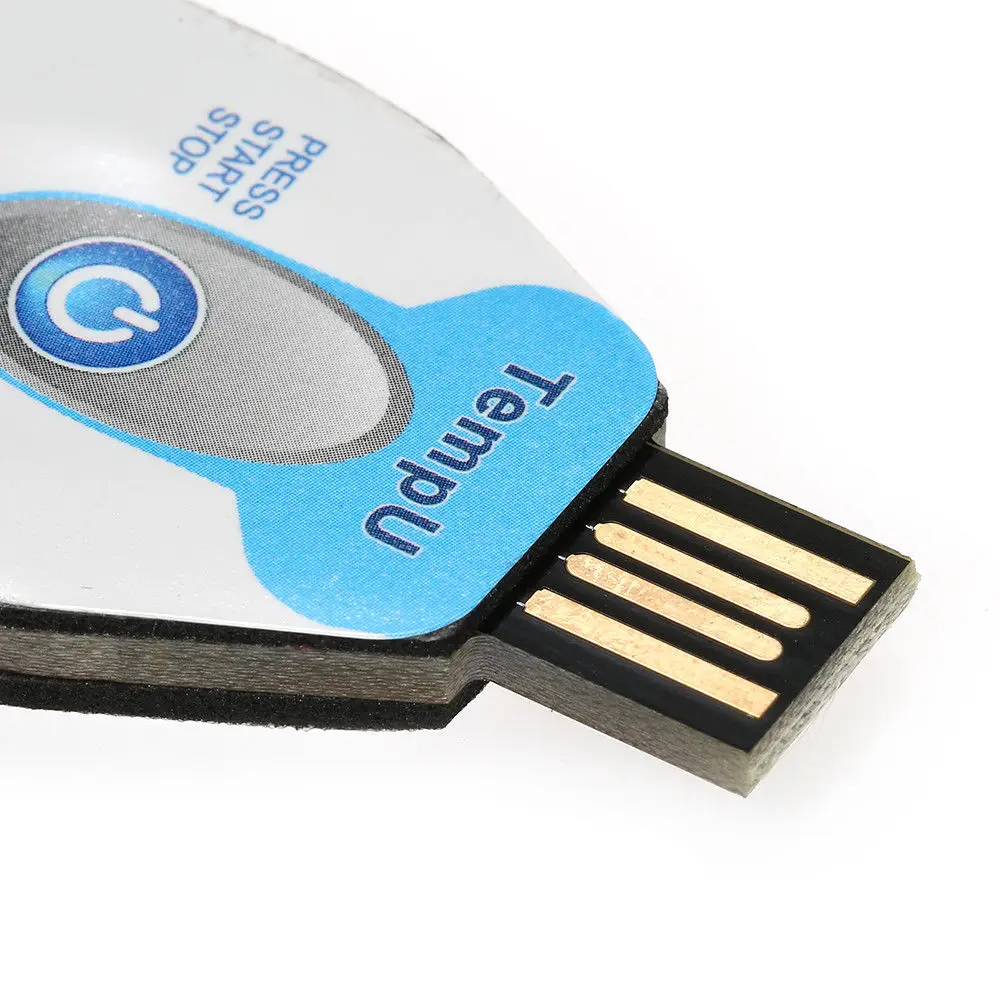

* Built-in USB connector, no special reading device
* PDF reports in °C scales (°F optional)
* Plug-and-Play USB 2.0 Interface
* Automatically cenerates a PDF report while connected to PC
* PDF report contains summary, graph and detailed data list

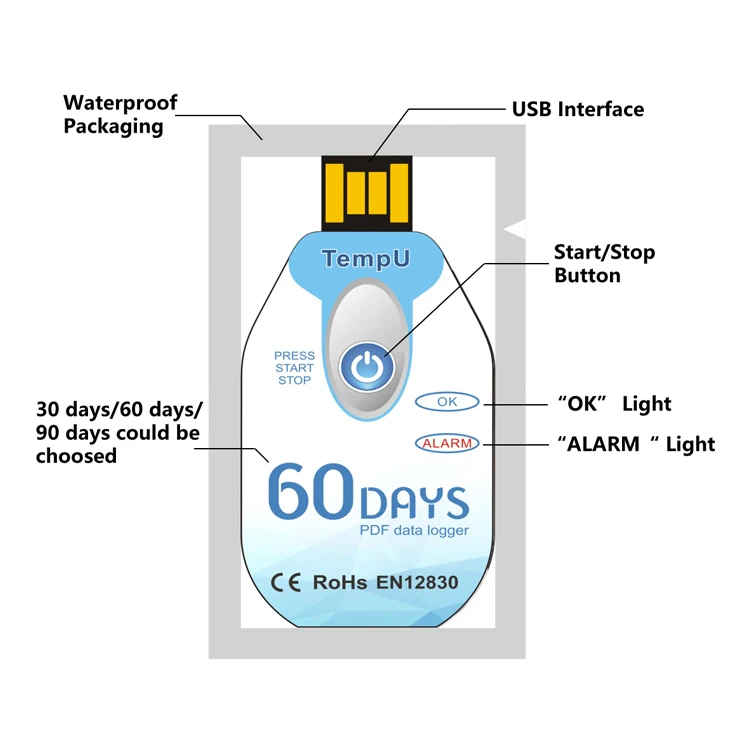

Operating Instructions:

1. Press and hold the button more than 3 sec. then the "OK"light will brighten in 3 sec., which indicates a successful starting, then you can put the data logger in the place where you want to monitor and record.
2. When logging, the "OK" LED will flash in green every 10s, if there are no any alarm events happened. Or the "ALARM" LED will flash in red every 10s, if there are any alarm events happened.
3. When the memory full or press and hold the button for more than 3 sec. the "ALARM"light will brighten in 3 sec., which indicates a successful stopping.

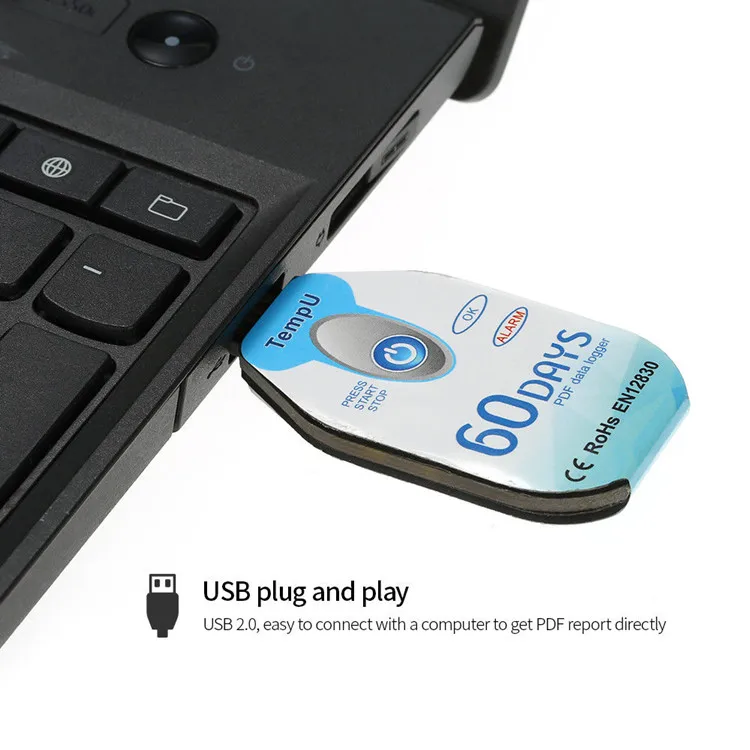

4. Tear or cut off the plastic bag and insert the logger into an available USB port on a PC. "OK"light and "ALARM"light will flash in turn when a PDF is generating. When PDF has generated, the"OK"light will bright until pull out from the USB port.
