Parking lot sensor ultrasonic sensor detector

Anxia ultrasonic parking lot sensor is used to detect weather the vehicles is being or not with the set distance by the way of ultrasonic reflection. The work principle is according to the ultrasonic which was send from up to down by the ultrasonic sensor, detect exactly weather every parking lot is occupied or not and the information will be sent at last.

Features

♦ Industrial design

♦ Advanced ultrasonic detect mode,for parking lot space vehicle real-time detection.

♦ The advanced way of detection is used. the misforecast question caused by the outside disturbance or the environment changing is hard to be happened like the other detection way of infrared way or microwave

♦ With Highly Anti-disturbance capability to avoid wrong judgment

♦ Easy to install and maintain

♦ The adjustable height range is 1.0m to 3.5m

♦ The height brightness diode indicator light indication detective status

♦ 1S or 5S of sign output delay can be choosing through the outer switch

♦ Apply RS485 communication,max.connect 32pcs ultrasonic sensors.

Technical data

Status And Instruction

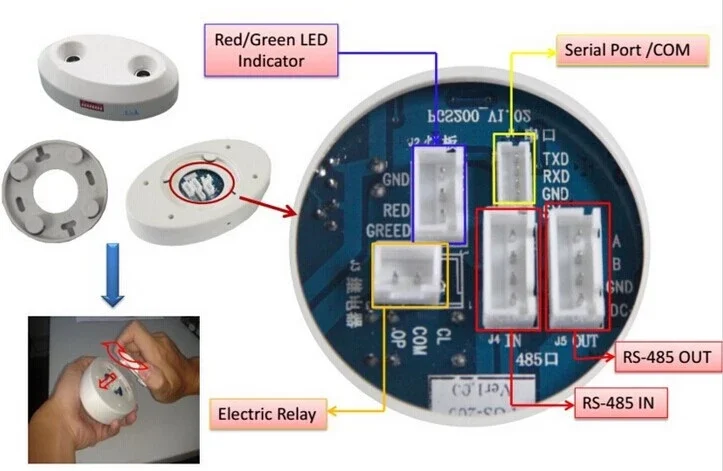

Light Indicator

♦ After power on, power indicator red lighted;

♦ When the ultrasonic sensor does not send or receive normal, the status lights (State / Green) blinking 15 times a second;

♦ When the ultrasonic sensor to send and receive all normal, but no vehicles, communications normal, the status lights (State / green) three times a second, blinking;

♦ When the ultrasonic sensor to send and receive all normal, but no vehicles, no communication, the status lights (State / Green) blinking a second;

♦ When the ultrasonic sensor to send and receive both normal and a car, the status lights (State / Green) has been bright.

Alarm Distance Setting

When the vehicle in place, distance is less than the default of distance, an external LED lights red, green or external LED lights, from the RS-485 interface receiver established by the address (such as A01, A13 (ASCII code), see shell label, pulling switches codes established by the address, see address settings), issued after receiving the correct address spaces occupying state data (00 H (16 hexadecimal) Parking space, 01 H (16-band) that occupying parking spaces).

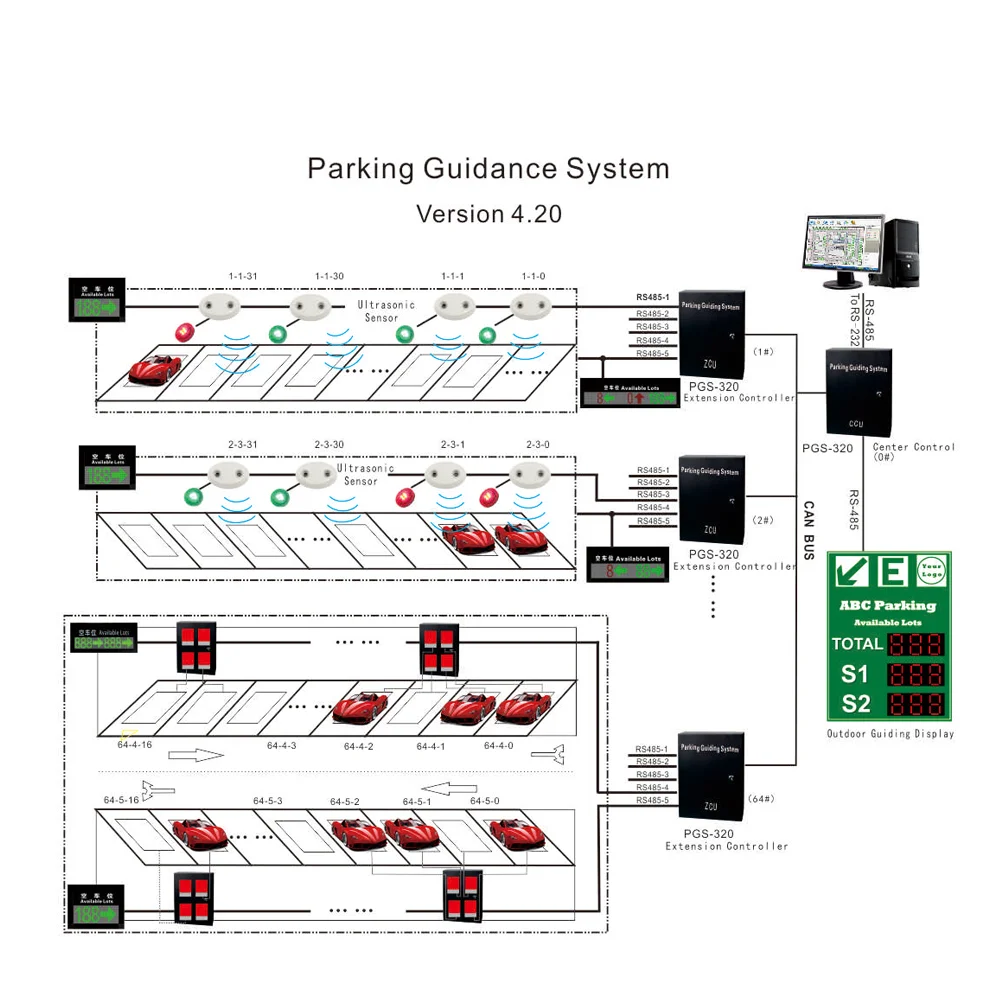

Parking lot guidance system configuration list:

1) Ultrasonic Detector/ Indicator

Installed above every lots, use ultrasonic ranging principle collecting real-time status information of every slots and transmit these information to collection terminal;

Installed in front of each slots and connected to the ultrasonic detectors, it will be red when there is one car; it will be green when there is no car. The driver can find empty slots quickly guided by green lamp.

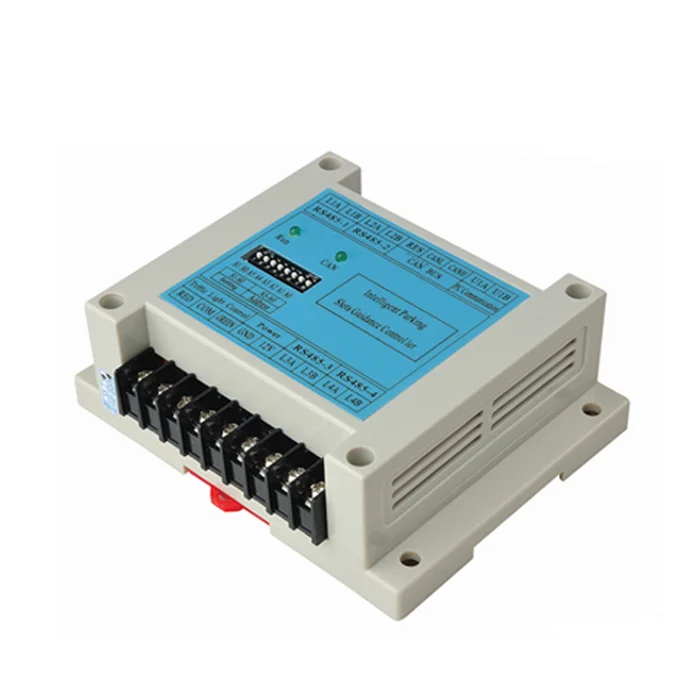

2) Lots Guidance Controller

Parking guidance controller is the important part of system. It’ s used to manage ultrasonic detector as group and circularly inspect detector information monitored by it. Then it will real time transmit related information to centre controller. One PGS-320 has 5 lines RS-485 bus; every line of RS 485 can connect 32 units of ultrasonic detector. One PGS-320 can control maximum 160 units of ultrasonic detector.

Data center is the core of the whole system, and terminal number is 0#. It is mainly used in parking lot to handle and process slots data, and then it transmit the processing results to LED guide screen showing slots information. By CAN bus, one data centre can control less than 62 units of slots guidance controller. It can be connected to PC terminal, and also can be independent offline operation.

3) Indoor LED Guidance Display

With a dynamic digital and fixed words real-time displaying mode, it receive and display the empty slots information sent by the data center real-time. It can work 24 hours. Can set up different address to show empty slots information in different area, and the arrow can be set eight directions.

4) Outdoor Entrance LED Guidance Screen

Outdoor LED display is made by high brightness LED module, drive circuit, control circuit, bracket and so on. with a dynamic digital and fixed words real-time displaying mode, it receive and display the empty slots information sent by the data center real-time. It can work 24 hours and can set up different address to show empty slots information in different area.

The software is optional. After one time setting, it do not need to connect to computer when you do not need record the data. Digital maps is embedded into software, which directly reflect the use of the parking slots It can analyze traffic flow and utilization rate as time period according to real-time collection data.

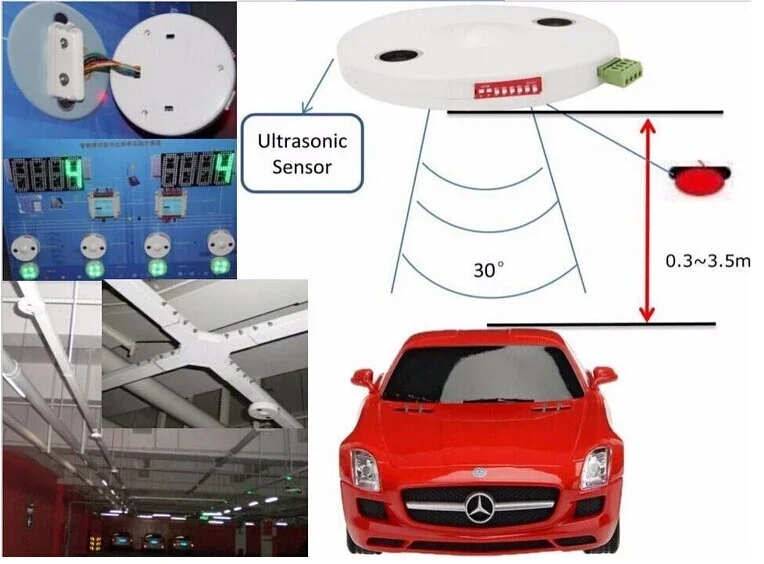

Parking lot ultrasonic sensor system photo:
