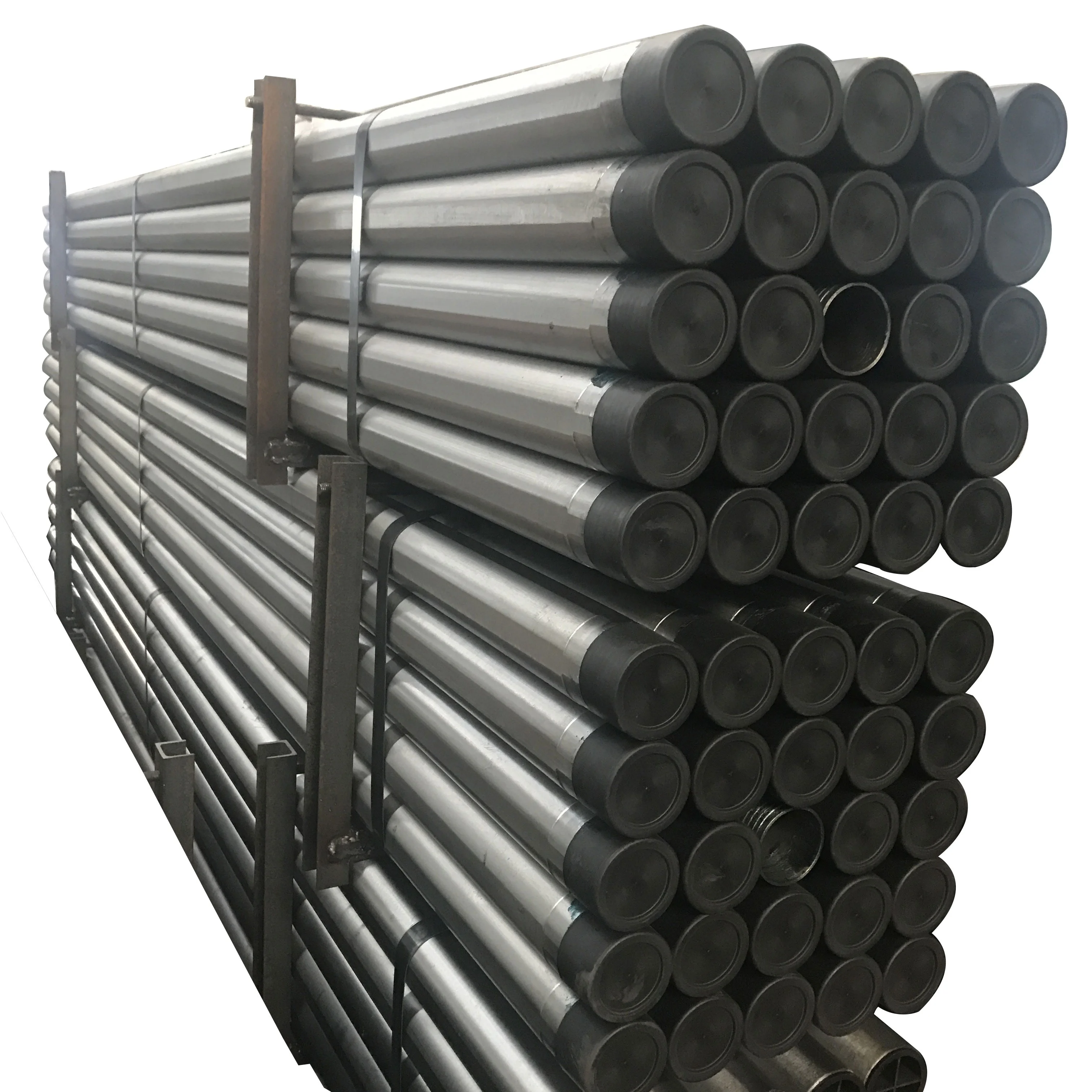

Сверлильное оборудование Двухтрубная проволочная линия NQ HQ PQ сердечник
66 125,04 ₽
Рыболовные инструменты Api опускающие копье аксессуары сегментный Грейфер для нефтяных месторождений
- Категория: >>>
- Поставщик: Dongying Kangya Petroleum Equipment Co. Ltd.
Сохранить в закладки 62133655542:
Описание и отзывы
Характеристики
Product Description
Product Application

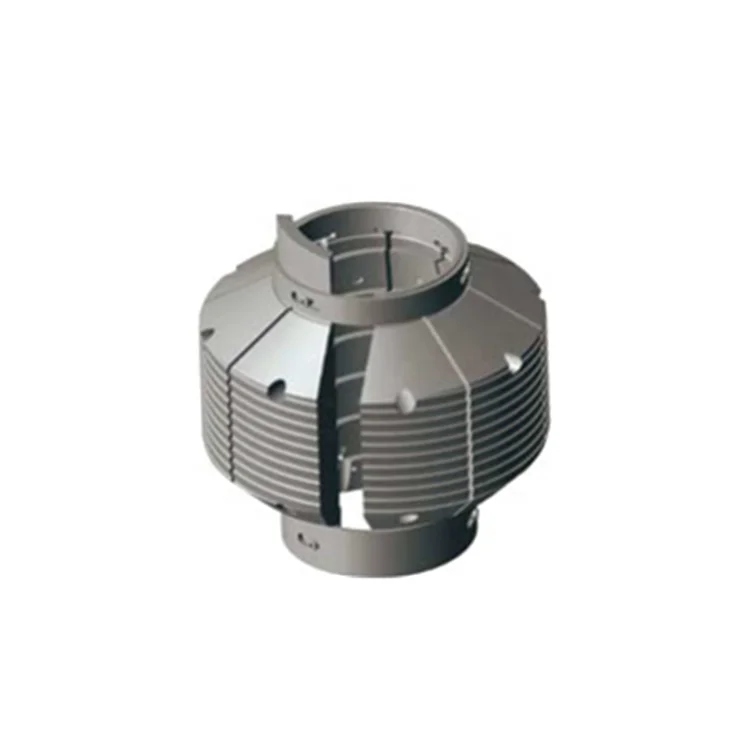

Segment-Type Spear Grapple
The Segment-Type Spear Grapple enhances the spear's usefulness by providing an extended catching range beyond the maximum range of the standard one-piece grapple. Our Segment-Type Spear Grapple is used in place of the standard one-piece Grapple on the 9 5/8" Spears to convert them to spears capable of engaging up to 20" Casing
Segment-Type Spear Grapple consists of a grapple body, eight grapple segments, two retainer rings, six retainer ring screws, six retainer ring spacers, and sixteen grapple segment screws.
The Segment-Type Spear Grapple enhances the spear's usefulness by providing an extended catching range beyond the maximum range of the standard one-piece grapple. Our Segment-Type Spear Grapple is used in place of the standard one-piece Grapple on the 9 5/8" Spears to convert them to spears capable of engaging up to 20" Casing
Segment-Type Spear Grapple consists of a grapple body, eight grapple segments, two retainer rings, six retainer ring screws, six retainer ring spacers, and sixteen grapple segment screws.

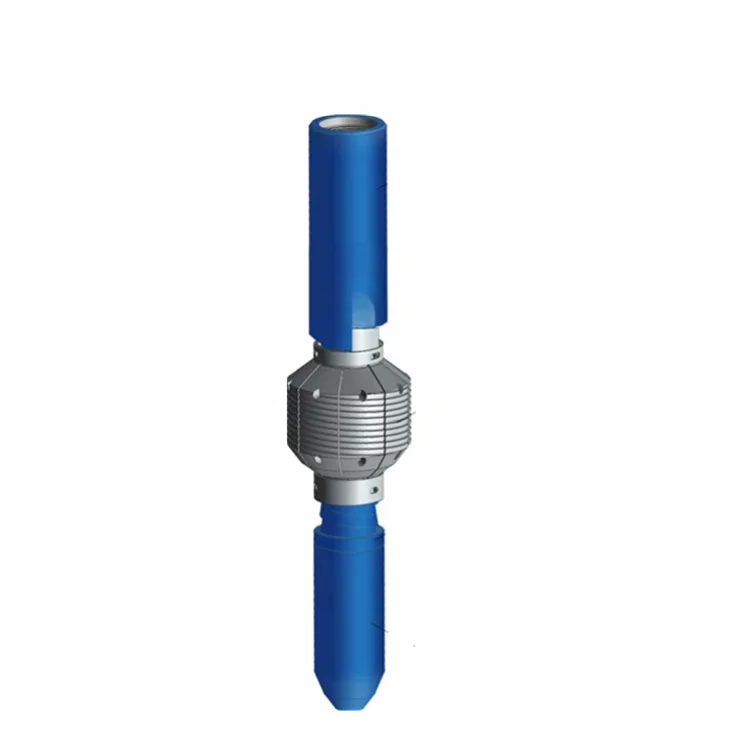

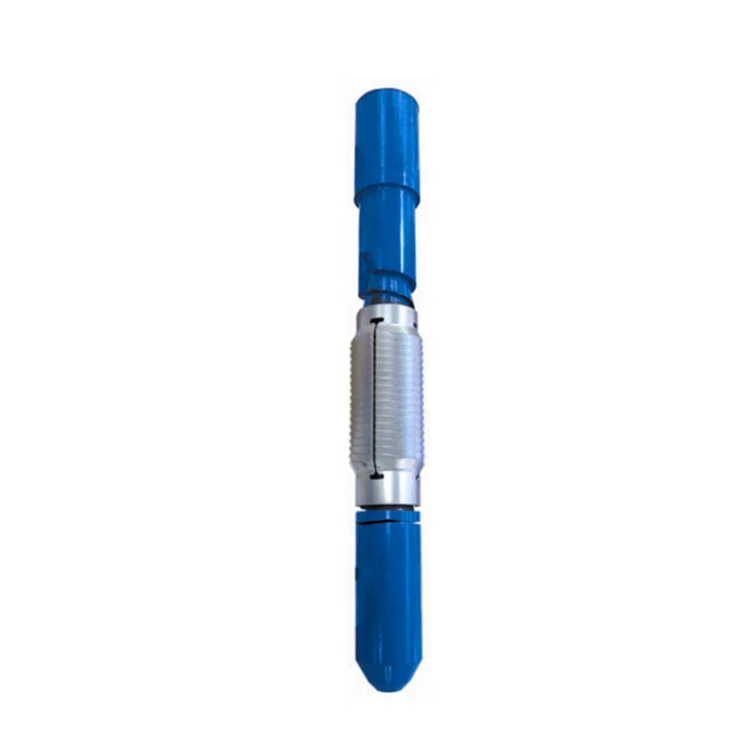

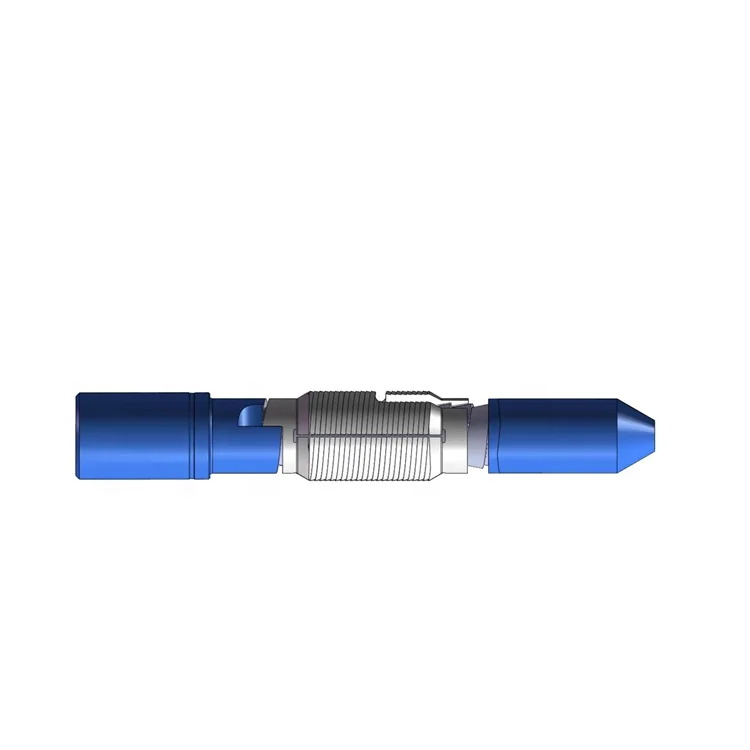

Our Releasing Spear provide a positive means to engage and retrieve an internal fish from the well. It is ruggedly built to withstand severe jarring and pulling strains. It engages the fish over a large area without damage of the fish. The simple design avoids the problem of small parts lost or damaged in the hole when operation. It may be used with other equipment such as pack-off assemblies and internal cutters. If the fish cannot be pulled, the spear may easily be released and disengaged.
Construction
The Releasing Spear consists of a mandrel, grapple, releasing ring, and a bull nose nut.The mandrel is made of specially heat treated high strength alloy steel; and may be ordered either as a flush type to enter completely into a fish or as a shoulder type to provide a positive landing position on top of the fish. Size and type of the upper box connection is provide according to customer's exact specification.
When order please specify:
The model of the releasing spear.
Top connection
The exact size and weight of the fish
Flush or shoulder type mandrel
Construction
The Releasing Spear consists of a mandrel, grapple, releasing ring, and a bull nose nut.The mandrel is made of specially heat treated high strength alloy steel; and may be ordered either as a flush type to enter completely into a fish or as a shoulder type to provide a positive landing position on top of the fish. Size and type of the upper box connection is provide according to customer's exact specification.
When order please specify:
The model of the releasing spear.
Top connection
The exact size and weight of the fish
Flush or shoulder type mandrel
Model | Mandrel O.D (mm) | Catch size (mm) | ThreadConn. | Allowed Load (KN) |
LM-T60 | 89 | 47.4-51.8 | NC26 | 270 |
LM-T73 | 105 | 57.4-62 | NC31 | 380 |
LM-T89 | 121 | 70-77.8 | NC38 | 650 |
LM-T102 | 121 | 82-90.1 | NC38 | 800 |
LM-T114 | 121 | 92.4-103.9 | NC38 | 1000 |
LM-T127 | 162 | 102-115.8 | NC50 | 1300 |
LM-T140 | 162 | 118.6-127.3 | NC50 | 1500 |
LM-T168 | 162 | 140-153.7 | NC50 | 2200 |
LM-T178 | 162 | 150.4-166.1 | NC50 | 2200 |
LM-T194 | 165 | 168.3-178.5 | NC50 | 2300 |
LM-T219 | 203 | 190.8-205.7 | 6 5/8 REG | 2300 |
LM-T245 | 203 | 216.8-228.7 | 6 5/8 REG | 2500 |
LM-T273 | 203 | 240-258.9 | 6 5/8 REG | 2500 |
LM-T340 | 203 | 313.6-323 | 6 5/8 REG | 2500 |
Certifications
Packing & Delivery
Company Profile
Dongying Kangya Petroleum Equipment Co.,Ltd.is a professional manufacturer and supplier of all types of petroleum equipment.The company is located in Dongying, the beautiful petroleum city at Yellow River Delta, covers an area of more than 330 million square meters.
And we have many years of history in the petroleum equipment industry.Our main products include drilling equipment,oil production equipment,wellhead equipment,well control equipment,downhole tools,OCTG pipe,\tvavle & pipe fitting and oilfield tools.
Currently,our products is already exported to America, Middle East, Australia,Africa and 20 other countries and regions.
Our company has always focused on research, development and innovation.Kangyapetro will initiate the second phase of our development strategy.Our company regards "reasonable prices, efficient production time and good after-sales service" as our tenet. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.
FAQ
1) How can I place order?
A: You can contact us by email about your order details, or place order on line.
2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T and Western Union are the most usual ways we are using.
3) What's the order procedure?
A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 15-25days if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
4)How do you take care when your clients received defective products?
A: replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.
5)How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
Related Products
Releasing Spear
91.8% Response Rate
Taper Tap and Die Collar
91.8% Response Rate
Series 150 Overshot
91.8% Response Rate
Похожие товары
Цена бурового сердечника размера H цена N
33 062,52 ₽ - 55 104,20 ₽
BQ NQ HQ PQ головка в сборе для буровых стволов наружная труба сборка алмазных сверлильных инструментов
22 041,68 ₽ - 36 368,78 ₽
Геологическое исследование проводное бурение двухтрубный сердечник
36 368,78 ₽
Высококачественная Двухтрубная Алмазная головка HQ BQ NQ
17 192,52 ₽ - 39 675,03 ₽
Внешняя труба для ствола сердечника 3 0 метра длина Hq в сборе 5 футов тройной бурового долота
3 306,26 ₽ - 5 510,42 ₽
BQ3 трёхтрубный стержень с тройным сердечником аксессуары для сборки головки
5 510,42 ₽ - 22 041,68 ₽

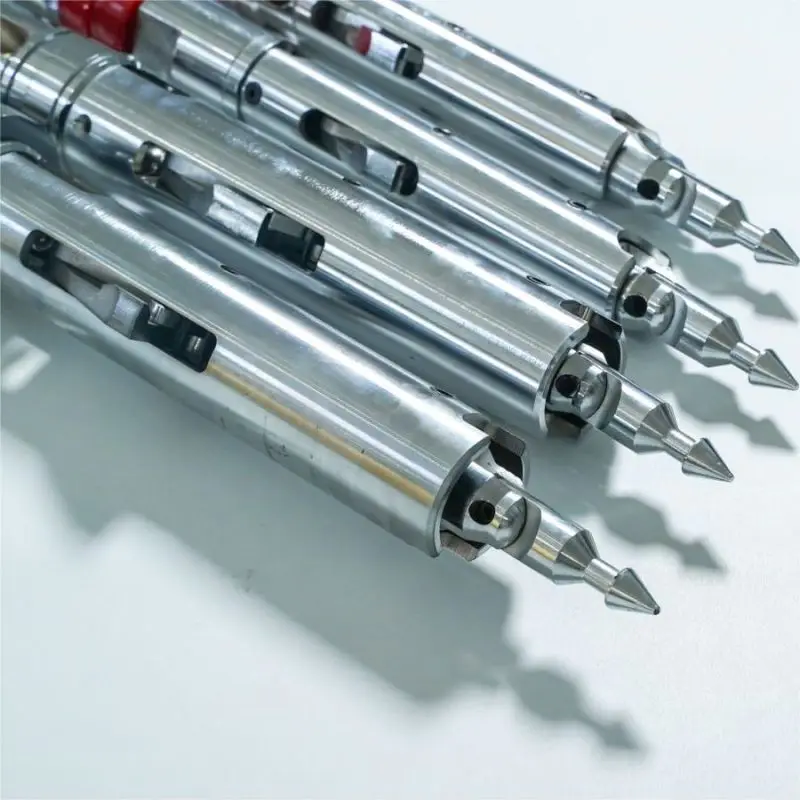

NQ3 HQ3 core barrel system NQ HQ PQ BTW NTW
