Design For 4G LTE System
YY-824/2170-10D-SMA
Standardized Process Features

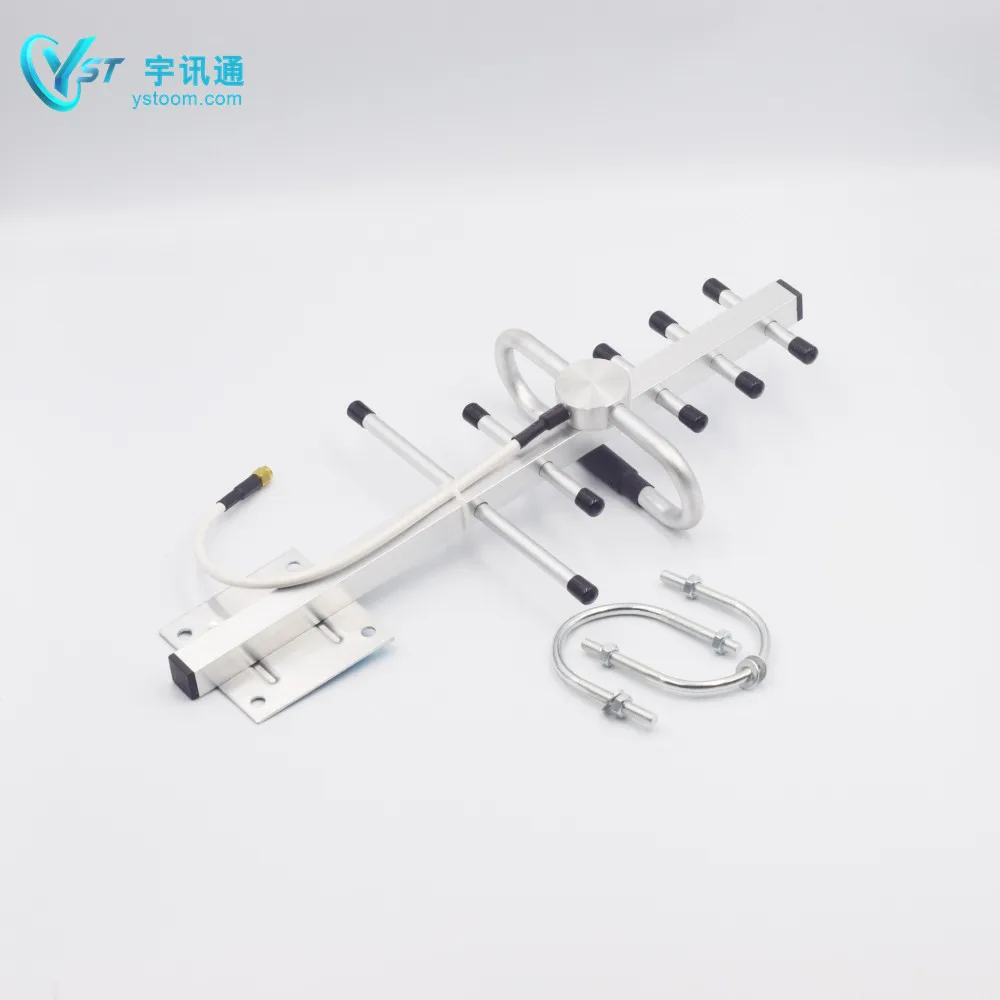

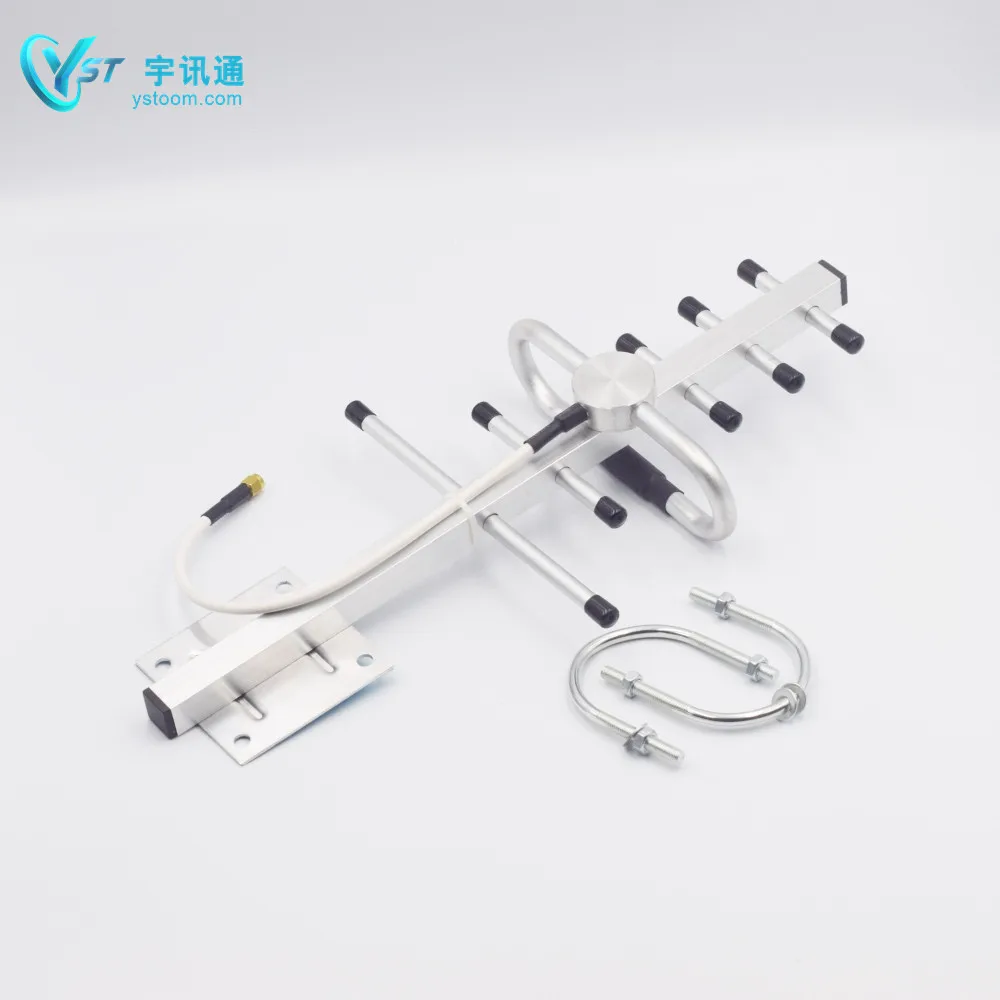

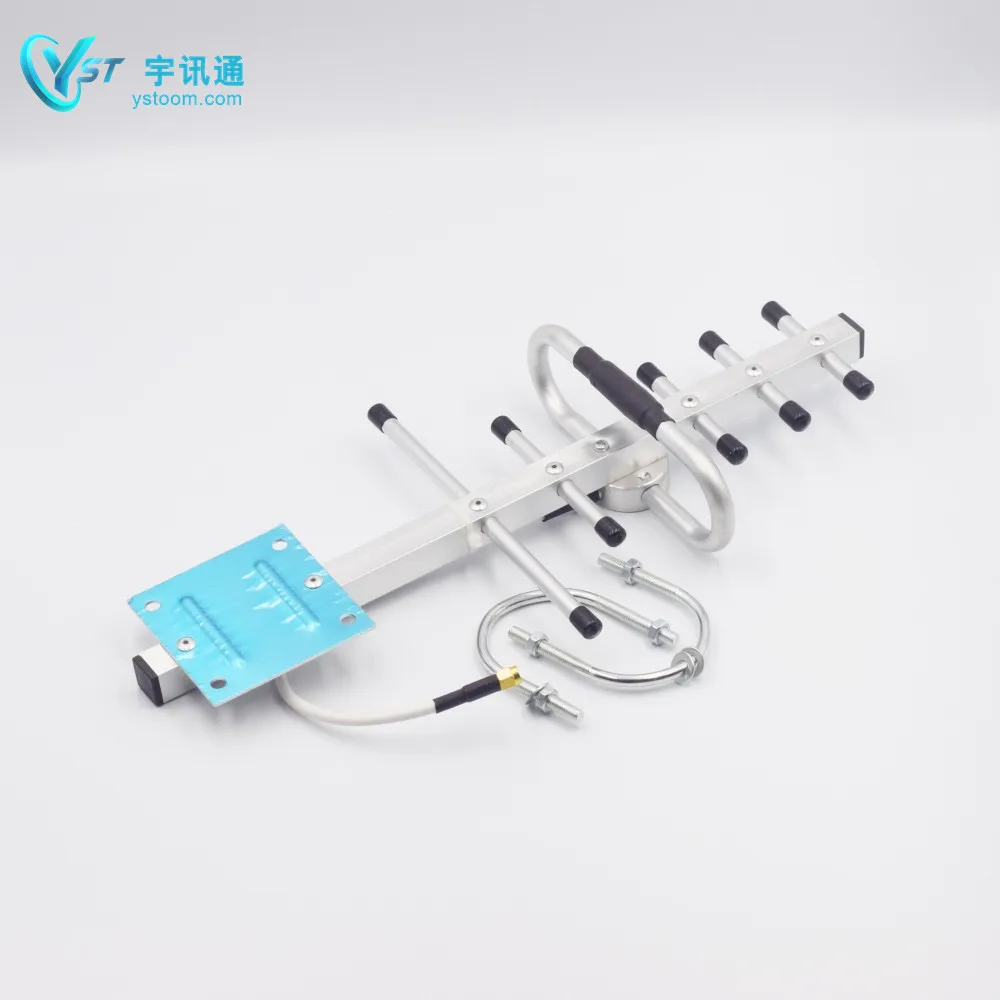

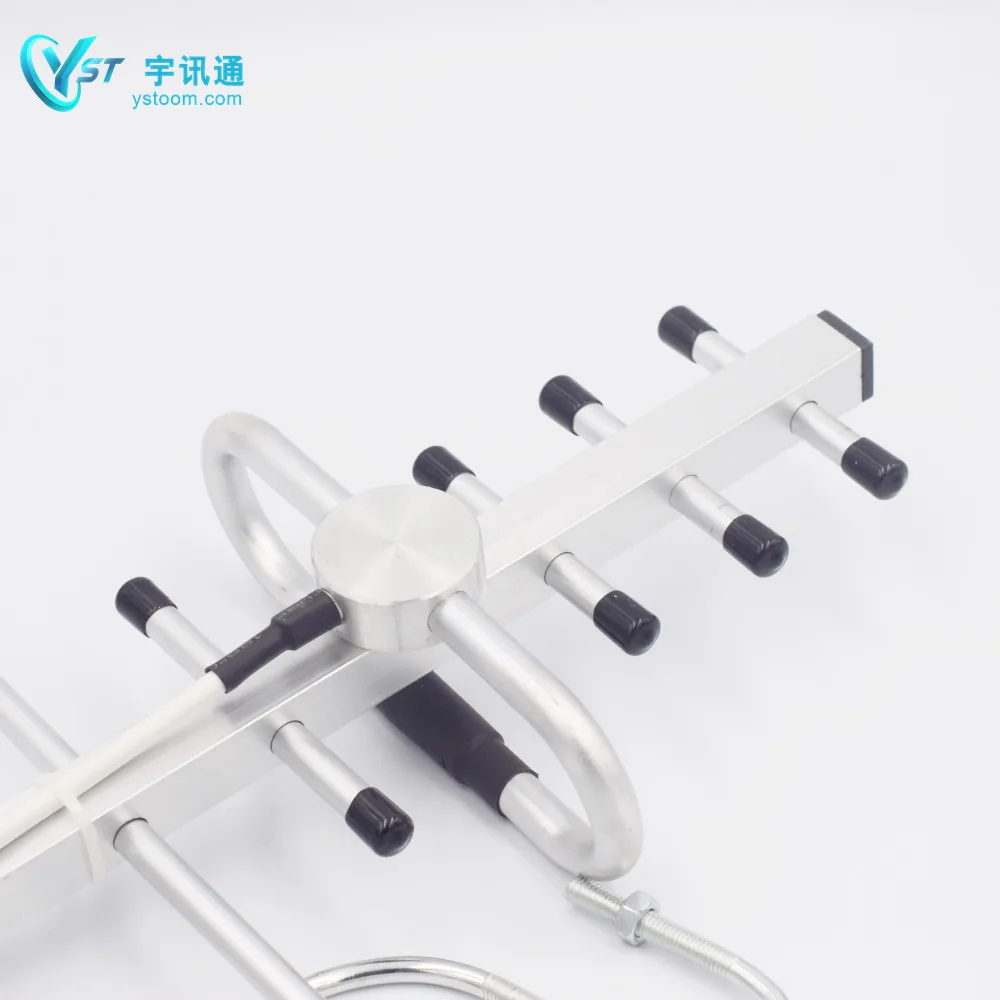

YY-824/2170-10D-SMA,It is a 4G outdoor directional Yagi antenna combined high gain 10DBI and 40° Horizontal Beamwidth . It’s suitable for outdoor 4G directional applications and it is outdoor directional waterproof antenna.
ELECTRICAL ▪ Frequency Range : 824-960/1710-2170MHz ▪ Impedance : 50Ω ▪ V.S.W.R : ≤1.5 ▪ Gain : 10DBI ▪ Radiation : Directional ▪ F/B ratio-dB : 16 ▪ Horizontal Beam width -° : 40°±5 ▪ Vertical Beam width -° : 36°±2 ▪ Polarization : Vertical or Horizontal ▪ Max power : 100W | MECHANICAL ▪ Antenna Material : Aluminum Alloy ▪ Cable/connector Type : 30CM RG58 / SMA male ▪ Operating Temperature : -40℃~+65℃ ▪ Size : 360*170*50mm ▪ Antenna Weight : 0.25kg ▪ Moungting : L bracket ▪ Pole Diameter : Φ35~φ55mm ▪ Element : 6 ▪ Rated Wind Velocity : 210km/h ▪ Package : 37*18*6cm/1pcs/0.3kg |
Standard Tips :
1* antenna with cable and connector.
1* mounting bracket .
Normally we use SMA or N connector, If you need other type connectors, please inform us. We will confirm if we can do it or not.This is an antenna only. It doesn't work alone. You need a cell phone signal booster or repeater or router to work with this antenna, When the antenna designed together with the cable, in order to reduce the loss of the signal.the cable length is less than 15 metres .It can be install easily . If you have problem for installation,please email us directly .
Antenna is comprised of connector,pleat,cable,connecting rod and outer cover.
Install the outdoor antenna on the house top and point to signal tower.
Connect the outdoor antenna in "outdoor" port of repeater through cable.
Connect indoor antenna on "indoor" port of repeater through cable.
Plug power adaptor into AC power socket and finish the installation.
If the repeater does not work after under power,please check the following :
Make sure all the connectors are tightly connected.
Make sure the outdoor antenna is pointing to the cell tower.
Make sure there is adequate signals at the place the outdoor antenna is installed.
Also please keep the outdoor and indoor antennas are as far as possible (better above 5 meters),and there must be thick obsticle like walls to avoid any possible signal self-oscillation which cause the mobile phone does not work.
Note: Omni-directional outdoor antenna doesn't need to point to cell tower.
Package: Standard export cartons.
Box size : 37*18*6cm
Quantity : 1pcs
Box weight : 0.3KG
