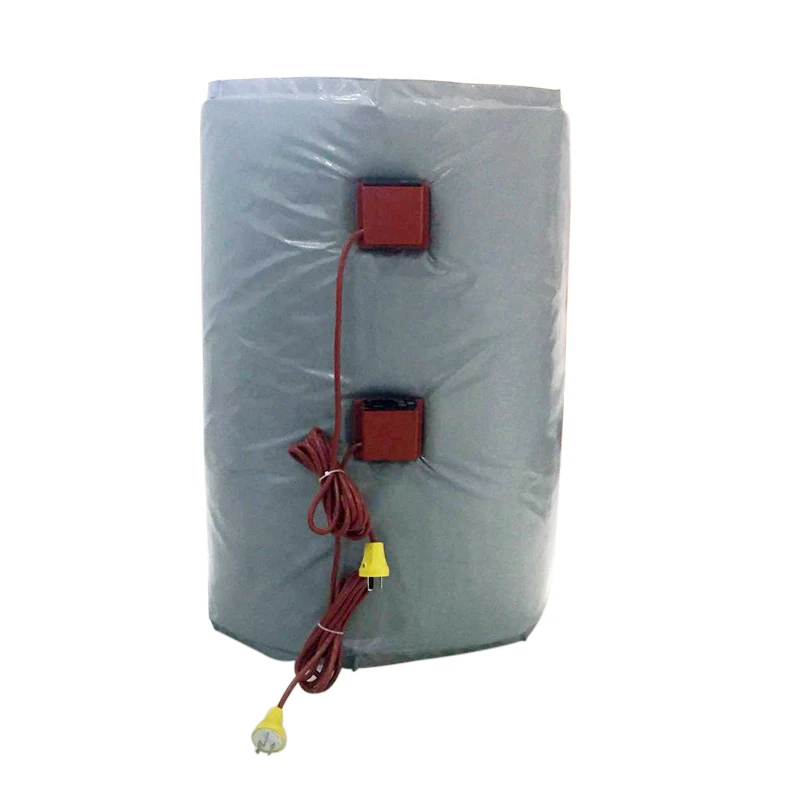

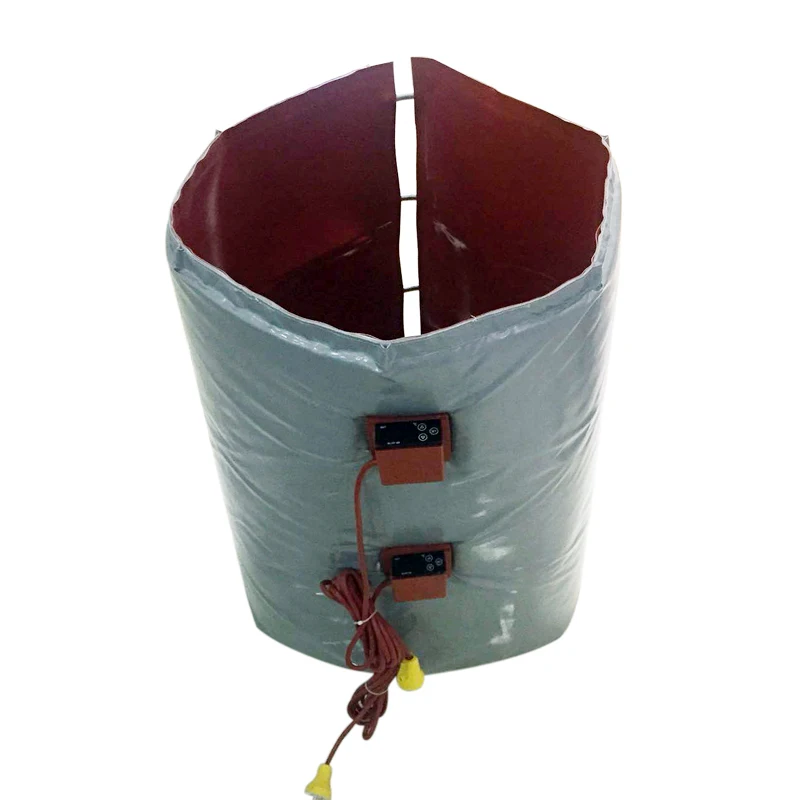

200 л контейнер IBC обогреватель для масляного барабана

200 л контейнер IBC обогреватель для масляного барабана

Категория: Refrigeration & Heat Exchange Equipment >>>
Поставщик: Yancheng Hongtai Alloy Electric Apparatus Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

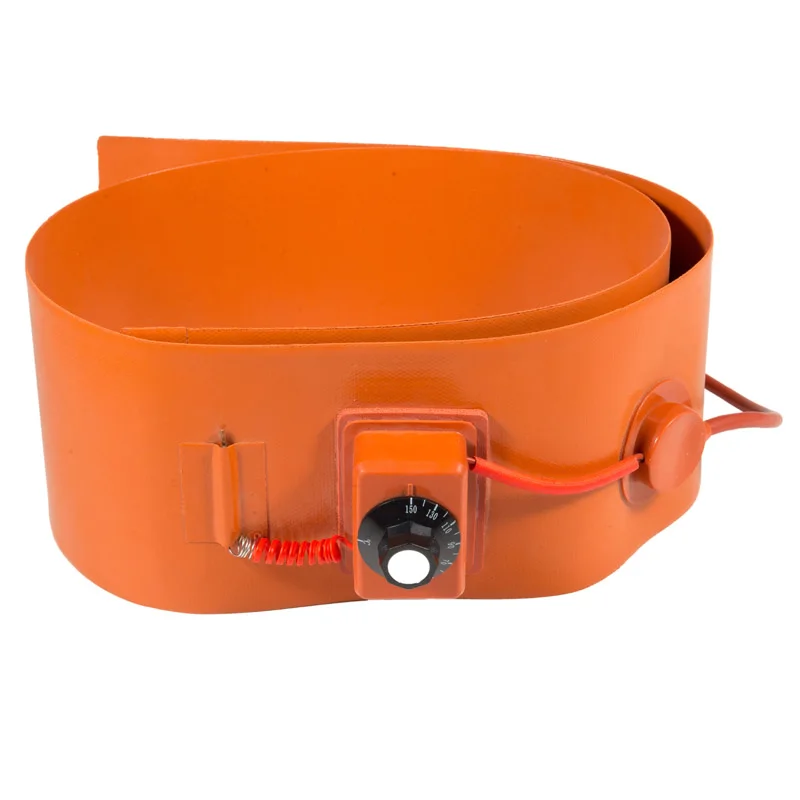

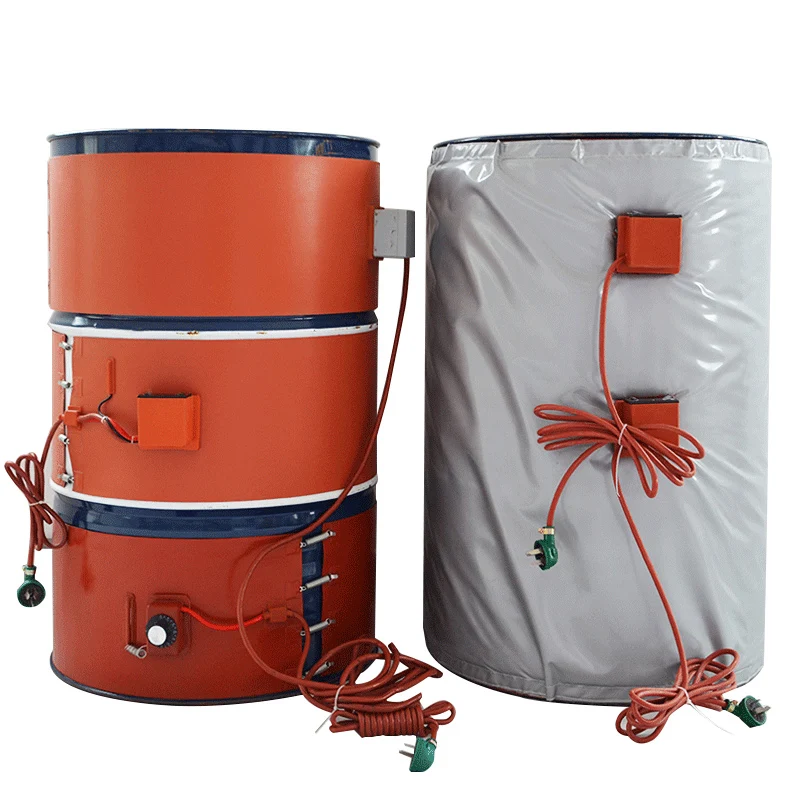

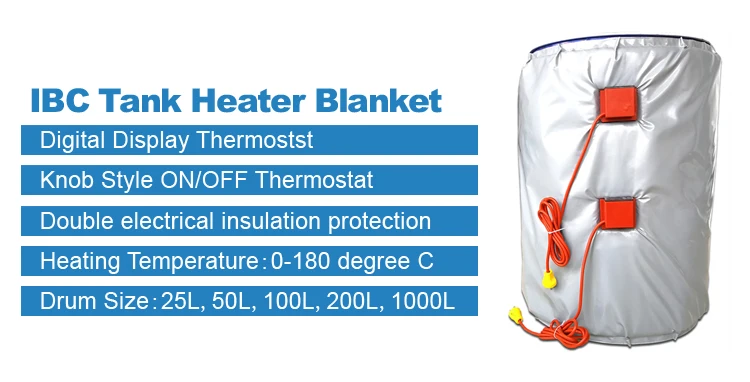

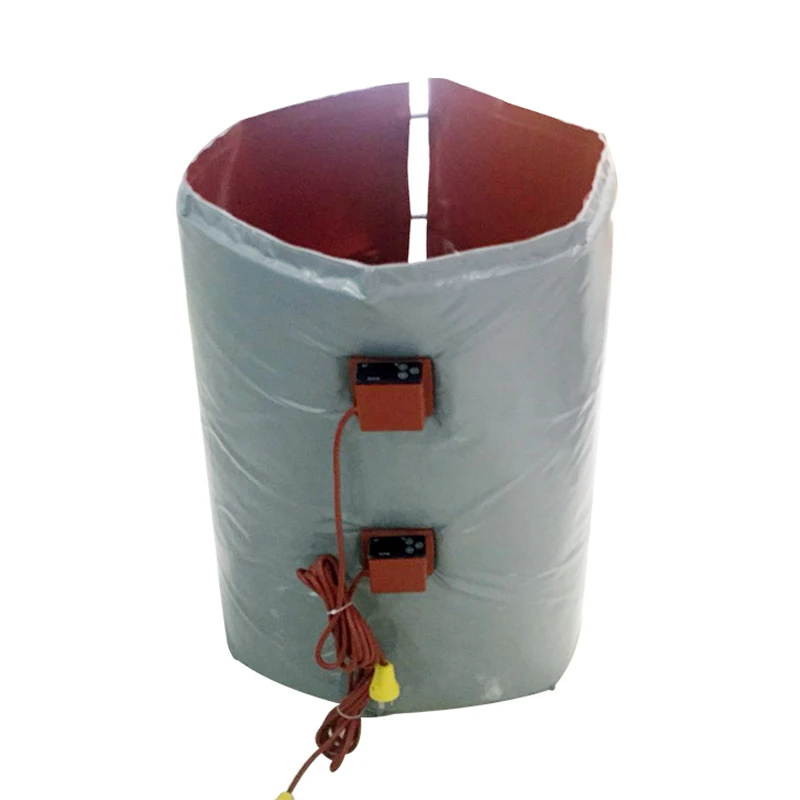

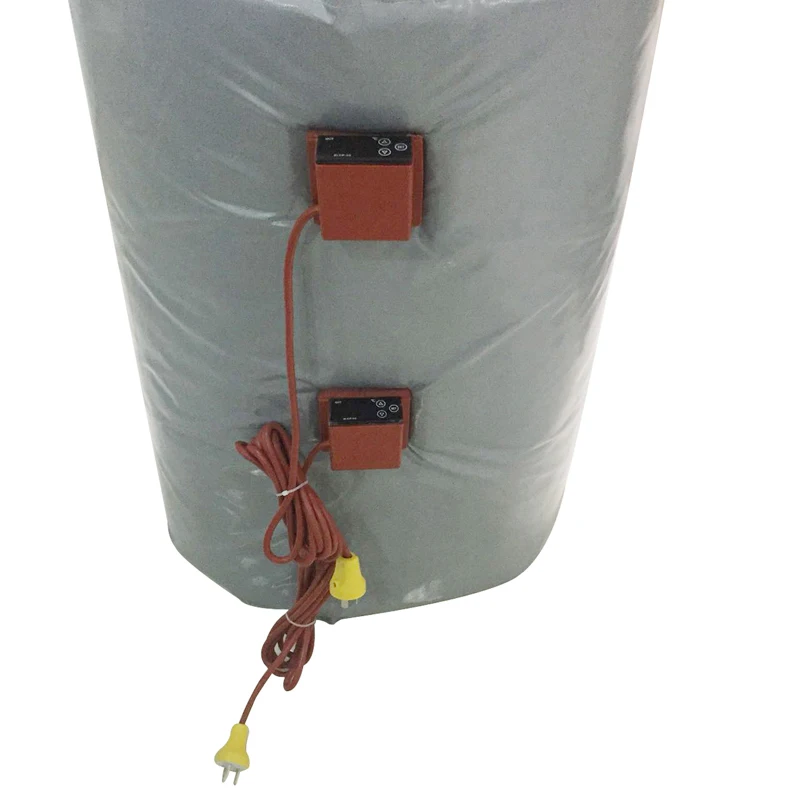

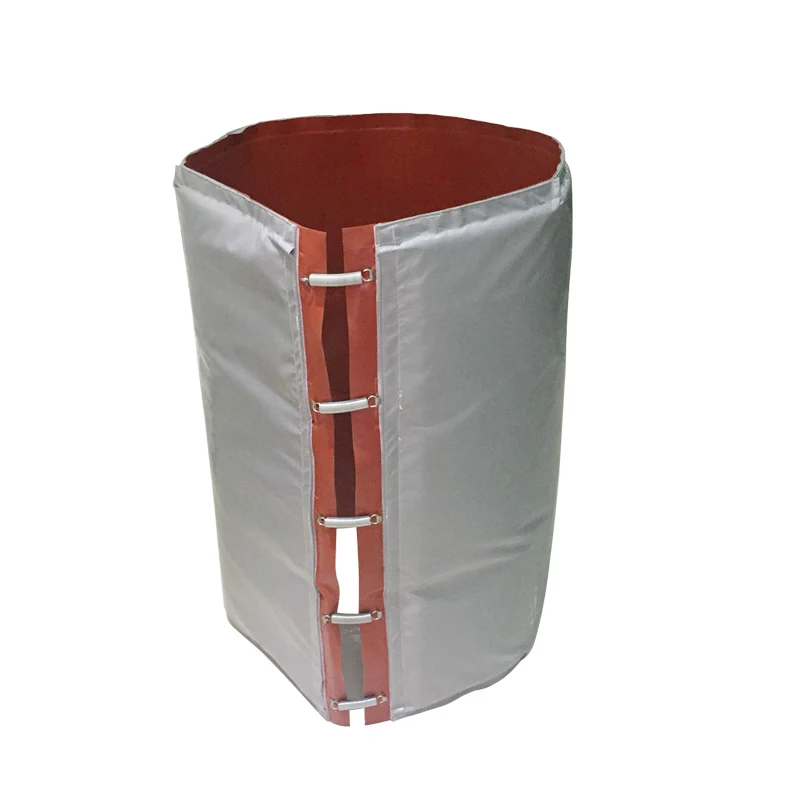

200 Litres IBC Container Heating Jacket for Oil Drum combined by the heating element, base core, fabrics, power cord, junction box, control switch (or thermostat). It could be classified into two types, constant temperature type and adjustable temperature type. The constant temperature type is implanting one or more fixed temperature control element in the electric blanket, when the temperature is lower than the set temperature, the heating blanket automatically starts heating, when the temperature reaches the set temperature; the heating blanket automatically disconnected the power supply, and continues thermal insulation. The whole process is circulated. The temperature adjustable type is built in a temperature probe, which transmit temperature signal to the relay in the temperature control box, and the relay control the connection of the circuit. Temperature could be set up by users according to the using environment and conditions. The ordinary temperature range is -35℃ to 160℃, and for other temperature range, we could customized according to customers’ requirements.

Heater Size	Drum Capacity	Voltage	Wattage	Thermostat	Net Weight
*2501740mm**	200L	120/220V	2000w	Dial Digital	1.9kg
*1251740mm**	200L				1500w	0.95kg
*200860mm**	20L				800w	0.75kg
*120860mm**	20L				500w	0.55kg
*100889mm**	5G				500w	0.5kg
*1001778mm**	55G				1000w	0.9kg
