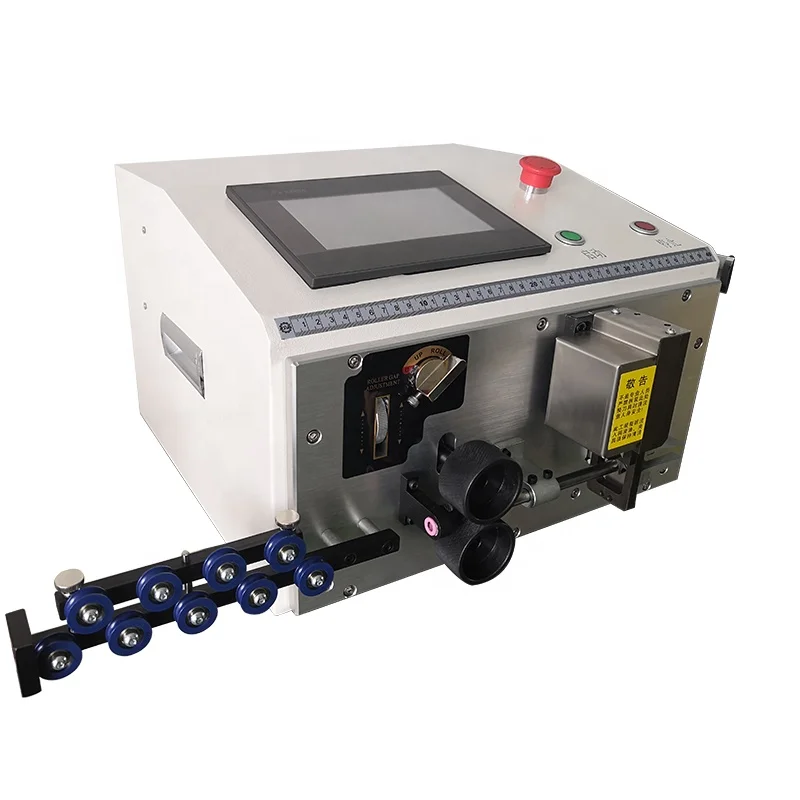

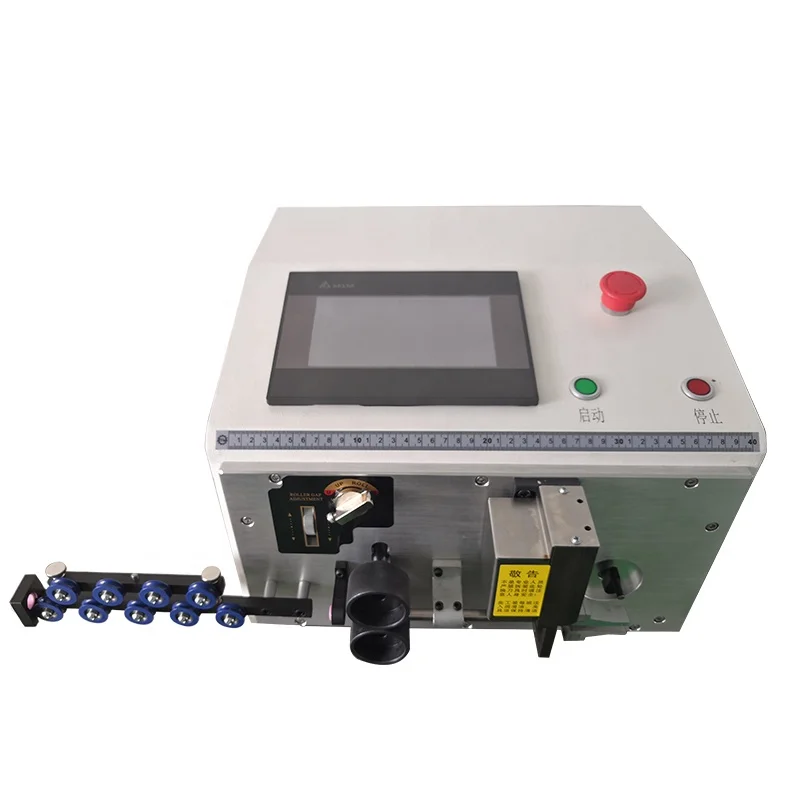

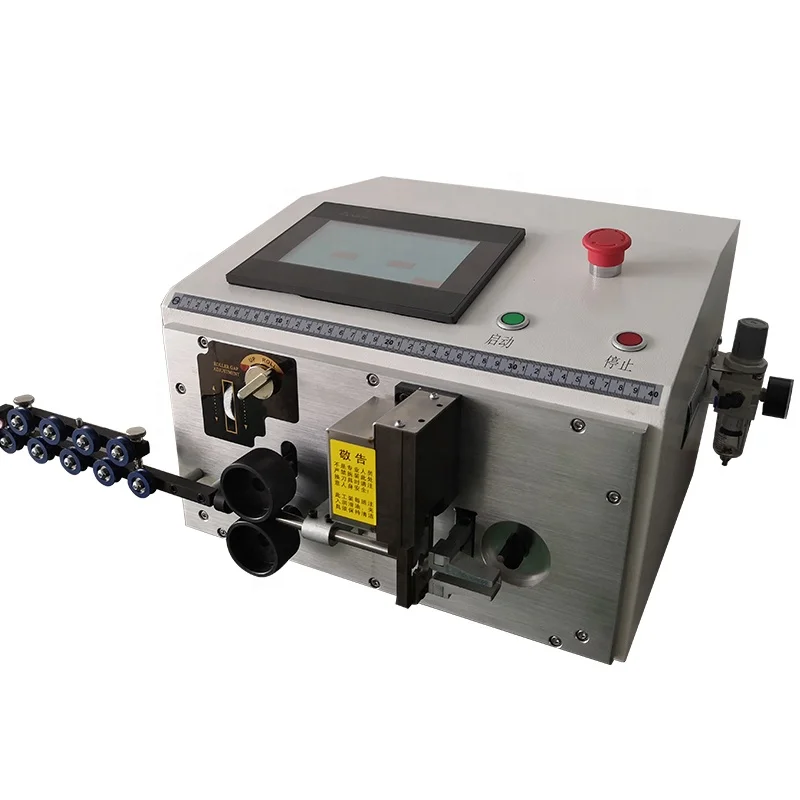

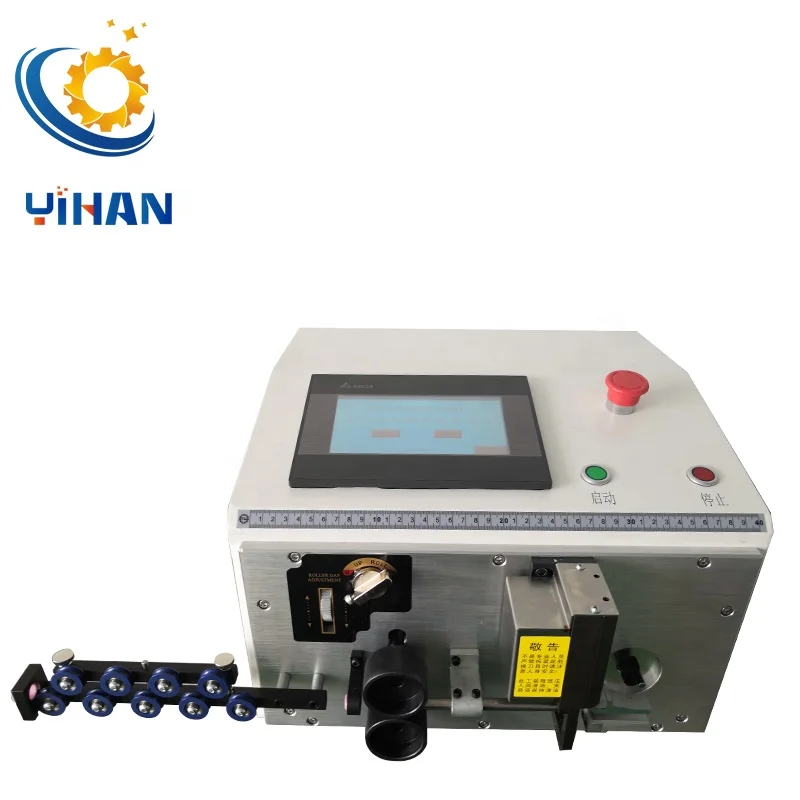

YH-06W Wire Bending machine,Bending tools

Description:

This machine mainly for the automotive industry, sensor industry, power industry, electric control cabinet,
a battery box line, Military factory,Robotics,Automation, Railways, off shore, Medical.
YH-Z906 machine can process whole electric wire according to required length,cut off and stripping head,not to hurt the tegument and conductor,high precision, thus greatly improving efficiency.

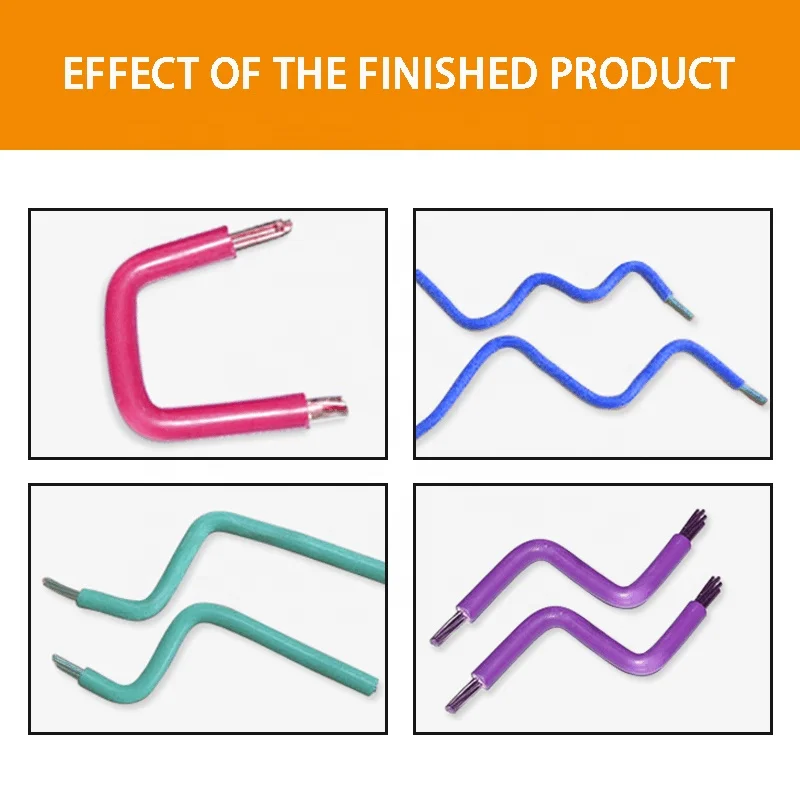

You are assured maximum flexibility and even more efficient way of meeting your wire processing need. Clockwise and counterclockwise, adjustable bending degree, 30degrees,45 degree, 60 degrees, 90 degrees. positive and negative two bending in one line.

Product Description

Product Name	Automatic wire bending machine
Model	YH-06W
Dimension	530470340mm
Weight	40KG
Display method	Chinese or English interface display
Power supply	AC220/250V/50/60HZ
Capacity	180-600W
Cutting length	1mm-99999mm
Cutting Tolerance	Adjustable
Peeling length	1.0mm-999.9mm(According to the wire)
Wire range	0.1-6.0mm2 BV hard wire cutting stripping and bending
Number of bending	10 times(more than 10 times is optional)
Productivity	800-1500pcs/h(according to the cutting length)
Cutting tolerances	±( 0.002* L : indicates a cutting length.
Drive mode	Four simultaneously drive
Bending way	Clockwise and counterclockwise,adjustable bending degree,30 degrees,45 degree, 60 degrees,90 degrees,positive and negative two bending in one line
Air supply	0.5-0.75MP
