Полуавтоматическая паяльная машина для печатных плат BDS4530L с сенсорным экраном управления/высокой точностью контроля температуры

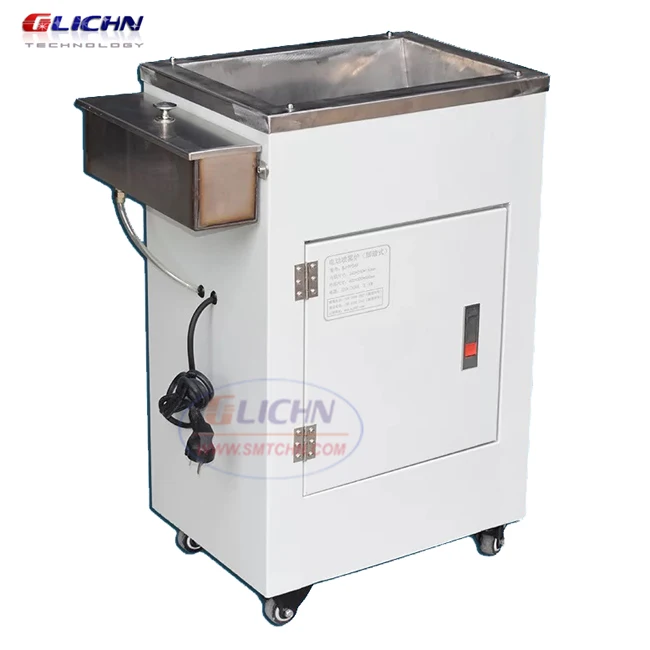

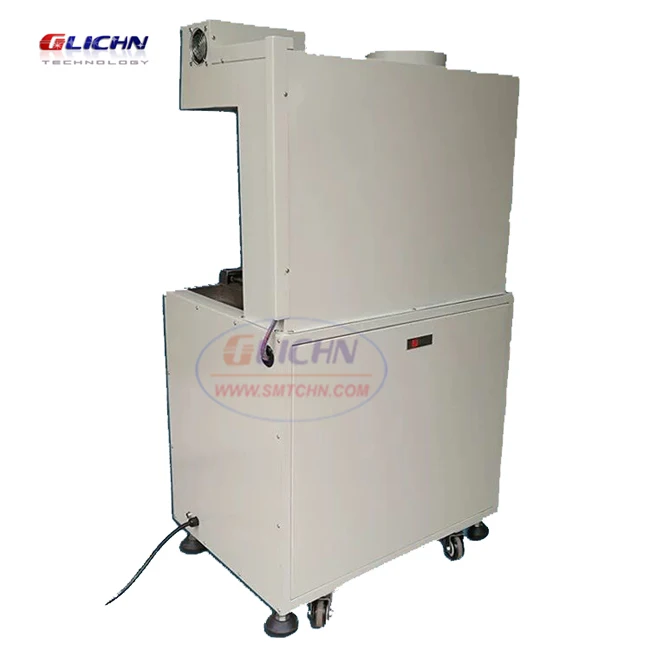

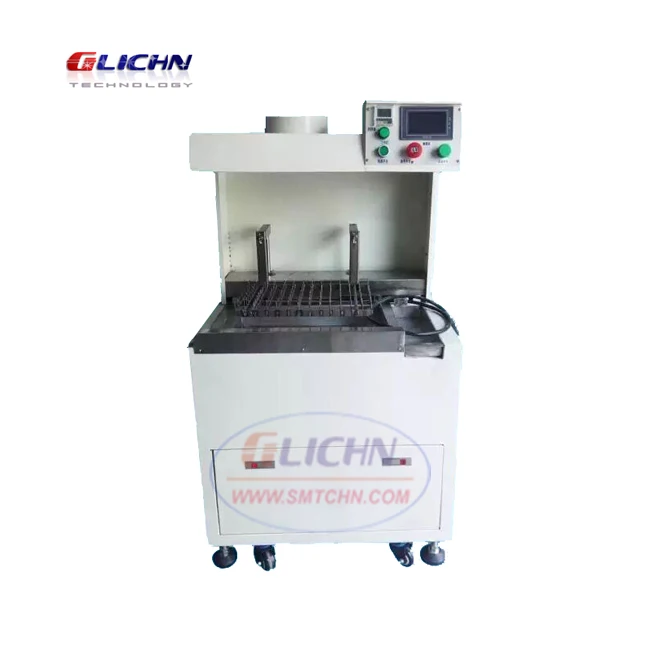

 Semi-auto pcb dip soldering machine BDS4530L

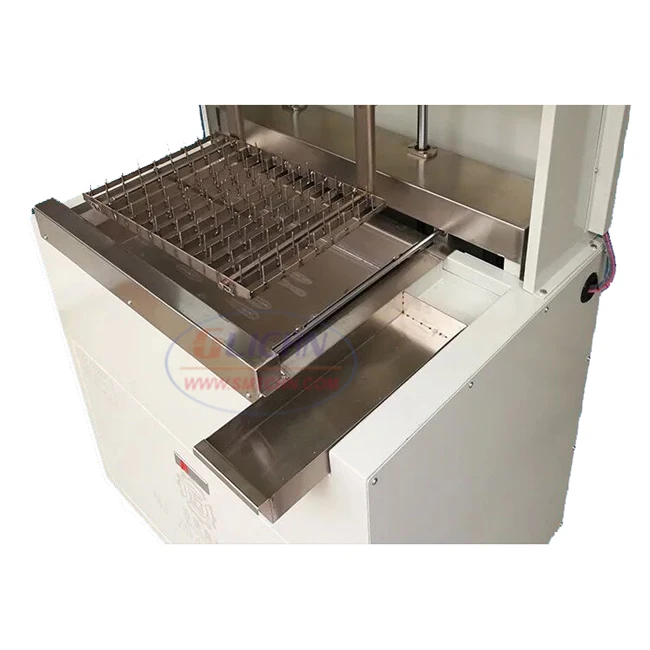

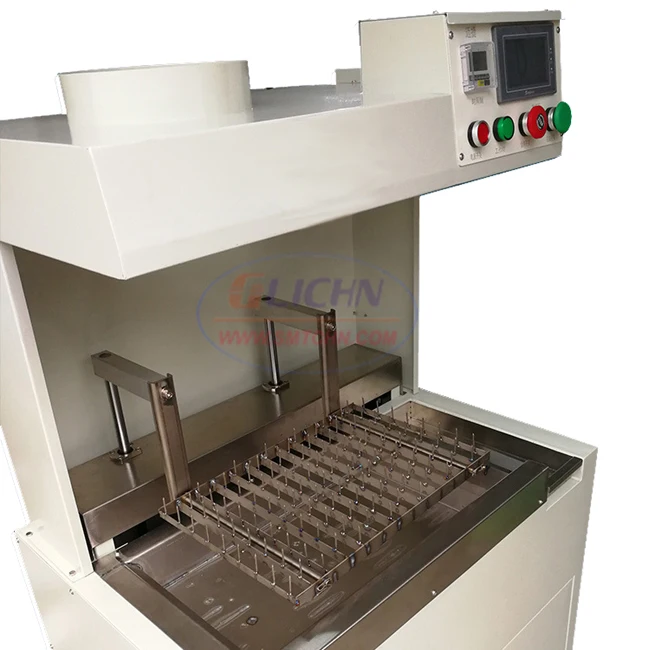

Semi-auto pcb dip soldering machine BDS4530L Leaching method: Put the flux soldering board on the needle frame,start the footswitch on. The machine can soldering difference pcb board at one time,Microcomputer control all the steps,Completely simulation manual leaching soldering principle, researchers from training, anyone could dip soldering homework, do not need to dab at, soldering stable quality, and enhance the production efficiency. Application:  1.large quantity and lots of specification  PCBA board manufacturers  2.Intrustment and equipment manufacturer,lots  PCB,but less quantity,manual leaching soldering need the skillfull operater ,wave soldering high cost ,it's much economical choose automatic leaching soldering pot.  3.For some big board in hkbu tin process will deformation, our company specially produced for fixture, make in soaking in the process of PCB tin deformation.  Function: 1.Meet the circuit board and the common solder products use (with the suitbale fixture)  2.Improve the welding quality, imitate manual soldering  3.Improve production rate,awelding batch products at the same time , compared with about four times as much manual soldering.   Features: 1.Up and down movement adopting step-motor drive the ball screw, stepping motor accuracy of 0.1 mm, solder depth accurate  2.Circuit board drift in face of zion Baptist tin, and not be impact solder  3.The lifting speed adjustable leaching products, and circuit board leaching tin Angle adjustable, reducing the surface tension, meet the technological requirements.  4.With each cycle of automatic shave their surface oxide to tin slag slot, improve the soldering quality.  5.Can undertake circuit board and flux of the surface preheating, improve activity and soldering quality.  6.Soldering time, its range from 1 second-10 seconds can beadjust  7.The high temperature ceramic fever board, after insulation treatment, long service life, temperature control adopted Touch screen control in accuracy ± 2 °, tin stove the furnace pipe is made of pure titanium industry TA2, ground temperature using K thermocouple type.  8.has a variety of solder fixture with the product, can be arbitrarily choose and buy, also accept custom  9.Range of 400 °C temperature setting



 Semi-auto pcb dip soldering machine BDS4530L

Packing method:
1)Standard box package for light and small item;
2)Strong wood package for heavy and large equipment;

Shipping way:
1)By air ,for sample and small package ,wordwide express like DHL,UPS,FedFX,EMS....
2)By sea, for large package and quantity;
3)By car or other ways as customer requested;

GLICHN found in 2010,Specializing in SMT equipment manufacturing services and sales of peripheral products. Factory is located in shunyi district of Beijing and shenzhen baoan district
SMT class:pick and place machine,small and middle size reflow oven, manual and semi-automatic solder paste printer,PCB loader and unloader,PCB magazine rack,SMD component counter,solder paste and chip production line etc.
THT Class:wave soldering machine, Spray tin stove,cut foot and forming machine,Plug-in production line etc
Others :Spin coater,Dispensing machine,nozzles,feeder,belt ,driver, motor,cylinder,High temperature tape,valve,etc

1. We’ll have a good check and a test before shipping out.
2. We provide you the friendly English User manual or the operating videos for free;
3. 24 hours technical support by email or Skype or Trade Manager or Calling.
4. 1 year machine parts free warranty;
5.Engineers available to service machinery overseas.

1 set machine, mixed order is also welcome.
