Ручной расширитель M2 H7 с HSS покрытием и спиральным пазом
3,00 $
Высокоточный карбидный спиральный прямой хвостовик H5H6H7H8H9 F5F6F7F8 M7M6 Вольфрамовая сталь
- Категория: >>>
- Поставщик: Shenzhen Bwin Precision Tools Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 62143277010:
Описание и отзывы
Характеристики
Products Description

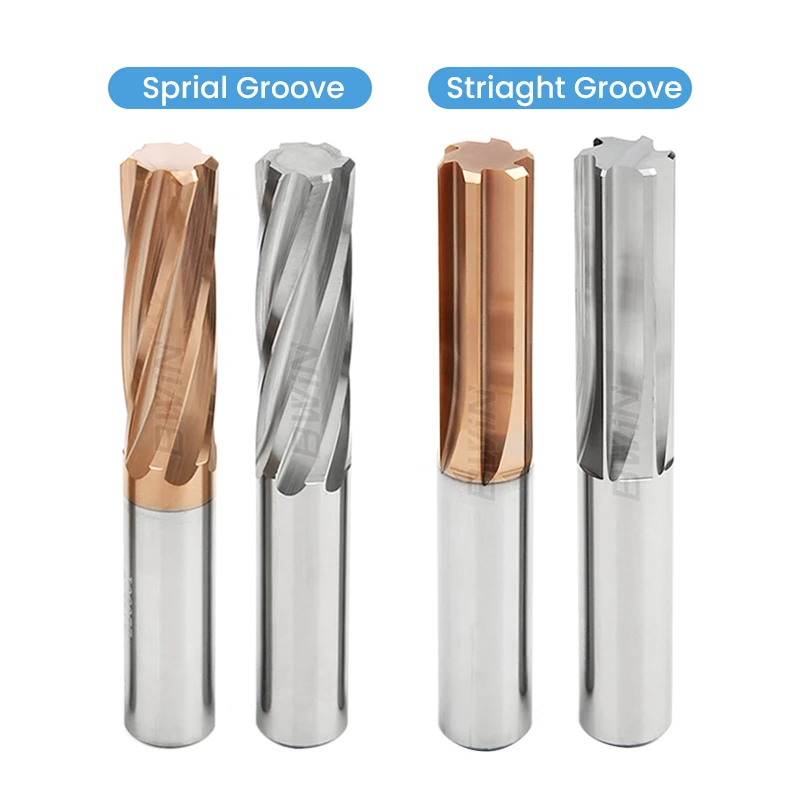

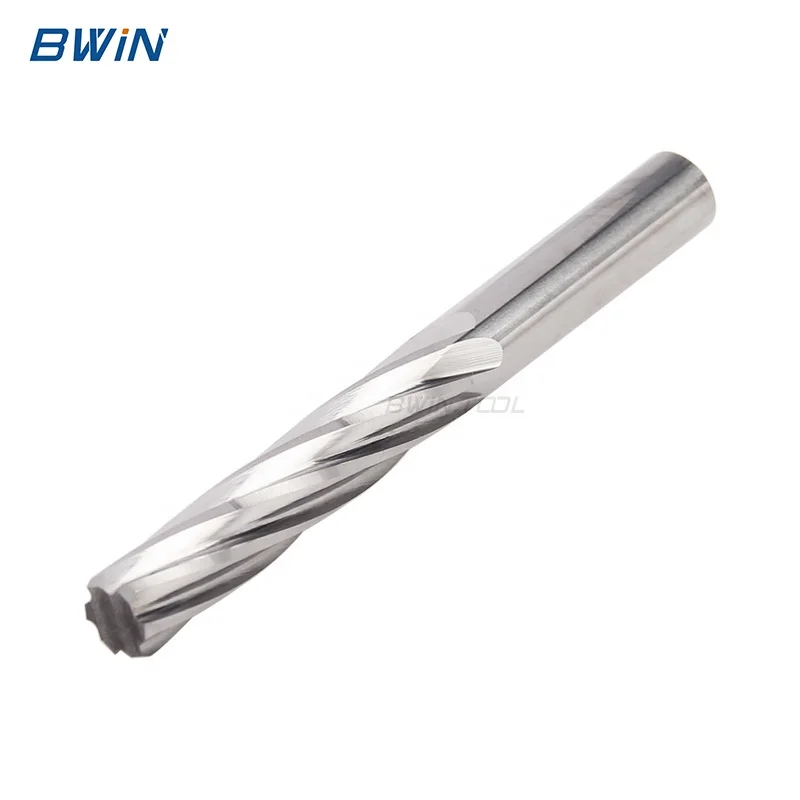

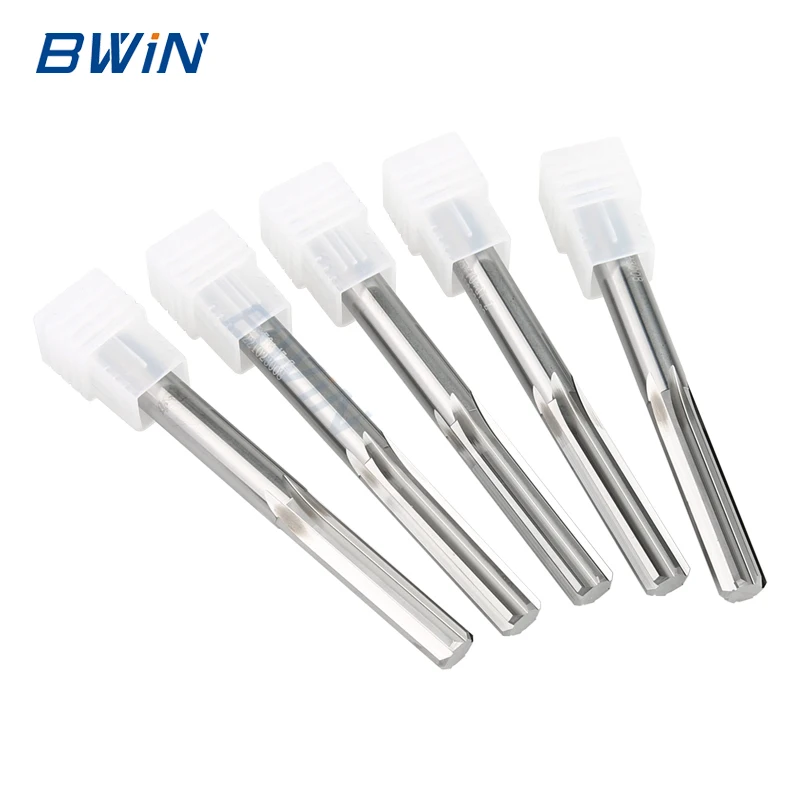

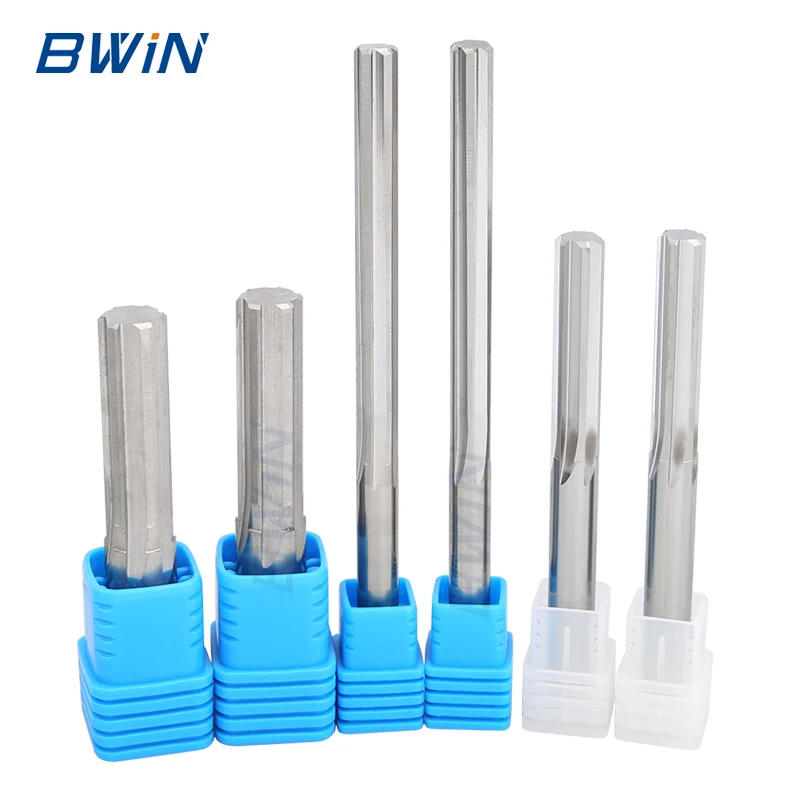

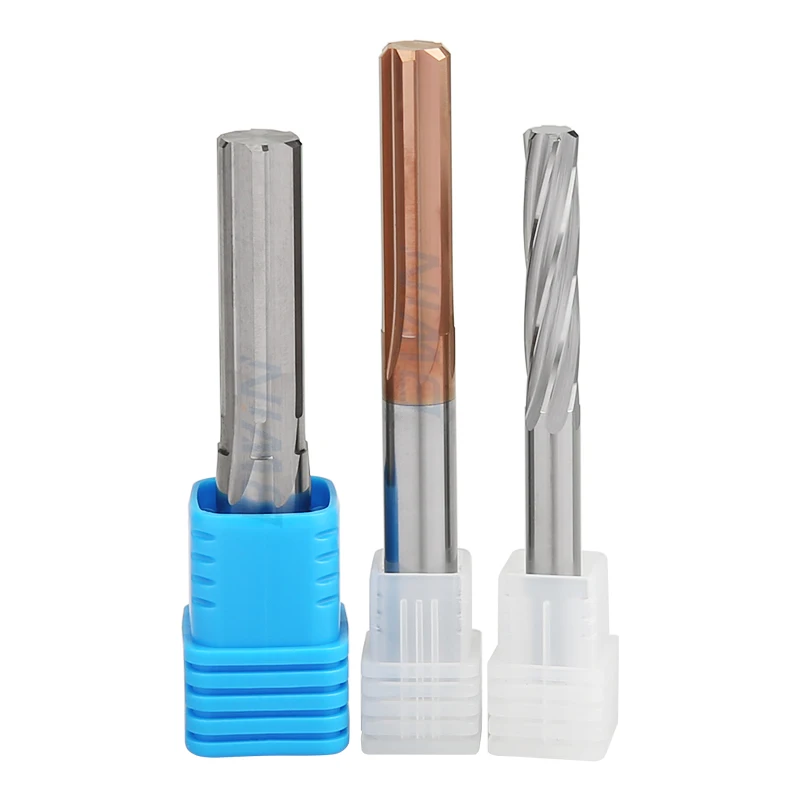

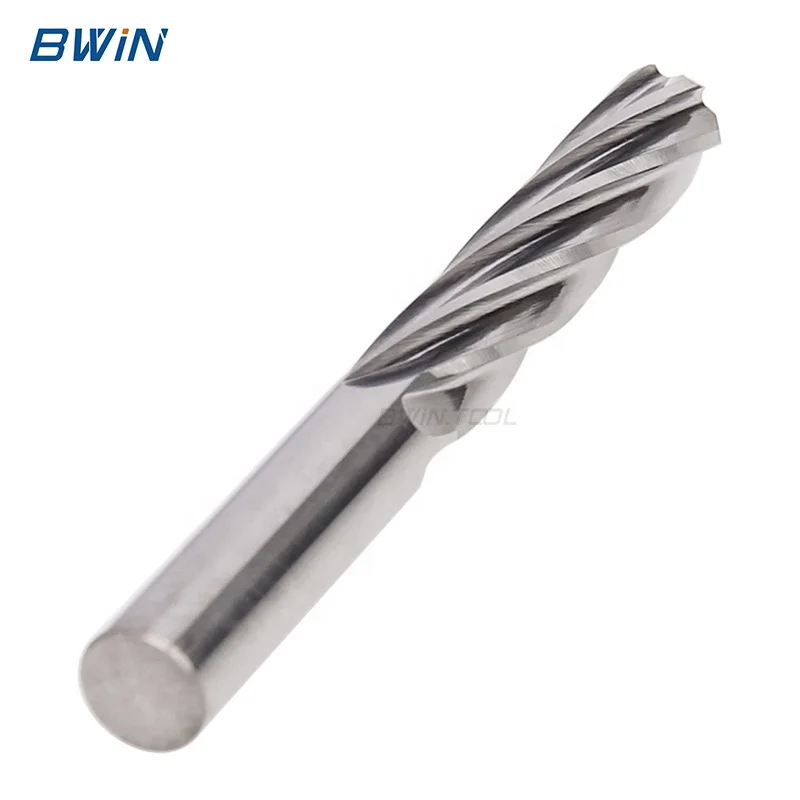

high precision Carbide spiral straight shank H5H6H7H8H9 F5F6F7F8 M7M6 tungsten steel machine reamer
Product Name | Carbide spiral straight shank tungsten steel machine reamer | |
Material | Tungsten carbide | |
Model Number | Standard size | |
Flutes | 4/6 flutes | |
HRC | HRC45/HRC55 | |
Packaging | 1 pcs/plastic box | |
Suitable for | Cast iron, carbon steel, stainless steel, etc | |
Machine Type | CNC machine center, engraving machine and other CNC high-speed machines, etc | |
All the specs. can be customized | ||
1. High quality carbide rod:
All cutting materials are from international famous brands, high hardness, long tool life.
Grade | HRC45 | HRC55 | HRC60 | HRC65 |
Materials | YG10X | ZK30UF | ZK40SF | GU25UF |
Grain size: 0.8um Co: 10% Flexural strength: 3320N/mm2 | Grain size: 0.6um Co: 10% Flexural strength: 4000N/mm2 | Grain size: 0.5um Co: 12% Flexural strength 4300N/mm2 | Grain size: 0.4um Co: 12% Flexural strength: 4300N/mm2 |
2. Super coating
Good coating can improve tools life and production efficiency, and we provide professional suggestions according to your cutting requirements.
Item | Color | Hardness (HV) | Thickness (UM) | Oxidation Temp.(℃) | Friction Coeffient |
AlTiN | Black | 3300 | 2.5-3 | 900 | 0.3 |
TiAlN | Violet | 2800 | 2.5-3 | 900 | 0.3 |
TiSiN | Bronze | 3600 | 3 | 1000 | 0.45 |
AlTiSiN | Blue | 4000 | 4 | 1200 | 0.4 |
TiN | Gold | 2500 | 2.5-3 | 600 | 0.4 |
The key cutting products we selling as below: | ||
◆ Carbide inserts ◆ Solid Carbide End Mills ◆ Turning Bar Tool ◆ Face Milling Tool | ◆ Drills & Reamers & Thread Cutters & Burrs ◆ Thread Tapper Tool ◆ CNC Chuck & Adapter ◆ Precision Tool Vise ◆ Other Accessories | |

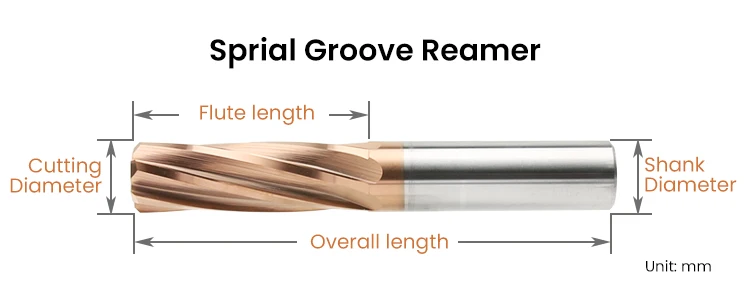

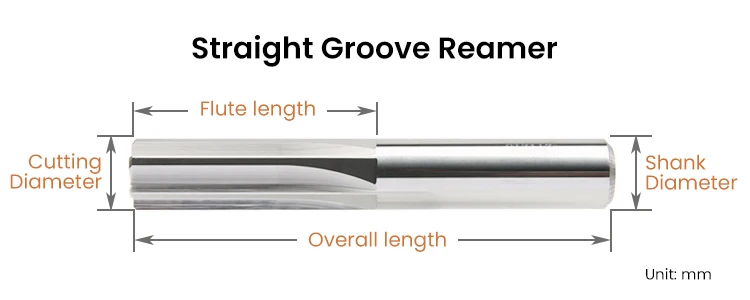

Dimensions of uncoated reamers （Straight and spiral grooves）
For more sizes, please feel free to contact us at any time
Flute Diameter | Flute Length | Shank Diameter | Overall Length | Sprial Flutes | Straight Flutes |
1-2.0 | 20 | 1-2.0 | 50 | 4 | 4 |
2.1-3.0 | 25 | 2.1-3.0 | 50 | 4 | 4 |
3.1-4.0 | 25 | 3.1-4.0 | 50 | 4 | 4 |
4.1-5.0 | 30 | 4.1-5.0 | 60 | 4 | 4 |
5.1-6.0 | 30 | 5.1-6.0 | 60 | 6 | 6 |
6.1-7.0 | 35 | 6.1-7.0 | 70 | 6 | 6 |
7.1-8.0 | 35 | 4.5 | 70 | 6 | 6 |
8.5 | 35 | 8.5 | 70 | 6 | 6 |
9.0 | 35 | 9.0 | 70 | 6 | 6 |
9.5 | 35 | 9.5 | 70 | 6 | 6 |
10 | 35 | 10 | 70 | 6 | 6 |
11 | 60 | 11 | 100 | 6 | 6 |
12 | 60 | 12 | 100 | 6 | 6 |
13 | 60 | 13 | 100 | 6 | 6 |
14 | 60 | 14 | 100 | 6 | 6 |
15 | 60 | 15 | 100 | 6 | 6 |
16 | 110 | 16 | 100 | 6 | 6 |
17 | 110 | 17 | 150 | 6 | 6 |
18 | 110 | 18 | 150 | 6 | 6 |
19 | 110 | 19 | 150 | 6 | 6 |
20 | 110 | 20 | 150 | 6 | 6 |
Coating Reamer Size （Straight and spiral grooves）
For more sizes, please feel free to contact us at any time
Cuting Diameter | Flute Length | Shank Diameter | Overall Length | Sprial Flutes | Straight Flutes |
1.0 | 20 | 1.0 | 50 | 4 | 4 |
1.5 | 20 | 1.5 | 50 | 4 | 4 |
2.0 | 20 | 2.0 | 50 | 4 | 4 |
2.5 | 25 | 2.5 | 50 | 4 | 4 |
3.0 | 25 | 3.0 | 50 | 4 | 4 |
3.5 | 25 | 3.5 | 50 | 4 | 4 |
4.0 | 25 | 4.0 | 50 | 4 | 4 |
4.5 | 30 | 4.5 | 60 | 4 | 4 |
5.0 | 30 | 5.0 | 60 | 4 | 4 |
5.5 | 30 | 5.5 | 60 | 4 | 4 |
6.0 | 30 | 6.0 | 60 | 6 | 6 |
6.5 | 35 | 6.5 | 70 | 6 | 6 |
7.0 | 35 | 7.0 | 70 | 6 | 6 |
8.0 | 35 | 8.0 | 70 | 6 | 6 |
8.5 | 35 | 8.5 | 70 | 6 | 6 |
9.0 | 35 | 9.0 | 70 | 6 | 6 |
9.5 | 35 | 9.5 | 70 | 6 | 6 |
10 | 35 | 10 | 70 | 6 | 6 |
10.5 | 35 | 10.5 | 70 | 6 | 6 |
11 | 35 | 11 | 70 | 6 | 6 |
12 | 40 | 12 | 80 | 6 | 6 |
12.5 | 40 | 12.5 | 80 | 6 | 6 |
15 | 60 | 15 | 100 | 6 | 6 |
16 | 60 | 16 | 100 | 6 | 6 |
17 | 60 | 17 | 100 | 6 | 6 |
18 | 60 | 18 | 100 | 6 | 6 |
19 | 60 | 19 | 100 | 6 | 6 |
20 | 60 | 20 | 100 | 6 | 6 |
Other Products
Our Company
COMPANY PROFILE
Shenzhen BWiN Precision Tools Co.,Ltd. is a main professional supplier in CNC Carbide inserts, Turning tools and Milling tools, BWiN manufacture with integration of R&D, Design and Sales. We insists the principles of "High quality, Competitive price and Excellent service."
BWiN manufacture has over 1500 square meter factory area and storehouse. We are leading OED&ODM manufacture many years of experience in this filed. BWiN have various kinds of products and they are 70% for expert. Our customers are from all over the world, such as North America, Europe, South America, the Middle east, East Asia and Africa. The quality control standards are based on ISO9001 certifications. BWiN relies on advanced automatic machining center and complete testing testing method, control all aspects of production and operation according to the standard process. We have an outstanding team of designers to continuously launch innovative product design, in order to meet the needs of the international marked. Welcome send inquiry to us, we will provide high quality products and excellent service for you!
BWiN manufacture has over 1500 square meter factory area and storehouse. We are leading OED&ODM manufacture many years of experience in this filed. BWiN have various kinds of products and they are 70% for expert. Our customers are from all over the world, such as North America, Europe, South America, the Middle east, East Asia and Africa. The quality control standards are based on ISO9001 certifications. BWiN relies on advanced automatic machining center and complete testing testing method, control all aspects of production and operation according to the standard process. We have an outstanding team of designers to continuously launch innovative product design, in order to meet the needs of the international marked. Welcome send inquiry to us, we will provide high quality products and excellent service for you!
FAQ
1. Are you manufacturer or trading company?
We are professional manufacturer with more than 10 years experience in this field.
2. How to place an order?
1.Fill your Order List in our online Inquiry System.
2.Directly contact our salesperson by E-mail / Skype / Whats App
2.Directly contact our salesperson by E-mail / Skype / Whats App
We will make a feedback to you ASAP after receive your order list.
3. What is your payment terms?
T/T, Paypal, Western Union, Alibaba assurance for different circumstances.
4. What's your delivery way?
Express delivery, DHL, TNT, FEDEX , EMS, air shipping, sea shipping are available for your request.
5. Do you offer OEM?
Yes, we do. We have laser machine lasering your logo and tool specification on the body of tools. Also, we can print customized on plastic boxes.
6. How about the delivery time?
Usually delivery time is 2~3 days after receiving the advance payment. For the customized product, 7-10 days after receiving the advance payment.
