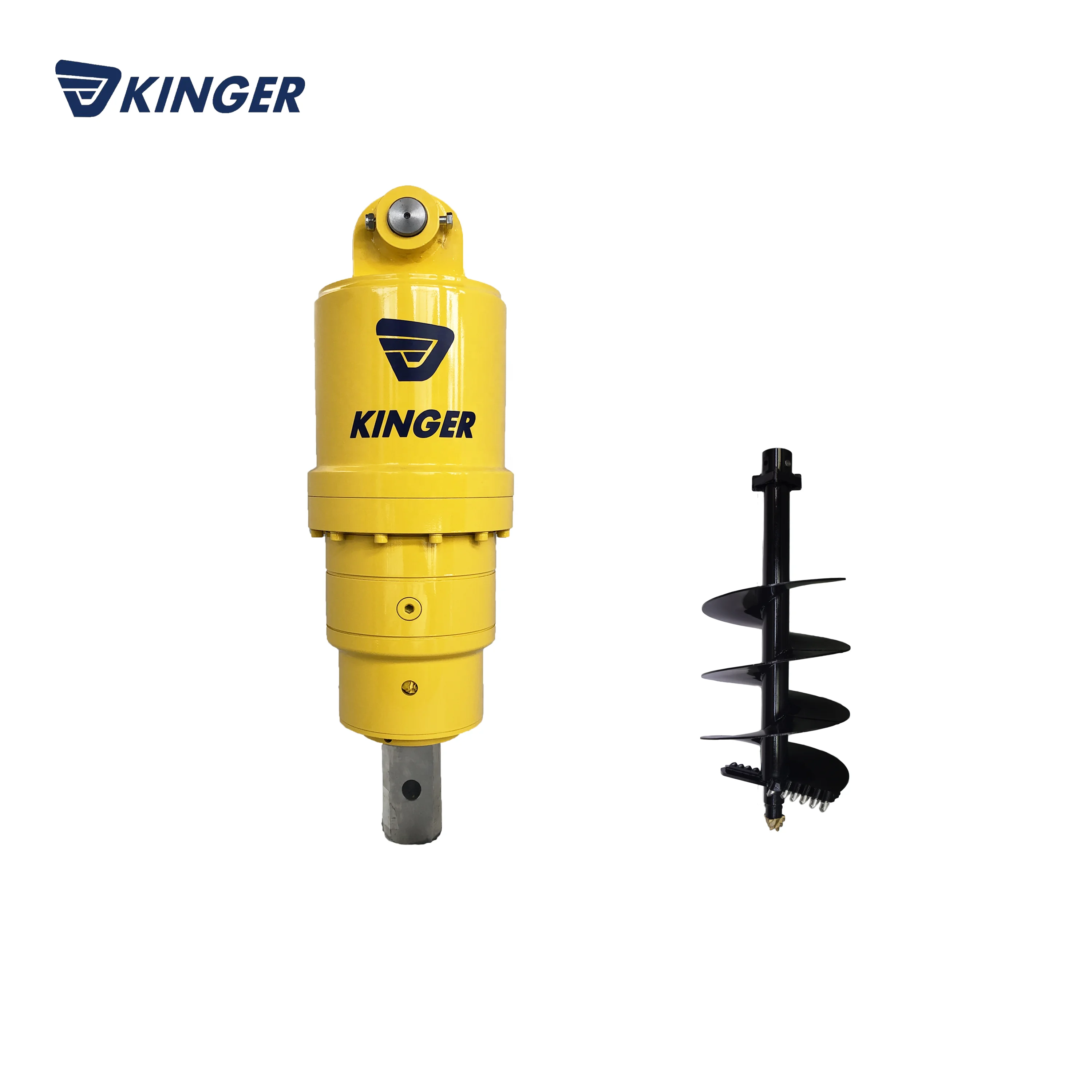

Шнековое сверло KINGER для посадки сверлильный станок

Шнековое сверло KINGER для посадки сверлильный станок

Категория: Earth Augers >>>
Поставщик: Yantai Dongheng Machinery Co. Ltd.

Цена:1 870,00 $ - 1 970,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

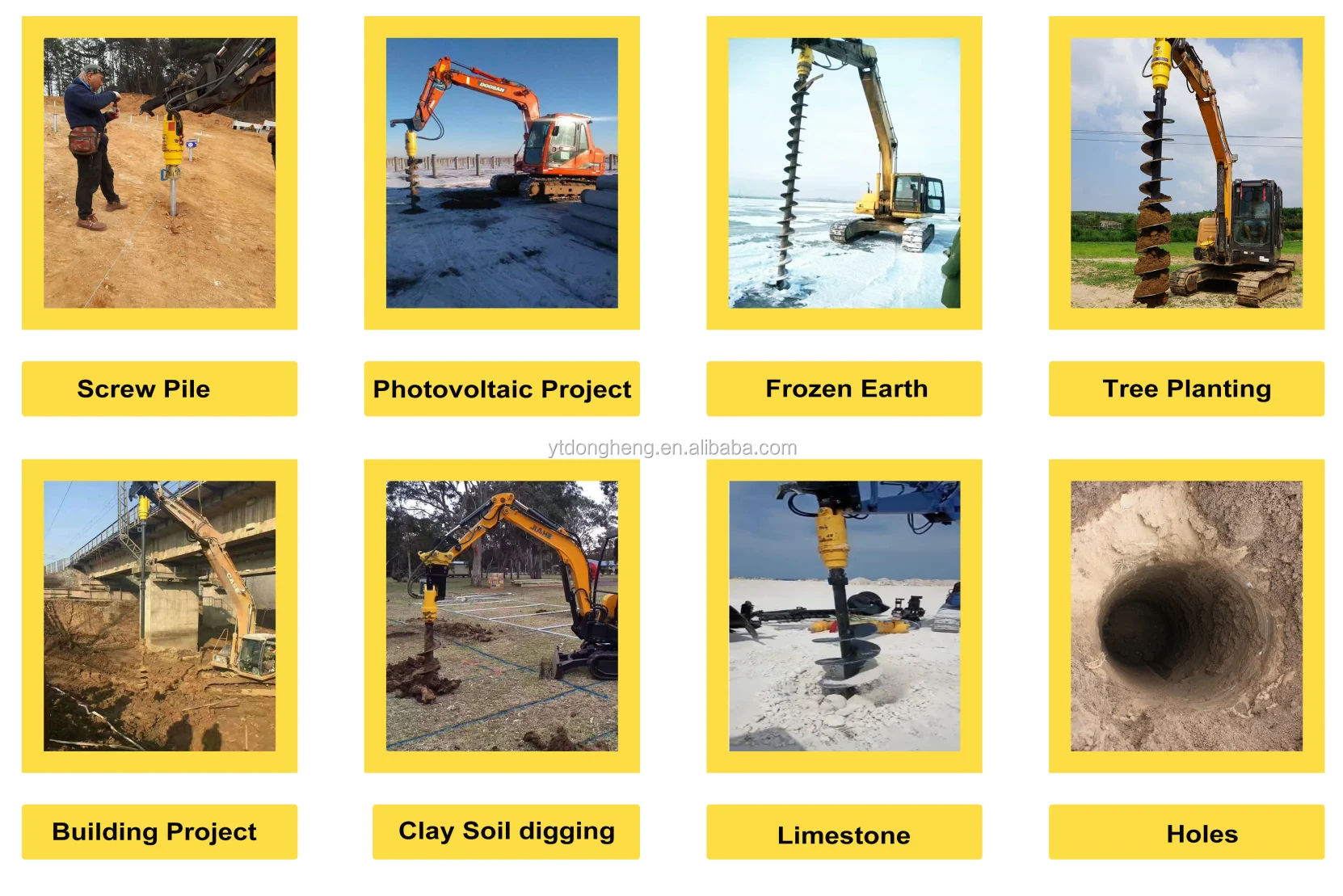

KINGER earth auger application in Landscaping, Tree planting, Well boring, Foundation piles, Screw pile installations, Groundsource heat pumps, Pole and Mast Installations, Solar energy piling, Bridge pier drilling etc.

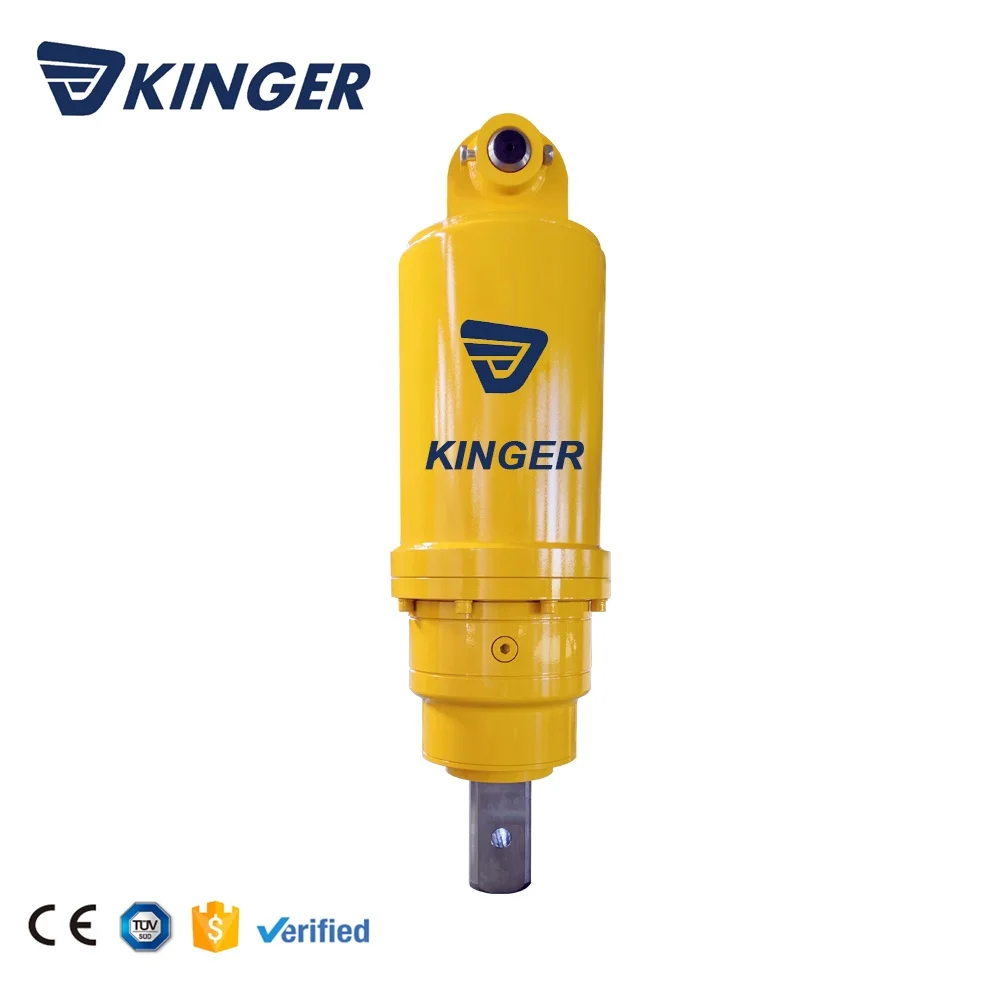

Features of KINGER Hydraulic Earth Auger Drill:
1.Huge range of earth drill to suit 1-50T excavators.
2.High quality Imported Hydraulic motors.

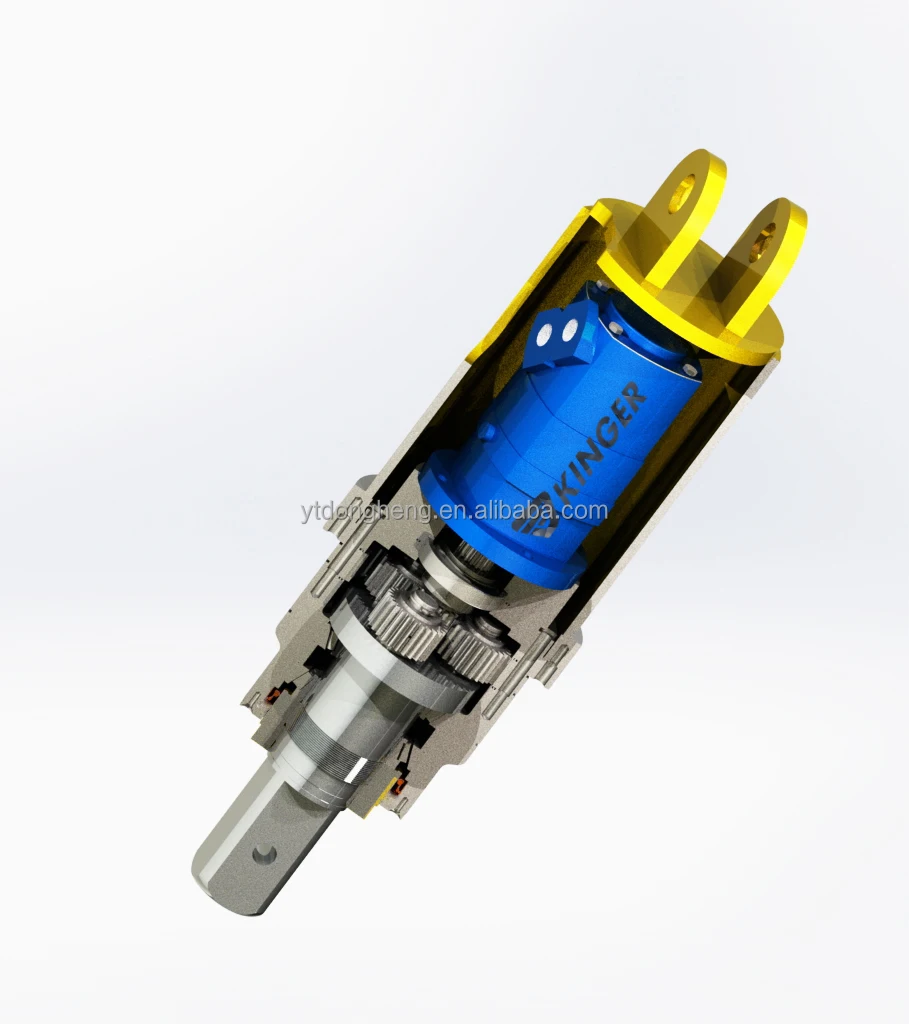

3.Heavy duty Planetary Reductions Gearbox with massive Diameter Output Bearing, Specially researched Gearbox design and
heat-treating skills to make auger with massive torque.
4. Non-dislodgement output shaft.
5.Specially designed auger flight for more earth removal.

KINGER EARTH AUGER SPECIFICATION

Model	YDH4000	YDH4500	YDH5000	YDH5500	YDH6000
Applicable(T)	2-4	3-6	3-6	5-7	5-7
Torque Range(Nm)	1290-3795	1570-4500	1608-4890	1720-5320	1855-5960
Pressure Range(bar)	60-200	60-210	60-210	70-210	70-210
Oil Flow Range(Lpm)	40-80	40-95	40-95	40-115	40-115
Speed Range(r/min)	28-80	32-77	28-57	30-85	27-80
Output shaft(mm)	65Rd	65Rd	65Rd	75Sq	75Sq
Unit Size(mm)	φ200X585	φ245X690	φ245X690	φ270X900	φ270X900
Unit Weight(KG)	52	87	88	119	120

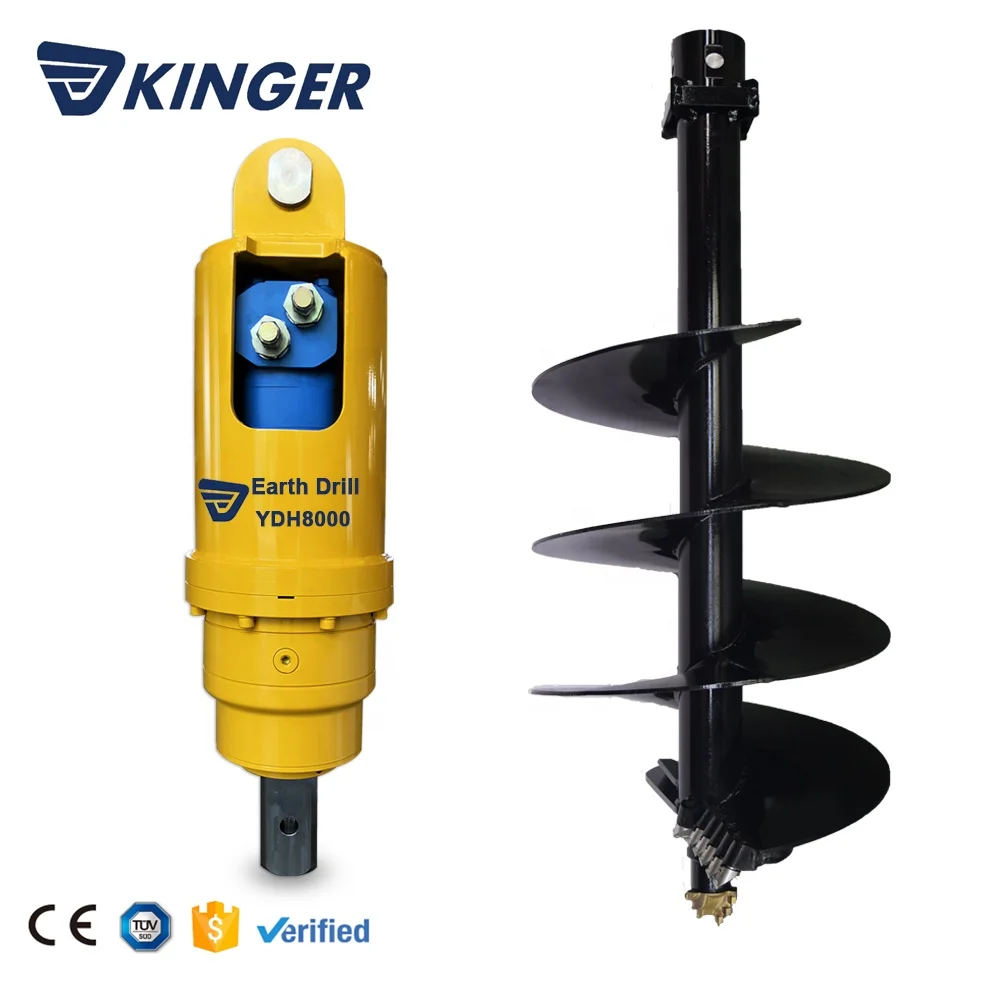

Model	YDH7000	YDH8000	YDH9000	YDH10000	YDH12000
Applicalbe(T)	5-8	5-10	5-8	5-8	10-15
Torque Range(Nm)	2236-7300	2839-8250	3526-8760	3878-10250	4870-12300
Pressure Rang(bar)	70-250	70-250	80-200	80-200	80-200
Oil Flow Range(Lpm)	60-150	60-150	50-95	50-95	50-95
Speed Range(r/min)	35-82	30-72	15-30	12-26	22-47
Output shaft(mm)	75Sq	75Sq	75Sq	75Sq	75Sq
Unit Size(mm)	φ270X900	φ270X900	φ270X870	φ270X870	φ290X945
Unit Weight(KG)	140	142	123	124	172

Model	YDH15000	YDH20000	YDH25000	YDH30000	YDH40000
Applicable(T)	12-17	15-25	17-25	20-30	20-30
Max Torque(Nm)	5007-15160	13787-19200	17233-24920	19578-31500	23251-39500
Pressure Range(bar)	100-240	150-240	150-240	100-210	100-210
Oil Flow Range(Lpm)	80-150	100-170	100-170	100-170	100-170
Speed Range(r/min)	20-45	20-35	15-28	15-22	13-20
Output shaft(mm)	75Sq	95Sq	95Sq	110Sq	110Sq
Unit Size(mm)	φ290X945	φ345X1155	φ345X1155	φ450X1300	φ450X1300
Unit Weight(KG)	175	275	278	485	490

Why choose KINGER?

- More than 12 years manufacture experience

- 18-month warranty for motor and gearbox reduction
- Special heat treatment for gear
- Most complete model ranges for 1-50ton excavator
- Well performance
- Quick after-sale service
- Fast delivery
- Focus on quality all the time

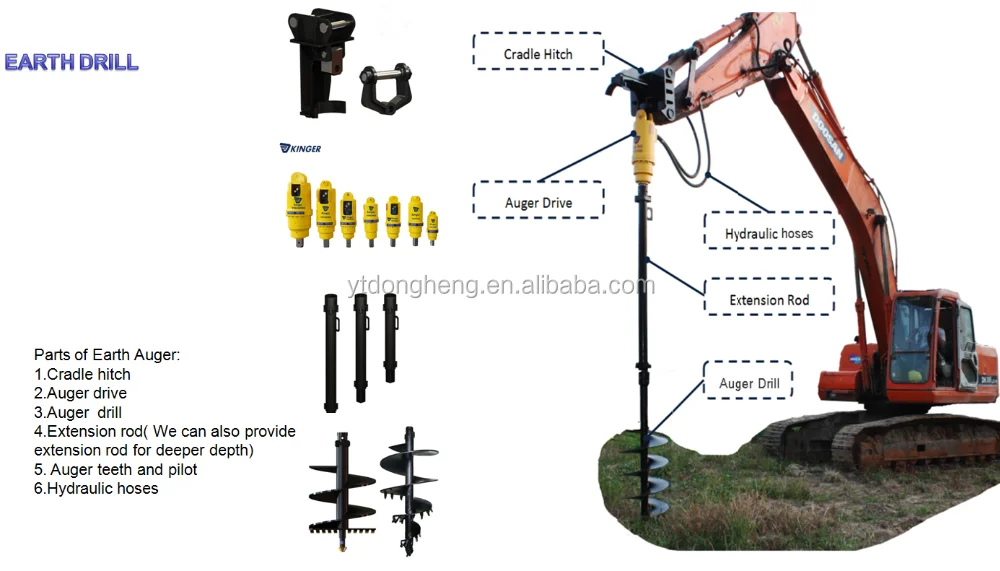

For the whole set earth auger we can supply with a very favorable price.Including auger drive, cradle hitch(mounting hitch), auger stem with auger teeth (Extension rod if needed).
