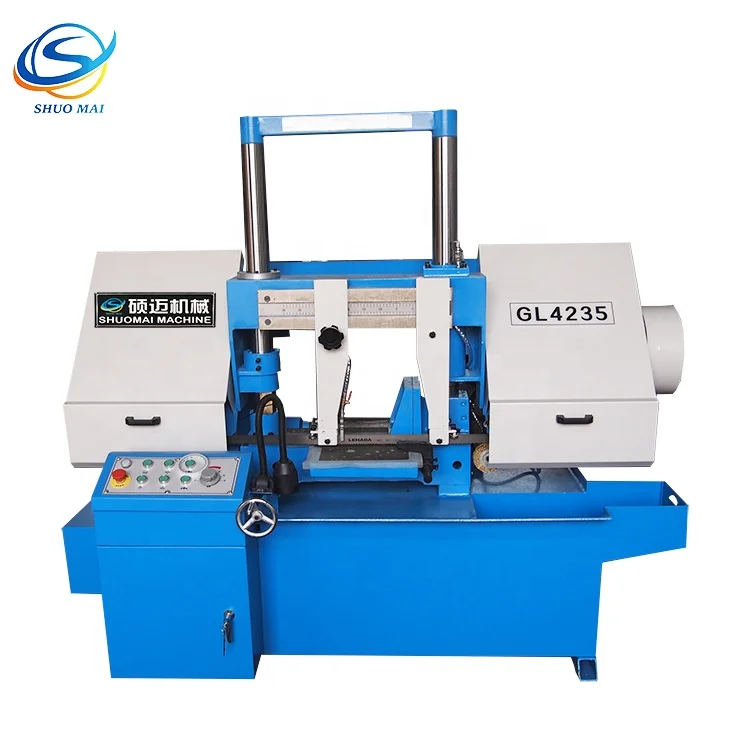

Гидравлическая ленточная пила GL4235 козловая

Сохранить в закладки 62150424732:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Product Description



GL4235 high precision double column gantry pipe band sawing machine

GL4235 high precision double column gantry pipe band sawing machine



Main Specification

 GL4235 high precision double column gantry pipe band sawing machine



Spec

Unit

GL4230

GL4235

Sawing capacity

mm

300-300X300

350-350X350

Speed of Band Saw Blade

m/min

27,45,69

27,45,69

Band Saw BIade Specification

mm

3505X27X0.9

4115X34X1.1

main motor power

kw

3

3

Hydraulic motor

kw

0.55

0.55

Cooling pump

w

40

40

Working clamping mode



Hydraulic vice

Hydraulic vice

Feeding ways



Wheel slip

Wheel slip

Weight

KG

800

900

Packages Dimensions

mm

1950×1100×1750

2100×1160×1850





Spec

Unit

GL4235/50

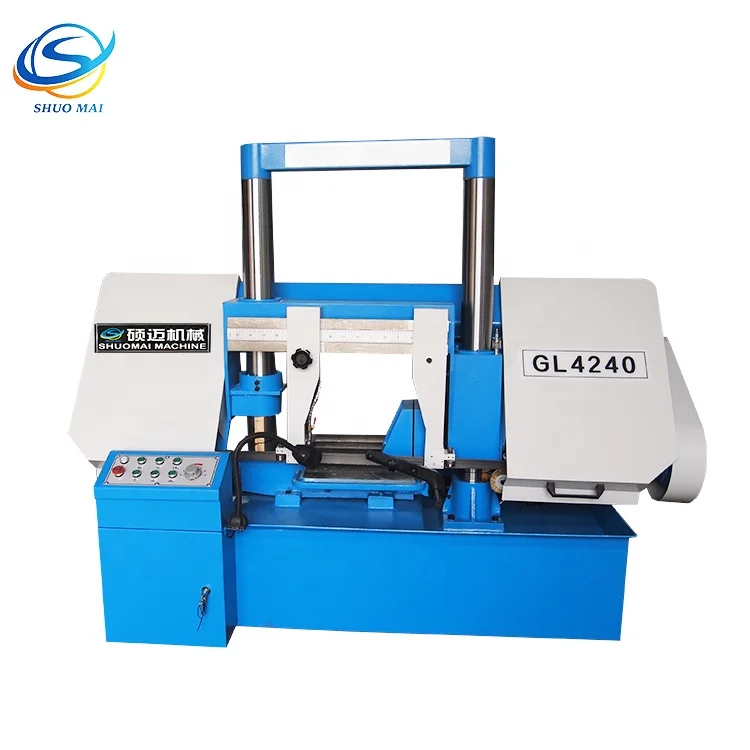

GL4240

Sawing capacity

mm

350-350X500

400-400X400

Speed of Band Saw Blade

m/min

27,45,69

27,45,69

Band Saw BIade Specification

mm

4425X34X1.1

5000X41X1.3

main motor power

kw

4

4

Hydraulic motor

kw

0.55

0.75

Cooling pump

w

90

90

Working clamping mode



Hydraulic vice

Hydraulic vice

Feeding ways



Wheel slip

Wheel slip

Weight

KG

1000

1400

Packages Dimensions

mm

2200×1300×1900

2460×1270×2000





Spec

Unit

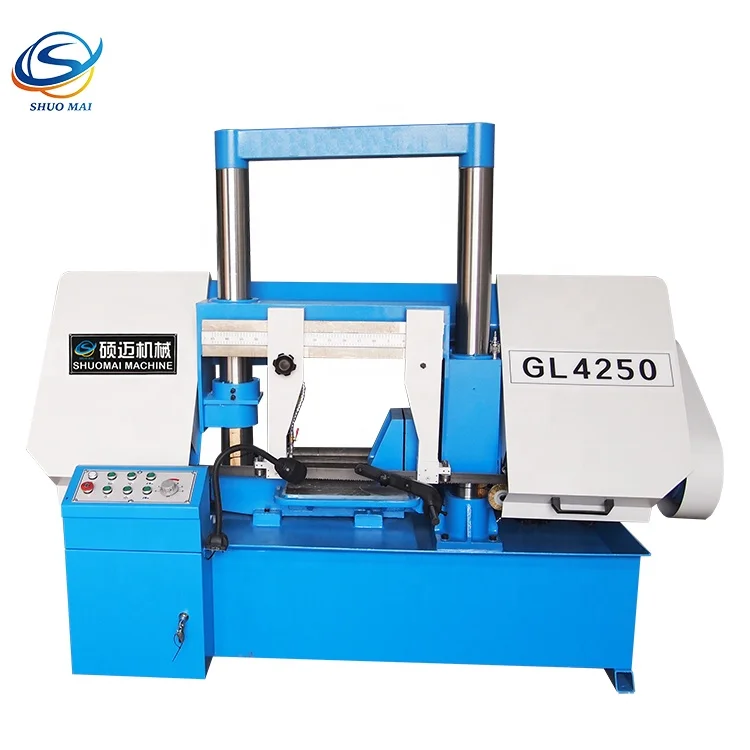

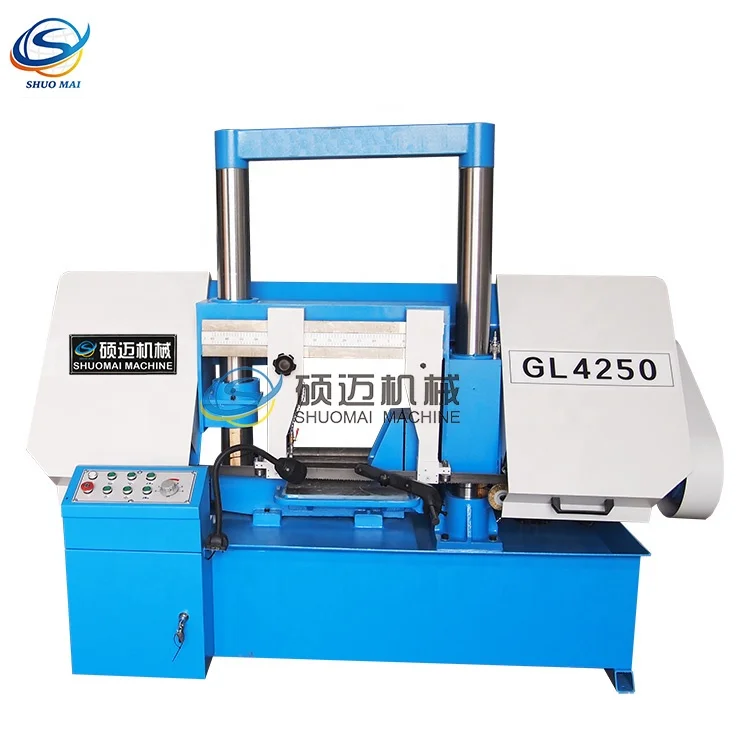

GL4250

GL4260

Sawing capacity

mm

500-500X500

600-600X600

Speed of Band Saw Blade

m/min

27,45,69

27,45,69

Band Saw BIade Specification

mm

5800X41X1.3

6630X67X1.6

main motor power

kw

5.5

5.5

Hydraulic motor

kw

0.75

1.5

Cooling pump

w

90

125

Working clamping mode



Hydraulic vice

Hydraulic vice

Feeding ways



Wheel slip

Wheel slip

Weight

KG

1800

2000

Packages Dimensions

mm

2960×1470×2200

3150×1500×2300





Spec

Unit

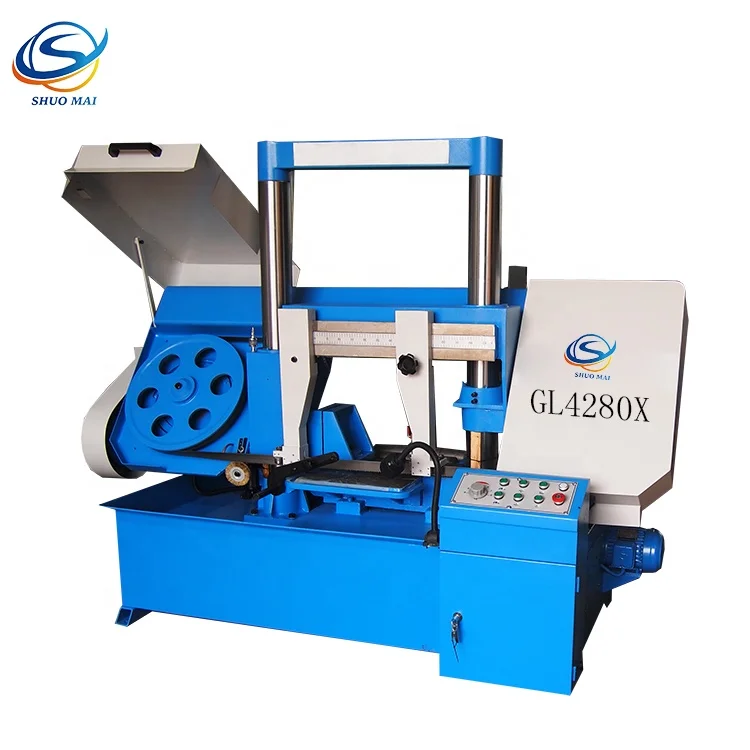

GL4280X

Sawing capacity

mm

800-800X800

Speed of Band Saw Blade

m/min

27,45,69

Band Saw BIade Specification

mm

8820X67X1.6

main motor power

kw

7.5

Hydraulic motor

kw

2.2

Cooling pump

w

125

Working clamping mode



Hydraulic vice

Feeding ways



Wheel slip

Weight

KG

7000

Packages Dimensions

mm

3500×220×2900

Details display

 GL4235 high precision double column gantry pipe band sawing machine

 GL4235 high precision double column gantry pipe band sawing machine



Packaging & Shipping

 GL4235 high precision double column gantry pipe band sawing machineGL4235 high precision double column gantry pipe band sawing machine



Packing Size

2100×1160×1850mm

Packing Weight900kg
Packing mothedNude, or wooden case, or customer's request
20'GPAbout >3 sets
40'HQAbout >7sets
MOQ1 set
Delivery time7-15days





Related hot products

 GL4235 high precision double column gantry pipe band sawing machine



We suppy all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine, Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine , Shaper machine and so on, Welcome to inquiry us.



Company Information

 GL4235 high precision double column gantry pipe band sawing machine

Zaozhuang Shuomai Industrial and commercial Co., Ltd is a foreign-oriented enterprise engaged in the development, design, manufacture, sales and import and export of metal cutting machine tools. Metal cutting machine tools include two major categories, one is CNC lathe, CNC machine center, CNC drilling machine, CNC milling machine, the other is the ordinary machine tools, include lathe machine, radial drilling machine, vertical drilling machine, drilling milling machine, metal band saw, grinding machine, hydraulic machine, boring machine and so on, more than 100 kinds of specifications. Market coverage of the country and exported more than 30 countries and regions.



GL4235 high precision double column gantry pipe band sawing machineGL4235 high precision double column gantry pipe band sawing machineGL4235 high precision double column gantry pipe band sawing machineGL4235 high precision double column gantry pipe band sawing machine



FAQ

 GL4235 high precision double column gantry pipe band sawing machine

1: Are you original manufacture:

 A: Yes, we are an official leading manufacture in MACHINE TOOLS in China, we have the whole series products you need.



2: Whats your company main product:

 A: We suppy all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine, Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine , Shaper machine and so on .



3: What is your trade terms?
A : FOB, CFR and CIF and so on.



4: What's the Payment Terms ?

A : Alibaba trade assurance 30% advance payment ,70% balance payment before shipment ;

OIrrevocable LC at sight .



5: what about the delivery time?

A:7-30 days after receiving the deposit.



6: what about the warranty time?

A: 12 months after shipment.



7: What's the MOQ?
A: 1 set .
